一、创建一个包集合，里面包含自定义的record数据类型，然后用这个数据类型创建一个二维的存储器数组。

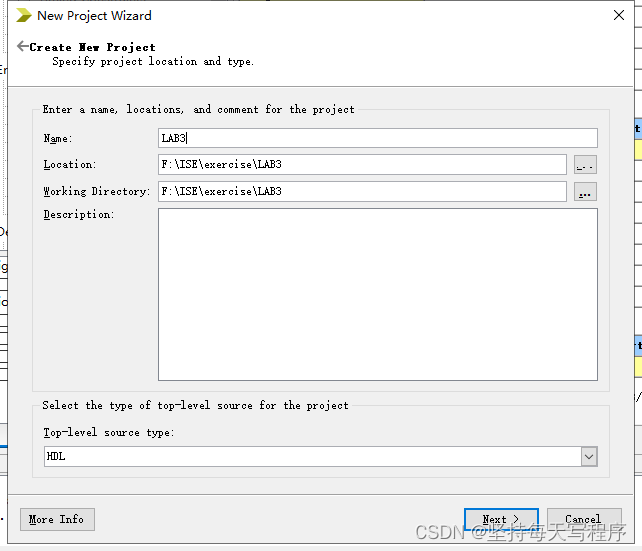

1.新建一个工程

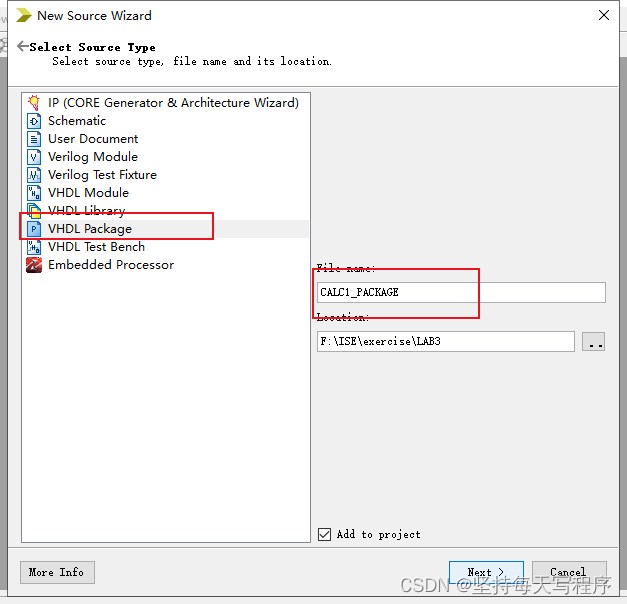

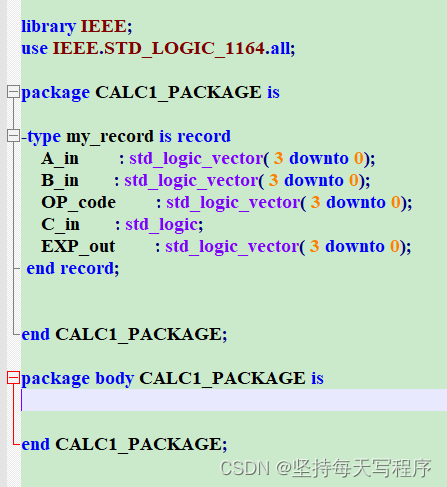

2.创建一个包含记录（record）数据类型的包集合
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16library IEEE; use IEEE.STD_LOGIC_1164.all; package CALC1_PACKAGE is type my_record is record A_in : std_logic_vector( 3 downto 0); B_in : std_logic_vector( 3 downto 0); OP_code : std_logic_vector( 3 downto 0); C_in : std_logic; EXP_out : std_logic_vector( 3 downto 0); end record my_record; end package CALC1_PACKAGE;

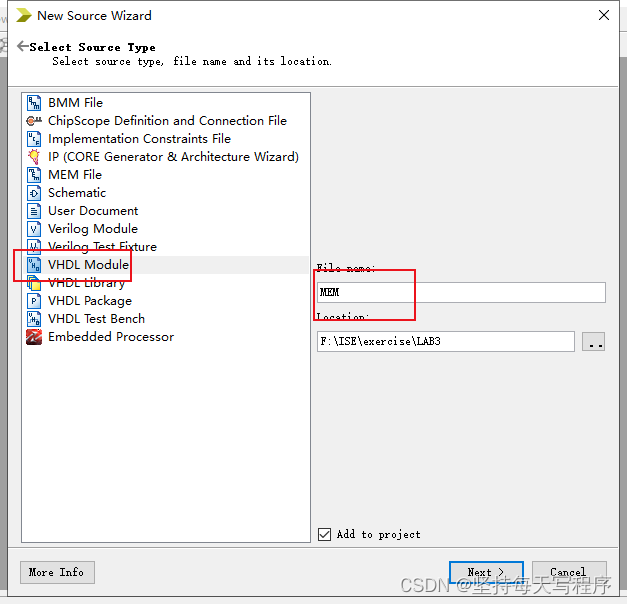

3.创建一个二维存储器数组
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; use WORK.CALC1_PACKAGE.all; entity MEM is Port ( addr : in STD_LOGIC_VECTOR (2 downto 0):="000"; en : in STD_LOGIC; clk : in STD_LOGIC; data_frame : out my_record); end MEM; architecture Behavioral of MEM is type ROM_ARRAY is array (0 to 5) of my_record; constant my_rom : ROM_ARRAY := ( 0 => (A_in => "0000",B_in => "0000",OP_code => "0000",C_in => '0',EXP_out => "0000"), 1 => (A_in => "0000",B_in => "0000",OP_code => "0000",C_in => '0',EXP_out => "0000"), 2 => (A_in => "0000",B_in => "0000",OP_code => "0000",C_in => '0',EXP_out => "0000"), 3 => (A_in => "0000",B_in => "0000",OP_code => "0000",C_in => '0',EXP_out => "0000"), 4 => (A_in => "0000",B_in => "0000",OP_code => "0000",C_in => '0',EXP_out => "0000"), 5 => (A_in => "0000",B_in => "0000",OP_code => "0000",C_in => '0',EXP_out => "0000") ); begin process (clk) begin if(rising_edge(clk)) then if(en = '1') then data_frame <= my_rom(conv_integer(addr)); end if; end if; end process; end Behavioral;
二、状态机计数模块：
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; use WORK.calc1_package.all; -- Uncomment the following library declaration if using -- arithmetic functions with Signed or Unsigned values --use IEEE.NUMERIC_STD.ALL; -- Uncomment the following library declaration if instantiating -- any Xilinx primitives in this code. --library UNISIM; --use UNISIM.VComponents.all; entity fsm is Port ( data_frame : in my_record; clk : in STD_LOGIC; rst : in STD_LOGIC; a_in : out STD_LOGIC_VECTOR (3 downto 0); b_in : out STD_LOGIC_VECTOR (3 downto 0); c_in : out STD_LOGIC; op_code : out STD_LOGIC_VECTOR (3 downto 0); exp_out : out STD_LOGIC_VECTOR (3 downto 0); addr : out STD_LOGIC_VECTOR (2 downto 0); comp_en : out STD_LOGIC; mem_en : out STD_LOGIC; alu_en : out STD_LOGIC); end fsm; architecture Behavioral of fsm is type state is (s0_prep,s1_fetch,s2_alu,s3_comp,s4_done); --5 states signal curr_state,next_state : state; signal addr_i,addr_q:STD_LOGIC_VECTOR (2 downto 0) ; begin addr <= addr_q; P1:process(clk,rst) --state change begin if rst = '1' then curr_state <= s0_prep; addr_q <= (others => '0'); elsif rising_edge(clk) then curr_state <= next_state; addr_q <= addr_i; end if; end process; P2:process(curr_state,data_frame,addr_q) begin a_in <= data_frame.a_in; b_in <= data_frame.b_in; c_in <= data_frame.c_in; op_code <= data_frame.op_code; exp_out <= data_frame.exp_out; addr_i <= addr_q; case curr_state is --state continue when s0_prep => mem_en <= '0'; alu_en <= '0'; comp_en <= '0'; next_state <= s1_fetch; when s1_fetch => mem_en <= '1'; alu_en <= '0'; comp_en <= '0'; next_state <= s2_alu; when s2_alu => mem_en <= '0'; alu_en <= '1'; comp_en <= '0'; next_state <= s3_comp; when s3_comp => mem_en <= '0'; alu_en <= '0'; comp_en <= '1'; next_state <= s4_done; when s4_done => --addr_q++ if addr_q >= "101" then next_state <= s4_done; else next_state <= s1_fetch; addr_i <= addr_q+1; end if; mem_en <= '0'; alu_en <= '0'; comp_en <= '0'; when others => mem_en <= '0'; alu_en <= '0'; comp_en <= '0'; next_state <= s0_prep; end case; end process; end Behavioral;
三、算术逻辑单元
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65---------------------------------------------------------------------------------- -- Company: -- Engineer: -- -- Create Date: 14:32:39 08/14/2022 -- Design Name: -- Module Name: alu - Behavioral -- Project Name: -- Target Devices: -- Tool versions: -- Description: -- -- Dependencies: -- -- Revision: -- Revision 0.01 - File Created -- Additional Comments: -- ---------------------------------------------------------------------------------- library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity alu is Port ( clk : in STD_LOGIC; a_in : in STD_LOGIC_VECTOR (3 downto 0); b_in : in STD_LOGIC_VECTOR (3 downto 0); c_in : in STD_LOGIC; op_code : in STD_LOGIC_VECTOR (3 downto 0); alu_en : in STD_LOGIC; alu_out : out STD_LOGIC_VECTOR (3 downto 0)); end alu; architecture Behavioral of alu is signal op_code_reg : STD_LOGIC_VECTOR (4 downto 0); begin op_code_reg <= op_code & c_in; process(clk) begin if rising_edge(clk) then if(alu_en = '1') then case op_code_reg is when "00000" => alu_out <= a_in; when "00001" => alu_out <= a_in + 1; when "00010" => alu_out <= a_in + b_in; when "00011" => alu_out <= a_in + b_in + 1; when "00100" => alu_out <= a_in + not b_in; when "00101" => alu_out <= a_in + not b_in + 1; when "00110" => alu_out <= a_in - 1; when "00111" => alu_out <= a_in ; when "01000" => alu_out <= a_in and b_in; when "01010" => alu_out <= a_in or b_in; when "01100" => alu_out <= a_in xor b_in; when "01110" => alu_out <= not a_in; when "10000" => alu_out <= (others => '0'); when others => alu_out <= (others => 'X'); end case; end if; end if; end process; end Behavioral;
四、比较器模块
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51---------------------------------------------------------------------------------- -- Company: -- Engineer: -- -- Create Date: 15:04:20 08/14/2022 -- Design Name: -- Module Name: comp - Behavioral -- Project Name: -- Target Devices: -- Tool versions: -- Description: -- -- Dependencies: -- -- Revision: -- Revision 0.01 - File Created -- Additional Comments: -- ---------------------------------------------------------------------------------- library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity comp is Port ( clk : in STD_LOGIC; exp_out : in STD_LOGIC_VECTOR (3 downto 0); alu_out : in STD_LOGIC_VECTOR (3 downto 0); comp_en : in STD_LOGIC; result : out STD_LOGIC); end comp; architecture Behavioral of comp is begin process(clk) begin if rising_edge(clk) then if(comp_en = '1') then if(exp_out = alu_out) then result <= '1'; else result <= '0'; end if; end if; end if; end process; end Behavioral;
五、顶层模块：
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51---------------------------------------------------------------------------------- -- Company: -- Engineer: -- -- Create Date: 15:04:20 08/14/2022 -- Design Name: -- Module Name: comp - Behavioral -- Project Name: -- Target Devices: -- Tool versions: -- Description: -- -- Dependencies: -- -- Revision: -- Revision 0.01 - File Created -- Additional Comments: -- ---------------------------------------------------------------------------------- library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity comp is Port ( clk : in STD_LOGIC; exp_out : in STD_LOGIC_VECTOR (3 downto 0); alu_out : in STD_LOGIC_VECTOR (3 downto 0); comp_en : in STD_LOGIC; result : out STD_LOGIC); end comp; architecture Behavioral of comp is begin process(clk) begin if rising_edge(clk) then if(comp_en = '1') then if(exp_out = alu_out) then result <= '1'; else result <= '0'; end if; end if; end if; end process; end Behavioral;
六、仿真模块：
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158-------------------------------------------------------------------------------- -- Company: -- Engineer: -- -- Create Date: 16:49:21 08/14/2022 -- Design Name: -- Module Name: F:/ISE/exercise/LAB3/tb.vhd -- Project Name: LAB3 -- Target Device: -- Tool versions: -- Description: -- -- VHDL Test Bench Created by ISE for module: top -- -- Dependencies: -- -- Revision: -- Revision 0.01 - File Created -- Additional Comments: -- -- Notes: -- This testbench has been automatically generated using types std_logic and -- std_logic_vector for the ports of the unit under test. Xilinx recommends -- that these types always be used for the top-level I/O of a design in order -- to guarantee that the testbench will bind correctly to the post-implementation -- simulation model. -------------------------------------------------------------------------------- LIBRARY ieee; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; use WORK.calc1_package.all; -- Uncomment the following library declaration if using -- arithmetic functions with Signed or Unsigned values --USE ieee.numeric_std.ALL; ENTITY tb IS END tb; ARCHITECTURE behavior OF tb IS -- Component Declaration for the Unit Under Test (UUT) COMPONENT top PORT( clk : IN std_logic; rst : IN std_logic; result : OUT std_logic ); END COMPONENT; component mem is Port ( addr : in STD_LOGIC_VECTOR (2 downto 0); mem_en : in STD_LOGIC; clk : in STD_LOGIC; data_frame : out my_record); end component; component fsm is Port ( data_frame : in my_record; clk : in STD_LOGIC; rst : in STD_LOGIC; a_in : out STD_LOGIC_VECTOR (3 downto 0); b_in : out STD_LOGIC_VECTOR (3 downto 0); c_in : out STD_LOGIC; op_code : out STD_LOGIC_VECTOR (3 downto 0); exp_out : out STD_LOGIC_VECTOR (3 downto 0); addr : out STD_LOGIC_VECTOR (2 downto 0); comp_en : out STD_LOGIC; mem_en : out STD_LOGIC; alu_en : out STD_LOGIC); end component; component alu is Port ( clk : in STD_LOGIC; a_in : in STD_LOGIC_VECTOR (3 downto 0); b_in : in STD_LOGIC_VECTOR (3 downto 0); c_in : in STD_LOGIC; op_code : in STD_LOGIC_VECTOR (3 downto 0); alu_en : in STD_LOGIC; alu_out : out STD_LOGIC_VECTOR (3 downto 0)); end component; component comp is Port ( clk : in STD_LOGIC; exp_out : in STD_LOGIC_VECTOR (3 downto 0); alu_out : in STD_LOGIC_VECTOR (3 downto 0); comp_en : in STD_LOGIC; result : out STD_LOGIC); end component; --Inputs signal clk : std_logic := '0'; signal rst : std_logic := '1'; --Outputs signal result : std_logic; signal addr1 : STD_LOGIC_VECTOR (2 downto 0); signal mem_en1 : STD_LOGIC; -- signal clk1 : STD_LOGIC; signal data_frame1 : my_record; -- signal rst1 : STD_LOGIC; signal a_in1 : STD_LOGIC_VECTOR (3 downto 0); signal b_in1 : STD_LOGIC_VECTOR (3 downto 0); signal c_in1 : STD_LOGIC; signal op_code1 : STD_LOGIC_VECTOR (3 downto 0); signal exp_out1 : STD_LOGIC_VECTOR (3 downto 0); signal comp_en1 : STD_LOGIC; signal alu_en1 : STD_LOGIC; signal alu_out1 : STD_LOGIC_VECTOR (3 downto 0); -- Clock period definitions constant clk_period : time := 10 ns; BEGIN -- Instantiate the Unit Under Test (UUT) uut: top PORT MAP ( clk => clk, rst => rst, result => result ); U0: mem port map (addr =>addr1,mem_en=>mem_en1,clk=>clk,data_frame=>data_frame1); U1: fsm port map (data_frame=>data_frame1,clk=>clk,rst=>rst,a_in=>a_in1, b_in=>b_in1,c_in=>c_in1,op_code=>op_code1,exp_out=>exp_out1, addr=>addr1,comp_en=>comp_en1,mem_en=>mem_en1,alu_en=>alu_en1); U2: alu port map (clk=>clk,a_in=>a_in1,b_in=>b_in1,c_in=>c_in1,op_code=>op_code1,alu_en=>alu_en1,alu_out=>alu_out1); U3: comp port map (clk=>clk,exp_out=>exp_out1,alu_out=>alu_out1,comp_en=>comp_en1,result=>result); -- Clock process definitions clk_process :process begin clk <= '0'; wait for clk_period/2; clk <= '1'; wait for clk_period/2; end process; -- Stimulus process stim_proc: process begin -- hold reset state for 100 ns. rst <= '1'; wait for 100 ns; rst <= '0'; -- wait for clk_period*10; -- insert stimulus here wait; end process; END;
最后
