MIMO(matlab)

第一种方法
代码：

复制代码

clear all
datasize = 10000000; %仿真的符号数
EbN0 = 0:30; %信噪比
M = 2; %BPSK调制
x = randsrc(2,datasize/2,[0:1]); %数据源符号 2 x 500000
s = randsrc(1,datasize/2,[0:1]); % 1 x 500000
x1 = pskmod(x,M,pi);%BPSK编码
s1 = pskmod(s,M,pi);
h = randn(2,datasize/2) + j*randn(2,datasize/2); %Rayleigh衰落信道
h = h./sqrt(2); %能量归一化
for index=1:length(EbN0)
%1发1收
sigma1 = sqrt(1/(2*10.^(EbN0(index)/10))); %SISO信道高斯白噪声标准差
n0 = sigma1*(randn(2,datasize/2)+ j*randn(2,datasize/2));
y1 = x1 + n0./h; %通过SISO瑞利衰落信道后的判决变量
x2 = pskdemod(y1,M,pi);
%2发1收
sigma2 = sqrt(1/(10.^(EbN0(index)/10))); %Alamouti方案每个子信道高斯白噪声标准差
n = sigma2*(randn(2,datasize/2)+j*randn(2,datasize/2));
n1(1,:) = (conj(h(1,:)).*n(1,:)+h(2,:).*conj(n(2,:)))./(sum(abs(h).^2));
n1(2,:) = (conj(h(2,:)).*n(1,:)-h(1,:).*conj(n(2,:)))./(sum(abs(h).^2));
y2 = x1 + n1;
%Alamouti方案的判决变量
x3 = pskdemod(y2,M,pi);
%1发2收
n2=(conj(h(1,:)).*n0(1,:)+conj(h(2,:)).*n0(2,:))./(sum(abs(h).^2));
y3=s1+n2;
x4 = pskdemod(y3,M,pi);
[temp,ber2(index)] = biterr(x,x2,log2(M));
[temp,ber3(index)] = biterr(x,x3,log2(M));
[temp,ber4(index)] = biterr(s,x4,log2(M));
end
semilogy(EbN0,ber2,'-ko',EbN0,ber3,'-kdiamond',EbN0,ber4,'-kv')
grid on
legend(' no diversity(1Tx,1Rx)', 'new scheme(2Tx,1Rx)','MRRC(1Tx,2Rx)')
xlabel('SNR')
ylabel('BER')
axis([0 30 1e-4 1]);
title('MIMO')

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
clear all
datasize = 10000000; %仿真的符号数
EbN0 = 0:30; %信噪比
M = 2; %BPSK调制
x = randsrc(2,datasize/2,[0:1]); %数据源符号 2 x 500000
s = randsrc(1,datasize/2,[0:1]); % 1 x 500000
x1 = pskmod(x,M,pi);%BPSK编码
s1 = pskmod(s,M,pi);
h = randn(2,datasize/2) + j*randn(2,datasize/2); %Rayleigh衰落信道
h = h./sqrt(2); %能量归一化
for index=1:length(EbN0)
%1发1收
sigma1 = sqrt(1/(2*10.^(EbN0(index)/10))); %SISO信道高斯白噪声标准差
n0 = sigma1*(randn(2,datasize/2)+ j*randn(2,datasize/2));
y1 = x1 + n0./h; %通过SISO瑞利衰落信道后的判决变量
x2 = pskdemod(y1,M,pi);
%2发1收
sigma2 = sqrt(1/(10.^(EbN0(index)/10))); %Alamouti方案每个子信道高斯白噪声标准差
n = sigma2*(randn(2,datasize/2)+j*randn(2,datasize/2));
n1(1,:) = (conj(h(1,:)).*n(1,:)+h(2,:).*conj(n(2,:)))./(sum(abs(h).^2));
n1(2,:) = (conj(h(2,:)).*n(1,:)-h(1,:).*conj(n(2,:)))./(sum(abs(h).^2));
y2 = x1 + n1;
%Alamouti方案的判决变量
x3 = pskdemod(y2,M,pi);
%1发2收
n2=(conj(h(1,:)).*n0(1,:)+conj(h(2,:)).*n0(2,:))./(sum(abs(h).^2));
y3=s1+n2;
x4 = pskdemod(y3,M,pi);
[temp,ber2(index)] = biterr(x,x2,log2(M));
[temp,ber3(index)] = biterr(x,x3,log2(M));
[temp,ber4(index)] = biterr(s,x4,log2(M));
end
semilogy(EbN0,ber2,'-ko',EbN0,ber3,'-kdiamond',EbN0,ber4,'-kv')
grid on
legend(' no diversity(1Tx,1Rx)', 'new scheme(2Tx,1Rx)','MRRC(1Tx,2Rx)')
xlabel('SNR')
ylabel('BER')
axis([0 30 1e-4 1]);
title('MIMO')

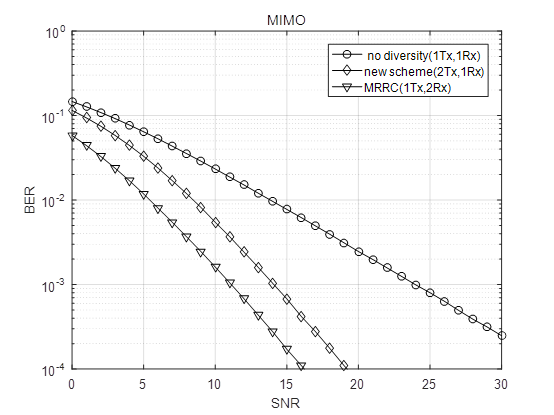

最终结果

小结

1.仿真符号数会影响图像
如果符号数少，会导致图像下部出现失真（将代码中符号数改为1000000即可看出差别）。

第二种方法（以matlab文档为基础）
代码：

复制代码

frmLen = 100;
% 数据长度
numPackets = 1000;
% 个数
EbNo = 0:2:20;
% 信噪比
N = 2;
% 最大发射天线数
M = 2;
% 最大接收天线数
% BPSK
P = 2;
hMod
= comm.BPSKModulator;
hDemod = comm.BPSKDemodulator('OutputDataType','double');
% 利用alzmouti方法
hAlamoutiEnc = comm.OSTBCEncoder;
hAlamoutiDec = comm.OSTBCCombiner;
hAWGN1Rx = comm.AWGNChannel('NoiseMethod', 'Signal to noise ratio (Eb/No)',...
'SignalPower', 1);
hAWGN2Rx = clone(hAWGN1Rx);
% 误码率计算
hErrorCalc1 = comm.ErrorRate;
hErrorCalc2 = comm.ErrorRate;
hErrorCalc3 = comm.ErrorRate;
% 为提高速度预置
H = zeros(frmLen, N, M);
ber_noDiver
= zeros(3,length(EbNo));
ber_Alamouti = zeros(3,length(EbNo));
ber_MaxRatio = zeros(3,length(EbNo));
grid on;
hold on;
ax = gca;
ax.YScale = 'log';
xlim([EbNo(1), EbNo(end)]);
ylim([1e-4 1]);
xlabel('Eb/No (dB)');
ylabel('BER');
title('1x1,1x2,1x3');
for idx = 1:length(EbNo)
reset(hErrorCalc1);
reset(hErrorCalc2);
reset(hErrorCalc3);
hAWGN1Rx.EbNo = EbNo(idx);
hAWGN2Rx.EbNo = EbNo(idx);
for packetIdx = 1:numPackets
% 生成每一帧的数据
data = randi([0 P-1], frmLen, 1);
% 调制数据
modData = step(hMod, data);
% Alamouti空时编码
encData = step(hAlamoutiEnc, modData);
%为发射天线和接收天线构造瑞利衰落响应矩阵
H(1:N:end, :, :) = (randn(frmLen/2, N, M) + ...
1i*randn(frmLen/2, N, M))/sqrt(2);
% 假设保持两个符号周期不变
H(2:N:end, :, :) = H(1:N:end, :, :);
%
H代表1x1, 2x1， 1x2信道
H11 = H(:,1,1);
H21 = H(:,:,1)/sqrt(2);
H12 = squeeze(H(:,1,:));
% 经过信道传输
chanOut11 = H11 .* modData;
chanOut21 = sum(H21.* encData, 2);
chanOut12 = H12 .* repmat(modData, 1, 2);
% 添加AWGN（加性高斯白噪声信道）影响
rxSig11 = step(hAWGN1Rx, chanOut11);
rxSig21 = step(hAWGN1Rx, chanOut21);
rxSig12 = step(hAWGN2Rx, chanOut12);
% Alamouti空时编码合成
decData = step(hAlamoutiDec, rxSig21, H21);
% 最大距离检测
demod11 = step(hDemod, rxSig11.*conj(H11));
demod21 = step(hDemod, decData);
demod12 = step(hDemod, sum(rxSig12.*conj(H12), 2));
ber_noDiver(:,idx)
= step(hErrorCalc1, data, demod11);
ber_Alamouti(:,idx) = step(hErrorCalc2, data, demod21);
ber_MaxRatio(:,idx) = step(hErrorCalc3, data, demod12);
end

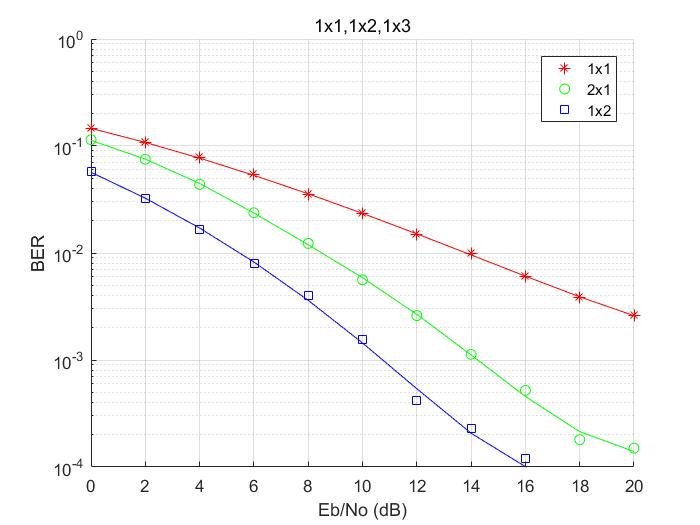

% 画图
semilogy(EbNo(1:idx), ber_noDiver(1,1:idx), 'r*', ...
EbNo(1:idx), ber_Alamouti(1,1:idx), 'go', ...
EbNo(1:idx), ber_MaxRatio(1,1:idx), 'bs')
legend('1x1', '2x1','1x2');
drawnow;
end
fitBER11 = berfit(EbNo, ber_noDiver(1,:));
fitBER21 = berfit(EbNo, ber_Alamouti(1,:));
fitBER12 = berfit(EbNo, ber_MaxRatio(1,:));
semilogy(EbNo, fitBER11, 'r', EbNo, fitBER21, 'g', EbNo, fitBER12, 'b');
hold off;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
frmLen = 100;
% 数据长度
numPackets = 1000;
% 个数
EbNo = 0:2:20;
% 信噪比
N = 2;
% 最大发射天线数
M = 2;
% 最大接收天线数
% BPSK
P = 2;
hMod
= comm.BPSKModulator;
hDemod = comm.BPSKDemodulator('OutputDataType','double');
% 利用alzmouti方法
hAlamoutiEnc = comm.OSTBCEncoder;
hAlamoutiDec = comm.OSTBCCombiner;
hAWGN1Rx = comm.AWGNChannel('NoiseMethod', 'Signal to noise ratio (Eb/No)',...
'SignalPower', 1);
hAWGN2Rx = clone(hAWGN1Rx);
% 误码率计算
hErrorCalc1 = comm.ErrorRate;
hErrorCalc2 = comm.ErrorRate;
hErrorCalc3 = comm.ErrorRate;
% 为提高速度预置
H = zeros(frmLen, N, M);
ber_noDiver
= zeros(3,length(EbNo));
ber_Alamouti = zeros(3,length(EbNo));
ber_MaxRatio = zeros(3,length(EbNo));
grid on;
hold on;
ax = gca;
ax.YScale = 'log';
xlim([EbNo(1), EbNo(end)]);
ylim([1e-4 1]);
xlabel('Eb/No (dB)');
ylabel('BER');
title('1x1,1x2,1x3');
for idx = 1:length(EbNo)
reset(hErrorCalc1);
reset(hErrorCalc2);
reset(hErrorCalc3);
hAWGN1Rx.EbNo = EbNo(idx);
hAWGN2Rx.EbNo = EbNo(idx);
for packetIdx = 1:numPackets
% 生成每一帧的数据
data = randi([0 P-1], frmLen, 1);
% 调制数据
modData = step(hMod, data);
% Alamouti空时编码
encData = step(hAlamoutiEnc, modData);
%为发射天线和接收天线构造瑞利衰落响应矩阵
H(1:N:end, :, :) = (randn(frmLen/2, N, M) + ...
1i*randn(frmLen/2, N, M))/sqrt(2);
% 假设保持两个符号周期不变
H(2:N:end, :, :) = H(1:N:end, :, :);
%
H代表1x1, 2x1， 1x2信道
H11 = H(:,1,1);
H21 = H(:,:,1)/sqrt(2);
H12 = squeeze(H(:,1,:));
% 经过信道传输
chanOut11 = H11 .* modData;
chanOut21 = sum(H21.* encData, 2);
chanOut12 = H12 .* repmat(modData, 1, 2);
% 添加AWGN（加性高斯白噪声信道）影响
rxSig11 = step(hAWGN1Rx, chanOut11);
rxSig21 = step(hAWGN1Rx, chanOut21);
rxSig12 = step(hAWGN2Rx, chanOut12);
% Alamouti空时编码合成
decData = step(hAlamoutiDec, rxSig21, H21);
% 最大距离检测
demod11 = step(hDemod, rxSig11.*conj(H11));
demod21 = step(hDemod, decData);
demod12 = step(hDemod, sum(rxSig12.*conj(H12), 2));
ber_noDiver(:,idx)
= step(hErrorCalc1, data, demod11);
ber_Alamouti(:,idx) = step(hErrorCalc2, data, demod21);
ber_MaxRatio(:,idx) = step(hErrorCalc3, data, demod12);
end
% 画图
semilogy(EbNo(1:idx), ber_noDiver(1,1:idx), 'r*', ...
EbNo(1:idx), ber_Alamouti(1,1:idx), 'go', ...
EbNo(1:idx), ber_MaxRatio(1,1:idx), 'bs')
legend('1x1', '2x1','1x2');
drawnow;
end
fitBER11 = berfit(EbNo, ber_noDiver(1,:));
fitBER21 = berfit(EbNo, ber_Alamouti(1,:));
fitBER12 = berfit(EbNo, ber_MaxRatio(1,:));
semilogy(EbNo, fitBER11, 'r', EbNo, fitBER21, 'g', EbNo, fitBER12, 'b');
hold off;
