基于Arduino、ESP8266的物联网项目开发方案整理、毕业设计（第二波）

169 阅读 0 评论
我是靠谱客的博主 时尚向日葵，这篇文章主要介绍基于Arduino、ESP8266的物联网项目开发方案整理、毕业设计（第二波），现在分享给大家，希望可以做个参考。

文章目录

    • 1、背景
    • 2、项目整理
      • 2.1 Home Office —— 在家办公时调节休息的灯
        • 2.1.1 功能介绍
        • 2.1.2 实物图片
        • 2.1.3 视频
        • 2.1.4 源代码
      • 2.2 仿生珊瑚
        • 2.2.1 功能介绍
        • 2.2.2 实物图片
        • 2.2.3 视频
        • 2.2.4 源代码
      • 2.3 气体传感器 —— 气体检测
        • 2.3.1 功能介绍
        • 2.3.2 实物图片
        • 2.3.3 视频
        • 2.3.4 源代码
      • 2.4 气体采集平台
        • 2.4.1 功能介绍
        • 2.4.2 实物图片
        • 2.4.3 视频
        • 2.4.4 源代码
    • 3、如何联系我们

博主联系方式汇总（非诚勿扰）
博主联系方式汇总（非诚勿扰）
博主联系方式汇总（非诚勿扰）

1、背景

了解博哥的同学都知道，作为一名电子爱好者，博哥除了平时乐于分享基础知识之外，还需要肩负起减轻家庭负担的责任（毕竟从农村走出来的孩子）。

目前，一般加博哥好友的人大概可以分为两类：

  • 学习知识（这一部分目前基本上都很正常运转起来，更多人还是喜欢我的ESP8266开发系列，主要着重点在于基础）
  • 项目开发、毕业设计等（这一部分内容缺失，没有一系列的帖子去记录过博哥有经历过哪些项目开发，不一定是我开发的。。。。）

所以，经过仔细考虑还是需要去介绍一下一些项目开发整理。

2、项目整理

主要分为几个项目：

  • Home Office
  • 仿生珊瑚
  • 气体传感器
  • 气体采集平台

2.1 Home Office —— 在家办公时调节休息的灯

2.1.1 功能介绍

  • 0、用户A是个设计师，疫情在家工作也常常要加班。大量的工作很容易让他烦躁并且缺乏休息（用户背景）。
  • 1、当时间到达T1(hh1:mm1:ss1)时、表示上班时间到了。随着时间的推移，光线会慢慢变暗（人工拉动窗帘或者遮挡光敏传感器）如果光敏电阻检测到环境暗，则灯环自动亮暖色（环境越暗灯环越亮）。//这里是避免由于忘记开灯，伤害眼睛
  • 2、连续亮了t分钟后，灯变暗变绿色呼吸灯效果， MP3模块播放音乐，提醒用户A休息。
  • 3、 只有当人手摸着心率/心跳传感器，检测到稳定（舒畅的状态）时，心跳稳定且平静则恢复1中的暖光，这时重新计时t。//比如像我这种工作狂 灯一灭就想立刻重启继续，那就要心跳传感器给予验证，脉搏是OK的才行
  • 4、需要去休息时，点击开关按钮， 灯进入休眠（关闭灯），到第二天的T2(hh2:mm2:ss2)再次开启。
  • 5、测试的时候，T1和T2可以设置的间隔短一点，比如5分钟。

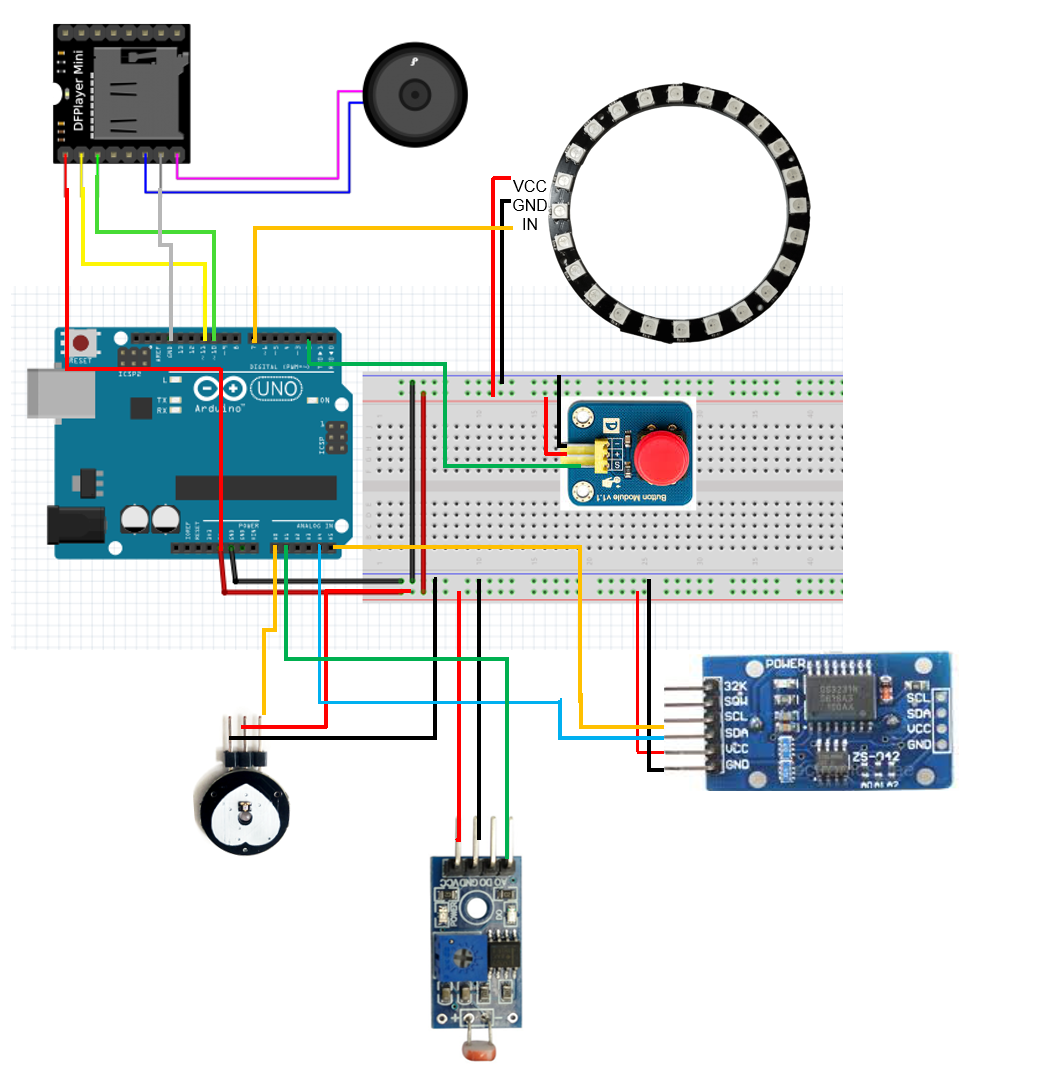

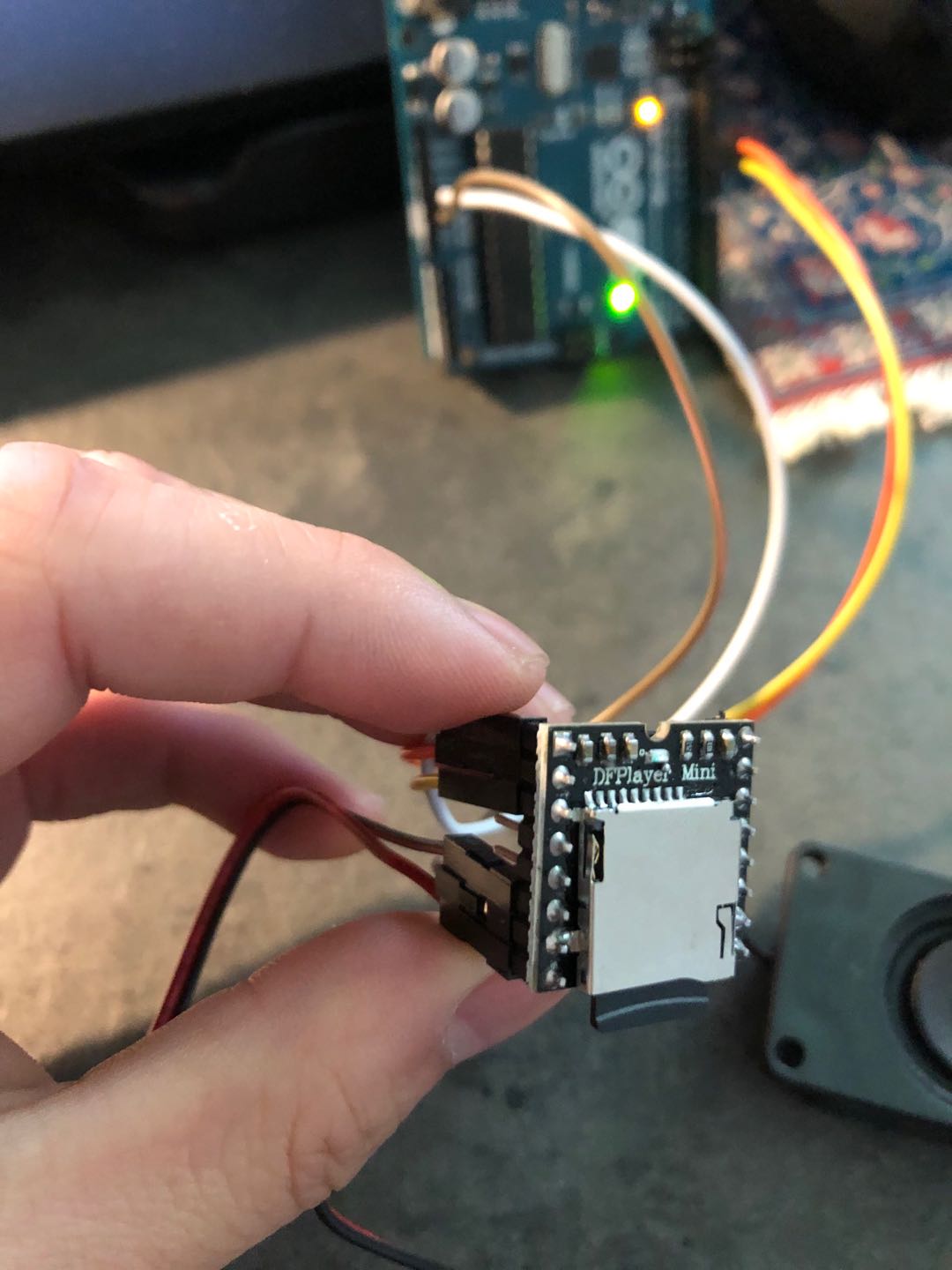

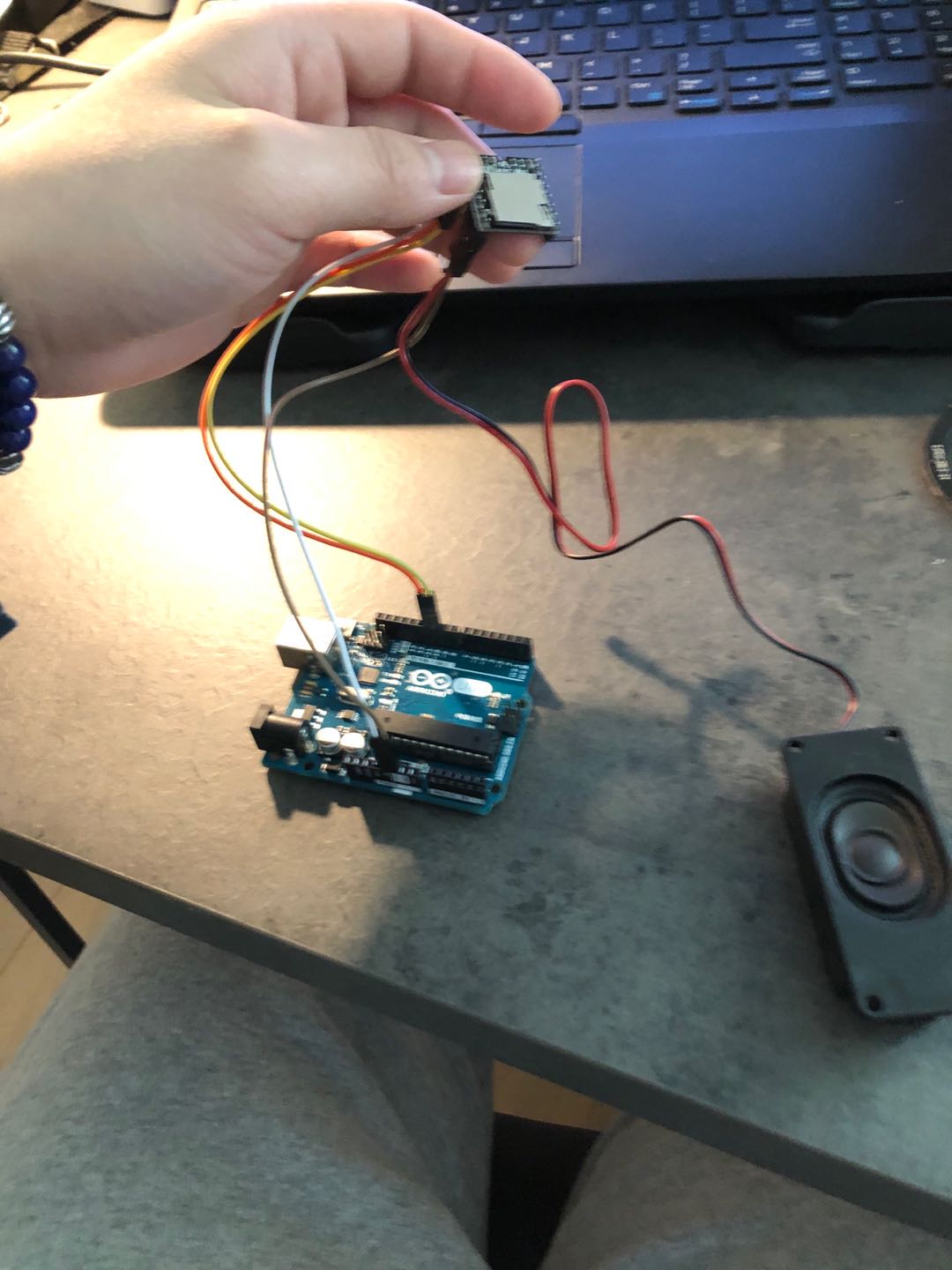

2.1.2 实物图片

1、1Arduino nano或uno
2、1DS3231时钟模块（含纽扣电池）
3、1光敏电阻（模块）
4、124位 WS2812LED灯环
5、1无源蜂鸣器/mp3模块
6、1心率传感器/心跳传感器
7、1*9v电池
8、其他可能需要的元器件（面包板、按钮、电阻、电容、导线等）

在这里插入图片描述

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

2.1.3 视频

演示视频暂时无法上传（需要的可以另外帖子留言）

2.1.4 源代码

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
#include <DS3231.h>
#include <Wire.h>
DS3231 Clock;
bool Century=false;
bool h12;
bool PM;
bool work_flag = 1;
int flag = 0;        //调试用
int second,minute,hour,date,month,year,temperature;


#define USE_ARDUINO_INTERRUPTS true
#include <PulseSensorPlayground.h>

const int OUTPUT_TYPE = SERIAL_PLOTTER;

const int PULSE_INPUT = A0;
const int PULSE_BLINK = 13;    // Pin 13 is the on-board LED
const int PULSE_FADE = 5;
const int THRESHOLD = 530;   // Adjust this number to avoid noise when idle
int BPM = 0;

int old_min = 0;
PulseSensorPlayground pulseSensor;

#include <Adafruit_NeoPixel.h>

#include "Arduino.h"
#include "SoftwareSerial.h"
#include "DFRobotDFPlayerMini.h"

SoftwareSerial mySoftwareSerial(10, 11); // RX, TX
DFRobotDFPlayerMini myDFPlayer;

#define button_1  2               //按钮引脚
#define LED_PIN       7         //LED引脚
#define NUMPIXELS     24           //LED数量
#define Bright_PIN    A1        //光感引脚
#define hode_time     1000          //闪烁速度调节
#define work_time_hour     16           //工作时间h
#define work_time_min      10           //工作时间min
#define wake_time_hour     9            //唤醒时间h
#define wake_time_min     20           //唤醒时间min
#define rest_time       1             //休息提醒时长间隔
#define rest_time_delay    15          //休息时长(单位S)

int Set_BPM = 180;                         //设置舒缓心率
int Set_Min_BPM = 140;
Adafruit_NeoPixel pixels(NUMPIXELS, LED_PIN, NEO_GRB + NEO_KHZ800);

int LED_num = 24;
int LED_flag = 0;
bool play_flag = 1;
int LED_Bright = 200;                 //LED亮度设置 0-255
unsigned long int cur_time = 0;        //LED渐变初始时间
unsigned long int Readtime = 0;
void setup() {
  Wire.begin();
//        Clock.setSecond(50);//Set the second
//        Clock.setMinute(8);//Set the minute
//        Clock.setHour(0);  //Set the hour
//        Clock.setDoW(4);    //Set the day of the week
//        Clock.setDate(9);  //Set the date of the month
//        Clock.setMonth(7);  //Set the month of the year
//        Clock.setYear(20);  //Set the year (Last two digits of the year)
  ReadDS3231();
  old_min = minute;
  pixels.begin();
  pixels.setBrightness(LED_Bright);
  mySoftwareSerial.begin(9600);

  Serial.println();
  Serial.println(F("DFRobot DFPlayer Mini Demo"));
  Serial.println(F("Initializing DFPlayer ... (May take 3~5 seconds)"));

  if (!myDFPlayer.begin(mySoftwareSerial)) {  //Use softwareSerial to communicate with mp3.
    Serial.println(F("Unable to begin:"));
    Serial.println(F("1.Please recheck the connection!"));
    Serial.println(F("2.Please insert the SD card!"));
//    while(true);
  }
  Serial.println(F("DFPlayer Mini online."));

  myDFPlayer.volume(30);  //Set volume value. From 0 to 30
  Serial.begin(115200);
  pinMode(button_1,INPUT);              //按钮设置为输入
  pulseSensor.analogInput(PULSE_INPUT);
  pulseSensor.blinkOnPulse(PULSE_BLINK);
  pulseSensor.fadeOnPulse(PULSE_FADE);

  pulseSensor.setSerial(Serial);
  pulseSensor.setOutputType(OUTPUT_TYPE);
  pulseSensor.setThreshold(THRESHOLD);
  if (!pulseSensor.begin()) {
    for(;;) {
      digitalWrite(PULSE_BLINK, LOW);
      delay(50);
      digitalWrite(PULSE_BLINK, HIGH);
      delay(50);
    }
  }
}

/********按钮结构体*********/
struct Button{
  int buttonState;                     //按钮状态变量
  int lastButtonState = LOW;           //按钮状态初始化
  long lastDebounceTime = 0;           //记录抖动变量
  long debounceDelay = 50;             //抖动时间变量50ms
};
Button button1;                         //新建1个按钮

/********按钮消抖函数********/
bool GetButton(){
  int reading = digitalRead(button_1);  //读取I/O口状态
  if(reading!=button1.lastButtonState){ //如果状态发生改变
    button1.lastDebounceTime = millis();//更新时间
  }                                    //如果等待时间大于debounceDelay
  if((millis()-button1.lastDebounceTime)>button1.debounceDelay){
    if(reading!=button1.buttonState){   //读取状态不等于按钮状态
      button1.buttonState = reading;    //更新buttonState
    }
  }
  button1.lastButtonState = reading;    //更新lastButtonState
  return button1.lastButtonState;
}

void loop() {
  ReadDS3231();
  Mode_Change();              //模式刷新
  LED_Run();                  //LED状态刷新
}

void Mode_Change(){
  if(millis() - Readtime > 1000){
    Serial_OUT();
    Readtime = millis();
    ReadDS3231();                //获取时间
    if(flag == 1 || hour > work_time_hour || (hour == work_time_hour && minute >= work_time_min)){
      if(work_flag == 1){
        Mode_1();                              //工作时间内为模式1
//        Serial.println("Mode_1");
        if(GetButton()){               //如果按钮按下，进入睡眠模式
          work_flag = 0;
//          Serial.println("GetButton()");
        }
      }
    }
    else if(flag == 2 || hour > wake_time_hour  || (hour = wake_time_hour && minute < wake_time_min )){
        Mode_2();                               //唤醒后切换为模式2
        work_flag = 1;
//        Serial.println("Mode_2");
    }
    if(flag == 3 || work_flag == 0){                        //睡眠模式
      Mode_3();
//      Serial.println("Mode_3");
    }
  }
}

void Mode_1(){
  int x = minute - old_min;
//  Serial.println(x);
  ReadDS3231();
  if(minute - old_min >= rest_time){
    pulseSensor.begin();         //开始读取心率
    Get_BPM();
    if(play_flag == 1){
      myDFPlayer.play(1);  //Play the first mp3
      play_flag = 0;
    }
    LED_flag = 2;
    if(Clock.getSecond() > rest_time_delay){
//    if(BPM > Set_Min_BPM && BPM < Set_BPM){
      old_min = minute;
      BPM = 0;
      }
  }
  else{
    pulseSensor.pause();         //暂停读取心率
    LED_flag = 1;
    myDFPlayer.stop();  //Play the first mp3
    play_flag = 1;
  }
}
void Mode_2(){
  pulseSensor.pause();         //暂停读取心率
  work_flag = 1;
  LED_flag = 1;
}
void Mode_3(){
  pulseSensor.pause();         //暂停读取心率
  LED_flag = 0;
}

/********获取时间函数********/
void ReadDS3231(){
  second=Clock.getSecond();
  minute=Clock.getMinute();
  hour=Clock.getHour(h12, PM);
  date=Clock.getDate();
  month=Clock.getMonth(Century);
  year=Clock.getYear();
//  temperature=Clock.getTemperature();
//    Serial.print("20");
//    Serial.print(year,DEC);
//    Serial.print('-');
//    Serial.print(month,DEC);
//    Serial.print('-');
//    Serial.print(date,DEC);
//    Serial.print(' ');
//    Serial.print(hour,DEC);
//    Serial.print(':');
//    Serial.print(minute,DEC);
//    Serial.print(':');
//    Serial.print(second,DEC);
//    Serial.print('n');
//  Serial.print("Temperature=");
//  Serial.print(temperature);
//  Serial.print('n');

}

/********LED状态刷新********/
void LED_Run(){
  if(LED_flag == 0){          //灯灭
    pixels.clear();
    pixels.show();
  }

  else if(LED_flag == 1){         //自动调整LED亮度
    LED_Bright = map(analogRead(Bright_PIN),0,1024,0,255);//获取亮度
    for(int m = 0; m < (LED_num+1); m++){
      pixels.setPixelColor(m, pixels.Color(255, 255, 255));
    }
    pixels.setBrightness(LED_Bright);      //调节亮度
    pixels.show();                     //更新亮度
  }

  else if(LED_flag == 2){             //LED闪烁提醒
    cur_time = millis();
    if((cur_time % (2*hode_time)) > hode_time){ //防阻塞LED闪烁
      pixels.clear();
    }
    else{
      LED_Bright = map(analogRead(Bright_PIN),0,1024,0,255);//获取亮度
      for(int m = 0; m < (LED_num+1); m++){
        pixels.setPixelColor(m, pixels.Color(0, 255, 0));
        pixels.setBrightness(LED_Bright);
      }
    }
    pixels.show();
  }
}

void Get_BPM(){
  delay(20);
  //pulseSensor.outputSample();
  if (pulseSensor.sawStartOfBeat()) {
    BPM = pulseSensor.getBeatsPerMinute();
   Serial.println(BPM);
  }
}

void Serial_OUT(){
  Serial.print("Temperature=");
  Serial.print(temperature);
  Serial.print('n');
  Serial.print("20");
  Serial.print(year,DEC);
  Serial.print('-');
  Serial.print(month,DEC);
  Serial.print('-');
  Serial.print(date,DEC);
  Serial.print(' ');
  Serial.print(hour,DEC);
  Serial.print(':');
  Serial.print(minute,DEC);
  Serial.print(':');
  Serial.print(second,DEC);
  Serial.print('n');
  int B = map(analogRead(Bright_PIN),0,1024,1024,0);
  Serial.print("Bright: ");
  Serial.print(B);
  Serial.print("tBPM: ");
  Serial.println(BPM);
  BPM = random(60,200);
  Serial.println("--------------------------");
}

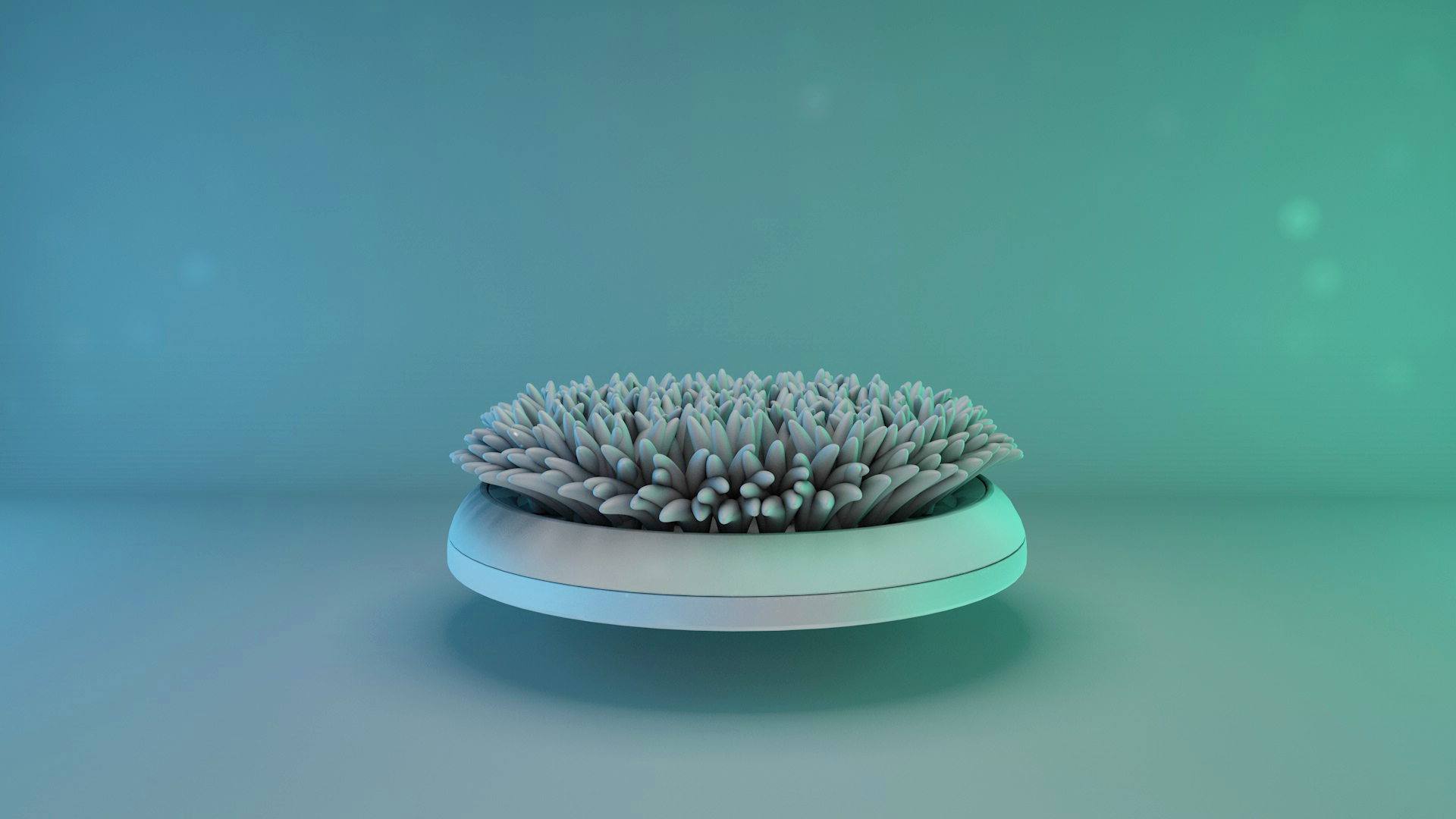

2.2 仿生珊瑚

2.2.1 功能介绍

在这里插入图片描述

  • 1、用户通过在触控板绘制上图“米”字所示的横线“一”，“|”，“╱”，“╲”这四个的任意一个，来控制圆盘上面的塑料柱。
  • 2、举个例子，当客户绘制“一”后，就从如右上图这排（记为A）开始，往两边扩散形成水波效果。具体的时间就是，A在1s内下去1cm，然后在1s内又复原。在A开始下去的0.3s后，A两边的也开始在1s下去。如此控制，直到最外边的也控制完。
  • 3、当TDS模块采集的值超过250时，圆盘由最中心的点，往外扩散，形成水滴散开的效果。
  • 4、最好是可以支持绘制“～”型图案。

在这里插入图片描述
在这里插入图片描述

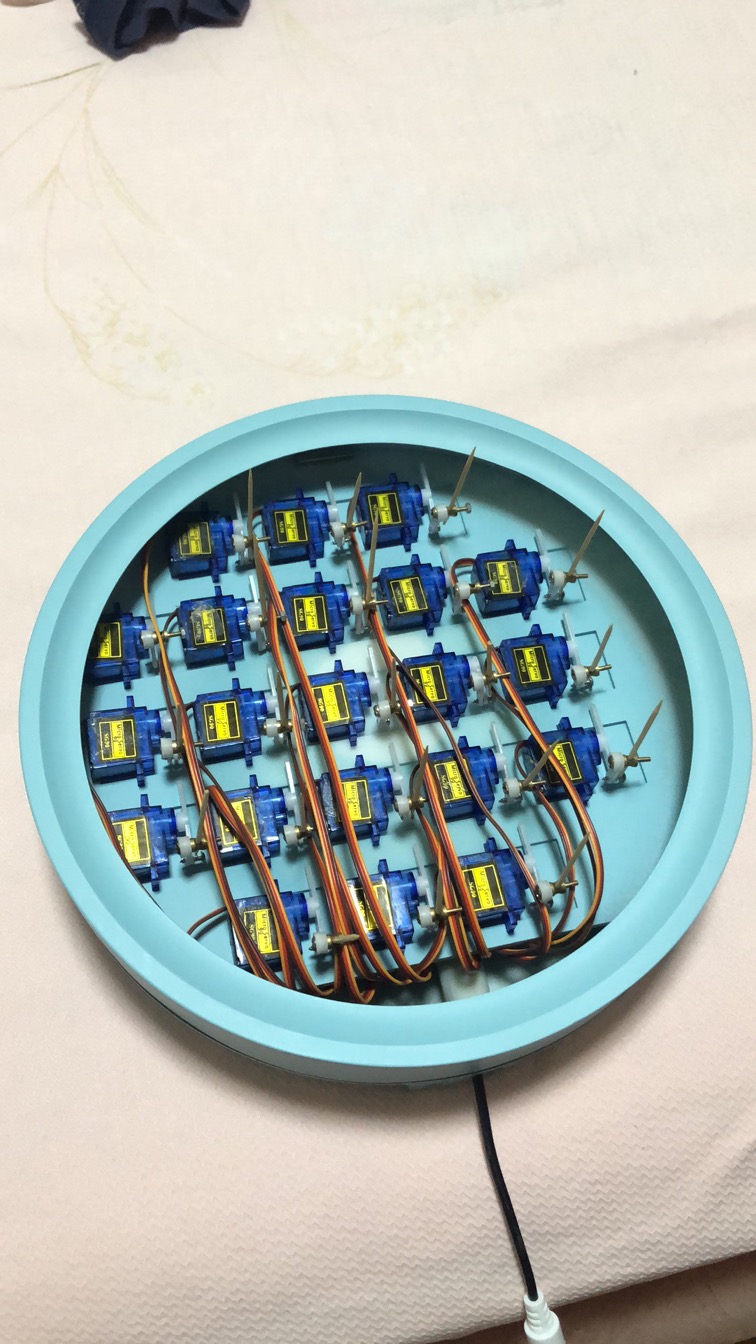

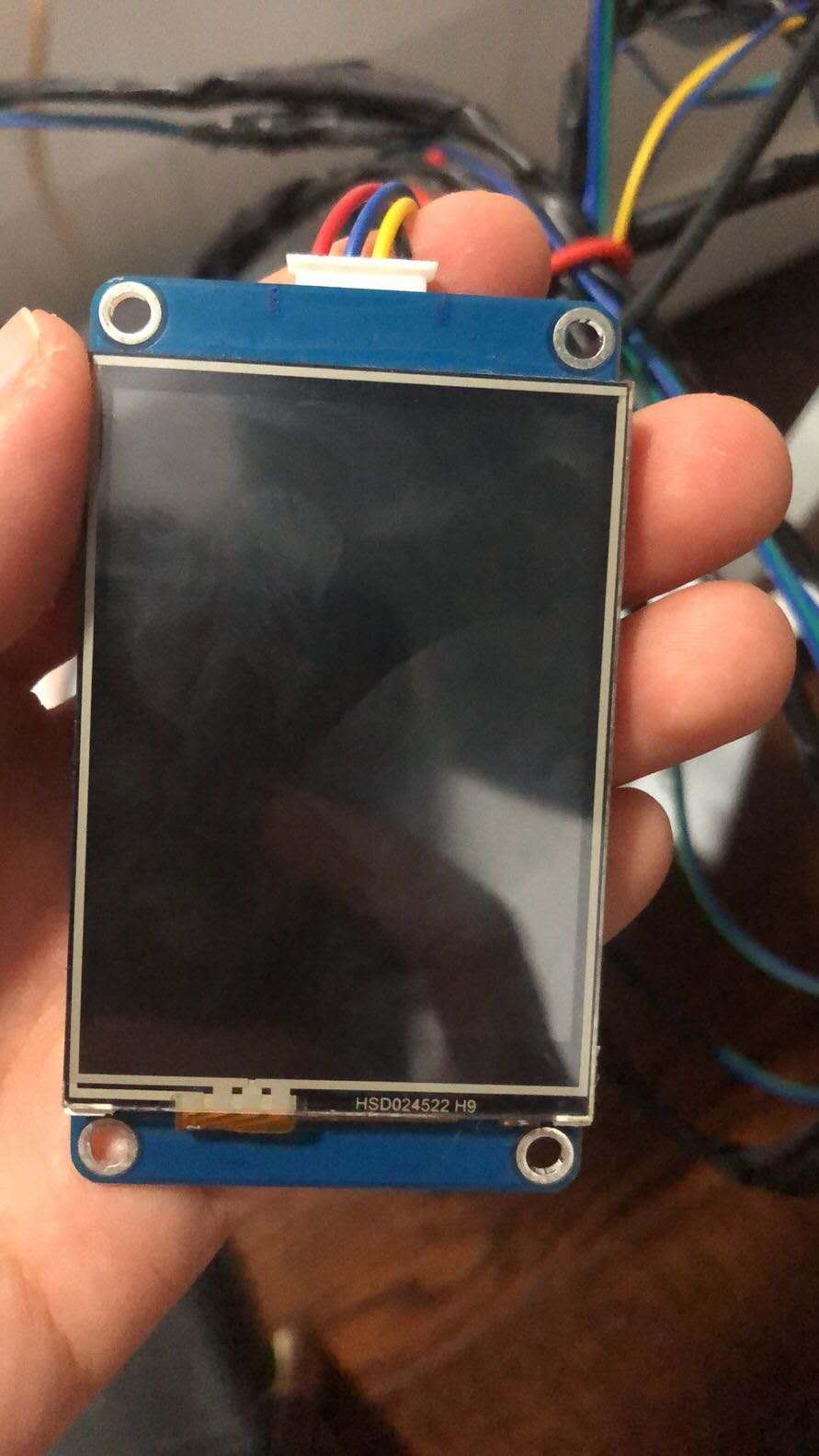

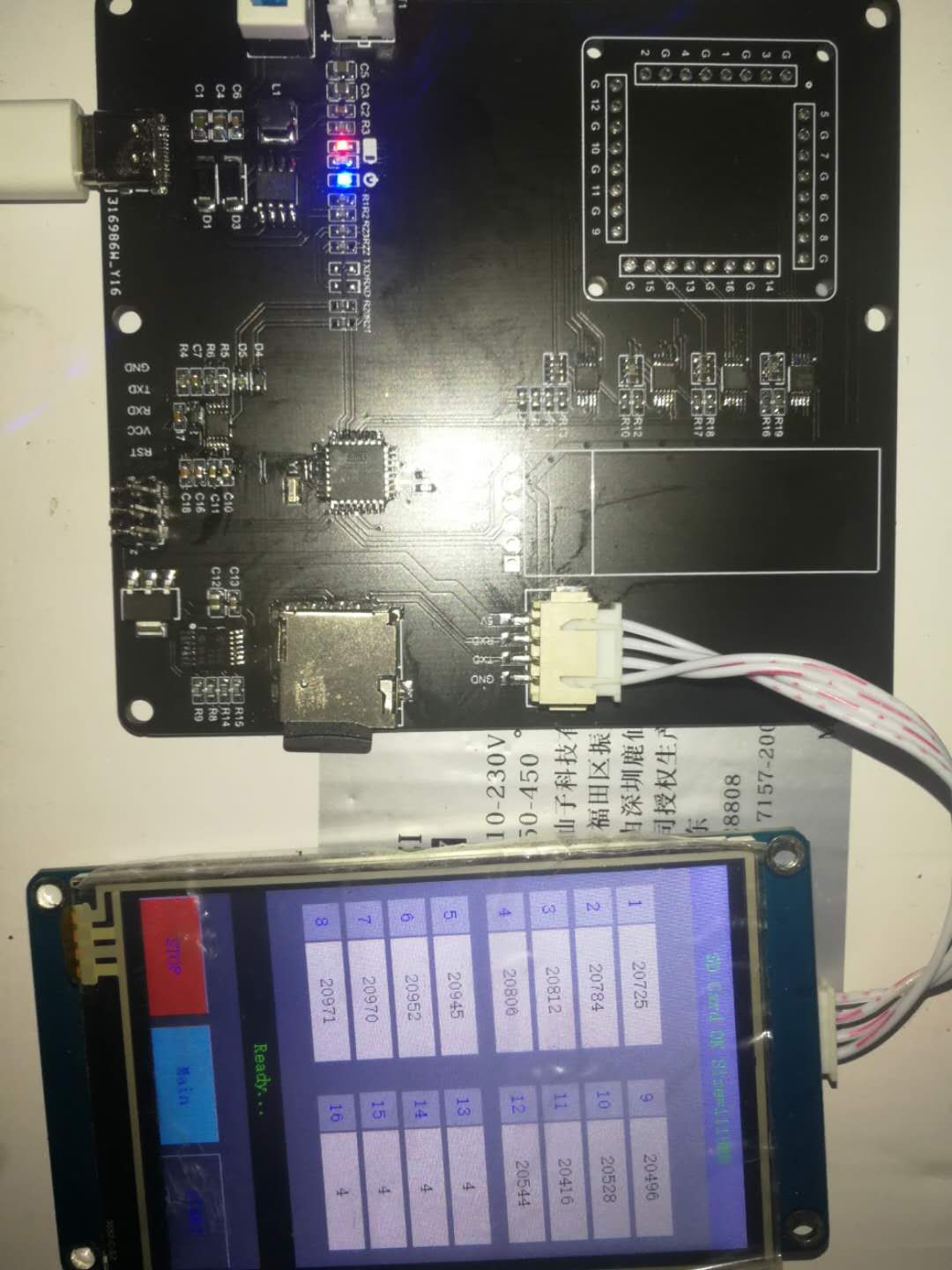

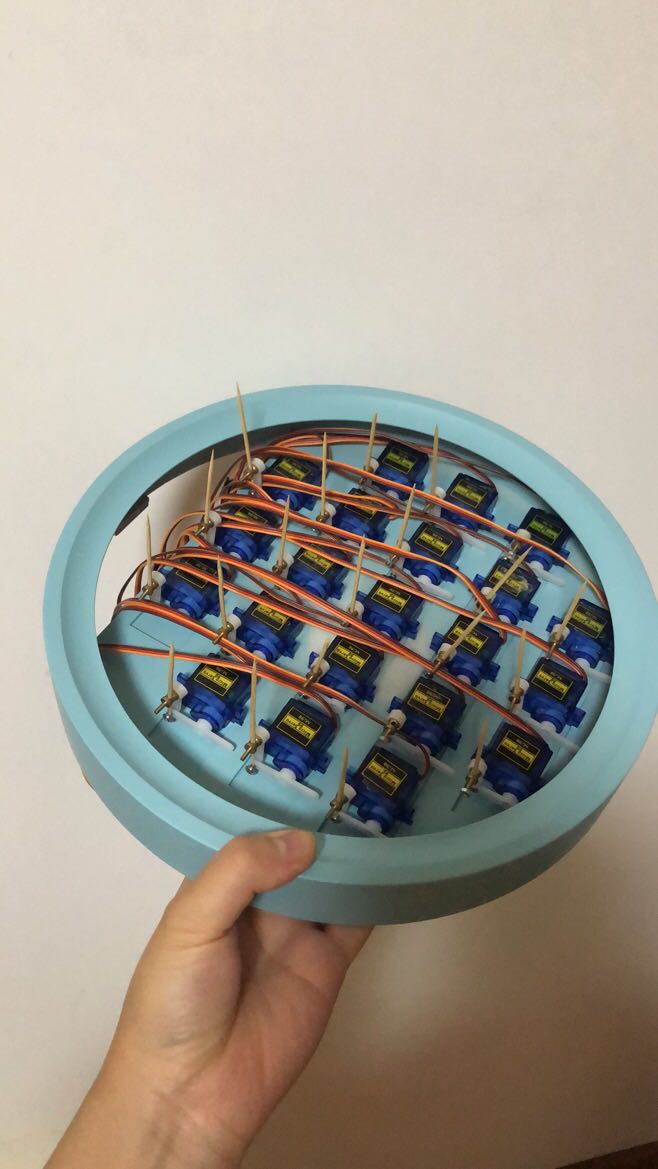

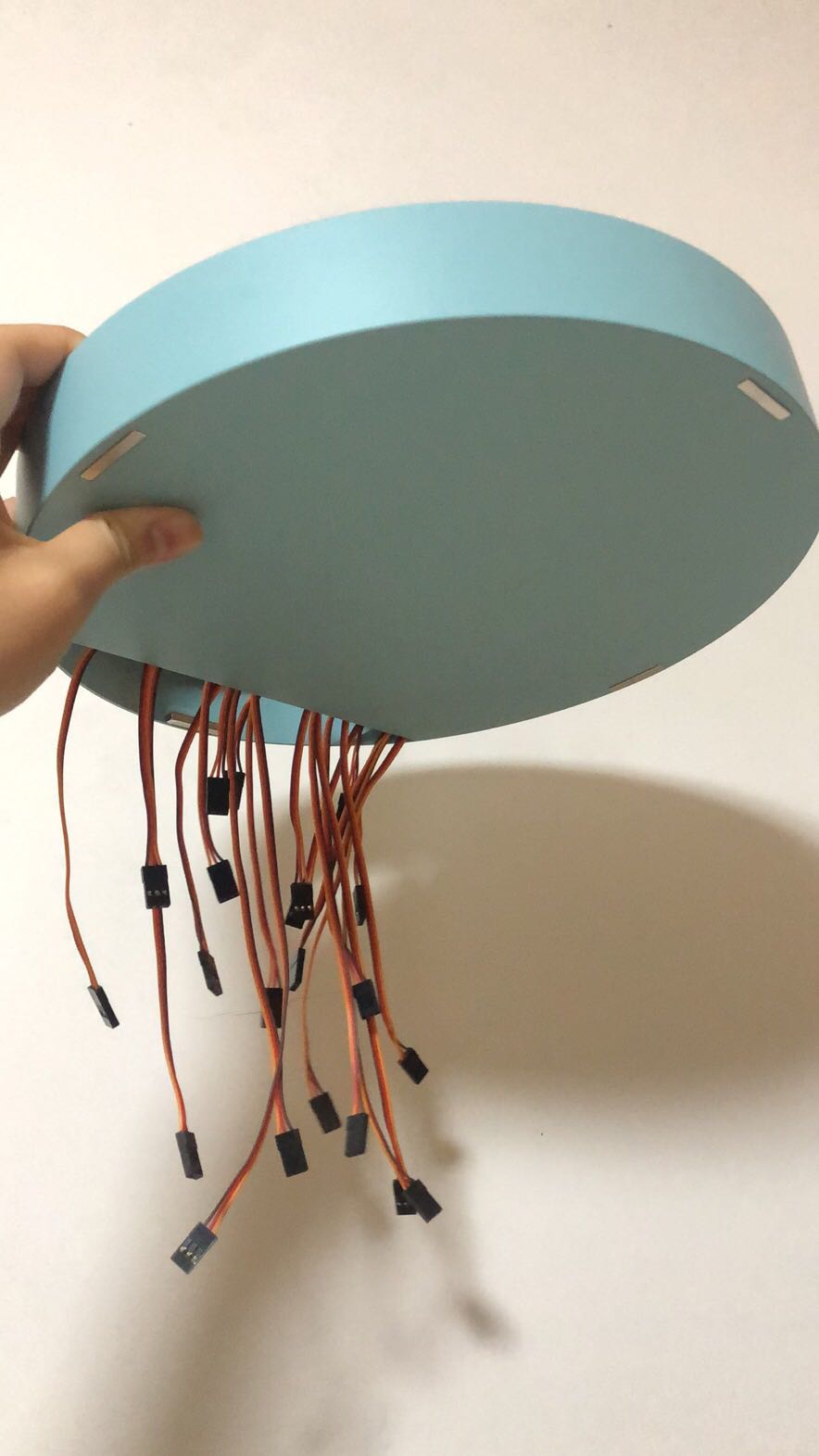

2.2.2 实物图片

1、1Arduino uno 或 mega
2、1TDS模块
3、37电机
4、1无线模块
5、1接收模块
6、1触摸板

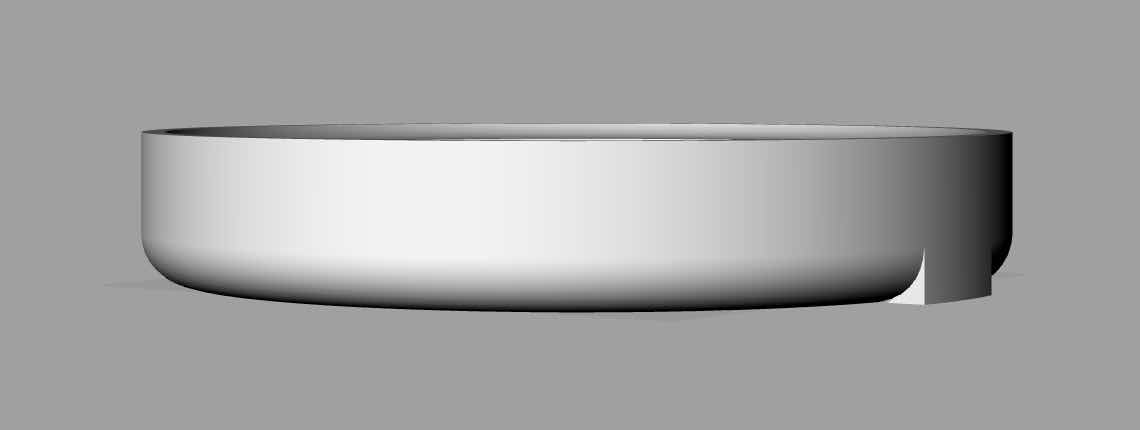

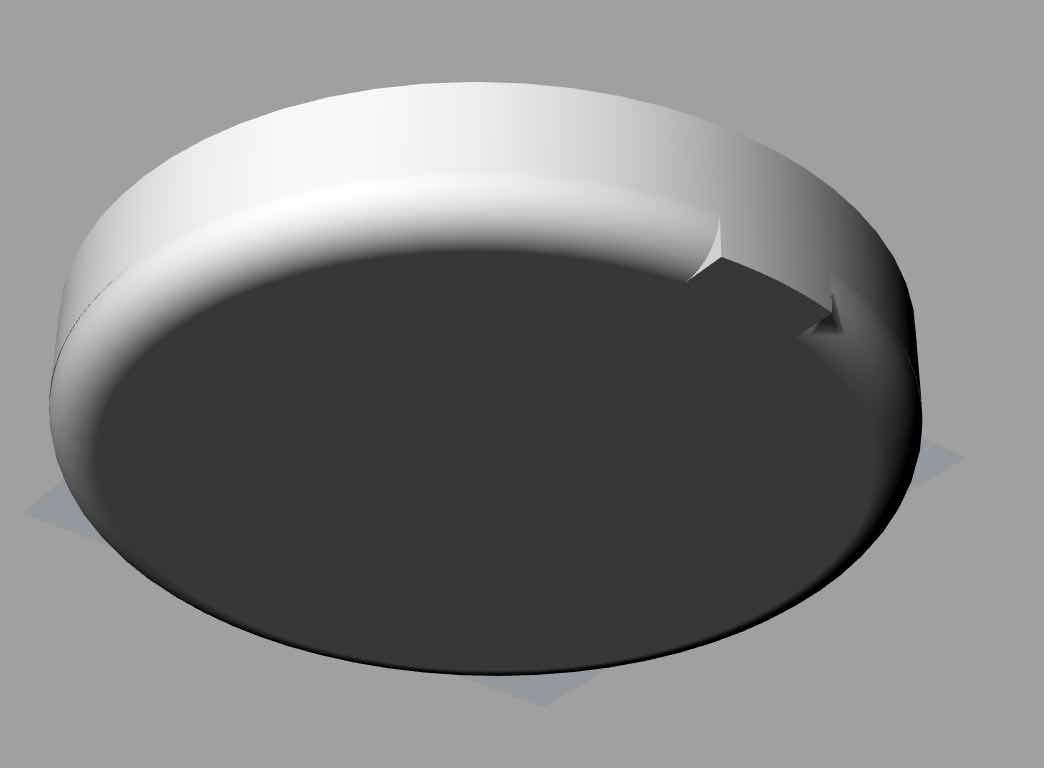

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

2.2.3 视频

演示视频暂时无法上传（需要的可以另外帖子留言）

2.2.4 源代码

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170
1171
1172
1173
1174
1175
1176
1177
1178
1179
1180
1181
1182
1183
1184
1185
1186
1187
1188
1189
1190
1191
1192
1193
1194
1195
1196
1197
1198
1199
1200
1201
1202
1203
1204
1205
1206
1207
1208
1209
1210
1211
1212
1213
1214
1215
1216
1217
1218
1219
1220
1221
1222
1223
1224
1225
1226
1227
1228
1229
1230
1231
1232
1233
1234
1235
1236
1237
1238
1239
1240
1241
1242
1243
1244
1245
1246
1247
1248
1249
1250
1251
1252
1253
1254
1255
1256
1257
1258
1259
1260
1261
1262
1263
1264
1265
1266
1267
1268
1269
1270
1271
1272
1273
1274
1275
1276
1277
1278
1279
1280
1281
1282
1283
1284
1285
1286
1287
1288
1289
1290
1291
1292
1293
1294
1295
1296
1297
1298
1299
1300
1301
1302
1303
1304
1305
1306
1307
1308
1309
1310
1311
1312
1313
1314
1315
1316
1317
1318
1319
1320
1321
1322
1323
1324
1325
1326
1327
1328
1329
1330
1331
1332
1333
1334
1335
1336
1337
1338
1339
1340
1341
1342
1343
1344
1345
1346
1347
1348
1349
1350
1351
1352
1353
1354
1355
1356
1357
1358
1359
1360
1361
1362
1363
1364
1365
1366
1367
1368
1369
1370
1371
1372
1373
1374
1375
1376
1377
1378
1379
1380
1381
1382
1383
1384
1385
1386
1387
1388
1389
1390
1391
1392
1393
1394
1395
1396
1397
1398
1399
1400
1401
1402
1403
1404
1405
1406
1407
1408
1409
1410
1411
1412
1413
1414
1415
1416
1417
1418
1419
1420
1421
1422
1423
1424
1425
1426
1427
1428
1429
1430
1431
1432
1433
1434
1435
1436
1437
1438
1439
1440
1441
1442
1443
1444
1445
1446
1447
1448
1449
1450
1451
1452
1453
1454
1455
1456
1457
1458
1459
1460
1461
1462
1463
1464
1465
1466
1467
1468
1469
1470
1471
1472
1473
1474
1475
1476
1477
1478
1479
1480
1481
1482
1483
1484
1485
1486
1487
1488
1489
1490
1491
1492
1493
1494
1495
1496
1497
1498
1499
1500
1501
1502
1503
1504
1505
1506
#include <Wire.h>
#include <Adafruit_PWMServoDriver.h>
#include <SoftwareSerial.h>

/*舵机驱动板IIC地址*/
Adafruit_PWMServoDriver pwm1 = Adafruit_PWMServoDriver();  //默认地址0x40
//Adafruit_PWMServoDriver pwm2 = Adafruit_PWMServoDriver(0x41);
/*
 * PCA9685可以设置更新频率，时基脉冲周期20ms相当于50HZ更新频率,
 * PCA9685采用12位的寄存器来控制PWM占比，对于0.5ms，相当于0.5/20*4096=102的寄存器值
 * 但是实际使用的时候，还是有偏差，除了0度以及180度，其他需要乘以0.915系数
 * 0.5ms———— 0度：0.5/20*4096 = 102
 * 1.0ms———— 45度：1/20*4096 = 204*0.915 = 187
 * 1.5ms———— 90度：1.5/20*4096 = 306*0.915 = 280
 * 2.0ms———— 135度：2/20*4096 = 408*0.915 = 373
 * 2.5ms———— 180度：2.5/20*4096 = 512
 * 30度=0.5ms+(30/180)*(2.5ms-0.5ms)=0.8333ms
 * 0.8333ms/20ms=off/4096,off=171,171*0.915=156
 * 60度=0.5ms+(60/180)*(2.5ms-0.5ms)=1.666ms
 * 1.666ms/20ms=off/4096,off=239,239*0.915=219
 */
/*舵机转动角度*/
#define SERVO_0   102
#define SERVO_30  156
#define SERVO_45  187
#define SERVO_60  219
#define SERVO_90  280
#define SERVO_135 373
#define SERVO_180 512
/*舵机转动时间间隔*/
#define interval0  300
/*TDS传感器相关定义*/
#define TdsSensorPin A0
#define VREF         5.0  //ADC的模拟参考电压(伏特)
#define SCOUNT       30   //采样点和
int analogBuffer[SCOUNT]; //将模拟值存储在数组中，从ADC中读取
int analogBufferTemp[SCOUNT];
int analogBufferIndex = 0,copyIndex = 0;
float averageVoltage = 0,tdsValue = 0,temperature = 25;
/*蓝牙数据接收相关定义*/
unsigned char c[10] = {0x00};
unsigned char Length = 0;
SoftwareSerial BTSerial(3, 2);  //RX(D3),TX(D2)
bool flag;

void setup() {
  // put your setup code here, to run once:
  Serial.begin(9600);
  BTSerial.begin(9600);
  pinMode(TdsSensorPin,INPUT);  //初始化TDS传感器接口
  flag=true;
  pwm1.begin();                //复位并初始化舵机驱动板
  //pwm2.begin();
  pwm1.setPWMFreq(50);        //调节PWM频率,范围40-1000Hz
  //pwm2.setPWMFreq(50);
  Servo_Init();               //舵机初始化
}

void loop() {
  //put your main code here, to run repeatedly:
  static unsigned long analogSampleTimepoint = millis();
  if(millis() - analogSampleTimepoint > 80U)  //每80毫秒,从ADC中读取模拟值
  {
    analogSampleTimepoint=millis();
    analogBuffer[analogBufferIndex]=analogRead(TdsSensorPin); //读取模拟值,每80毫秒存入缓冲区
    analogBufferIndex++;
    if(analogBufferIndex == SCOUNT)
      analogBufferIndex = 0;
  }
  static unsigned long printTimepoint = millis();
  if(millis() - printTimepoint > 6000U)
  {
    printTimepoint = millis();
    for(copyIndex=0;copyIndex < SCOUNT;copyIndex++)
    {
      analogBufferTemp[copyIndex] = analogBuffer[copyIndex];
      averageVoltage = getMedianNum(analogBufferTemp,SCOUNT) * (float)VREF / 1024.0;  //通过中值滤波算法读取更稳定的模拟值,并转换为电压值
      float compensationCoefficient = 1.0+0.02*(temperature - 25.0);  //温度补偿公式:fFinalResult(25^C) = fFinalResult(current)/(1.0+0.02*(ft -25.0));
      float compensationVolatge = averageVoltage / compensationCoefficient; //温度补偿
      tdsValue = (133.42*compensationVolatge*compensationVolatge*compensationVolatge -
                  255.86*compensationVolatge*compensationVolatge + 857.39*compensationVolatge)*0.5; //将电压值转换为tds值进行温度补偿
//       Serial.print("voltage:");
//       Serial.print(averageVoltage,2);
//       Serial.print("V ");
//       Serial.print("TDS Value:");
//       Serial.println(tdsValue,0);
//       Serial.println("ppm");
    }
    BTSerial.print("t0.txt="");//蓝牙发送数据
    BTSerial.print(tdsValue);
    Serial.println(tdsValue);
    BTSerial.print("ppm");
    BTSerial.print(""");
    BTSerial.write(0xff);
    BTSerial.write(0xff);
    BTSerial.write(0xff);
  }

  Length = 0;
  while(BTSerial.available()>0)
  {
      c[Length++] = BTSerial.read(); //接收蓝牙数据
  }
  if (Length > 0)
  {
    if(c[0] ==0x3 || c[0] ==0x5)
    {
      Serial.println("03");
      if(flag==true)
        Draw_HorLine();
    }
    else if(c[0] == 0x1 || c[0] == 0x7)
    {
      Serial.println("01");
      if(flag==true)
        Draw_VerLine();
    }
    else if(c[0] == 0x2|| c[0] == 0x6)
    {
      Serial.println("02");
      if(flag==true)
        Draw_LeftLine();
    }
    else if(c[0] == 0x0 || c[0] == 0x8)
    {
      Serial.println("00");
      if(flag==true)
        Draw_RightLine();
    }
    Length = 0;
  }
}

//舵机初始化
//setPWM(channel, on, off)
//channel:更新的通道
//on:信号从低电平变为高电平的滴答（在0…4095之间）
//off:当信号从高电平变为低电平时的滴答（在0…4095之间）
void Servo_Init(void)
{
  Serial.println("舵机初始化开始");
  for(uint16_t channel=0;channel<=12;channel++)
  {
    pwm1.setPWM(channel,0,SERVO_180);
  }
  for(uint16_t channel=0;channel<=7;channel++)
  {
    //pwm2.setPWM(channel,0,SERVO_180);
  }
  delay(50);
  for(uint16_t channel=0;channel<=12;channel++)
  {
    pwm1.setPWM(channel,0,SERVO_0);
  }
  for(uint16_t channel=0;channel<=7;channel++)
  {
    //pwm2.setPWM(channel,0,SERVO_0);
  }
  Serial.println("舵机初始化完成");
}

//中值滤波
int getMedianNum(int bArray[],int iFilterLen)
{
  int bTab[iFilterLen];
  int i,j,bTemp;

  for(byte i=0;i<iFilterLen;i++)
  {
    bTab[i]=bArray[i];
  }
  for(j=0;j<iFilterLen-1;j++)
  {
    for(i=0;i<iFilterLen-j-1;i++)
    {
      if(bTab[i] > bTab[i+1])
      {
        bTemp=bTab[i];
        bTab[i]=bTab[i+1];
        bTab[i+1]=bTemp;
      }
    }
  }
  if((iFilterLen & 1) > 0)
    bTemp=bTab[(iFilterLen -1) / 2];
  else
    bTemp=(bTab[iFilterLen / 2] + bTab[iFilterLen / 2 - 1]) / 2;
  return bTemp;
}

void Draw_HorLine() //画横线
{
  flag=false;
  if(tdsValue <= 250)
  {
    /*
     *假设3、5、5、5、3分别记为A、B、C、D、E
    */
    for(uint16_t channel=0;channel<=4;channel++)  //T=0s时，C开始转(下降)
    {
      pwm1.setPWM(channel, 0, SERVO_30); //C
    }
    Serial.println("第一排");
    delay(interval0);  //0.3s
    for(uint16_t channel=0;channel<=4;channel++)  //T=0.3s时，C转了30度，此时B、D也开始转(下降)
    {
      //pwm2.setPWM(channel, 0, SERVO_30);  //D
      pwm1.setPWM(channel, 0, SERVO_60);  //C
    }
    for(uint16_t channel=5;channel<=9;channel++)
    {
       pwm1.setPWM(channel, 0, SERVO_30);  //B
    }
    Serial.println("第二排");
    delay(interval0);  //0.3s
    for(uint16_t channel=10;channel<=12;channel++) //T=0.6s时，C转了60度，B、D转了30度，A、E开始转(下降)
    {
      pwm1.setPWM(channel, 0, SERVO_30);  //A
    }
    for(uint16_t channel=5;channel<=7;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_30);  //E
    }
    for(uint16_t channel=5;channel<=9;channel++)
    {
      pwm1.setPWM(channel, 0, SERVO_60);  //B
    }
    for(uint16_t channel=0;channel<=4;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_60);  //D
      pwm1.setPWM(channel, 0, SERVO_90);  //C
    }
    Serial.println("第三排");
    delay(interval0);  //0.3s
    for(uint16_t channel=10;channel<=12;channel++)  //T=0.9s时，C转了90度，B、D转了60度，A、E转了30度
    {
      pwm1.setPWM(channel, 0, SERVO_60);  //A
    }
    for(uint16_t channel=5;channel<=7;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_60);  //E
    }
    for(uint16_t channel=5;channel<=9;channel++)
    {
      pwm1.setPWM(channel, 0, SERVO_90);  //B
    }
    for(uint16_t channel=0;channel<=4;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_90);  //D
      pwm1.setPWM(channel, 0, SERVO_60);  //C
    }
    delay(interval0);  //0.3s
    for(uint16_t channel=10;channel<=12;channel++)  //T=1.2s时，C转回到了60度，B、D转了90度，A、E转了60度
    {
      pwm1.setPWM(channel, 0, SERVO_90);  //A
    }
    for(uint16_t channel=5;channel<=7;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_90);  //E
    }
    for(uint16_t channel=5;channel<=9;channel++)
    {
      pwm1.setPWM(channel, 0, SERVO_60);  //B
    }
    for(uint16_t channel=0;channel<=4;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_60);  //D
      pwm1.setPWM(channel, 0, SERVO_30);  //C
    }
    delay(interval0);  //0.3s
    for(uint16_t channel=10;channel<=12;channel++)  //T=1.5s时，C转回到了30度，B、D转回了60度，A、E转了90度
    {
      pwm1.setPWM(channel, 0, SERVO_60);  //A
    }
    for(uint16_t channel=5;channel<=7;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_60);  //E
    }
    for(uint16_t channel=5;channel<=9;channel++)
    {
      pwm1.setPWM(channel, 0, SERVO_30);  //B
    }
    for(uint16_t channel=0;channel<=4;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_30);  //D
      pwm1.setPWM(channel, 0, SERVO_0);  //C
    }
    delay(interval0);  //0.3s
    for(uint16_t channel=10;channel<=12;channel++)  //T=1.8s时，C转回到了0度，B、D转回了30度，A、E转回了60度
    {
      pwm1.setPWM(channel, 0, SERVO_30);  //A
    }
    for(uint16_t channel=5;channel<=7;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_30);  //E
    }
    for(uint16_t channel=5;channel<=9;channel++)
    {
      pwm1.setPWM(channel, 0, SERVO_0);  //B
    }
    for(uint16_t channel=0;channel<=4;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_0);  //D
      pwm1.setPWM(channel, 0, SERVO_0);  //C
    }
    delay(interval0);  //0.3s
    for(uint16_t channel=10;channel<=12;channel++)  //T=2.1s时，C不变，B、D转回了0度，A、E转回了30度
    {
      pwm1.setPWM(channel, 0, SERVO_0);  //A
    }
    for(uint16_t channel=5;channel<=7;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_0);  //E
    }
    for(uint16_t channel=5;channel<=9;channel++)
    {
      pwm1.setPWM(channel, 0, SERVO_0);  //B
    }
    for(uint16_t channel=0;channel<=4;channel++)
    {
      //pwm2.setPWM(channel, 0, SERVO_0);  //D
      pwm1.setPWM(channel, 0, SERVO_0);  //C
    }
    Serial.println("运动完成");
  }
  else  //TDS大于250
  {
    /*
      *假设1、8、12分别记为A、B、C
    */
    //T=0s时，A开始转(下降)
    pwm1.setPWM(2, 0, SERVO_30);//A
    Serial.println("第一圈");
    delay(interval0);  //0.3s     //T=0.3s时，A转了30度，此时B也开始转(下降)
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(8, 0, SERVO_30);
    //pwm2.setPWM(1, 0, SERVO_30);
    //pwm2.setPWM(2, 0, SERVO_30);
    //pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_60);//A
    Serial.println("第二圈");
    delay(interval0);  //0.3s     //T=0.6s时，A转了60度，B转了30度，C开始转(下降)
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
    //pwm2.setPWM(0, 0, SERVO_30);
    //pwm2.setPWM(4, 0, SERVO_30);
    //pwm2.setPWM(5, 0, SERVO_30);
    //pwm2.setPWM(6, 0, SERVO_30);
    //pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    //pwm2.setPWM(2, 0, SERVO_60);
    //pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_90);//A
    Serial.println("第三圈");
    delay(interval0);  //0.3s     //T=0.9s时，A转了90度，B转了60度，C转了30度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
    //pwm2.setPWM(0, 0, SERVO_60);
    //pwm2.setPWM(4, 0, SERVO_60);
    //pwm2.setPWM(5, 0, SERVO_60);
    //pwm2.setPWM(6, 0, SERVO_60);
    //pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_90);//B
    pwm1.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(8, 0, SERVO_90);
    //pwm2.setPWM(1, 0, SERVO_90);
    //pwm2.setPWM(2, 0, SERVO_90);
    //pwm2.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(2, 0, SERVO_60);//A
    delay(interval0);  //0.3s     //T=1.2s时，A转回到了60度，B转了90度，C转了60度
    pwm1.setPWM(0, 0, SERVO_90);//C
    pwm1.setPWM(4, 0, SERVO_90);
    pwm1.setPWM(5, 0, SERVO_90);
    pwm1.setPWM(9, 0, SERVO_90);
    pwm1.setPWM(10, 0, SERVO_90);
    pwm1.setPWM(11, 0, SERVO_90);
    pwm1.setPWM(12, 0, SERVO_90);
    //pwm2.setPWM(0, 0, SERVO_90);
    //pwm2.setPWM(4, 0, SERVO_90);
    //pwm2.setPWM(5, 0, SERVO_90);
    //pwm2.setPWM(6, 0, SERVO_90);
    //pwm2.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    //pwm2.setPWM(2, 0, SERVO_60);
    //pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_30);//A
    delay(interval0);  //0.3s     //T=1.5s时，A转回到了30度，B转回了60度，C转了90度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
    //pwm2.setPWM(0, 0, SERVO_60);
    //pwm2.setPWM(4, 0, SERVO_60);
    //pwm2.setPWM(5, 0, SERVO_60);
    //pwm2.setPWM(6, 0, SERVO_60);
    //pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(8, 0, SERVO_30);
    //pwm2.setPWM(1, 0, SERVO_30);
    //pwm2.setPWM(2, 0, SERVO_30);
    //pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=1.8s时，A转回到了0度，B转回了30度，C转回了60度
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
    //pwm2.setPWM(0, 0, SERVO_30);
    //pwm2.setPWM(4, 0, SERVO_30);
    //pwm2.setPWM(5, 0, SERVO_30);
    //pwm2.setPWM(6, 0, SERVO_30);
    //pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
    //pwm2.setPWM(1, 0, SERVO_0);
    //pwm2.setPWM(2, 0, SERVO_0);
    //pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=2.1s时，A不变，B转回了0度，C转回了30度
    pwm1.setPWM(0, 0, SERVO_0);//C
    pwm1.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(9, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
    //pwm2.setPWM(0, 0, SERVO_0);
    //pwm2.setPWM(4, 0, SERVO_0);
    //pwm2.setPWM(5, 0, SERVO_0);
    //pwm2.setPWM(6, 0, SERVO_0);
    //pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
    //pwm2.setPWM(1, 0, SERVO_0);
    //pwm2.setPWM(2, 0, SERVO_0);
    //pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    //delay(interval0);  //0.3s
    //T=2.4s时，A不变，B不变，C转回了0度
    Serial.println("运动完成");
  }
  flag=true;
}

void Draw_VerLine() //画竖线
{
  flag=false;
  if(tdsValue <= 250)
  {
     /*
      *假设3、5、5、5、3分别记为A、B、C、D、E
    */
    //T=0s时，C开始转(下降)
    pwm1.setPWM(2, 0, SERVO_30);//C
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    //pwm2.setPWM(2, 0, SERVO_30);
    //pwm2.setPWM(6, 0, SERVO_30);
    Serial.println("第一排");
    delay(interval0);  //0.3s
    //T=0.3s时，C转了30度，此时B、D也开始转(下降)
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    //pwm2.setPWM(1, 0, SERVO_30);
    //pwm2.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(3, 0, SERVO_30);//D
    pwm1.setPWM(8, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
    //pwm2.setPWM(3, 0, SERVO_30);
    //pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_60);//C
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    //pwm2.setPWM(2, 0, SERVO_60);
    //pwm2.setPWM(6, 0, SERVO_60);
    Serial.println("第二排");
    delay(interval0);  //0.3s
    //T=0.6s时，C转了60度，B、D转了30度，A、E开始转(下降)
    pwm1.setPWM(0, 0, SERVO_30);//A
    pwm1.setPWM(5, 0, SERVO_30);
    //pwm2.setPWM(0, 0, SERVO_30);
    pwm1.setPWM(4, 0, SERVO_30);//E
    pwm1.setPWM(9, 0, SERVO_30);
    //pwm2.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    //pwm2.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(3, 0, SERVO_60);//D
    pwm1.setPWM(8, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
    //pwm2.setPWM(3, 0, SERVO_60);
    //pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_90);//C
    pwm1.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(11, 0, SERVO_90);
    //pwm2.setPWM(2, 0, SERVO_90);
    //pwm2.setPWM(6, 0, SERVO_90);
    Serial.println("第三排");
    delay(interval0);  //0.3s
    //T=0.9s时，C转了90度，B、D转了60度，A、E转了30度
    pwm1.setPWM(0, 0, SERVO_60);//A
    pwm1.setPWM(5, 0, SERVO_60);
    //pwm2.setPWM(0, 0, SERVO_60);
    pwm1.setPWM(4, 0, SERVO_60);//E
    pwm1.setPWM(9, 0, SERVO_60);
    //pwm2.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_90);//B
    pwm1.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(10, 0, SERVO_90);
    //pwm2.setPWM(1, 0, SERVO_90);
    //pwm2.setPWM(5, 0, SERVO_90);
    pwm1.setPWM(3, 0, SERVO_90);//D
    pwm1.setPWM(8, 0, SERVO_90);
    pwm1.setPWM(12, 0, SERVO_90);
    //pwm2.setPWM(3, 0, SERVO_90);
    //pwm2.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(2, 0, SERVO_60);//C
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    //pwm2.setPWM(2, 0, SERVO_60);
    //pwm2.setPWM(6, 0, SERVO_60);
    delay(interval0);  //0.3s
    //T=1.2s时，C转回到了60度，B、D转了90度，A、E转了60度
    pwm1.setPWM(0, 0, SERVO_90);//A
    pwm1.setPWM(5, 0, SERVO_90);
    //pwm2.setPWM(0, 0, SERVO_90);
    pwm1.setPWM(4, 0, SERVO_90);//E
    pwm1.setPWM(9, 0, SERVO_90);
    //pwm2.setPWM(4, 0, SERVO_90);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    //pwm2.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(3, 0, SERVO_60);//D
    pwm1.setPWM(8, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
    //pwm2.setPWM(3, 0, SERVO_60);
    //pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_30);//C
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    //pwm2.setPWM(2, 0, SERVO_30);
    //pwm2.setPWM(6, 0, SERVO_30);
    delay(interval0);  //0.3s
    //T=1.5s时，C转回到了30度，B、D转回了60度，A、E转了90度
    pwm1.setPWM(0, 0, SERVO_60);//A
    pwm1.setPWM(5, 0, SERVO_60);
    //pwm2.setPWM(0, 0, SERVO_60);
    pwm1.setPWM(4, 0, SERVO_60);//E
    pwm1.setPWM(9, 0, SERVO_60);
    //pwm2.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    //pwm2.setPWM(1, 0, SERVO_30);
   // pwm2.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(3, 0, SERVO_30);//D
    pwm1.setPWM(8, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
   //pwm2.setPWM(3, 0, SERVO_30);
    //pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_0);//C
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    //pwm2.setPWM(2, 0, SERVO_0);
    //pwm2.setPWM(6, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=1.8s时，C转回到了0度，B、D转回了30度，A、E转回了60度
    pwm1.setPWM(0, 0, SERVO_30);//A
    pwm1.setPWM(5, 0, SERVO_30);
    //pwm2.setPWM(0, 0, SERVO_30);
    pwm1.setPWM(4, 0, SERVO_30);//E
    pwm1.setPWM(9, 0, SERVO_30);
    //pwm2.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
    //pwm2.setPWM(1, 0, SERVO_0);
    //pwm2.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//D
    pwm1.setPWM(8, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
    //pwm2.setPWM(3, 0, SERVO_0);
    //pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//C
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    //pwm2.setPWM(2, 0, SERVO_0);
    //pwm2.setPWM(6, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=2.1s时，C不变，B、D转回了0度，A、E转回了30度
    pwm1.setPWM(0, 0, SERVO_0);//A
    pwm1.setPWM(5, 0, SERVO_0);
    //pwm2.setPWM(0, 0, SERVO_0);
    pwm1.setPWM(4, 0, SERVO_0);//E
    pwm1.setPWM(9, 0, SERVO_0);
    //pwm2.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
    //pwm2.setPWM(1, 0, SERVO_0);
    //pwm2.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//D
    pwm1.setPWM(8, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
    //pwm2.setPWM(3, 0, SERVO_0);
    //pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//C
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    //pwm2.setPWM(2, 0, SERVO_0);
    //pwm2.setPWM(6, 0, SERVO_0);
    Serial.println("运动完成");
  }
  else  //TDS大于250
  {
    /*
      *假设1、8、12分别记为A、B、C
    */
    //T=0s时，A开始转(下降)
    pwm1.setPWM(2, 0, SERVO_30);//A
    Serial.println("第一圈");
    delay(interval0);  //0.3s     //T=0.3s时，A转了30度，此时B也开始转(下降)
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
    //pwm2.setPWM(8, 0, SERVO_30);
    //pwm2.setPWM(1, 0, SERVO_30);
    //pwm2.setPWM(2, 0, SERVO_30);
    //pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_60);//A
    Serial.println("第二圈");
    delay(interval0);  //0.3s     //T=0.6s时，A转了60度，B转了30度，C开始转(下降)
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
    //pwm2.setPWM(0, 0, SERVO_30);
    //pwm2.setPWM(4, 0, SERVO_30);
    //pwm2.setPWM(5, 0, SERVO_30);
    //pwm2.setPWM(6, 0, SERVO_30);
    //pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    //pwm2.setPWM(2, 0, SERVO_60);
    //pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_90);//A
    Serial.println("第三圈");
    delay(interval0);  //0.3s     //T=0.9s时，A转了90度，B转了60度，C转了30度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
    //pwm2.setPWM(0, 0, SERVO_60);
    //pwm2.setPWM(4, 0, SERVO_60);
    //pwm2.setPWM(5, 0, SERVO_60);
    //pwm2.setPWM(6, 0, SERVO_60);
    //pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_90);//B
    pwm1.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(8, 0, SERVO_90);
    //pwm2.setPWM(1, 0, SERVO_90);
    //pwm2.setPWM(2, 0, SERVO_90);
    //pwm2.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(2, 0, SERVO_60);//A
    delay(interval0);  //0.3s     //T=1.2s时，A转回到了60度，B转了90度，C转了60度
    pwm1.setPWM(0, 0, SERVO_90);//C
    pwm1.setPWM(4, 0, SERVO_90);
    pwm1.setPWM(5, 0, SERVO_90);
    pwm1.setPWM(9, 0, SERVO_90);
    pwm1.setPWM(10, 0, SERVO_90);
    pwm1.setPWM(11, 0, SERVO_90);
    pwm1.setPWM(12, 0, SERVO_90);
    //pwm2.setPWM(0, 0, SERVO_90);
    //pwm2.setPWM(4, 0, SERVO_90);
    //pwm2.setPWM(5, 0, SERVO_90);
    //pwm2.setPWM(6, 0, SERVO_90);
    //pwm2.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    //pwm2.setPWM(2, 0, SERVO_60);
    //pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_30);//A
    delay(interval0);  //0.3s     //T=1.5s时，A转回到了30度，B转回了60度，C转了90度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
    //pwm2.setPWM(0, 0, SERVO_60);
    //pwm2.setPWM(4, 0, SERVO_60);
    //pwm2.setPWM(5, 0, SERVO_60);
    //pwm2.setPWM(6, 0, SERVO_60);
    //pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(8, 0, SERVO_30);
    //pwm2.setPWM(1, 0, SERVO_30);
    //pwm2.setPWM(2, 0, SERVO_30);
    //pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=1.8s时，A转回到了0度，B转回了30度，C转回了60度
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
    //pwm2.setPWM(0, 0, SERVO_30);
    //pwm2.setPWM(4, 0, SERVO_30);
    //pwm2.setPWM(5, 0, SERVO_30);
    //pwm2.setPWM(6, 0, SERVO_30);
    //pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
    //pwm2.setPWM(1, 0, SERVO_0);
    //pwm2.setPWM(2, 0, SERVO_0);
    //pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=2.1s时，A不变，B转回了0度，C转回了30度
    pwm1.setPWM(0, 0, SERVO_0);//C
    pwm1.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(9, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
    //pwm2.setPWM(0, 0, SERVO_0);
    //pwm2.setPWM(4, 0, SERVO_0);
    //pwm2.setPWM(5, 0, SERVO_0);
    //pwm2.setPWM(6, 0, SERVO_0);
    //pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
    //pwm2.setPWM(1, 0, SERVO_0);
    //pwm2.setPWM(2, 0, SERVO_0);
    //pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    Serial.println("运动完成");
  }
  flag=true;
}

void Draw_LeftLine()  //画左斜线
{
  flag=false;
  if(tdsValue <= 250)
  {
    /*
     *假设2、3、4、3、4、3、2分别记为A、B、C、D、E、F、G
    */
    //T=0s时，D开始转(下降)
    pwm1.setPWM(2, 0, SERVO_30);//D
    pwm1.setPWM(8, 0, SERVO_30);
    //pwm2.setPWM(1, 0, SERVO_30);
    Serial.println("第一排");
    delay(interval0);  //0.3s
    //T=0.3s时，D转到了30度，此时C、E也开始转(下降)
    pwm1.setPWM(1, 0, SERVO_30);//C
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
    //pwm2.setPWM(0, 0, SERVO_30);
    pwm1.setPWM(3, 0, SERVO_30);//E
    pwm1.setPWM(9, 0, SERVO_30);
   // pwm2.setPWM(2, 0, SERVO_30);
    //pwm2.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_60);//D
    pwm1.setPWM(8, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    Serial.println("第二排");
    delay(interval0);  //0.3s
    //T=0.6s时，D转了60度，C、E转到了30度，B、F开始转(下降)
    pwm1.setPWM(0, 0, SERVO_30);//B
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(4, 0, SERVO_30);//F
    //pwm2.setPWM(3, 0, SERVO_30);
    //pwm2.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_60);//C
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
    //pwm2.setPWM(0, 0, SERVO_60);
    pwm1.setPWM(3, 0, SERVO_60);//E
    pwm1.setPWM(9, 0, SERVO_60);
    //pwm2.setPWM(2, 0, SERVO_60);
    //pwm2.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_90);//D
    pwm1.setPWM(8, 0, SERVO_90);
    //pwm2.setPWM(1, 0, SERVO_90);
    Serial.println("第三排");
    delay(interval0);  //0.3s
    //T=0.9s时，D转了90度，C、E转到了60度，B、F转到了30度,A、G开始转(下降)
    pwm1.setPWM(5, 0, SERVO_30);//A
    pwm1.setPWM(10, 0, SERVO_30);
    //pwm2.setPWM(4, 0, SERVO_30);//G
    //pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(0, 0, SERVO_60);//B
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(4, 0, SERVO_60);//F
    //pwm2.setPWM(3, 0, SERVO_60);
    //pwm2.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_90);//C
    pwm1.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(12, 0, SERVO_90);
    //pwm2.setPWM(0, 0, SERVO_90);
    pwm1.setPWM(3, 0, SERVO_90);//E
    pwm1.setPWM(9, 0, SERVO_90);
    //pwm2.setPWM(2, 0, SERVO_90);
    //pwm2.setPWM(5, 0, SERVO_90);
    pwm1.setPWM(2, 0, SERVO_60);//D
    pwm1.setPWM(8, 0, SERVO_60);
    //pwm2.setPWM(1, 0, SERVO_60);
    Serial.println("第四排");
    delay(interval0);  //0.3s
    //T=1.2s时，D转回到了60度，C、E转到了90度，B、F转到了60度,A、G转到了30度
    pwm1.setPWM(5, 0, SERVO_60);//A
    pwm1.setPWM(10, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_60);//G
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(0, 0, SERVO_90);//B
    pwm1.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(11, 0, SERVO_90);
    pwm1.setPWM(4, 0, SERVO_90);//F
//    pwm2.setPWM(3, 0, SERVO_90);
//    pwm2.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(1, 0, SERVO_60);//C
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
//    pwm2.setPWM(0, 0, SERVO_60);
    pwm1.setPWM(3, 0, SERVO_60);//E
    pwm1.setPWM(9, 0, SERVO_60);
//    pwm2.setPWM(2, 0, SERVO_60);
//    pwm2.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_30);//D
    pwm1.setPWM(8, 0, SERVO_30);
//    pwm2.setPWM(1, 0, SERVO_30);
    delay(interval0);  //0.3s
    //T=1.5s时，D转回到了30度，C、E转回了60度，B、F转了90度,A、G转到了60度
    pwm1.setPWM(5, 0, SERVO_90);//A
    pwm1.setPWM(10, 0, SERVO_90);
//    pwm2.setPWM(4, 0, SERVO_90);//G
//    pwm2.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(0, 0, SERVO_60);//B
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(4, 0, SERVO_60);//F
//    pwm2.setPWM(3, 0, SERVO_60);
//    pwm2.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_30);//C
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
//    pwm2.setPWM(0, 0, SERVO_30);
    pwm1.setPWM(3, 0, SERVO_30);//E
    pwm1.setPWM(9, 0, SERVO_30);
//    pwm2.setPWM(2, 0, SERVO_30);
//    pwm2.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=1.8s时，D转回到了0度，C、E转回了30度，B、F转回了60度,A、G转到了90度
    pwm1.setPWM(5, 0, SERVO_60);//A
    pwm1.setPWM(10, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_60);//G
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(0, 0, SERVO_30);//B
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(4, 0, SERVO_30);//F
//    pwm2.setPWM(3, 0, SERVO_30);
//    pwm2.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_0);//C
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
//    pwm2.setPWM(0, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//E
    pwm1.setPWM(9, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=2.1s时，D不变，C、E转回了0度，B、F转回了30度,A、G转到了60度
    pwm1.setPWM(5, 0, SERVO_30);//A
    pwm1.setPWM(10, 0, SERVO_30);
//    pwm2.setPWM(4, 0, SERVO_30);//G
//    pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(0, 0, SERVO_0);//B
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(4, 0, SERVO_0);//F
//    pwm2.setPWM(3, 0, SERVO_0);
//    pwm2.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//C
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
//    pwm2.setPWM(0, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//E
    pwm1.setPWM(9, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=2.4s时，D不变，C、E不变，B、F转回了0度,A、G转到了30度
    pwm1.setPWM(5, 0, SERVO_0);//A
    pwm1.setPWM(10, 0, SERVO_0);
//    pwm2.setPWM(4, 0, SERVO_0);//G
//    pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(0, 0, SERVO_0);//B
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(4, 0, SERVO_0);//F
//    pwm2.setPWM(3, 0, SERVO_0);
//    pwm2.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//C
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
//    pwm2.setPWM(0, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//E
    pwm1.setPWM(9, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
    Serial.println("运动完成");
  }
  else  //TDS大于250
  {
    /*
      *假设1、8、12分别记为A、B、C
    */
    //T=0s时，A开始转(下降)
    pwm1.setPWM(2, 0, SERVO_30);//A
    Serial.println("第一圈");
    delay(interval0);  //0.3s     //T=0.3s时，A转了30度，此时B也开始转(下降)
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
//    pwm2.setPWM(8, 0, SERVO_30);
//    pwm2.setPWM(1, 0, SERVO_30);
//    pwm2.setPWM(2, 0, SERVO_30);
//    pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_60);//A
    Serial.println("第二圈");
    delay(interval0);  //0.3s     //T=0.6s时，A转了60度，B转了30度，C开始转(下降)
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
//    pwm2.setPWM(0, 0, SERVO_30);
//    pwm2.setPWM(4, 0, SERVO_30);
//    pwm2.setPWM(5, 0, SERVO_30);
//    pwm2.setPWM(6, 0, SERVO_30);
//    pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
//    pwm2.setPWM(1, 0, SERVO_60);
//    pwm2.setPWM(2, 0, SERVO_60);
//    pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_90);//A
    Serial.println("第三圈");
    delay(interval0);  //0.3s     //T=0.9s时，A转了90度，B转了60度，C转了30度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
//    pwm2.setPWM(0, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_60);
//    pwm2.setPWM(5, 0, SERVO_60);
//    pwm2.setPWM(6, 0, SERVO_60);
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_90);//B
    pwm1.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(8, 0, SERVO_90);
//    pwm2.setPWM(1, 0, SERVO_90);
//    pwm2.setPWM(2, 0, SERVO_90);
//    pwm2.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(2, 0, SERVO_60);//A
    delay(interval0);  //0.3s     //T=1.2s时，A转回到了60度，B转了90度，C转了60度
    pwm1.setPWM(0, 0, SERVO_90);//C
    pwm1.setPWM(4, 0, SERVO_90);
    pwm1.setPWM(5, 0, SERVO_90);
    pwm1.setPWM(9, 0, SERVO_90);
    pwm1.setPWM(10, 0, SERVO_90);
    pwm1.setPWM(11, 0, SERVO_90);
    pwm1.setPWM(12, 0, SERVO_90);
//    pwm2.setPWM(0, 0, SERVO_90);
//    pwm2.setPWM(4, 0, SERVO_90);
//    pwm2.setPWM(5, 0, SERVO_90);
//    pwm2.setPWM(6, 0, SERVO_90);
//    pwm2.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
//    pwm2.setPWM(1, 0, SERVO_60);
//    pwm2.setPWM(2, 0, SERVO_60);
//    pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_30);//A
    delay(interval0);  //0.3s     //T=1.5s时，A转回到了30度，B转回了60度，C转了90度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
//    pwm2.setPWM(0, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_60);
//    pwm2.setPWM(5, 0, SERVO_60);
//    pwm2.setPWM(6, 0, SERVO_60);
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(8, 0, SERVO_30);
//    pwm2.setPWM(1, 0, SERVO_30);
//    pwm2.setPWM(2, 0, SERVO_30);
//    pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=1.8s时，A转回到了0度，B转回了30度，C转回了60度
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
//    pwm2.setPWM(0, 0, SERVO_30);
//    pwm2.setPWM(4, 0, SERVO_30);
//    pwm2.setPWM(5, 0, SERVO_30);
//    pwm2.setPWM(6, 0, SERVO_30);
//    pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=2.1s时，A不变，B转回了0度，C转回了30度
    pwm1.setPWM(0, 0, SERVO_0);//C
    pwm1.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(9, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
//    pwm2.setPWM(0, 0, SERVO_0);
//    pwm2.setPWM(4, 0, SERVO_0);
//    pwm2.setPWM(5, 0, SERVO_0);
//    pwm2.setPWM(6, 0, SERVO_0);
//    pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    Serial.println("运动完成");
  }
  flag=true;
}

void Draw_RightLine() //画右斜线
{
  flag=false;
  if(tdsValue <= 250)
  {
    /*
     *假设2、3、4、3、4、3、2分别记为A、B、C、D、E、F、G
    */
    //T=0s时，D开始转(下降)
    pwm1.setPWM(2, 0, SERVO_30);//D
    pwm1.setPWM(6, 0, SERVO_30);
//    pwm2.setPWM(3, 0, SERVO_30);
    Serial.println("第一排");
    delay(interval0);  //0.3s
    //T=0.3s时，D转到了30度，此时C、E也开始转(下降)
    pwm1.setPWM(1, 0, SERVO_30);//C
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(3, 0, SERVO_30);//E
//    pwm2.setPWM(2, 0, SERVO_30);
//    pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
//    pwm2.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_60);//D
    pwm1.setPWM(6, 0, SERVO_60);
//    pwm2.setPWM(3, 0, SERVO_60);
    Serial.println("第二排");
    delay(interval0);  //0.3s
    //T=0.6s时，D转了60度，C、E转到了30度，B、F开始转(下降)
    pwm1.setPWM(0, 0, SERVO_30);//B
//    pwm2.setPWM(1, 0, SERVO_30);
//    pwm2.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(4, 0, SERVO_30);//F
    pwm1.setPWM(8, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_60);//C
    pwm1.setPWM(5, 0, SERVO_60);
//    pwm2.setPWM(2, 0, SERVO_60);
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(3, 0, SERVO_60);//E
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_90);
    pwm1.setPWM(2, 0, SERVO_90);//D
    pwm1.setPWM(6, 0, SERVO_90);
//    pwm2.setPWM(3, 0, SERVO_90);
    Serial.println("第三排");
    delay(interval0);  //0.3s
    //T=0.9s时，D转了90度，C、E转到了60度，B、F转到了30度,A、G开始转(下降)
//    pwm2.setPWM(0, 0, SERVO_30);//A
//    pwm2.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);//G
    pwm1.setPWM(12, 0, SERVO_30);
    pwm1.setPWM(0, 0, SERVO_60);//B
//    pwm2.setPWM(1, 0, SERVO_60);
//    pwm2.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(4, 0, SERVO_60);//F
    pwm1.setPWM(8, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_90);//C
    pwm1.setPWM(5, 0, SERVO_90);
//    pwm2.setPWM(2, 0, SERVO_90);
//    pwm2.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(3, 0, SERVO_90);//E
    pwm1.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(10, 0, SERVO_90);
//    pwm2.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_60);//D
    pwm1.setPWM(6, 0, SERVO_60);
//    pwm2.setPWM(3, 0, SERVO_60);
    Serial.println("第四排");
    delay(interval0);  //0.3s
    //T=1.2s时，D转回到了60度，C、E转到了90度，B、F转到了60度,A、G转到了30度
//    pwm2.setPWM(0, 0, SERVO_60);//A
//    pwm2.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);//G
    pwm1.setPWM(12, 0, SERVO_60);
    pwm1.setPWM(0, 0, SERVO_90);//B
//    pwm2.setPWM(1, 0, SERVO_90);
//    pwm2.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(4, 0, SERVO_90);//F
    pwm1.setPWM(8, 0, SERVO_90);
    pwm1.setPWM(11, 0, SERVO_90);
    pwm1.setPWM(1, 0, SERVO_60);//C
    pwm1.setPWM(5, 0, SERVO_60);
//    pwm2.setPWM(2, 0, SERVO_60);
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(3, 0, SERVO_60);//E
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_30);//D
    pwm1.setPWM(6, 0, SERVO_30);
//    pwm2.setPWM(3, 0, SERVO_30);
    delay(interval0);  //0.3s
    //T=1.5s时，D转回到了30度，C、E转回了60度，B、F转了90度,A、G转到了60度
//    pwm2.setPWM(0, 0, SERVO_90);//A
//    pwm2.setPWM(5, 0, SERVO_90);
    pwm1.setPWM(9, 0, SERVO_90);//G
    pwm1.setPWM(12, 0, SERVO_90);
    pwm1.setPWM(0, 0, SERVO_60);//B
//    pwm2.setPWM(1, 0, SERVO_60);
//    pwm2.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(4, 0, SERVO_60);//F
    pwm1.setPWM(8, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_30);//C
    pwm1.setPWM(5, 0, SERVO_30);
//    pwm2.setPWM(2, 0, SERVO_30);
//    pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(3, 0, SERVO_30);//E
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
//    pwm2.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(6, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=1.8s时，D转回到了0度，C、E转回了30度，B、F转回了60度,A、G转到了90度
//    pwm2.setPWM(0, 0, SERVO_60);//A
//    pwm2.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);//G
    pwm1.setPWM(12, 0, SERVO_60);
    pwm1.setPWM(0, 0, SERVO_30);//B
//    pwm2.setPWM(1, 0, SERVO_30);
//    pwm2.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(4, 0, SERVO_30);//F
    pwm1.setPWM(8, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_0);//C
    pwm1.setPWM(5, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//E
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
//    pwm2.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(6, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=2.1s时，D不变，C、E转回了0度，B、F转回了30度,A、G转到了60度
//    pwm2.setPWM(0, 0, SERVO_30);//A
//    pwm2.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);//G
    pwm1.setPWM(12, 0, SERVO_30);
    pwm1.setPWM(0, 0, SERVO_0);//B
//    pwm2.setPWM(1, 0, SERVO_0);
//    pwm2.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(4, 0, SERVO_0);//F
    pwm1.setPWM(8, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//C
    pwm1.setPWM(5, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//E
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
//    pwm2.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(6, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    delay(interval0);  //0.3s
    //T=2.4s时，D不变，C、E不变，B、F转回了0度,A、G转到了30度
//    pwm2.setPWM(0, 0, SERVO_0);//A
//    pwm2.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(9, 0, SERVO_0);//G
    pwm1.setPWM(12, 0, SERVO_0);
    pwm1.setPWM(0, 0, SERVO_0);//B
//    pwm2.setPWM(1, 0, SERVO_0);
//    pwm2.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(4, 0, SERVO_0);//F
    pwm1.setPWM(8, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//C
    pwm1.setPWM(5, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(3, 0, SERVO_0);//E
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
//    pwm2.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//D
    pwm1.setPWM(6, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    Serial.println("运动完成");
  }
  else  //TDS大于250
  {
    /*
      *假设1、8、12分别记为A、B、C
    */
    //T=0s时，A开始转(下降)
    pwm1.setPWM(2, 0, SERVO_30);//A
    Serial.println("第一圈");
    delay(interval0);  //0.3s     //T=0.3s时，A转了30度，此时B也开始转(下降)
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
//    pwm2.setPWM(8, 0, SERVO_30);
//    pwm2.setPWM(1, 0, SERVO_30);
//    pwm2.setPWM(2, 0, SERVO_30);
//    pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_60);//A
    Serial.println("第二圈");
    delay(interval0);  //0.3s     //T=0.6s时，A转了60度，B转了30度，C开始转(下降)
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
//    pwm2.setPWM(0, 0, SERVO_30);
//    pwm2.setPWM(4, 0, SERVO_30);
//    pwm2.setPWM(5, 0, SERVO_30);
//    pwm2.setPWM(6, 0, SERVO_30);
//    pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
//    pwm2.setPWM(1, 0, SERVO_60);
//    pwm2.setPWM(2, 0, SERVO_60);
//    pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_90);//A
    Serial.println("第三圈");
    delay(interval0);  //0.3s     //T=0.9s时，A转了90度，B转了60度，C转了30度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
//    pwm2.setPWM(0, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_60);
//    pwm2.setPWM(5, 0, SERVO_60);
//    pwm2.setPWM(6, 0, SERVO_60);
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_90);//B
    pwm1.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(6, 0, SERVO_90);
    pwm1.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(8, 0, SERVO_90);
//    pwm2.setPWM(1, 0, SERVO_90);
//    pwm2.setPWM(2, 0, SERVO_90);
//    pwm2.setPWM(3, 0, SERVO_90);
    pwm1.setPWM(2, 0, SERVO_60);//A
    delay(interval0);  //0.3s     //T=1.2s时，A转回到了60度，B转了90度，C转了60度
    pwm1.setPWM(0, 0, SERVO_90);//C
    pwm1.setPWM(4, 0, SERVO_90);
    pwm1.setPWM(5, 0, SERVO_90);
    pwm1.setPWM(9, 0, SERVO_90);
    pwm1.setPWM(10, 0, SERVO_90);
    pwm1.setPWM(11, 0, SERVO_90);
    pwm1.setPWM(12, 0, SERVO_90);
//    pwm2.setPWM(0, 0, SERVO_90);
//    pwm2.setPWM(4, 0, SERVO_90);
//    pwm2.setPWM(5, 0, SERVO_90);
//    pwm2.setPWM(6, 0, SERVO_90);
//    pwm2.setPWM(7, 0, SERVO_90);
    pwm1.setPWM(1, 0, SERVO_60);//B
    pwm1.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(6, 0, SERVO_60);
    pwm1.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(8, 0, SERVO_60);
//    pwm2.setPWM(1, 0, SERVO_60);
//    pwm2.setPWM(2, 0, SERVO_60);
//    pwm2.setPWM(3, 0, SERVO_60);
    pwm1.setPWM(2, 0, SERVO_30);//A
    delay(interval0);  //0.3s     //T=1.5s时，A转回到了30度，B转回了60度，C转了90度
    pwm1.setPWM(0, 0, SERVO_60);//C
    pwm1.setPWM(4, 0, SERVO_60);
    pwm1.setPWM(5, 0, SERVO_60);
    pwm1.setPWM(9, 0, SERVO_60);
    pwm1.setPWM(10, 0, SERVO_60);
    pwm1.setPWM(11, 0, SERVO_60);
    pwm1.setPWM(12, 0, SERVO_60);
//    pwm2.setPWM(0, 0, SERVO_60);
//    pwm2.setPWM(4, 0, SERVO_60);
//    pwm2.setPWM(5, 0, SERVO_60);
//    pwm2.setPWM(6, 0, SERVO_60);
//    pwm2.setPWM(7, 0, SERVO_60);
    pwm1.setPWM(1, 0, SERVO_30);//B
    pwm1.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(6, 0, SERVO_30);
    pwm1.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(8, 0, SERVO_30);
//    pwm2.setPWM(1, 0, SERVO_30);
//    pwm2.setPWM(2, 0, SERVO_30);
//    pwm2.setPWM(3, 0, SERVO_30);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=1.8s时，A转回到了0度，B转回了30度，C转回了60度
    pwm1.setPWM(0, 0, SERVO_30);//C
    pwm1.setPWM(4, 0, SERVO_30);
    pwm1.setPWM(5, 0, SERVO_30);
    pwm1.setPWM(9, 0, SERVO_30);
    pwm1.setPWM(10, 0, SERVO_30);
    pwm1.setPWM(11, 0, SERVO_30);
    pwm1.setPWM(12, 0, SERVO_30);
//    pwm2.setPWM(0, 0, SERVO_30);
//    pwm2.setPWM(4, 0, SERVO_30);
//    pwm2.setPWM(5, 0, SERVO_30);
//    pwm2.setPWM(6, 0, SERVO_30);
//    pwm2.setPWM(7, 0, SERVO_30);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    delay(interval0);  //0.3s     //T=2.1s时，A不变，B转回了0度，C转回了30度
    pwm1.setPWM(0, 0, SERVO_0);//C
    pwm1.setPWM(4, 0, SERVO_0);
    pwm1.setPWM(5, 0, SERVO_0);
    pwm1.setPWM(9, 0, SERVO_0);
    pwm1.setPWM(10, 0, SERVO_0);
    pwm1.setPWM(11, 0, SERVO_0);
    pwm1.setPWM(12, 0, SERVO_0);
//    pwm2.setPWM(0, 0, SERVO_0);
//    pwm2.setPWM(4, 0, SERVO_0);
//    pwm2.setPWM(5, 0, SERVO_0);
//    pwm2.setPWM(6, 0, SERVO_0);
//    pwm2.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(1, 0, SERVO_0);//B
    pwm1.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(6, 0, SERVO_0);
    pwm1.setPWM(7, 0, SERVO_0);
    pwm1.setPWM(8, 0, SERVO_0);
//    pwm2.setPWM(1, 0, SERVO_0);
//    pwm2.setPWM(2, 0, SERVO_0);
//    pwm2.setPWM(3, 0, SERVO_0);
    pwm1.setPWM(2, 0, SERVO_0);//A
    Serial.println("运动完成");
  }
  flag=true;
}

2.3 气体传感器 —— 气体检测

2.3.1 功能介绍

在这里插入图片描述
在这里插入图片描述

  • 1、气体芯片的大小约1.5*1.5cm大小，如上图所示，16个圆圈对应16个气体检测通道。气体浓度越大，阻值越大。室内通常情况下就是1M欧姆左右，浓度加大阻值可以去到3M欧姆。
  • 2、每个通道外接一个分压电阻，分压电阻和气体芯片直接连接到ADS1256芯片，每个ADS芯片有8个通道，因此需要两片ADS。ADS是24位精度ADC采集芯片。
    3、不需要计算具体的气体浓度值，用电压值的形式表示就行。并显示在HMI显示屏。
  • 4、当然也需要把数据写入SD内存卡。
  • 5、并预留蓝牙接口，把数据也通过蓝牙实时发送出去。
  • 6、通过锂电池供电，并板载锂电池充电电路。

2.3.2 实物图片

1、1ATmega328p
2、4 ADS1115芯片
3、13.5寸HMI显示屏
4、1气体芯片
5、1SD卡
6、16电阻

在这里插入图片描述

2.3.3 视频

演示视频暂时无法上传（需要的可以另外帖子留言）

2.3.4 源代码

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
#include <stdio.h>
#include <SoftwareSerial.h>      //虚拟串口定义  ------LCD串口显示屏
SoftwareSerial mySerial(3, 2);   // RX, TX
unsigned char serialData[5];     // 显示屏接收4个字节数据
bool stringComplete = false;     //显示屏数据是否更新  true已更新  false未更新或者已处理  防止二次处理
enum ADCmcuStu{OneTestStart, OneTestEnd, LineModelStart, LineModelEnd}NowStu; //当前状态  OneTestStart：一键测试按键    OneTestEnd：测试结束   LineModelStart：曲线模式

// ad1115 采集定义
#include <Wire.h>
#include <Adafruit_ADS1015.h> /*ADS1115库定义*/
Adafruit_ADS1115 ads0(0x48);  /*ADS设备地址*/
Adafruit_ADS1115 ads1(0x49);  /*ADS设备地址*/
Adafruit_ADS1115 ads2(0x4A);  /*ADS设备地址*/
Adafruit_ADS1115 ads3(0x4B);  /*ADS设备地址*/

//读取SD卡信息库
#include <SPI.h>       //SD卡用到的SPI库
#include <SD.h>        //SD卡用到的库
#include <SdFat.h>     //SD卡文件读写库
Sd2Card card;
SdVolume volume;
SdFile root;
File myFile;//文件
const int chipSelect = 4; //SD卡4号位选

//蓝牙模块初始化
SoftwareSerial mySerialHc(6,5); // RX, TX
const int HC_EN=7;              //D7引脚用到蓝牙的使能端   目前为一直拉低默认使能   拉高不使能
const int HC_STU=8;             //蓝牙连接引脚  拉高：蓝牙已连接   拉低：蓝牙未连接
bool stringCompleteHc = false;  // 蓝牙数据是否更新   ture：已更新   false：未更新或者更新完成已处理  防止二次处理



void setup(void) {
  Serial.begin(9600);         //主串口波特率未9600  用来调试
  Serial.println("WelCome");  //主串口输出测试

  //ad1115 初始化 ，使用4个ADS1115对象方便操作
  ads0.begin();    //ADS1115模块初始化
  ads1.begin();    //ADS1115模块初始化
  ads2.begin();    //ADS1115模块初始化
  ads3.begin();    //ADS1115模块初始化


  mySerial.begin(115200);  //显示屏串口波特率
  NowStu=OneTestEnd;       //初始化测试状态为停止测试


  //蓝牙模块初始化
  mySerialHc.begin(9600);       //模块上电灯快闪，arduino发送指令时需要按住模块上的按键
  pinMode(HC_EN, OUTPUT);       //蓝牙使能
  pinMode(HC_STU, INPUT);       //蓝牙状态灯
  digitalWrite(HC_EN, LOW);     //默认使能

  mySerial.listen();            //监听切换，由于使用两个软串口，需要切换监听。

}


void loop(void) {
  SerialGeTData();           //显示屏串口接收处理
  SerialScan();              //根据显示屏接受到的数据判断当前状态

  while(NowStu==OneTestStart){  //如果为测试状态
    SerialGeTData();  //显示屏串口接收处理
    SerialScan();     //显示屏串口接收处理
    getAndUpLoad();   //测试显示数据和保存数据到SD卡
  }
}
//备用  本来使用串口中断更为合适  虚拟串口串口中不知为何失效
//void SerialEvent() {
//  while (mySerial.available()) {
//    // get the new byte:
//    mySerial.readBytes(serialData, 4);
//
//    Serial.write(serialData,4);
//    stringComplete=true;
//  }
//}

//按键扫描程序
void SerialScan(){
  if (stringComplete) {

     stringComplete=false;     //这里标志串口显示屏接收的数据已处理，处理完毕
    if(serialData[0]==0x05){    //显示屏数据定义05开头表示一键测试数据界面
      if(serialData[1]==0x00){  //0x00表示一键测试界面用户按下了开始测试
         serialData[1]=0x0D;   //将第二位设置为0XOD，防止二次处理
         NowStu=OneTestStart;  //将当前状态设置为一键测试状态
      }
      else if(serialData[1]==0xFF){   //暂停测试
         serialData[1]=0x0D;   //将第二位设置为0XOD，防止二次处理
         NowStu=OneTestEnd;    //停止采集
         myFile.close();       //SD卡文件关闭
      }
      else if(serialData[1]==0xEA){   //查询SD卡状态
         serialData[1]=0x0D;   //将第二位设置为0XOD，防止二次处理
        //读取内存卡信息
        if (!card.init(SPI_HALF_SPEED, chipSelect) || !SD.begin(4)) {   //SD卡初始化，判断SD卡是否连接正常
            //无SD卡
            unsigned char data[26]={0x53,0x44,0x73,0x74,0x75,0x2E,0x74,0x78,0x74,0x3D,0x22,0x4E,0x6F,0x20,0x53,0x44,0x20,0x63,0x61,0x72,0x64,0x22,0xff,0xff,0xff};  //该数据为ASCLL码值
            mySerial.write(data,25);         //在一键测试显示屏上面显示无SD卡
            Serial.println("sd card no");    //主串口调试输出

        } else {
          if (!volume.init(card)) {      //检查SD卡是否符合FAT16文件格式，不符合无法写入，在一键测试的界面上面显示  提示内容为： Only Support FAT16/FAT32
            unsigned char data[40]={0x53,0x44,0x73,0x74,0x75,0x2E,0x74,0x78,0x74,0x3D,0x22,0x4F,0x6E,0x6C,0x79,0x20,0x53,0x75,0x70,0x70,0x6F,0x72,0x74,0x20,0x46,0x41,0x54,0x31,0x36,0x2F,0x46,0x41,0x54,0x33,0x32,0x22,0xff,0xff,0xff};
            mySerial.write(data,39);    //发送提示文字到一键测试界面
          }
          else{
            myFile = SD.open("READTEST.CSV", FILE_WRITE);  //打开测试文件名称
            //有SD卡
            uint32_t volumesize;
            uint32_t dsnd,dend;
            int i=0,j=0;
            volumesize = volume.blocksPerCluster();    // clusters are collections of blocks
            volumesize *= volume.clusterCount();       // we'll have a lot of clusters
            volumesize /= 2;                           // SD card blocks are always 512 bytes (2 blocks are 1KB)
            volumesize /= 1024;                        // MB
            dsnd=volumesize;                           //SD卡内存
            dend=volumesize;                           //SD卡内存
            while(dsnd!=0){
              i=i+1;
              dsnd=dsnd/10;
            }//计算出内存的位数  比如119MB，位数就为3位
            unsigned char data[50]={0x53,0x44,0x73,0x74,0x75,0x2E,0x74,0x78,0x74,0x3D,0x22,0x53,0x44,0x20,0x43,0x61,0x72,0x64,0x20,0x4F,0x4B,0x20,0x53,0x69,0x7A,0x65,0x3D,0x31,0x31,0x31,0x30,0x4D,0x42,0x22,0xff,0xff,0xff};//SDstu.txt="SD Card OK Size=1110MB"
            while(dend!=0){
              *(data+27+i-j)=dend%10+48;
              j=j+1;
              dend=dend/10;
            }//将内存的位数转换成内存  这里将1110MB每个换成相应的内存值
            mySerial.write(data,50);//将一键测试内存状态SD Card OK Size=1110MB
          }

        }

      }

    }
     else if(serialData[0]==0xBA){  //0XBA代表蓝牙传输界面
         if  (serialData[1]==0xBA){
             serialData[1]=0x0D;     //将第二位设置为0XOD，防止二次处理
             if (digitalRead(HC_STU) == HIGH) {
               //蓝牙已连接
               unsigned char data[20]={0x74,0x32,0x2E,0x74,0x78,0x74,0x3D,0x22,0x4F,0x6E,0x4C,0x69,0x6E,0x65,0x22,0xff,0xff,0xff};
               mySerial.write(data,18);  //蓝牙连接显示Online
            } else {
               unsigned char data[20]={0x74,0x32,0x2E,0x74,0x78,0x74,0x3D,0x22,0x4F,0x66,0x66,0x4C,0x69,0x6E,0x65,0x22,0xff,0xff,0xff};
               mySerial.write(data,19);  //蓝牙连接显示Offline
            }

          }
          else if (serialData[2]==0xAF){  //发送数据到手机APP ,用户点击了发送数据到APP上面


          }

      }


  }
}

//该函数备用  用来蓝牙发送命令让气体检测系统传数据到APP上面
void HcSerialGeTData(){
   while(mySerialHc.available()){
    char ch;
    ch = mySerialHc.read();
    Serial.print(ch);
    if(ch=='1')
     Serial.print("1");
    else if(ch=='0')
     Serial.print("0");
    else{
       Serial.println("error cmd");//错误指令不作任何操作并输出error
    }
     stringComplete=true;
  } // Get response
}
//显示屏串口轮询的方式接收4个数据
void SerialGeTData(){
   while (mySerial.available()) {
    // get the new byte:
    mySerial.readBytes(serialData, 4);
    stringComplete=true;
  }
}

//采集并且上传数据
void getAndUpLoad(){

  int16_t adc0, adc1, adc2, adc3;
  int16_t adc4, adc5, adc6, adc7;
  int16_t adc8, adc9, adc10, adc11;
  int16_t adc12, adc13, adc14, adc15;
  //采集16个通道的数据
  adc0 = ads0.readADC_SingleEnded(0);
  delay(1);
  adc1 = ads0.readADC_SingleEnded(1);
  delay(1);
  adc2 = ads0.readADC_SingleEnded(2);
  delay(1);
  adc3 = ads0.readADC_SingleEnded(3);
  delay(1);

  adc4 = ads1.readADC_SingleEnded(0);
  delay(1);
  adc5 = ads1.readADC_SingleEnded(1);
  delay(1);
  adc6 = ads1.readADC_SingleEnded(2);
  delay(1);
  adc7 = ads1.readADC_SingleEnded(3);
  delay(1);

  adc8 = ads2.readADC_SingleEnded(0);
  delay(1);
  adc9 = ads2.readADC_SingleEnded(1);
  delay(1);
  adc10 = ads2.readADC_SingleEnded(2);
  delay(1);
  adc11 = ads2.readADC_SingleEnded(3);
  delay(1);

  adc12 = ads3.readADC_SingleEnded(0);
  delay(1);
  adc13 = ads3.readADC_SingleEnded(1);
  delay(1);
  adc14 = ads3.readADC_SingleEnded(2);
  delay(1);
  adc15 = ads3.readADC_SingleEnded(3);
  delay(1);
  Serial.print(adc0);
  Serial.print(adc1);
  Serial.print(adc2);
  Serial.print(adc3);
  Serial.print(adc4);
  Serial.print(adc5);
  Serial.print(adc6);
  Serial.print(adc7);
  Serial.print(adc8);
  Serial.print(adc9);
  Serial.print(adc10);
  Serial.print(adc11);
  Serial.print(adc12);  Serial.print(" ");
  Serial.print(adc13); Serial.print(" ");
  Serial.print(adc14); Serial.print(" ");
  Serial.println(adc15); Serial.print(" ");

  DisplayADCData(0x6E,0x30,adc0);  //这里0X6E代表左边8个通道的数据控件ID ,0X30代表左边第一个通道  ，adc0是采集的数据
  DisplayADCData(0x6E,0x31,adc1);  //这里0X6E代表左边8个通道的数据控件ID ,0X31代表左边第二个通道  ，adc1是采集的数据
  DisplayADCData(0x6E,0x32,adc2);  //这里0X6E代表左边8个通道的数据控件ID ,0X32代表左边第三个通道  ，adc2是采集的数据
  DisplayADCData(0x6E,0x33,adc3);  //这里0X6E代表左边8个通道的数据控件ID ,0X33代表左边第四个通道  ，adc3是采集的数据

  DisplayADCData(0x6E,0x34,adc4);  //这里0X6E代表左边8个通道的数据控件ID ,0X34代表左边第五个通道  ，adc5是采集的数据
  DisplayADCData(0x6E,0x35,adc5);  //这里0X6E代表左边8个通道的数据控件ID ,0X35代表左边第六个通道  ，adc6是采集的数据
  DisplayADCData(0x6E,0x36,adc6);  //这里0X6E代表左边8个通道的数据控件ID ,0X36代表左边第七个通道  ，adc7是采集的数据
  DisplayADCData(0x6E,0x37,adc7);  //这里0X6E代表左边8个通道的数据控件ID ,0X37代表左边第八个通道  ，adc8是采集的数据

  DisplayADCData(0x6D,0x30,adc8);  //这里0X6D代表右边8个通道的数据控件ID ,0X30代表右边第一个通道  ，adc9是采集的数据
  DisplayADCData(0x6D,0x31,adc9);  //这里0X6D代表右边8个通道的数据控件ID ,0X31代表右边第二个通道  ，adc10是采集的数据
  DisplayADCData(0x6D,0x32,adc10); //这里0X6D代表右边8个通道的数据控件ID ,0X32代表右边第三个通道  ，adc11是采集的数据
  DisplayADCData(0x6D,0x33,adc11); //这里0X6D代表右边8个通道的数据控件ID ,0X33代表右边第四个通道  ，adc12是采集的数据

  DisplayADCData(0x6D,0x34,adc12); //这里0X6D代表右边8个通道的数据控件ID ,0X34代表右边第五个通道  ，adc13是采集的数据
  DisplayADCData(0x6D,0x35,adc13); //这里0X6D代表右边8个通道的数据控件ID ,0X34代表右边第六个通道  ，adc14是采集的数据
  DisplayADCData(0x6D,0x36,adc14); //这里0X6D代表右边8个通道的数据控件ID ,0X34代表右边第七个通道  ，adc15是采集的数据
  DisplayADCData(0x6D,0x37,adc15); //这里0X6D代表右边8个通道的数据控件ID ,0X34代表右边第八个通道  ，adc16是采集的数据

  char savedata[200]={};
  String savedataString = "";
  char* p;
  p=savedata;
  sprintf(p,"%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d",adc0,adc1,adc2,adc3,adc4,adc5,adc6,adc7,adc8,adc9,adc10,adc11,adc12,adc13,adc14,adc15);//将ADC 采集的数据格式化到savedata数据中
  for(int i=0;i<100;i++){
    savedataString+=*(p+i);
  }//循环将char字符数据转换成String格式

  if (myFile) {//如果文件能正确打开，则做一下动作
    myFile.println(savedataString); //写入SD卡数据
    myFile.close();                 //SD卡中文件关闭
  } else {
    // if the file didn't open, print an error:
    myFile.close();                //SD卡中文件关闭
    myFile = SD.open("READTEST.CSV", FILE_WRITE);  //打开
    myFile.println(savedataString);//写入SD卡READTEST.CSV文件数据
    myFile.close();//写完关闭

  }

}
/*------------------------------------------------------
*  函数名称： DisplayADCData
*  参数 TyID: 0X6E代表左边8个通道  0x6D代表右边8个通道
*  参数 id:  比如0X30 代表显示屏中控件数组
*  参数 adcv ：让文本控件显示的数据
*  返回值：无
------------------------------------------------------*/
void DisplayADCData(unsigned char tyid,unsigned char id,int16_t adcv){
  unsigned char data[15]={0x6E,0x30,0x2E,0x76,0x61,0x6C,0x3D}; //显示屏显示基本数据格式
  data[0]=tyid;data[1]=id;
  int len=IntoStrAscill(adcv,data);
  mySerial.write(data,10+len);  //发送数据到显示屏
}
/*------------------------------------------------------
*  函数名称： IntoStrAscill
*  参数 a: 表示int16_t类型的传输数据
*  参数 data: 表示int16_t类型的传输数据转换成显示屏能识别的16进制数据
*  返回值：传输数据的长度
------------------------------------------------------*/
int IntoStrAscill(int16_t a,unsigned char *data){
  int16_t dsnd,dend=0;
  int i=0,j=0;
  dend=a;
  dsnd=a;
 while(dsnd!=0){
    i=i+1;
    dsnd=dsnd/10;
  }
  while(dend!=0){
    *(data+6+i-j)=dend%10+48;
    j=j+1;
    dend=dend/10;
  }
  *(data+7+i)=0xff;
  *(data+8+i)=0xff;
  *(data+9+i)=0xff;
  return i;
}

2.4 气体采集平台

2.4.1 功能介绍

  • 1、CCS811采集CO2的ppm值。
  • 2、MICS6814或4541采集CO、NO2、C2H5OH、H2、NH3、CH4、C3H8、C4H10的ppm值。
  • 3、ppm显示在HMI显示屏。
  • 4、当然也需要把数据写入SD内存卡。
  • 5、并预留蓝牙接口，把数据也通过蓝牙实时发送出去。
  • 6、通过锂电池供电，并板载锂电池充电电路。

2.4.2 实物图片

1、1ATmega328p
2、13.5寸HMI显示屏
3、1CCS811芯片
4、1MICS6814或4541芯片
5、1*SD卡

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

2.4.3 视频

演示视频暂时无法上传（需要的可以另外帖子留言）

2.4.4 源代码

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
#include <SoftwareSerial.h>                     //虚拟串口定义
#include "Adafruit_CCS811.h"
#include <SPI.h>                                //SD卡用到的SPI库
#include <SD.h>                                 //SD卡用到的库
File myFile;                                    //文件
Adafruit_CCS811 ccs;
SoftwareSerial SerialHMI(2, 3);                 //LCD RX, TX
SoftwareSerial SerialBL(6, 5);                  //蓝牙 RX, TX
unsigned char lcdenddata[3] = {0xff,0xff,0xff};
#define SD_CS     4                             //SD卡4号位选
#define C_WAKE    10
#define PIN_CO    A2
#define PIN_NO2   A0
#define PIN_NH3   A1
#define BL_STU    7                              //蓝牙连接引脚  高：蓝牙已连接   低：蓝牙未连接
//--CO-- RED sensor, continuous power ON, 25°C, 50% RH
float CO_a = 4.367409,    CO_b = -1.184229;     //R² = 0.996355
float H2S_a = 0.000750,   H2S_b = -12.648453;   //R² = 0.996355
//float NH3_a = 0.929592,   NH3_b = -4.581835;    //R² = 0.998526
float C2H5OH_a = 1.581239,C2H5OH_b = -1.588810; //R² = 0.999069
//float H2_a = 1.335670,    H2_b = -1.100056;     //R² = 0.923029
float CH4_a = 4.735701, CH4_b = -4.397849;    //R² = 0.994133
//float C3H8_a = 192.959787,C3H8_b = -1.576081;   //R² = 0.991974
float C4H10_a = 0.000001, C4H10_b = -8.574002;  //R² = 0.993917
//--NO2-- OX sensor, continuous power ON, 25°C, 50% RH
float NO2_a = 0.158508,   NO2_b = 1.003580;     //R² = 0.999567
float NO_a = 0.100458,    NO_b = -6.905034;     //R² = 0.996571
float H2_a = 19.414884,   H2_b = -7.140802;     //R² = 0.998710
//--NH3--NH3 sensor, continuous power ON, 25°C, 50% RH
float NH3_a = 0.597818,   NH3_b = -1.906549;    //R² = 0.997497
//float H2_a = 8.065816,    H2_b = -2.779010;     //R² = 0.964979
//float C2H5OH_a = 0.220619,C2H5OH_a = -2.655544; //R² = 0.983520
float C3H8_a = 9.262341,C3H8_b =-2.756977;    //R² = 0.998483
//float C4H10_a = 503.395368,C4H10_b = -1.920635; //R² = 0.977432

int CO_base,NO2_base,NH3_base;                      //base value in the clean air
float CO2,TVOC,CO,H2S,C2H5OH,CH4,C4H10,NO2,NO,H2,NH3,C3H8;                     //ppm value
void setup() {
  Serial.begin(9600);// initialize serial communications at 9600 bps:
  SerialHMI.begin(9600);  //显示屏串口波特率
  SerialBL.begin(9600);  //显示屏串口波特率
  pinMode(C_WAKE, OUTPUT);
  digitalWrite(C_WAKE, LOW);
  pinMode(BL_STU, INPUT);       //蓝牙状态灯
  if(!ccs.begin()){
    Serial.println(F("Failed to start CO2 sensor! Please check your wiring."));
  }
  // Wait for the sensor to be ready
//  while(!ccs.available());
  ccs.disableInterrupt();
  //清洁空气下的base值，200次取平均
  CO_base = 0;
  NO2_base = 0;
  NH3_base = 0;
  for(int count = 1; count <= 200; count++){
    CO_base += (analogRead(PIN_CO) - CO_base)/count;   //求平均值
    NO2_base += (analogRead(PIN_NO2) - NO2_base)/count;//求平均值
    NH3_base += (analogRead(PIN_NH3) - NH3_base)/count;//求平均值
  }
}

void loop() {
  Gases_read();
  HMIdisplay();
  Bluetooth();
  Serialprint();
  SD_dataLog();
  delay(1000);
}
float Get_ppm(int _Gas_pin, int _Gas_base, float Gas_a, float Gas_b){
  int _Gas_now = analogRead(_Gas_pin);
  if(_Gas_now < _Gas_base) _Gas_now = _Gas_base;
  float _Rs_R0 = ((1023.0 - _Gas_now) * _Gas_base * 1.0)/((1023.0 - _Gas_base) * _Gas_now);// Get ratio RS_gas/RS_air
  if(_Rs_R0 <= 0){ _Rs_R0 = 0;} //No negative values accepted or upper datasheet recomendation.
  float _PPM= Gas_a*pow(_Rs_R0, Gas_b);
  if(_PPM < 0) { _PPM = 0;} //No negative values accepted or upper datasheet recomendation.
  //if(_PPM > 10000) _PPM = 99999999; //No negative values accepted or upper datasheet recomendation.
  return _PPM;
}
void Gases_read(){
  if(ccs.available()){
    if(!ccs.readData()){
      CO2 = ccs.geteCO2();
      if(CO2 < 10){CO2 = random(400,410);}
      TVOC = ccs.getTVOC();
//      tempvalue=ccs.calculateTemperature();
    }
    else{
      Serial.println(F("CCS811 ERROR!"));
    }
  }

  CO = Get_ppm(PIN_CO, CO_base, CO_a, CO_b);              //Carbon monoxide   1 – 1000ppm
  NO2 = Get_ppm(PIN_NO2, NO2_base, NO2_a, NO2_b);         //Nitrogen dioxide 0.05 – 10ppm
  C2H5OH  = Get_ppm(PIN_CO, CO_base, C2H5OH_a, C2H5OH_b); //Ethanol           10 – 500ppm
  H2 = Get_ppm(PIN_NO2, NO2_base, H2_a, H2_b);            //Hydrogen          1 – 1000ppm
  NH3 = Get_ppm(PIN_NH3, NH3_base, NH3_a, NH3_b);         //Ammonia            1 – 500ppm
  CH4 = Get_ppm(PIN_CO, CO_base, CH4_a, CH4_b);           //Methane              >1000ppm
  C3H8 = Get_ppm(PIN_NH3, NH3_base, C3H8_a, C3H8_b);      //Propane              >1000ppm
  C4H10 = Get_ppm(PIN_CO, CO_base, C4H10_a, C4H10_b);     //Iso-butane           >1000ppm
  H2S = Get_ppm(PIN_CO, CO_base, H2S_a, H2S_b);
  NO = Get_ppm(PIN_NO2, NO2_base, NO_a, NO_b);
}
void HMIprint(String ID, uint16_t value){
  SerialHMI.print(ID + value);
  SerialHMI.write(lcdenddata,3);
  delay(10);
}
void HMIdisplay(){
  HMIprint("x0.val=", CO2*100);
  HMIprint("x1.val=", TVOC*100);
  HMIprint("x2.val=", CO*100);
  HMIprint("x3.val=", NO2*100);
  HMIprint("x4.val=", C2H5OH*100);
  HMIprint("x5.val=", H2*100);
  HMIprint("x6.val=", NH3*100);
  HMIprint("x7.val=", CH4*100);
  HMIprint("x8.val=", C3H8*100);
  HMIprint("x9.val=", C4H10*100);
  HMIprint("x10.val=", H2S*100);
  HMIprint("x11.val=", NO*100);
}
/********蓝牙状态函数********/
void Bluetooth(){
  int Bluetooth_State = digitalRead(BL_STU);            //读取I/O口状态
  if(Bluetooth_State == HIGH){
    Serial.println(F("Bluetooth Connected"));
    SerialHMI.print(F("s1.txt="Bluetooth connected""));
    SerialHMI.write(lcdenddata,3);
    delay(10);
  }
  else{
    Serial.println(F("Bluetooth available"));
    SerialHMI.print(F("s1.txt="Bluetooth available""));
    SerialHMI.write(lcdenddata,3);
    delay(10);
  }
}
void SD_dataLog(){
  if (!SD.begin(SD_CS)){ //SD卡初始化，判断SD卡是否连接正常
    Serial.println(F("SD Not Ready"));
    SerialHMI.print(F("s2.txt="SD Not Ready""));
    SerialHMI.write(lcdenddata,3);
  }
  else{
    Serial.println(F("SD Ready"));
    SerialHMI.print(F("s2.txt="SD Ready""));
    SerialHMI.write(lcdenddata,3);
    myFile = SD.open("datalog.CSV", FILE_WRITE);  //打开
    delay(1000);
    myFile.print(CO2);   myFile.print(F(","));
    myFile.print(TVOC);  myFile.print(F(","));
    myFile.print(CO);    myFile.print(F(","));
    myFile.print(NO2);   myFile.print(F(","));
    myFile.print(C2H5OH);myFile.print(F(","));
    myFile.print(H2);    myFile.print(F(","));
    myFile.print(NH3);   myFile.print(F(","));
    myFile.print(CH4);   myFile.print(F(","));
    myFile.print(C3H8);  myFile.print(F(","));
    myFile.print(C4H10); myFile.print(F(","));
    myFile.print(H2S);   myFile.print(F(","));
    myFile.println(NO);
//    myFile.println();
    myFile.close();//写完关闭
    delay(1000);
  }
}
void Serialprint(){
  Serial.println(F("-----------------------------------------------------"));
  Serial.print(F("  CO2 :"));Serial.print(CO2);Serial.print(F("tppmt TVOC:"));Serial.print(TVOC);Serial.println(F("tppm"));
  Serial.print(F("  CO  :"));Serial.print(CO);Serial.print(F("tppmt NO2 :"));Serial.print(NO2);Serial.println(F("tppm"));
  Serial.print(F("C2H5OH:"));Serial.print(C2H5OH);Serial.print(F("tppmt  H2 :"));Serial.print(H2);Serial.println(F("tppm"));
  Serial.print(F("  NH3 :"));Serial.print(NH3);Serial.print(F("tppmt CH4 :"));Serial.print(CH4);Serial.println(F("tppm"));
  Serial.print(F(" C3H8 :"));Serial.print(C3H8);Serial.print(F("tppmtC4H10:"));Serial.print(C4H10);Serial.println(F("tppm"));
  Serial.print(F("  H2S :"));Serial.print(H2S);Serial.print(F("tppmt  NO :"));Serial.print(NO);Serial.println(F("tppm"));

  SerialBL.print(F("  CO2 :"));SerialBL.print(CO2);SerialBL.print(F("tppmt TVOC:"));SerialBL.print(TVOC);SerialBL.println(F("tppm"));
  SerialBL.print(F("  CO  :"));SerialBL.print(CO);SerialBL.print(F("tppmt NO2 :"));SerialBL.print(NO2);SerialBL.println(F("tppm"));
  SerialBL.print(F("C2H5OH:"));SerialBL.print(C2H5OH);SerialBL.print(F("tppmt  H2 :"));SerialBL.print(H2);SerialBL.println(F("tppm"));
  SerialBL.print(F("  NH3 :"));SerialBL.print(NH3);SerialBL.print(F("tppmt CH4 :"));SerialBL.print(CH4);SerialBL.println(F("tppm"));
  SerialBL.print(F(" C3H8 :"));SerialBL.print(C3H8);SerialBL.print(F("tppmtC4H10:"));SerialBL.print(C4H10);SerialBL.println(F("tppm"));
  SerialBL.print(F("  H2S :"));SerialBL.print(H2S);SerialBL.print(F("tppmt  NO :"));SerialBL.print(NO);SerialBL.println(F("tppm"));

//  Serial.println(String("  CO  :") + CO     + "tppmt NO2 :" + TVOC  + "tppm");
//  Serial.println(String("C2H5OH:") + C2H5OH + "tppmt  H2 :" + H2    + "tppm");
//  Serial.println(String("  NH3 :") + NH3    + "tppmt CH4 :" + CH4   + "tppm");
//  Serial.println(String(" C3H8 :") + C3H8   + "tppmtC4H10:" + C4H10 + "tppm");
//  Serial.println(String("  H2S :") + H2S    + "tppmt  NO :" + NO    + "tppm");

//  SerialBL.println(String("  CO2 :") + CO2    + "tppmt TVOC:" + TVOC  + "tppm");
//  SerialBL.println(String("  CO  :") + CO     + "tppmt NO2 :" + TVOC  + "tppm");
//  SerialBL.println(String("C2H5OH:") + C2H5OH + "tppmt  H2 :" + H2    + "tppm");
//  SerialBL.println(String("  NH3 :") + NH3    + "tppmt CH4 :" + CH4   + "tppm");
//  SerialBL.println(String(" C3H8 :") + C3H8   + "tppmtC4H10:" + C4H10 + "tppm");
//  SerialBL.println(String("  H2S :") + H2S    + "tppmt  NO :" + NO    + "tppm");
}

3、如何联系我们

博主联系方式汇总（非诚勿扰）

最后

以上就是时尚向日葵最近收集整理的关于基于Arduino、ESP8266的物联网项目开发方案整理、毕业设计（第二波）的全部内容，更多相关基于Arduino、ESP8266内容请搜索靠谱客的其他文章。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(112)

相关文章

基于STM32和esp8266的粮仓环境监测系统前言一、功能要求:二、代码思路三、硬件说明四、代码以及框图等资料联系我喜欢请点赞哦！
基于STM32和esp8266的粮仓环境监测系统前言一、功能要求:二、代码思路三、硬件说明四、代码以及框图等资料联系我喜欢请点赞哦！
毕业设计——基于STM32的智能家具控制系统(ESP-01S(8266)、手机app远程控制、远程显示温度)硬件采购链接：手机app及相关程序开源，百度网盘下载，放在最下方。一、项目介绍二、逐步闯关---分步实现三、程序实现
毕业设计——基于STM32的智能家具控制系统(ESP-01S(8266)、手机app远程控制、远程显示温度)硬件采购链接：手机app及相关程序开源，百度网盘下载，放在最下方。一、项目介绍二、逐步闯关---分步实现三、程序实现
迄今为止最全的技术文档汇总，编程语言，操作系统，数据结构，设计模式等赶紧收藏起来。
迄今为止最全的技术文档汇总，编程语言，操作系统，数据结构，设计模式等赶紧收藏起来。
蓝牙音响DIY蓝牙音箱
蓝牙音响DIY蓝牙音箱
基于Arduino、ESP8266的物联网项目开发方案整理、毕业设计（第二波）
基于Arduino、ESP8266的物联网项目开发方案整理、毕业设计（第二波）
基于Arduino、ESP8266的物联网项目开发方案整理、毕业设计（第三波）
基于Arduino、ESP8266的物联网项目开发方案整理、毕业设计（第三波）
【毕业设计】ESP8266 WiFi 模块使用介绍 - 单片机 物联网 嵌入式1 简介2 ESP 8266 引脚排列3 供电方式4 单片机与ESP8266交互5 测试代码6 最后
【毕业设计】ESP8266 WiFi 模块使用介绍 - 单片机 物联网 嵌入式1 简介2 ESP 8266 引脚排列3 供电方式4 单片机与ESP8266交互5 测试代码6 最后
ESP8266-Arduino编程实例-HDC1008温度湿度传感器驱动HDC1008温度湿度传感器驱动
ESP8266-Arduino编程实例-HDC1008温度湿度传感器驱动HDC1008温度湿度传感器驱动

评论列表共有 0 条评论

立即
投稿
返回
顶部
