SpringCloud 组件之集成 Hystrix Dashboard

一、Hystrix Dashboard 是什么？
二、创建项目实现 Hystrix Dashboard
- 1.添加依赖
- 2.添加配置
- 3.启动类加入注解
- 4.启动类注入 ServletRegistrationBean

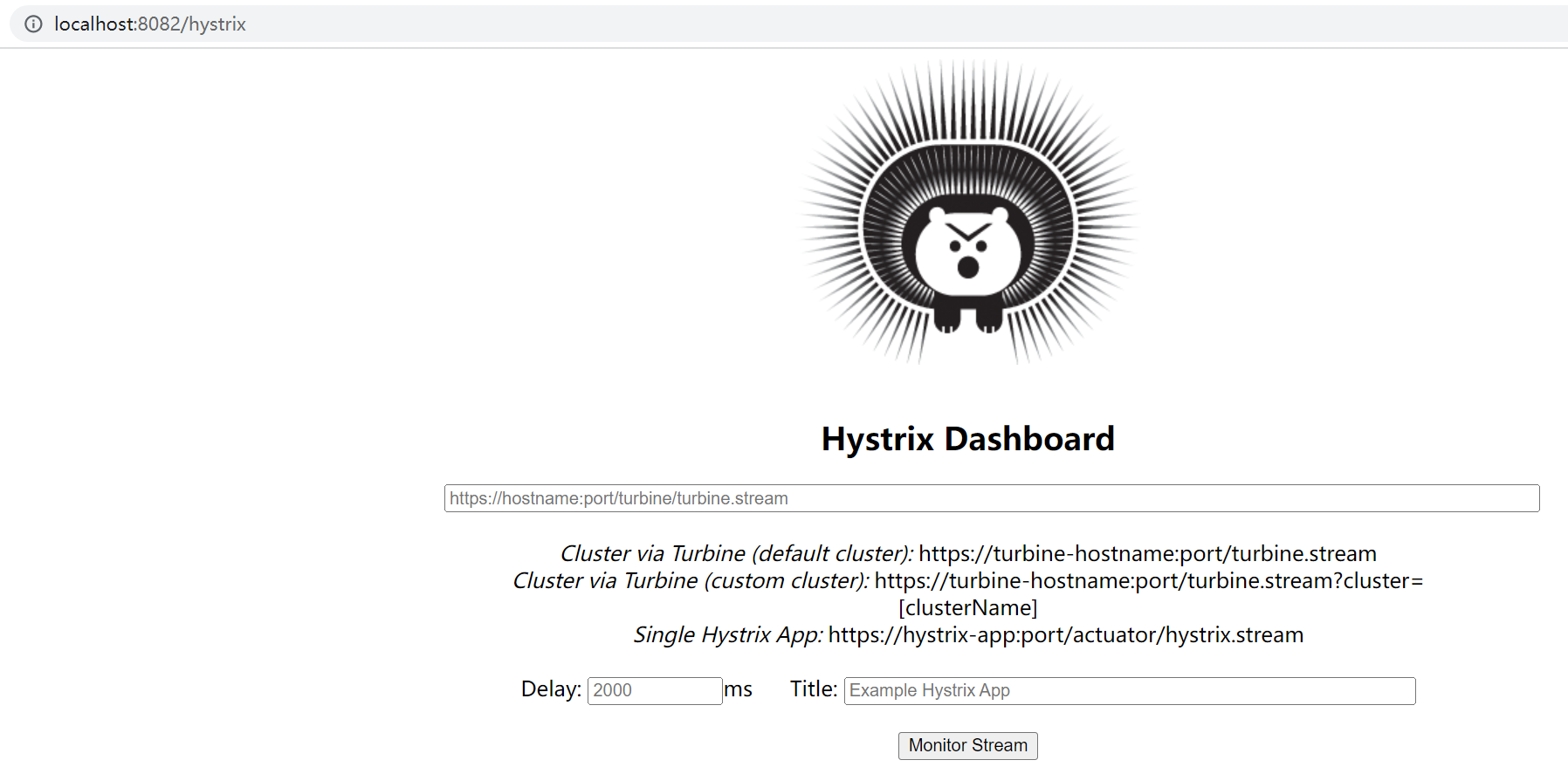

- 5.启动服务

一、Hystrix Dashboard 是什么？

Hystrix 仪表盘主要用来监控 Hystrix 的实时运行状态，通过它我们可以看到 Hystrix 的各项指标信息，从而快速发现系统中存在的问题进而解决它。

二、创建项目实现 Hystrix Dashboard

1.添加依赖

pom.xml 文件中加入依赖 spring-boot-starter-actuator 和 spring-cloud-starter-netflix-hystrix-dashboard，spring-boot-starter-actuator 为服务监控依赖：

复制代码

1
2
3
4
5
6
7
8
9
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
     <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
    </dependency>

2.添加配置

application.yml 文件中添加配置用来暴露 endpoints，由于 endpoints 中会包含很多敏感信息，除了 health 和 info 两个支持直接访问外，其他的默认不能直接访问，所以进行指定：

复制代码

1
2
3
4
5
6
management:
  endpoints:
    web:
      exposure:
        include: hystrix.stream

3.启动类加入注解

在启动类中加入注解 @EnableHystrixDashboard，开启Hystrix Dashboard：

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package com.chaoyue.consumer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;
import org.springframework.cloud.openfeign.EnableFeignClients;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
@EnableHystrixDashboard
public class ConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
    }

}

4.启动类注入 ServletRegistrationBean

在启动类注入 ServletRegistrationBean，该 Bean 的作用是在 Hystrix Dashboard 中打开 hystrix.stream：

复制代码

package com.chaoyue.consumer;

import com.netflix.hystrix.contrib.metrics.eventstream.HystrixMetricsStreamServlet;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
@EnableHystrixDashboard
public class ConsumerApplication {

public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
    }

@Bean
    public ServletRegistrationBean getServlet(){
        HystrixMetricsStreamServlet streamServlet = new HystrixMetricsStreamServlet();
        ServletRegistrationBean registrationBean = new ServletRegistrationBean(streamServlet);
        registrationBean.setLoadOnStartup(1);
        registrationBean.addUrlMappings("/hystrix.stream");
        registrationBean.setName("HystrixMetricsStreamServlet");
        return registrationBean;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
package com.chaoyue.consumer;

import com.netflix.hystrix.contrib.metrics.eventstream.HystrixMetricsStreamServlet;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.Bean;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
@EnableHystrixDashboard
public class ConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
    }

    @Bean
    public ServletRegistrationBean getServlet(){
        HystrixMetricsStreamServlet streamServlet = new HystrixMetricsStreamServlet();
        ServletRegistrationBean registrationBean = new ServletRegistrationBean(streamServlet);
        registrationBean.setLoadOnStartup(1);
        registrationBean.addUrlMappings("/hystrix.stream");
        registrationBean.setName("HystrixMetricsStreamServlet");
        return registrationBean;
    }
}
