tomcat日志监控——flume+kafka+storm+hbase

136 阅读 0 评论 90 点赞

我是靠谱客的博主个性糖豆，这篇文章主要介绍tomcat日志监控——flume+kafka+storm+hbase，现在分享给大家，希望可以做个参考。

tomcat日志监控到现在为止已经基本完成，之前我已经说了flume+kafka的相关原理和配置。大家可以看我之前写的文章https://blog.csdn.net/xxs120/article/details/79925393
今天我接着讲我和我的小伙伴们一起完成的过程。

1.kafka消费遇到的问题（望各位提出建议）
flume和kafka已经完成配置，也能实现kafka消费者消费数据。但是我们发现经常出现kafka消费数据重复，我们在网上查阅了很多资料，大部分都是说offset没有正确提交而导致的。但是一直都没有找到解决办法，我们尝试先让flume把日志发送到文件，发现是可以的。然后又改为发送给kafka，咦，又可以消费了，但是依然会遇到重复消费问题。当然，不可能说每次遇到重复消费问题时就做如上调整吧。这明显是不可行的，最后，我直接把flume的版本换成1.8.0的，现在还没有出现问题，不知道是不是实质性的解决的。所以小编在这里希望各位大佬们知道原因的话能够评论回复我，告诉我们原因及解决办法，在此谢谢各位！
当然，我也有猜想，我们知道kafka每次消费都是先消费数据，然后就把数据对应的位置偏移量发送给zookeeper,会不会每次我们测试的时候总是强制关闭消费，导致数据消费了，offset还没有提交，所以出现了重复消费问题。因为确实如果一直消费不关闭的话是没有此问题的，至少我目前没有遇到。希望大家来一起探讨探讨此问题。

2.java代码实现kafka消费数据
为了项目的可行性和规范化，我们使用java代码实现kafka消费数据，要实现这个，注意一些配置即可。直接附上我的代码：

复制代码

package com.rednum.hadoopwork.kafka;
import java.util.Collections;
import java.util.Properties;
import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import kafka.utils.ShutdownableThread;
public class KafkaConsumerDemo {
      public static void main(String[] args) {
        Consumer consumerThread=new Consumer(KafkaProperties.TOPIC);
        consumerThread.start();
    }
}
class Consumer extends ShutdownableThread {
    private final KafkaConsumer<Integer, String> consumer;
    private final String topic;
    public Consumer(String topic) {
        super("KafkaConsumerExample", false);
        Properties props = new Properties();
 //配置信息
            props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG,"192.168.1.208:9092,192.168.1.207:9092,192.168.1.211:9092");
        props.put(ConsumerConfig.GROUP_ID_CONFIG, "DemoConsumer");
        props.put(ConsumerConfig.ENABLE_AUTO_COMMIT_CONFIG, "true");
        props.put(ConsumerConfig.AUTO_COMMIT_INTERVAL_MS_CONFIG, "1000");
        props.put(ConsumerConfig.SESSION_TIMEOUT_MS_CONFIG, "60000");
//        序列化key
        props.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG,
                "org.apache.kafka.common.serialization.IntegerDeserializer");
//        序列化value
        props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG,
                "org.apache.kafka.common.serialization.StringDeserializer");
        consumer = new KafkaConsumer<Integer, String>(props);
        this.topic = topic;
    }
    @Override
    public void doWork() {
//        消费者订阅的topic
        consumer.subscribe(Collections.singletonList(this.topic));
//        读取数据，读取超时时间为100ms
        ConsumerRecords<Integer, String> records = consumer.poll(100);
        for (ConsumerRecord<Integer, String> record : records)
        {
 //打印日志
    System.out.println(
     "("+record.value() + ")at offset " + record.offset());
        }
    }
    @Override
    public String name() {
        return null;
    }
    @Override
    public boolean isInterruptible() {
        return false;//在运行中，不能抢占消费者的资源
    }
}
class KafkaProperties {
//消费主题
    public static final String TOPIC="test1";
//    public static final String KAFKA_SERVER_URL="192.168.1.208";
//    public static final int KAFKA_SERVER_PORT=9092;
//    public static final int KAFKA_PRODUCER_BUFFER_SIZE = 64 * 1024;
//    public static final int CONNECTION_TIMEOUT = 100000;
    private KafkaProperties(){}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
package com.rednum.hadoopwork.kafka;
import java.util.Collections;
import java.util.Properties;
import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import kafka.utils.ShutdownableThread;
public class KafkaConsumerDemo {
      public static void main(String[] args) {
        Consumer consumerThread=new Consumer(KafkaProperties.TOPIC);
        consumerThread.start();
    }
}
class Consumer extends ShutdownableThread {
    private final KafkaConsumer<Integer, String> consumer;
    private final String topic;
    public Consumer(String topic) {
        super("KafkaConsumerExample", false);
        Properties props = new Properties();
 //配置信息
            props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG,"192.168.1.208:9092,192.168.1.207:9092,192.168.1.211:9092");
        props.put(ConsumerConfig.GROUP_ID_CONFIG, "DemoConsumer");
        props.put(ConsumerConfig.ENABLE_AUTO_COMMIT_CONFIG, "true");
        props.put(ConsumerConfig.AUTO_COMMIT_INTERVAL_MS_CONFIG, "1000");
        props.put(ConsumerConfig.SESSION_TIMEOUT_MS_CONFIG, "60000");
//        序列化key
        props.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG,
                "org.apache.kafka.common.serialization.IntegerDeserializer");
//        序列化value
        props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG,
                "org.apache.kafka.common.serialization.StringDeserializer");
        consumer = new KafkaConsumer<Integer, String>(props);
        this.topic = topic;
    }
    @Override
    public void doWork() {
//        消费者订阅的topic
        consumer.subscribe(Collections.singletonList(this.topic));
//        读取数据，读取超时时间为100ms
        ConsumerRecords<Integer, String> records = consumer.poll(100);
        for (ConsumerRecord<Integer, String> record : records)
        {
 //打印日志
    System.out.println(
     "("+record.value() + ")at offset " + record.offset());
        }
    }
    @Override
    public String name() {
        return null;
    }
    @Override
    public boolean isInterruptible() {
        return false;//在运行中，不能抢占消费者的资源
    }
}
class KafkaProperties {
//消费主题
    public static final String TOPIC="test1";
//    public static final String KAFKA_SERVER_URL="192.168.1.208";
//    public static final int KAFKA_SERVER_PORT=9092;
//    public static final int KAFKA_PRODUCER_BUFFER_SIZE = 64 * 1024;
//    public static final int CONNECTION_TIMEOUT = 100000;
    private KafkaProperties(){}
}

3.storm连接kafka
因为我们监控的是tomcat日志，实时产生，所以我们采用流式框架Storm.首先来理解一下storm的原理

1.什么是storm?
Storm是基于数据流的实时处理系统，提供了大吞吐量的实时计算能力。通过数据入口获取每条到来的数据，在一条数据到达系统的时候，立即会在内存中进行相应的计算；Storm适合要求实时性较高的数据分析场景。

2.storm集群的基本组件
storm的集群表面上看和hadoop的集群非常像。但是在Hadoop上面你运行的是MapReduce的Job, 而在Storm上面你运行的是Topology。它们是非常不一样的，一个关键的区别是：一个MapReduce Job最终会结束，而一个Topology运永远运行（除非你显式的杀掉他）。

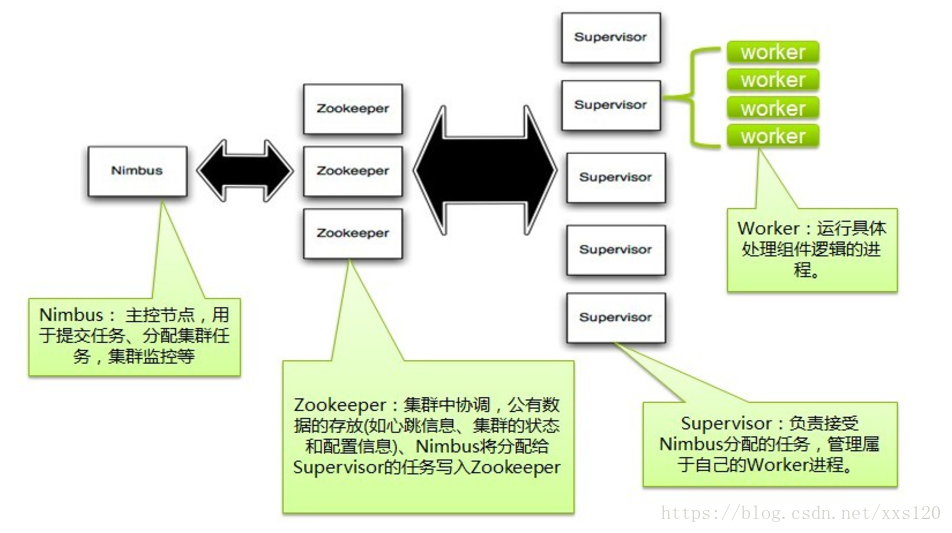

在Storm的集群里面有两种节点：控制节点(master node)和工作节点(worker node)。控制节点上面运行一个后台程序：Nimbus，它的作用类似Hadoop里面的JobTracker。Nimbus负责在集群里面分布代码，分配工作给机器，并且监控状态。每一个工作节点上面运行一个叫做Supervisor的节点（类似 TaskTracker）。Supervisor会监听分配给它那台机器的工作，根据需要启动/关闭工作进程。每一个工作进程执行一个Topology（类似 Job）的一个子集；一个运行的Topology由运行在很多机器上的很多工作进程 Worker（类似 Child）组成。
这里写图片描述

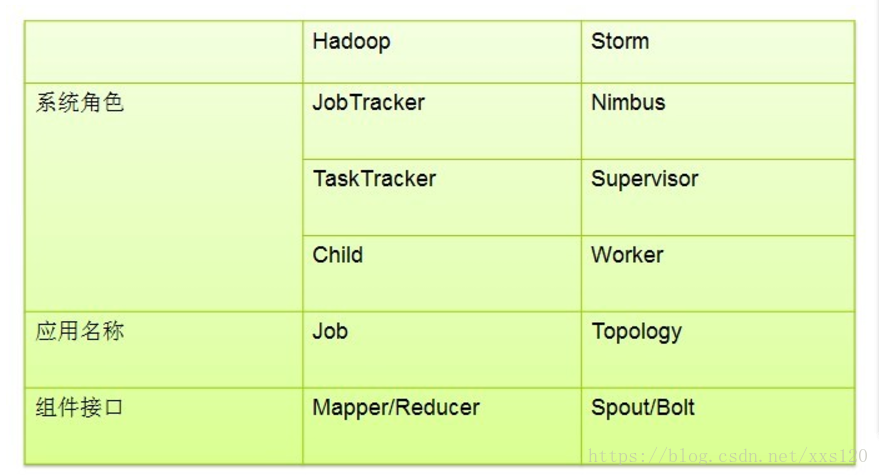

3.storm组件和hadoop组件的区别

我们知道hadoop之间其实是以键值对的形式作为数据模型，而storm是以tuple元组的形式作为数据模型。Spout组件主要是获取数据源，Bolt主要是处理数据，计算数据，然后传向其他数据容器，如：MySQL，HBASE等等。

4.Storm连接Kafka
在开发之前一定要记得storm的安装与配置，为了匹配我们的kafka版本，我们用的storm1.1.1,安装与配置教程我在这里就不多说了，大家可以自己到网上去查查，过程还是比较简单的。配置完后启动：

复制代码

1.主节点启动Nimbus服务
nohup bin/storm nimbus >> /dev/null &
2.子节点都启动Supervisor服务
nohup bin/storm supervisor >> /dev/null &
3.主节点启动drpc服务
nohup bin/storm drpc >> /dev/null &
4.主节点启动UI服务
nohup bin/storm ui >> /dev/null &
5.访问主节点的ip即可进入web管理界面，如：http://192.168.1.42:8080
6.提交jar包到服务器运行
 bin/storm jar /home/hadoop/hadoopwork.jar com.rednum.hadoopwork.storm.log.LogTopology mytopology
即bin/storm jar jar包名 包名.类名  拓扑名（随意取即可）
7.有关pom.xml文件里storm的部署
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-core</artifactId>
            <version>1.1.1</version>

        </dependency>
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-hbase</artifactId>
            <version>1.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-kafka</artifactId>
            <version>1.1.1</version>
            <type>jar</type>
        </dependency>
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka_2.10</artifactId>
            <version>0.8.2.1</version>
            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>log4j</groupId>
                    <artifactId>log4j</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-clients</artifactId>
            <version>0.10.2.1</version>
        </dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
1.主节点启动Nimbus服务
nohup bin/storm nimbus >> /dev/null &
2.子节点都启动Supervisor服务
nohup bin/storm supervisor >> /dev/null &
3.主节点启动drpc服务
nohup bin/storm drpc >> /dev/null &
4.主节点启动UI服务
nohup bin/storm ui >> /dev/null &
5.访问主节点的ip即可进入web管理界面，如：http://192.168.1.42:8080
6.提交jar包到服务器运行
 bin/storm jar /home/hadoop/hadoopwork.jar com.rednum.hadoopwork.storm.log.LogTopology mytopology
即bin/storm jar jar包名 包名.类名  拓扑名（随意取即可）
7.有关pom.xml文件里storm的部署
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-core</artifactId>
            <version>1.1.1</version>
       <!--    <scope>provided</scope>-->
        </dependency>
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-hbase</artifactId>
            <version>1.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-kafka</artifactId>
            <version>1.1.1</version>
            <type>jar</type>
        </dependency>
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka_2.10</artifactId>
            <version>0.8.2.1</version>
            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>log4j</groupId>
                    <artifactId>log4j</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-clients</artifactId>
            <version>0.10.2.1</version>
        </dependency>

特别注意：如果在打包到集群上运行，要把如上注释的东西解开，本地运行的话就一定要注释，否则运行时会报错。
然后开始开发，storm连接kakfa,我们使用自定义kafkaSpout获取kafka消费数据，其实就是改写我之前写的kafka消费数据的代码。我们的整体思路是：使用KafkaSpout获取数据源，多个自定义Bolt实现查找日志的ERROR分类，该日志出现的次数，日志的内容等，然后放入hbase表。部分代码如下：

复制代码

import org.apache.storm.Config;
import org.apache.storm.LocalCluster;
import org.apache.storm.StormSubmitter;
import org.apache.storm.generated.StormTopology;
import org.apache.storm.topology.TopologyBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
 * 日志监控程序
 */
public class LogTopology {
    private static final Logger LOG = LoggerFactory.getLogger(LogTopology.class);
    public static void main(String[] args) throws Exception {
        TopologyBuilder builder = new TopologyBuilder();
        //获取数据
        builder.setSpout("spout", new ReadSpout_new("test2"), 1);
        //合并同一条日志
        builder.setBolt("merge", new MergeBolt(), 1).shuffleGrouping("spout");
        //找出日志ERROR类型
        builder.setBolt("sort", new SortBolt(), 3).shuffleGrouping("merge");
        //计数
        builder.setBolt("printer", new CountBolt(), 1).shuffleGrouping("sort");
        Config conf = new Config();
        conf.setDebug(false);
        if (args != null && args.length > 0) {
            conf.setNumWorkers(1);
            StormSubmitter.submitTopologyWithProgressBar(args[0], conf, builder.createTopology());
        } else {
            LocalCluster cluster = new LocalCluster();
            StormTopology topology = builder.createTopology();
            cluster.submitTopology("mypology", conf, topology);
            Utils.sleep(40000);
            cluster.killTopology("test");
            cluster.shutdown();
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
import org.apache.storm.Config;
import org.apache.storm.LocalCluster;
import org.apache.storm.StormSubmitter;
import org.apache.storm.generated.StormTopology;
import org.apache.storm.topology.TopologyBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
 * 日志监控程序
 */
public class LogTopology {
    private static final Logger LOG = LoggerFactory.getLogger(LogTopology.class);
    public static void main(String[] args) throws Exception {
        TopologyBuilder builder = new TopologyBuilder();
        //获取数据
        builder.setSpout("spout", new ReadSpout_new("test2"), 1);
        //合并同一条日志
        builder.setBolt("merge", new MergeBolt(), 1).shuffleGrouping("spout");
        //找出日志ERROR类型
        builder.setBolt("sort", new SortBolt(), 3).shuffleGrouping("merge");
        //计数
        builder.setBolt("printer", new CountBolt(), 1).shuffleGrouping("sort");
        Config conf = new Config();
        conf.setDebug(false);
        if (args != null && args.length > 0) {
            conf.setNumWorkers(1);
            StormSubmitter.submitTopologyWithProgressBar(args[0], conf, builder.createTopology());
        } else {
            LocalCluster cluster = new LocalCluster();
            StormTopology topology = builder.createTopology();
            cluster.submitTopology("mypology", conf, topology);
            Utils.sleep(40000);
            cluster.killTopology("test");
            cluster.shutdown();
        }
    }
}

复制代码

import com.rednum.hadoopwork.tools.CQ_SendMessege;
import java.util.Map;
import org.apache.storm.state.State;
import org.apache.storm.task.OutputCollector;
import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseStatefulBolt;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.apache.storm.tuple.Values;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
public class MergeBolt extends BaseStatefulBolt {
    private OutputCollector collector;
    private String output;
    private static final Logger LOG = LoggerFactory.getLogger(MergeBolt.class);
    @Override
    public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {
        this.collector = collector;
        this.output = "";
    }
    @Override
    public void execute(Tuple input) {
        try {
            String sentence = input.getStringByField("value");
//            System.out.println("!!!!!!!!!!!sentence"+sentence);
            LOG.info("!!!!!!!!!!!!!!!"+sentence);
            if (sentence.matches("^\d{1,2}(-){1}\d{1,2}.*")) {
                if (!output.equals("")) {
                    collector.emit(input, new Values(output));
                }
               output = sentence;
           }else{
               output= output+sentence;
           }
           System.out.println("#################");
            }catch (Exception e) {
            System.out.println("合并失败");
            e.printStackTrace();
            //消息提醒
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统出错"+e.toString());
        }
        }
        @Override
        public void initState(State t) {
    }
    @Override
        public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("value"));
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
import com.rednum.hadoopwork.tools.CQ_SendMessege;
import java.util.Map;
import org.apache.storm.state.State;
import org.apache.storm.task.OutputCollector;
import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseStatefulBolt;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.apache.storm.tuple.Values;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
public class MergeBolt extends BaseStatefulBolt {
    private OutputCollector collector;
    private String output;
    private static final Logger LOG = LoggerFactory.getLogger(MergeBolt.class);
    @Override
    public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {
        this.collector = collector;
        this.output = "";
    }
    @Override
    public void execute(Tuple input) {
        try {
            String sentence = input.getStringByField("value");
//            System.out.println("!!!!!!!!!!!sentence"+sentence);
            LOG.info("!!!!!!!!!!!!!!!"+sentence);
            if (sentence.matches("^\d{1,2}(-){1}\d{1,2}.*")) {
                if (!output.equals("")) {
                    collector.emit(input, new Values(output));
                }
               output = sentence;
           }else{
               output= output+sentence;
           }
           System.out.println("#################");
            }catch (Exception e) {
            System.out.println("合并失败");
            e.printStackTrace();
            //消息提醒
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统出错"+e.toString());
        }
        }
        @Override
        public void initState(State t) {
    }
    @Override
        public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("value"));
        }
    }

复制代码

import com.rednum.hadoopwork.tools.CQ_SendMessege;
import java.util.Calendar;
import java.util.HashMap;
import java.util.Map;
import java.util.Random;
import org.apache.storm.state.State;
import org.apache.storm.task.OutputCollector;
import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseStatefulBolt;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
 *
 * @author Administrator
 */
public class CountBolt extends BaseStatefulBolt {
    private OutputCollector collector;
    private Map<String, HashMap> counters;
    private Random rand;
    private static final Logger LOG = LoggerFactory.getLogger(CountBolt.class);
    private int count;
    @Override
    public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {
        this.collector = collector;
        this.counters = new HashMap<String, HashMap>();
        this.rand = new Random();
        this.count = 0;
    }
    @Override
    public void execute(Tuple input) {
        try {
            Calendar c = Calendar.getInstance();
            int hour = c.get(Calendar.HOUR_OF_DAY);
            if (hour == 0) {
                this.counters = new HashMap<String, HashMap>();
            }
            //引用hbase
            Hbase_for_log hbase = new Hbase_for_log();
            HashMap map = new HashMap();
            String time_str = input.getString(1);
            String content = input.getString(0);
            content = content.substring(content.indexOf(time_str) + time_str.length());
            if (!counters.containsKey(content)) {
                time_str = time_str + "@" + rand.nextInt(1000);
                map.put("start_time", time_str);
                map.put("end_time", "");
                map.put("Frequency", 1);
                counters.put(content, map);
                hbase.insert(time_str, "", 1, input.getString(0));
                LOG.info("【1】" + input.getString(0));
                // System.out.println("【1】 " + input.getString(0));
//                CQ_SendMessege cqsm = new CQ_SendMessege();
//                cqsm.send_to("tomcat错误 "+input.getString(0));
                //存库操作
            } else {
                map = counters.get(content);
                String time_start = (String) map.get("start_time");
                time_start = time_start.substring(0, time_start.indexOf("@") - 1);
                if (time_start.equals(time_str)) {
                    count++;
                    if (count == 5) {
                        CQ_SendMessege cqsm = new CQ_SendMessege();
                        cqsm.send_to("kafka 重复消费  请前往处理");
                    }
                }
                map.put("end_time", time_str);
                int Frequence = (int) map.get("Frequency") + 1;
                map.put("Frequency", Frequence);
                counters.put(content, map);
                hbase.insert((String) map.get("start_time"), time_str, Frequence, input.getString(0));
                LOG.info("【" + Frequence + "】" + input.getString(0));
                // System.out.println("【" + Frequence + "】" + input.getString(0));
//                if (Frequence == 5 || Frequence == 20 || Frequence == 100) {
//                    CQ_SendMessege cqsm = new CQ_SendMessege();
//                    cqsm.send_to("错误次数 【" + Frequence + "】" + input.getString(0));
//                }
            }
        } catch (Exception e) {
            System.out.println("计数失败");
            e.printStackTrace();
            //消息提醒
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统出错" + e.toString());
        }
    }
    @Override
    public void initState(State t) {
    }
    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("value"));
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
import com.rednum.hadoopwork.tools.CQ_SendMessege;
import java.util.Calendar;
import java.util.HashMap;
import java.util.Map;
import java.util.Random;
import org.apache.storm.state.State;
import org.apache.storm.task.OutputCollector;
import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseStatefulBolt;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
 *
 * @author Administrator
 */
public class CountBolt extends BaseStatefulBolt {
    private OutputCollector collector;
    private Map<String, HashMap> counters;
    private Random rand;
    private static final Logger LOG = LoggerFactory.getLogger(CountBolt.class);
    private int count;
    @Override
    public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {
        this.collector = collector;
        this.counters = new HashMap<String, HashMap>();
        this.rand = new Random();
        this.count = 0;
    }
    @Override
    public void execute(Tuple input) {
        try {
            Calendar c = Calendar.getInstance();
            int hour = c.get(Calendar.HOUR_OF_DAY);
            if (hour == 0) {
                this.counters = new HashMap<String, HashMap>();
            }
            //引用hbase
            Hbase_for_log hbase = new Hbase_for_log();
            HashMap map = new HashMap();
            String time_str = input.getString(1);
            String content = input.getString(0);
            content = content.substring(content.indexOf(time_str) + time_str.length());
            if (!counters.containsKey(content)) {
                time_str = time_str + "@" + rand.nextInt(1000);
                map.put("start_time", time_str);
                map.put("end_time", "");
                map.put("Frequency", 1);
                counters.put(content, map);
                hbase.insert(time_str, "", 1, input.getString(0));
                LOG.info("【1】" + input.getString(0));
                // System.out.println("【1】 " + input.getString(0));
//                CQ_SendMessege cqsm = new CQ_SendMessege();
//                cqsm.send_to("tomcat错误 "+input.getString(0));
                //存库操作
            } else {
                map = counters.get(content);
                String time_start = (String) map.get("start_time");
                time_start = time_start.substring(0, time_start.indexOf("@") - 1);
                if (time_start.equals(time_str)) {
                    count++;
                    if (count == 5) {
                        CQ_SendMessege cqsm = new CQ_SendMessege();
                        cqsm.send_to("kafka 重复消费  请前往处理");
                    }
                }
                map.put("end_time", time_str);
                int Frequence = (int) map.get("Frequency") + 1;
                map.put("Frequency", Frequence);
                counters.put(content, map);
                hbase.insert((String) map.get("start_time"), time_str, Frequence, input.getString(0));
                LOG.info("【" + Frequence + "】" + input.getString(0));
                // System.out.println("【" + Frequence + "】" + input.getString(0));
//                if (Frequence == 5 || Frequence == 20 || Frequence == 100) {
//                    CQ_SendMessege cqsm = new CQ_SendMessege();
//                    cqsm.send_to("错误次数 【" + Frequence + "】" + input.getString(0));
//                }
            }
        } catch (Exception e) {
            System.out.println("计数失败");
            e.printStackTrace();
            //消息提醒
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统出错" + e.toString());
        }
    }
    @Override
    public void initState(State t) {
    }
    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("value"));
    }
}

5.storm连接hbase
我们创建好hbase表log_info。附上代码：

复制代码

import com.rednum.hadoopwork.tools.CQ_SendMessege;
import java.io.IOException;
import java.util.Calendar;
import java.util.HashMap;
import java.util.Random;
import java.util.logging.Level;
import java.util.logging.Logger;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.HColumnDescriptor;
import org.apache.hadoop.hbase.HTableDescriptor;
import org.apache.hadoop.hbase.client.HBaseAdmin;
import org.apache.hadoop.hbase.client.HTable;
import org.apache.hadoop.hbase.client.Put;
import org.apache.hadoop.hbase.util.Bytes;
/*
 * To change this license header, choose License Headers in Project Properties.
 * To change this template file, choose Tools | Templates
 * and open the template in the editor.
 */
/**
 *
 * @author Administrator
 */
public class Hbase_for_log {
    private static Configuration conf;
    private static final String TABLE_NAME = "log_info";
    public Hbase_for_log() {
        conf = HBaseConfiguration.create();
    }
    public static void main(String[] args) {
        create_tab();
    }
    private static void create_tab() {
        try {
            Configuration conf = HBaseConfiguration.create();
            String[] familys = {"values"};
            HBaseAdmin admin = new HBaseAdmin(conf);
            if (admin.tableExists(TABLE_NAME)) {
                System.out.println("table already exists!");
            } else {
                HTableDescriptor tableDesc = new HTableDescriptor(TABLE_NAME);
                for (int i = 0; i < familys.length; i++) {
                    tableDesc.addFamily(new HColumnDescriptor(familys[i]));
                }
                admin.createTable(tableDesc);
                System.out.println("create table " + TABLE_NAME + " ok.");
            }
        } catch (Exception e) {
            System.out.println("创建hbase表出错" + e.toString());
            e.printStackTrace();
        }
    }
    public void insert(String start_time, String end_time, int Frequency, String content) {
        long timestamp = System.currentTimeMillis();
        String rowkey = start_time;
        try {
            addRecord(TABLE_NAME, rowkey, "values", "start_time", start_time, timestamp);
            addRecord(TABLE_NAME, rowkey, "values", "end_time", end_time, timestamp);
            addRecord(TABLE_NAME, rowkey, "values", "Frequency", String.valueOf(Frequency), timestamp);
            addRecord(TABLE_NAME, rowkey, "values", "content", content, timestamp);
        } catch (Exception e) {
            System.out.println("########################################存入数据库发生错误" + e.toString());
            //消息提醒
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统Hbase存库出错" + e.toString());
        }
    }
    public static void addRecord(String tableName, String rowKey,
            String family, String qualifier, String value, long version) {
        try {
            HTable table = new HTable(conf, tableName);
            Put put = new Put(Bytes.toBytes(rowKey));
            put.add(Bytes.toBytes(family), Bytes.toBytes(qualifier), version, Bytes.toBytes(value));
            table.put(put);
        } catch (IOException e) {
            e.printStackTrace();
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统Hbase存库出错" + e.toString());
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
import com.rednum.hadoopwork.tools.CQ_SendMessege;
import java.io.IOException;
import java.util.Calendar;
import java.util.HashMap;
import java.util.Random;
import java.util.logging.Level;
import java.util.logging.Logger;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.HColumnDescriptor;
import org.apache.hadoop.hbase.HTableDescriptor;
import org.apache.hadoop.hbase.client.HBaseAdmin;
import org.apache.hadoop.hbase.client.HTable;
import org.apache.hadoop.hbase.client.Put;
import org.apache.hadoop.hbase.util.Bytes;
/*
 * To change this license header, choose License Headers in Project Properties.
 * To change this template file, choose Tools | Templates
 * and open the template in the editor.
 */
/**
 *
 * @author Administrator
 */
public class Hbase_for_log {
    private static Configuration conf;
    private static final String TABLE_NAME = "log_info";
    public Hbase_for_log() {
        conf = HBaseConfiguration.create();
    }
    public static void main(String[] args) {
        create_tab();
    }
    private static void create_tab() {
        try {
            Configuration conf = HBaseConfiguration.create();
            String[] familys = {"values"};
            HBaseAdmin admin = new HBaseAdmin(conf);
            if (admin.tableExists(TABLE_NAME)) {
                System.out.println("table already exists!");
            } else {
                HTableDescriptor tableDesc = new HTableDescriptor(TABLE_NAME);
                for (int i = 0; i < familys.length; i++) {
                    tableDesc.addFamily(new HColumnDescriptor(familys[i]));
                }
                admin.createTable(tableDesc);
                System.out.println("create table " + TABLE_NAME + " ok.");
            }
        } catch (Exception e) {
            System.out.println("创建hbase表出错" + e.toString());
            e.printStackTrace();
        }
    }
    public void insert(String start_time, String end_time, int Frequency, String content) {
        long timestamp = System.currentTimeMillis();
        String rowkey = start_time;
        try {
            addRecord(TABLE_NAME, rowkey, "values", "start_time", start_time, timestamp);
            addRecord(TABLE_NAME, rowkey, "values", "end_time", end_time, timestamp);
            addRecord(TABLE_NAME, rowkey, "values", "Frequency", String.valueOf(Frequency), timestamp);
            addRecord(TABLE_NAME, rowkey, "values", "content", content, timestamp);
        } catch (Exception e) {
            System.out.println("########################################存入数据库发生错误" + e.toString());
            //消息提醒
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统Hbase存库出错" + e.toString());
        }
    }
    public static void addRecord(String tableName, String rowKey,
            String family, String qualifier, String value, long version) {
        try {
            HTable table = new HTable(conf, tableName);
            Put put = new Put(Bytes.toBytes(rowKey));
            put.add(Bytes.toBytes(family), Bytes.toBytes(qualifier), version, Bytes.toBytes(value));
            table.put(put);
        } catch (IOException e) {
            e.printStackTrace();
            CQ_SendMessege cqsm = new CQ_SendMessege();
            cqsm.send_to("日志监控系统Hbase存库出错" + e.toString());
        }
    }
}
