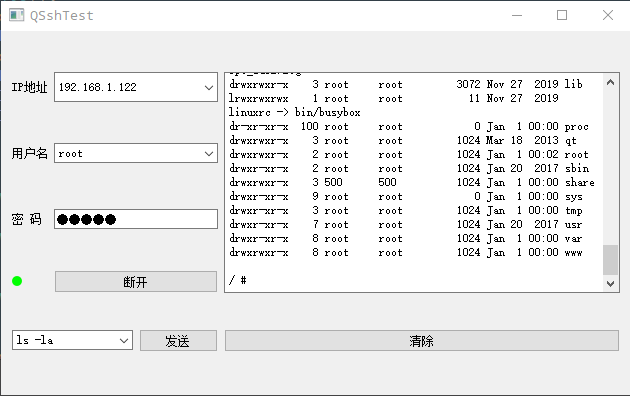

Qt QSsh 使用 windows Qt实现ssh客户端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
#ifndef CCONNECTIONFORSSHCLIENT_H
#define CCONNECTIONFORSSHCLIENT_H

/* Func:以用户密码的形式连接ssh服务器  发送命令到shell执行  需加n
 * Note:定时检查连接状态的逻辑是  连接成功关闭定时器检查
 *      连接断开  开启定时器检查并尝试重连  直至连接成功
 *      即关闭定时器检查
 * Use:绑定两个信号
 *      检测状态:sigConnectStateChanged(bState,strIp,nPort);
 *      接收信息:sigDataArrived(QString strMsg,QString strIp, int nPort);
 *     绑定一个槽
 *      发送信息:void slotSend(QString strMsg);
 */
#include <sshconnection.h>
#include <sshremoteprocess.h>
#include <sftpchannel.h>
#include <QTimer>
#include <QHostAddress>
#include <QThread>


#define RECONNET_SPAN_TIME (1000*10)  //连接状态心跳


class  CConnectionForSshClient : public QObject
{
    Q_OBJECT
public:
    explicit CConnectionForSshClient(QString strIp, int nPort = 22,QString strPwd = "17909",QString strUser = "root");

    void init();
    void unInit();

    ~CConnectionForSshClient();
private:
    QThread *m_pThread = nullptr;
    bool m_bConnected = false;
    bool m_bIsFirstConnect = true;
    bool m_bSendAble = false;

    QTimer *m_pTimer;

    QString m_strIp = "";
    int m_nPort = -1;
    QString m_strUser;
    QString m_strPwd;
    QString m_strIpPort;

    QSsh::SshConnectionParameters m_argParameters;
    QSsh::SshConnection *m_pSshSocket = nullptr;
    QSharedPointer<QSsh::SshRemoteProcess> m_shell;
signals:
    void sigInitForClild();
    void sigConnectStateChanged(bool bState,QString strIp,int nPort);
    void sigDataArrived(QString strMsg,QString strIp, int nPort);
private:
    int send(QString strMessage);
    QString getIpPort(){return m_strIp + ":" + QString::number(m_nPort);}
public slots:
    void slotResetConnection(QString strIpPort);
    void slotSend(QString strIpPort,QString strMessage);
    void slotSend(QString strMsg);
    void slotSendByQByteArray(QString strIpPort,QByteArray arrMsg);
    void slotDisconnected();
    void slotDataReceived();
private slots:
    void slotInitForClild();
    void slotCreateConnection();
    void slotConnected();

    void slotThreadFinished();

    void slotSshConnectError(QSsh::SshError sshError);
    void slotShellStart();
    void slotShellError();
};

#endif // CCONNECTIONFORSSHCLIENT_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
#include "CConnectionForSshClient.h"
#include <QDebug>


CConnectionForSshClient::CConnectionForSshClient(QString strIp, int nPort, QString strPwd, QString strUser)
{
    m_strIp = strIp;
    m_nPort = nPort;
    m_strUser = strUser;
    m_strPwd = strPwd;
    m_strIpPort = m_strIp + ":" + QString::number(m_nPort);
}

void CConnectionForSshClient::init()
{
    m_pThread = new QThread();
    connect(m_pThread,SIGNAL(finished()),this,SLOT(slotThreadFinished()));
    this->moveToThread(m_pThread);
    m_pThread->start();

    //之后的逻辑都得通过信号和槽接通
    connect(this,SIGNAL(sigInitForClild()),this,SLOT(slotInitForClild()));
    emit sigInitForClild();
}

void CConnectionForSshClient::unInit()
{
    m_pThread->quit();
}

int CConnectionForSshClient::send(QString strMessage)
{
    qDebug()<<"CConnectionForSshClient ssh send "<<strMessage;

    int nSize = 0;
    if(m_bConnected && m_bSendAble){
       nSize = m_shell->write(strMessage.toLatin1().data());
    }else{
       qDebug()<<"CConnectionForSshClient::send() ssh未连接 或 shell未连接:"<<getIpPort();
    }

    return nSize;
}

CConnectionForSshClient::~CConnectionForSshClient()
{
    if(nullptr != m_pSshSocket){
        delete m_pSshSocket;
        m_pSshSocket = nullptr;
    }
}

void CConnectionForSshClient::slotResetConnection(QString strIpPort)
{
    if(this->getIpPort() == strIpPort){
        this->slotDisconnected();
    }
}

void CConnectionForSshClient::slotSend(QString strIpPort, QString strMessage)
{
    if(0 != m_strIpPort.compare(strIpPort)){
        return;
    }

    send(strMessage);
}

void CConnectionForSshClient::slotSendByQByteArray(QString strIpPort, QByteArray arrMsg)
{
    if(0 != m_strIpPort.compare(strIpPort)){
        return;
    }

    if(m_bConnected){
       m_shell->write(arrMsg);
    }else{
       qDebug()<<"CConnectionForSshClient::send(QString strMessage) 发送失败 未建立连接:"<<getIpPort();
    }
}

void CConnectionForSshClient::slotInitForClild()
{
    m_argParameters.port = m_nPort;
    m_argParameters.userName = m_strUser;
    m_argParameters.password = m_strPwd;
    m_argParameters.host = m_strIp;
    m_argParameters.timeout = 10;
    m_argParameters.authenticationType =
            QSsh::SshConnectionParameters::AuthenticationTypePassword; //密码方式连接

    slotCreateConnection(); //连接

    m_pTimer = new QTimer(this);
    m_pTimer->setInterval(RECONNET_SPAN_TIME);
    connect(m_pTimer,SIGNAL(timeout()),this,SLOT(slotCreateConnection()));
    m_pTimer->start();//启动心跳定时器，每隔一段时间进入slotCreateConnection判断是否需要重连
}

void CConnectionForSshClient::slotCreateConnection()
{

    qDebug()<<"CConnectionForSshClient::slotCreateConnection检查连接" ;

    if(true == m_bConnected)
        return;

    if(nullptr == m_pSshSocket){
        m_pSshSocket = new QSsh::SshConnection(m_argParameters);
        connect(m_pSshSocket,SIGNAL(connected()),SLOT(slotConnected()));
        connect(m_pSshSocket,SIGNAL(error(QSsh::SshError)),SLOT(slotSshConnectError(QSsh::SshError)));
    }
    m_pSshSocket->connectToHost();
    qDebug()<<"CConnectionForSshClient::slotCreateConnection() 以ssh方式 尝试连接:"<<getIpPort();
}

void CConnectionForSshClient::slotConnected()
{
    qDebug()<<"CConnectionForSshClient::slotConnected ssh已连接到:"<<getIpPort();
    m_pTimer->stop();

    m_shell = m_pSshSocket->createRemoteShell();
    connect(m_shell.data(), SIGNAL(started()), SLOT(slotShellStart()));
    connect(m_shell.data(), SIGNAL(readyReadStandardOutput()), SLOT(slotDataReceived()));
    connect(m_shell.data(), SIGNAL(readyReadStandardError()), SLOT(slotShellError()));
    m_shell.data()->start();

    m_bConnected = true;
    emit sigConnectStateChanged(m_bConnected,m_strIp,m_nPort);
}

void CConnectionForSshClient::slotDisconnected()
{
    m_pSshSocket->disconnectFromHost();
}

void CConnectionForSshClient::slotThreadFinished()
{
    m_pThread->deleteLater();
    this->deleteLater();
}

void CConnectionForSshClient::slotSshConnectError(QSsh::SshError sshError)
{
    m_bSendAble = false;
    m_bConnected = false;
    emit sigConnectStateChanged(m_bConnected,m_strIp,m_nPort);

    m_pTimer->start();

    switch(sshError){
    case QSsh::SshNoError:
        qDebug()<<"slotSshConnectError SshNoError"<<getIpPort();
        break;
    case QSsh::SshSocketError:
        qDebug()<<"slotSshConnectError SshSocketError"<<getIpPort(); //拔掉网线是这种错误
        break;
    case QSsh::SshTimeoutError:
        qDebug()<<"slotSshConnectError SshTimeoutError"<<getIpPort();
        break;
    case QSsh::SshProtocolError:
        qDebug()<<"slotSshConnectError SshProtocolError"<<getIpPort();
        break;
    case QSsh::SshHostKeyError:
        qDebug()<<"slotSshConnectError SshHostKeyError"<<getIpPort();
        break;
    case QSsh::SshKeyFileError:
        qDebug()<<"slotSshConnectError SshKeyFileError"<<getIpPort();
        break;
    case QSsh::SshAuthenticationError:
        qDebug()<<"slotSshConnectError SshAuthenticationError"<<getIpPort();
        break;
    case QSsh::SshClosedByServerError:
        qDebug()<<"slotSshConnectError SshClosedByServerError"<<getIpPort();
        break;
    case QSsh::SshInternalError:
        qDebug()<<"slotSshConnectError SshInternalError"<<getIpPort();
        break;
    default:
        break;
    }

}

void CConnectionForSshClient::slotShellStart()
{
    m_bSendAble = true;
    qDebug()<<"CConnectionForSshClient::slotShellStart Shell已连接:"<<getIpPort();
}

void CConnectionForSshClient::slotShellError()
{
    qDebug()<<"CConnectionForSshClient::slotShellError Shell发生错误:"<<getIpPort();
}

void CConnectionForSshClient::slotSend(QString strMessage)
{
    send(strMessage);
}

void CConnectionForSshClient::slotDataReceived()
{
    QByteArray byteRecv = m_shell->readAllStandardOutput();
    QString strRecv = QString::fromUtf8(byteRecv);

//    if(strRecv.contains("password for")){
//        m_shell->write(m_strPwd.toLatin1().data());
//    }

    if(!strRecv.isEmpty()) //过滤空行
        emit sigDataArrived(strRecv, m_strIp, m_nPort);

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
#ifndef WIDGET_H
#define WIDGET_H

#include <QWidget>
#include <QTextEdit>
#include <QComboBox>
#include <QPushButton>
#include <QLabel>
#include <QLineEdit>
#include "CConnectionForSshClient.h"

class Widget : public QWidget
{
    Q_OBJECT

public:
    Widget(QWidget *parent = 0);
    ~Widget();

private:
    void createConnection();
    void disConnection();
    void initUI();
    void setConnectState(bool bState);
private slots:
    void slotSshConnect();
    void slotSshSendCmd();
    void slotClearEdit();
    void slotConnectStateChanged(bool bState,QString strIp,int nPort);
    void slotDataArrived(QString strMsg,QString strIp, int nPort);
signals:
    void sigSend(QString strMsg);
    void sigDisconnected();
private:
    QTextEdit *m_pTextEdit;
    QComboBox *m_pComBoxIp;
    QComboBox *m_pComBoxUser;
    QLineEdit *m_pLineEditPwd;
    QPushButton *m_pBtnConnect;
    QLabel *m_pLabelState;
    QComboBox *m_pComBoxCmd;
    QPushButton *m_pBtnSend;
    QPushButton *m_pBtnClearEdit;
    bool m_bConnectState;
    CConnectionForSshClient *m_sshSocket;
};

#endif // WIDGET_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
#include "Widget.h"
#include <QDebug>
#include <QGridLayout>


Widget::Widget(QWidget *parent)
    : QWidget(parent)
{
    initUI();
}

Widget::~Widget()
{

}

void Widget::initUI()
{
    int nItemHeight = 30;
    m_bConnectState = false;
    resize(400,250);

    QLabel *pLabelIp = new QLabel(this);
    pLabelIp->setText("IP地址");
    pLabelIp->setMinimumHeight(nItemHeight);
    QLabel *pLabelUser = new QLabel(this);
    pLabelUser->setText("用户名");
    pLabelUser->setMinimumHeight(nItemHeight);
    QLabel *pLabelPort = new QLabel(this);
    pLabelPort->setText("密 码");
    pLabelPort->setMinimumHeight(nItemHeight);

    m_pComBoxIp = new QComboBox(this);
    m_pComBoxIp->addItem("192.168.1.122");
    m_pComBoxIp->setMinimumHeight(nItemHeight);
    m_pComBoxIp->setEditable(true);

    m_pComBoxUser = new QComboBox(this);
    m_pComBoxUser->addItem("root");
    m_pComBoxUser->setEditable(true);

    m_pLineEditPwd = new QLineEdit(this);
    m_pLineEditPwd->setEchoMode(QLineEdit::Password);
    m_pLineEditPwd->setText("12346");

    m_pLabelState = new QLabel(this);
    m_pLabelState->setFixedSize(10,10);
    setConnectState(m_bConnectState);

    m_pBtnConnect = new QPushButton(this);
    m_pBtnConnect->setText("连接");
    connect(m_pBtnConnect,SIGNAL(clicked()),this,SLOT(slotSshConnect()));

    m_pComBoxCmd = new QComboBox(this);
    m_pComBoxCmd->addItem("ls -la");
    m_pComBoxCmd->addItem("cd /tmp");
    m_pComBoxCmd->setEditable(true);

    m_pBtnSend = new QPushButton(this);
    m_pBtnSend->setText("发送");
    connect(m_pBtnSend,SIGNAL(clicked()),this,SLOT(slotSshSendCmd()));

    m_pTextEdit = new QTextEdit(this);

    m_pBtnClearEdit = new QPushButton(this);
    m_pBtnClearEdit->setText("清除");

    connect(m_pBtnClearEdit,SIGNAL(clicked()),this,SLOT(slotClearEdit()));

    QGridLayout *layout = new QGridLayout;
    layout->addWidget(pLabelIp,     0,0,1,1); //IP地址Label  坐标第0行0列  所占空间大小 1行1列
    layout->addWidget(pLabelUser,   1,0,1,1);
    layout->addWidget(pLabelPort,   2,0,1,1);
    layout->addWidget(m_pLabelState,3,0,1,1);//连接状态Label  坐标第3行0列  所占空间大小 1行1列

    layout->addWidget(m_pComBoxIp,   0,1,1,2);
    layout->addWidget(m_pComBoxUser, 1,1,1,2);
    layout->addWidget(m_pLineEditPwd,2,1,1,2);
    layout->addWidget(m_pBtnConnect, 3,1,1,2);

    layout->addWidget(m_pComBoxCmd,4,0,1,2);
    layout->addWidget(m_pBtnSend,  4,2,1,1);

    layout->addWidget(m_pTextEdit,    0,3,4,5);
    layout->addWidget(m_pBtnClearEdit,4,3,1,5);

    this->setLayout(layout);
}

void Widget::createConnection()
{
    QString strIp = m_pComBoxIp->currentText();
    QString strUser = m_pComBoxUser->currentText();
    QString strPwd = m_pLineEditPwd->text();
    m_sshSocket = new CConnectionForSshClient(strIp,22,strPwd,strUser);
    m_sshSocket->init();
    connect(m_sshSocket,SIGNAL(sigConnectStateChanged(bool,QString,int)),
            this,SLOT(slotConnectStateChanged(bool,QString,int)));
    connect(m_sshSocket,SIGNAL(sigDataArrived(QString ,QString , int )),
            this,SLOT(slotDataArrived(QString ,QString , int )));
    connect(this,SIGNAL(sigSend(QString)),m_sshSocket,SLOT(slotSend(QString)));
    connect(this,SIGNAL(sigDisconnected()),m_sshSocket,SLOT(slotDisconnected()));

}

void Widget::disConnection()
{
    emit sigDisconnected();
}

void Widget::setConnectState(bool bState)
{
    if(!bState)
        m_pLabelState->setStyleSheet("QLabel{background-color:#ff0000;border-radius:5px;}");
    else
        m_pLabelState->setStyleSheet("QLabel{background-color:#00ff00;border-radius:5px;}");
}

void Widget::slotSshConnect()
{
    if(!m_bConnectState){
        m_pBtnConnect->setText("连接中...");
        createConnection();  //发起连接
    }else{
        m_pBtnConnect->setText("连接");
        m_bConnectState = false;
        emit sigDisconnected();//断开连接
        setConnectState(m_bConnectState);
    }
}

void Widget::slotSshSendCmd()
{
    if(m_bConnectState){
        QString strCmd = m_pComBoxCmd->currentText();
        strCmd += "n"; //添加回车
        emit sigSend(strCmd);
    }
}

void Widget::slotClearEdit()
{
    m_pTextEdit->clear();
}

void Widget::slotConnectStateChanged(bool bState, QString strIp, int nPort)
{
    Q_UNUSED(strIp)
    Q_UNUSED(nPort)

    m_bConnectState = bState;
    setConnectState(m_bConnectState);
    if(m_bConnectState)
        m_pBtnConnect->setText("断开");
    else
        m_pBtnConnect->setText("连接");
}

void Widget::slotDataArrived(QString strMsg, QString strIp, int nPort)
{
    Q_UNUSED(strIp)
    Q_UNUSED(nPort)

    m_pTextEdit->append(strMsg);
    m_pTextEdit->moveCursor(QTextCursor::End);
}
