zabbix监控脑裂

1
2
3
4
[root@RS2 ~]# dnf -y install nginx

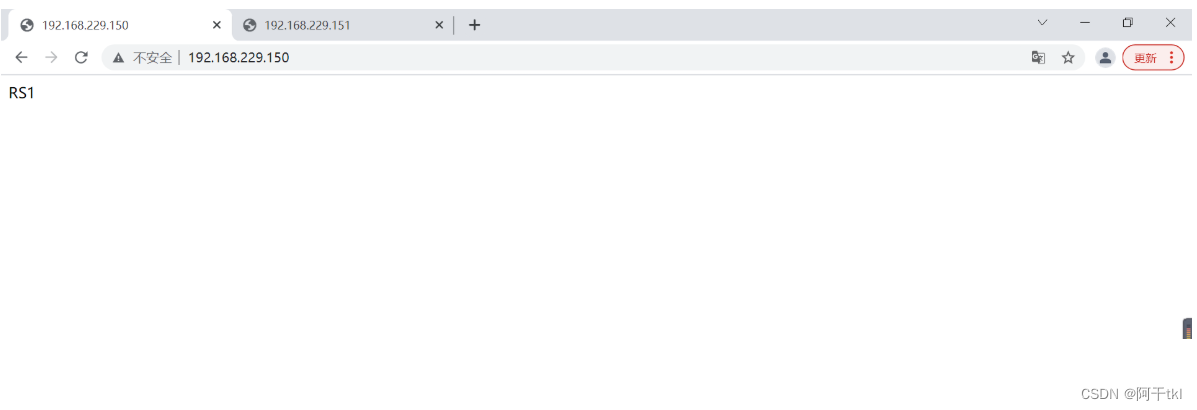

[root@RS1 ~]# echo 'RS1' >  /usr/share/nginx/html/index.html
[root@RS1 ~]# systemctl start nginx

1
2
3
4
[root@RS2 ~]# dnf -y install nginx
[root@RS1 ~]# echo 'RS1' >  /usr/share/nginx/html/index.html
[root@RS1 ~]# systemctl start nginx

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
//关闭防火墙与SELINUX
[root@master ~]# systemctl stop firewalld
[root@master ~]# systemctl disable firewalld
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@master ~]# setenforce 0
[root@master ~]# sed -ri 's/^(SELINUX=).*/1disabled/g' /etc/selinux/config


## 下载依赖包
[root@master  ~]# dnf  -y install boost-devel --allowerasing  make gcc pcre-devel bzip2-devel openssl-devel systemd-devel

## 下载gcc 报错需要下载这个 包 boost-devel --allowerasing

## 下载软件包
[root@master  ~]# cd /usr/src/
[root@master  src]# wget https://github.com/haproxy/haproxy/archive/refs/tags/v2.6.0.tar.gz



## 创建一个系统用户
[root@master  ~]# useradd -r -M -s /sbin/nologin haproxy
[root@master  ~]# id haproxy
uid=995(haproxy) gid=992(haproxy) groups=992(haproxy)




## 解压软件包
[root@master  src]# tar xf haproxy-2.6.0.tar.gz
[root@master  src]# ls
debug  haproxy-2.6.0  haproxy-2.6.0.tar.gz  kernels

[root@master  src]# cd haproxy-2.6.0
[root@master  haproxy-2.6.0]# make clean
[root@master  haproxy-2.6.0]# make -j $(grep 'processor' /proc/cpuinfo |wc -l)
TARGET=linux-glibc
USE_OPENSSL=1
USE_ZLIB=1
USE_PCRE=1
USE_SYSTEMD=1

## make install 安装
[root@master  haproxy-2.6.0]# make install PREFIX=/usr/local/haproxy

## 软链接
[root@master  ~]# ln -s /usr/local/haproxy/sbin/haproxy /usr/sbin/
[root@master  ~]# ll /usr/sbin/haproxy -d
lrwxrwxrwx. 1 root root 31 Aug 15 17:42 /usr/sbin/haproxy -> /usr/local/haproxy/sbin/haproxy

配置各个负载的内核参数
[root@master  ~]# echo 'net.ipv4.ip_nonlocal_bind = 1' >>  /etc/sysctl.conf
[root@master  ~]# echo 'net.ipv4.ip_forward = 1' >> /etc/sysctl.conf
[root@master  ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1
[root@master  ~]# cat /etc/sysctl.conf
# sysctl settings are defined through files in
# /usr/lib/sysctl.d/, /run/sysctl.d/, and /etc/sysctl.d/.
#
# Vendors settings live in /usr/lib/sysctl.d/.
# To override a whole file, create a new file with the same in
# /etc/sysctl.d/ and put new settings there. To override
# only specific settings, add a file with a lexically later
# name in /etc/sysctl.d/ and put new settings there.
#
# For more information, see sysctl.conf(5) and sysctl.d(5).
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1



[root@master  ~]# mkdir /etc/haproxy

## 提供配置文件
[root@master ~]# cat  /etc/haproxy/haproxy.cfg
#--------------全局配置----------------
global
    log 127.0.0.1 local0  info
    #log loghost local0 info
    maxconn 20480
#chroot /usr/local/haproxy
    pidfile /var/run/haproxy.pid
    #maxconn 4000
    user haproxy
    group haproxy
    daemon
#---------------------------------------------------------------------
#common defaults that all the 'listen' and 'backend' sections will
#use if not designated in their block
#---------------------------------------------------------------------
defaults
    mode http
    log global
    option dontlognull
    option httpclose
    option httplog
    #option forwardfor
    option redispatch
    balance roundrobin
    timeout connect 10s
    timeout client 10s
    timeout server 10s
    timeout check 10s
    maxconn 60000
    retries 3
#--------------统计页面配置------------------
listen admin_stats
    bind 0.0.0.0:8189
    stats enable
    mode http
    log global
    stats uri /haproxy_stats
    stats realm Haproxy Statistics
    stats auth admin:admin
    #stats hide-version
    stats admin if TRUE
    stats refresh 30s
#---------------web设置-----------------------

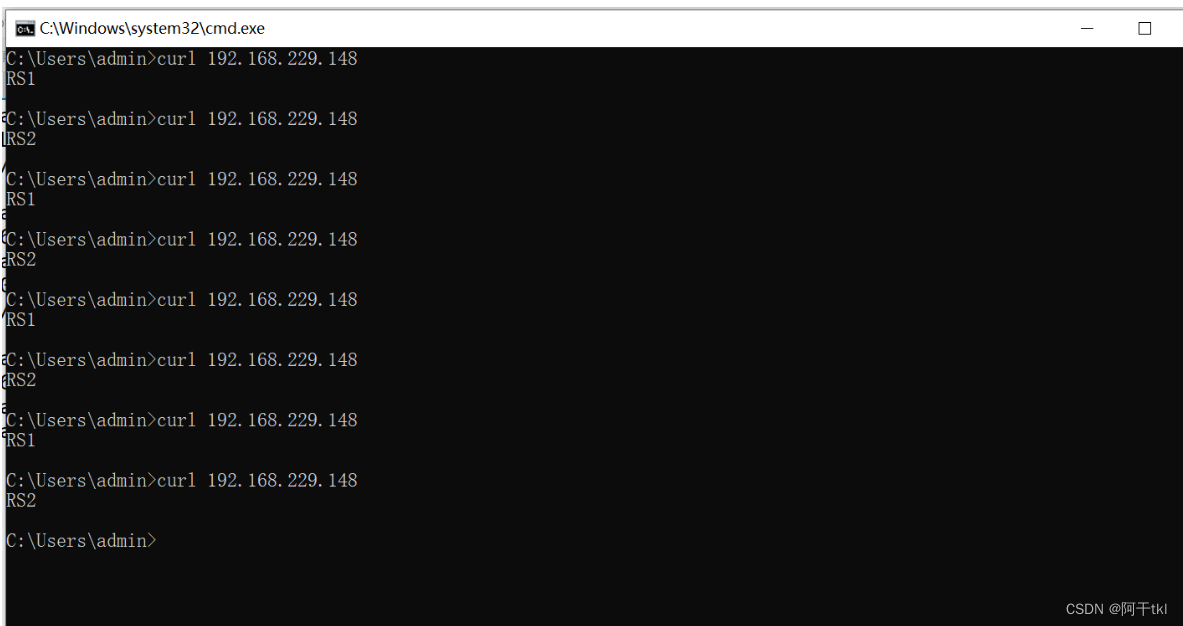

listen webcluster
    bind 0.0.0.0:80
    mode http
    #option httpchk GET /index.html
    log global
    maxconn 3000
    balance roundrobin
    cookie SESSION_COOKIE insert indirect nocache
    server web01 192.168.229.150:80 check inter 2000 fall 5
    server web02 192.168.229.151:80 check inter 2000 fall 5
    #server web03 192.168.80.102:80 cookie web01 check inter 2000 fall 5

## 配置 service 文件
cat > /usr/lib/systemd/system/haproxy.service <<EOF
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target

[Service]
ExecStartPre=/usr/local/haproxy/sbin/haproxy -f /etc/haproxy/haproxy.cfg   -c -q
ExecStart=/usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg  -p /var/run/haproxy.pid
ExecReload=/bin/kill -USR2 $MAINPID

[Install]
WantedBy=multi-user.target
EOF

## 刷新进程
[root@master  ~]# systemctl daemon-reload

## 启用日志
[root@master ~]# vim /etc/rsyslog.conf
# Save boot messages also to boot.log
local7.*                                                /var/log/boot.log
local0.*                                                /var/log/haproxy.log
[root@master ~]# systemctl restart rsyslog




## 设置开机自启
[root@master  ~]# systemctl enable --now haproxy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
//关闭防火墙与SELINUX
[root@slave ~]# systemctl stop firewalld
[root@slave ~]# systemctl disable firewalld
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@slave ~]# setenforce 0
[root@slave ~]# sed -ri 's/^(SELINUX=).*/1disabled/g' /etc/selinux/config



## 下载依赖包
[root@slave ~]# dnf  -y install boost-devel --allowerasing  make gcc pcre-devel bzip2-devel openssl-devel systemd-devel

## 下载gcc 报错需要下载这个 包 boost-devel --allowerasing

## 下载软件包
[root@slave ~]# cd /usr/src/
[root@slave src]# wget https://github.com/haproxy/haproxy/archive/refs/tags/v2.6.0.tar.gz



## 创建一个系统用户
[root@slave ~]# useradd -r -M -s /sbin/nologin haproxy
[root@slave ~]# id haproxy
uid=995(haproxy) gid=992(haproxy) groups=992(haproxy)




## 解压软件包
[root@slave src]# tar xf haproxy-2.6.0.tar.gz
[root@slave src]# ls
debug  haproxy-2.6.0  haproxy-2.6.0.tar.gz  kernels

[root@slave src]# cd haproxy-2.6.0
[root@slave haproxy-2.6.0]# make clean
[root@slave haproxy-2.6.0]# make -j $(grep 'processor' /proc/cpuinfo |wc -l)
TARGET=linux-glibc
USE_OPENSSL=1
USE_ZLIB=1
USE_PCRE=1
USE_SYSTEMD=1

## make install 安装
[root@slave haproxy-2.6.0]# make install PREFIX=/usr/local/haproxy

## 软链接
[root@slave ~]# ln -s /usr/local/haproxy/sbin/haproxy /usr/sbin/
[root@slave ~]# ll /usr/sbin/haproxy -d
lrwxrwxrwx. 1 root root 31 Aug 15 17:42 /usr/sbin/haproxy -> /usr/local/haproxy/sbin/haproxy

配置各个负载的内核参数
[root@slave ~]# echo 'net.ipv4.ip_nonlocal_bind = 1' >>  /etc/sysctl.conf
[root@slave ~]# echo 'net.ipv4.ip_forward = 1' >> /etc/sysctl.conf
[root@slave ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1
[root@slave ~]# cat /etc/sysctl.conf
# sysctl settings are defined through files in
# /usr/lib/sysctl.d/, /run/sysctl.d/, and /etc/sysctl.d/.
#
# Vendors settings live in /usr/lib/sysctl.d/.
# To override a whole file, create a new file with the same in
# /etc/sysctl.d/ and put new settings there. To override
# only specific settings, add a file with a lexically later
# name in /etc/sysctl.d/ and put new settings there.
#
# For more information, see sysctl.conf(5) and sysctl.d(5).
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1



[root@slave ~]# mkdir /etc/haproxy

## 提供配置文件
[root@slave ~]# cat > /etc/haproxy/haproxy.cfg <<EOF
#--------------全局配置----------------
global
    log 127.0.0.1 local0  info
    #log loghost local0 info
    maxconn 20480
#chroot /usr/local/haproxy
    pidfile /var/run/haproxy.pid
    #maxconn 4000
    user haproxy
    group haproxy
    daemon
#---------------------------------------------------------------------
#common defaults that all the 'listen' and 'backend' sections will
#use if not designated in their block
#---------------------------------------------------------------------
defaults
    mode http
    log global
    option dontlognull
    option httpclose
    option httplog
    #option forwardfor
    option redispatch
    balance roundrobin
    timeout connect 10s
    timeout client 10s
    timeout server 10s
    timeout check 10s
    maxconn 60000
    retries 3
#--------------统计页面配置------------------
listen admin_stats
    bind 0.0.0.0:8189
    stats enable
    mode http
    log global
    stats uri /haproxy_stats
    stats realm Haproxy Statistics
    stats auth admin:admin
    #stats hide-version
    stats admin if TRUE
    stats refresh 30s
#---------------web设置-----------------------
listen webcluster
    bind 0.0.0.0:80
    mode http
    #option httpchk GET /index.html
    log global
    maxconn 3000
    balance roundrobin
    cookie SESSION_COOKIE insert indirect nocache
    server web01 192.168.229.150:80 check inter 2000 fall 5
    server web02 192.168.229.151:80 check inter 2000 fall 5
    #server web01 192.168.80.102:80 cookie web01 check inter 2000 fall 5
EOF

## 配置 service 文件
cat > /usr/lib/systemd/system/haproxy.service <<EOF
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target

[Service]
ExecStartPre=/usr/local/haproxy/sbin/haproxy -f /etc/haproxy/haproxy.cfg   -c -q
ExecStart=/usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg  -p /var/run/haproxy.pid
ExecReload=/bin/kill -USR2 $MAINPID

[Install]
WantedBy=multi-user.target
EOF

## 刷新进程
[root@slave ~]# systemctl daemon-reload


## 启用日志
[root@master ~]# vim /etc/rsyslog.conf
# Save boot messages also to boot.log
local7.*                                                /var/log/boot.log
local0.*                                                /var/log/haproxy.log
[root@master ~]# systemctl restart rsyslog

1
2
3
4
5
6
7
8
9
10
11
12
13
//安装keepalived
[root@master ~]# dnf -y install keepalived

//查看安装生成的文件
[root@master ~]# rpm -ql keepalived
/etc/keepalived     //配置目录
/etc/keepalived/keepalived.conf     //此为主配置文件
/etc/sysconfig/keepalived
/usr/bin/genhash
/usr/lib/systemd/system/keepalived.service      //此为服务控制文件
/usr/libexec/keepalived
/usr/sbin/keepalived
.....此处省略N行

1
2
//安装keepalived
[root@slave ~]# yum -y install keepalived

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
[root@master ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb01
}

vrrp_instance VI_1 {
    state MASTER
    interface ens160
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass agantkl
    }
    virtual_ipaddress {
        192.168.229.250
    }
}

virtual_server 192.168.229.250 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.229.130 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.229.148 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

## 设置开机自启
[root@master ~]# systemctl enable --now keepalived
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.
[root@master ~]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
   Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
   Active: active (running) since Wed 2022-08-31 19:12:53 CST; 9s ago

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
[root@slave ~]# cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb02
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass agantkl
    }
    virtual_ipaddress {
        192.168.229.250
    }
}

virtual_server 192.168.229.250 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.229.150 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.229.151 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}


[root@slave ~]# systemctl enable --now keepalived
Created symlink /etc/systemd/system/multi-user.target.wants/keepalived.service → /usr/lib/systemd/system/keepalived.service.
[root@slave ~]# systemctl status keepalived
● keepalived.service - LVS and VRRP High Availability Monitor
   Loaded: loaded (/usr/lib/systemd/system/keepalived.service; enabled; vendor preset: disabled)
   Active: active (running) since Tue 2022-08-30 19:15:56 CST; 9s ago

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:c7:d2:c9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.150/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 1705sec preferred_lft 1705sec
    inet 192.168.229.250/32 scope global ens160  //可以看到此处有VIP
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fec7:d2c9/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

1
2
3
4
5
6
7
8
9
10
11
12
13
[root@slave ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:32:af:6d brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.151/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 1676sec preferred_lft 1676sec
    inet6 fe80::20c:29ff:fe32:af6d/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

1
2
3
4
5
[root@master ~]# echo 'net.ipv4.ip_nonlocal_bind = 1' >>/etc/sysctl.conf
[root@master ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1
[root@master ~]# cat /proc/sys/net/ipv4/ip_nonlocal_bind
1

1
2
3
4
5
[root@slave ~]# echo 'net.ipv4.ip_nonlocal_bind = 1' >>/etc/sysctl.conf
[root@slave ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1
[root@slave ~]# cat /proc/sys/net/ipv4/ip_nonlocal_bind
1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
[root@master ~]# mkdir /scripts
[root@master ~]# cd /scripts/
[root@master scripts]# vim check_n.sh
#!/bin/bash

haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep 'bhaproxyb'|wc -l)
if [ $haproxy_status -lt 1 ];then
    systemctl stop keepalived
fi



[root@master scripts]# vim notify.sh
#!/bin/bash

case "$1" in
  master)
        haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep 'bhaproxyb'|wc -l)
        if [ $haproxy_status -lt 1 ];then
            systemctl start haproxy
        fi
        sendmail
  ;;
  backup)
        haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep 'bhaproxyb'|wc -l)
        if [ $haproxy_status -gt 0 ];then
            systemctl stop haproxy
        fi
  ;;
  *)
        echo "Usage:$0 master|backup VIP"
  ;;
esac


[root@master scripts]# chmod +x notify.sh
[root@master scripts]# ll
total 8
-rwxr-xr-x. 1 root root 149 Sep  1 16:23 check_n.sh
-rwxr-xr-x. 1 root root 459 Sep  1 16:32 notify.sh

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
[root@slave ~]# mkdir /scripts
[root@slave ~]# cd /scripts/
[root@slave scripts]# vim notify.sh
#!/bin/bash

case "$1" in
  master)
        haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep 'bhaproxyb'|wc -l)
        if [ $haproxy_status -lt 1 ];then
            systemctl start haproxy
        fi
        sendmail
  ;;
  backup)
        haproxy_status=$(ps -ef|grep -Ev "grep|$0"|grep 'bhaproxyb'|wc -l)
        if [ $haproxy_status -gt 0 ];then
            systemctl stop haproxy
        fi
  ;;
  *)
        echo "Usage:$0 master|backup VIP"
  ;;
esac

[root@slave scripts]# chmod +x notify.sh
[root@slave scripts]# ll
total 4
-rwxr-xr-x. 1 root root 459 Sep  1 16:34 notify.sh

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
[root@master ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb01
}

vrrp_script nginx_check {
    script "/scripts/check_n.sh"
    interval 1
    weight -20
}

vrrp_instance VI_1 {
    state MASTER
    interface ens160
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass agantkl
    }
    virtual_ipaddress {
        192.168.229.250
    }
    track_script {
        nginx_check
    }
    notify_master "/scripts/notify.sh master 192.168.229.250"
}

virtual_server 192.168.229.250 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.229.130 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.229.148 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

[root@master ~]# systemctl restart keepalived

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
[root@slave ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id lb02
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens160
    virtual_router_id 51
    priority 90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass agantkl
    }
    virtual_ipaddress {
        192.168.229.250
    }
    notify_master "/scripts/notify.sh master 192.168.229.250"
    notify_backup "/scripts/notify.sh backup 192.168.229.250"
}

virtual_server 192.168.229.250 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 50
    protocol TCP

    real_server 192.168.229.130 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.229.148 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}

[root@slave ~]# systemctl restart keepalived

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
## 停掉 haproxy
[root@master ~]# systemctl stop haproxy
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:e7:cf brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.130/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 954sec preferred_lft 954sec
    inet6 fe80::20c:29ff:fef6:e7cf/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
### master的主机上已经没有 VIP了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[root@slave ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:57:8f:93 brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.148/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 925sec preferred_lft 925sec
    inet 192.168.229.250/32 scope global ens160  // 此处VIP
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe57:8f93/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[root@master ~]# systemctl start haproxy keepalived
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN gro
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel st
    link/ether 00:0c:29:f6:e7:cf brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.130/24 brd 192.168.229.255 scope global dynamic no
       valid_lft 1772sec preferred_lft 1772sec
    inet 192.168.229.250/32 scope global ens160  // 此处VIP
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fef6:e7cf/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
[root@master ~]# ss -antl
State        Recv-Q       Send-Q              Local Address:Port
LISTEN       0            128                       0.0.0.0:80
LISTEN       0            128                       0.0.0.0:22
LISTEN       0            128                       0.0.0.0:8189
LISTEN       0            128                          [::]:22

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@slave ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:57:8f:93 brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.148/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 1727sec preferred_lft 1727sec
    inet6 fe80::20c:29ff:fe57:8f93/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

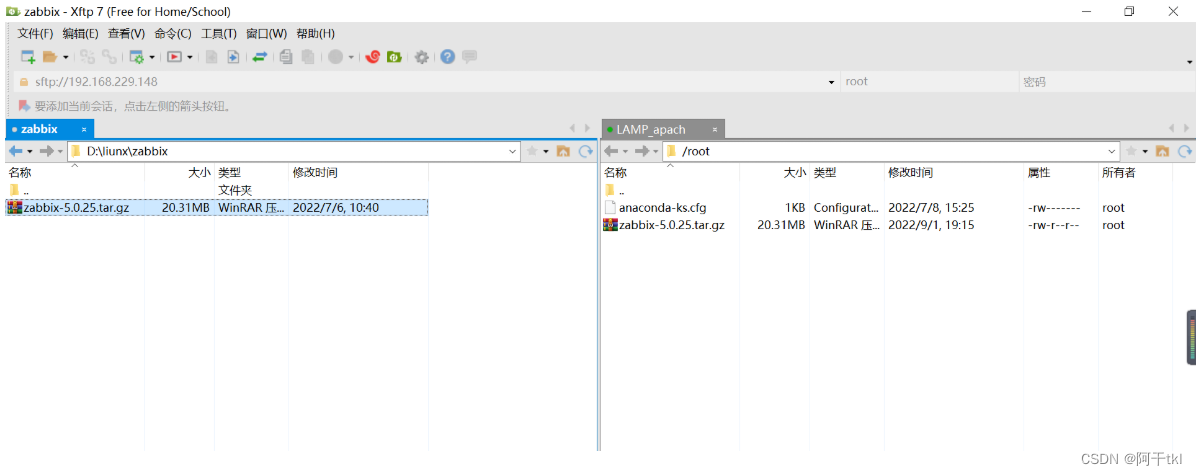

[root@slave ~]# tar xf zabbix-5.0.25.tar.gz
[root@slave ~]# ls
anaconda-ks.cfg  zabbix-5.0.25  zabbix-5.0.25.tar.gz


# 创建zabbix 系统用户
[root@slave ~]#  useradd -r -M -s /sbin/nologin zabbix
[root@slave ~]# id zabbix
uid=994(zabbix) gid=991(zabbix) groups=991(zabbix)

# 下载依赖包
[root@slave ~]# dnf -y install gcc gcc-c++ make vim wget pcre-devel


# 进入解压目录，编译
[root@slave ~]# cd zabbix-5.0.25
[root@slave zabbix-5.0.25]# ./configure --enable-agent
.....省略N
***********************************************************
*            Now run 'make install'                       *
*                                                         *
*            Thank you for using Zabbix!                  *
*              <http://www.zabbix.com>                    *
***********************************************************



# make install
[root@slave zabbix-5.0.25]#  make install
.....省略N


# /usr/local/etc/
[root@slave ~]# cd /usr/local/etc/
[root@slave etc]# ls
zabbix_agentd.conf  zabbix_agentd.conf.d

# 进入zabbix_agentd.conf  编辑，进入之后查找对应的，然后修改
[root@slave etc]# vim zabbix_agentd.conf
Server=192.168.229.129  # Server要指向服务端ip

ServerActive=192.168.229.129 # 这个也是要指向服务端ip

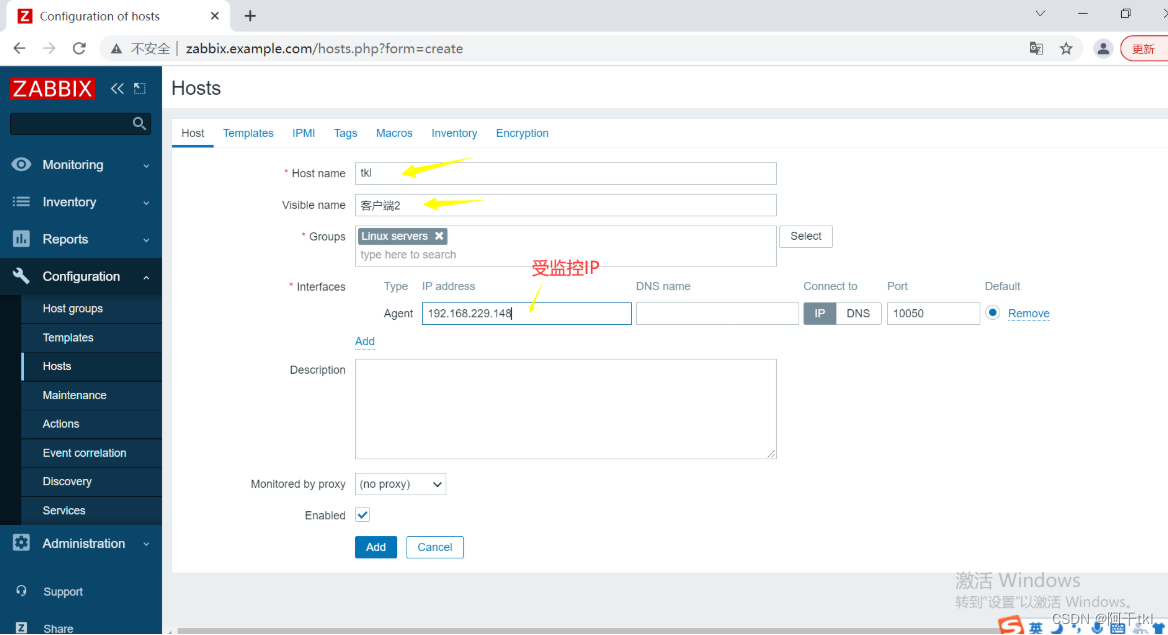

Hostname=tkl   # 这个必须唯一，要么使用本机ip，要么，使用随机的，这里我使用随机的agan

# 启动服务
[root@slave ~]# zabbix_agentd
[root@slave ~]# ss -antl
State        Recv-Q       Send-Q             Local Address:Port
LISTEN       0            128                      0.0.0.0:10050
LISTEN       0            128                      0.0.0.0:22
LISTEN       0            128                         [::]:22

1
2
3
4
5
6
7
8
9
10
11
12
[root@slave scripts]# cat test.sh
#!/bin/bash

if [ `ip a show ens160 |grep 192.168.229.250|wc -l` -ne 0 ]
then
    echo "1"
else
    echo "0"
fi
[root@slave scripts]# chmod +x test.sh
#如果检测到vip的ip地址则会显示数字1，检测不到则显示0。。。1表示有问题，0表示没问题

1
2
3
4
5
6
7
8
[root@slave ~]# vim /usr/local/etc/zabbix_agentd.conf
UnsafeUserParameters=1    #启用自定义监控项{1|0}
UserParameter=check_process,/scripts/test.sh  #指定自定义监控脚本参数

#重启zabbix服务
[root@slave ~]# pkill zabbix_agentd
[root@slave ~]# zabbix_agentd

1
2
3
4
5
6
7
8
[root@slave ~]# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:57:8f:93 brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.148/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 1686sec preferred_lft 1686sec
    inet6 fe80::20c:29ff:fe57:8f93/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

1
2
3
[root@zabbix  ~]# zabbix_get -s 192.168.229.148 -k check_process
0      //证明备用服务器上没有存在了VIP

1
2
3
4
5
6
7
8
9
[root@master ~]# systemctl stop haproxy
[root@master ~]# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:e7:cf brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.130/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 1568sec preferred_lft 1568sec
    inet6 fe80::20c:29ff:fef6:e7cf/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

1
2
3
4
5
6
7
8
9
10
[root@slave ~]# ip addr show ens160
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:57:8f:93 brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.148/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 1543sec preferred_lft 1543sec
    inet 192.168.229.250/32 scope global ens160  // 此处 VIP
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fe57:8f93/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

1
2
3
4
[root@zabbix  ~]# zabbix_get -s 192.168.229.148 -k check_process
1
// 证明 脚本能用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
[root@master ~]# systemctl start haproxy keepalived
[root@master ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:f6:e7:cf brd ff:ff:ff:ff:ff:ff
    inet 192.168.229.130/24 brd 192.168.229.255 scope global dynamic noprefixroute ens160
       valid_lft 1014sec preferred_lft 1014sec
    inet 192.168.229.250/32 scope global ens160
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fef6:e7cf/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
