实时软件系统设计第二次作业

门禁控制系统的设计

本次作业采用matlab中的simulink来进行仿真，用stateflow来画状态机，用matlab自动生成C代码。

门禁控制系统的输入信号包括：

起落杆位置传感器：有两个位置值信号（升起/落下）

升起位置传感器：输入为1表示在升起位置，输入为0表示不在升起位置，状态图用sqwzcgq来表示。

下降位置传感器：输入为1表示在下降位置，输入为0表示不再下降位置，状态图用xlwzcgq来表示。

汽车入闸传感器：有两个值（True/False）输入为1表示汽车入闸，状态图用rzcgq来表示。

汽车出闸传感器：有两个值（True/False）输入为1表示汽车出闸，状态图用czcgq来表示。

门禁控制系统的输出信号包括：

起落杆电机控制信号：（上升/下降）升起控制信号sckzxh：输出为1控制电机上升，输出为0控制电机不转。

下降控制信号xjkzxh：输出为1控制电机下降，输出为0控制电机不转。

通行灯信号：（红灯/绿灯）红灯信号xhdhong：输出为1，红灯亮，绿灯信号xhdlv：输出为1，绿灯亮。

一辆汽车的通过流程为：

起落杆处于落下状态，通行灯为红灯。

汽车进入门禁系统，入闸传感器值变为True。

控制起落杆上升，直到起落杆位置传感器到达升起位置。

通行灯为绿灯。

汽车离开门禁，触发汽车出闸传感器值为True。

控制起落杆下降，直到起落杆位置传感器到达落下位置。

通行灯变为红灯。

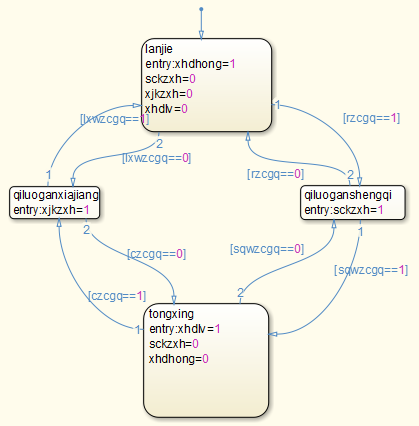

转化为状态图为：



Matlab生成的程序代码，只粘贴出来了C文件和头文件，其他文件未粘贴出来

2		* sskzrje.c
3		*
4		* Code generation for model "sskzrje".
5		*
6		* Model version : 1.10
7		* Simulink Coder version : 8.7 (R2014b) 08-Sep-2014
8		* C source code generated on : Tue Dec 06 15:56:35 2016
9		*
10		* Target selection: grt.tlc
11		* Note: GRT includes extra infrastructure and instrumentation for prototyping
12		* Embedded hardware selection: 32-bit Generic
13		* Code generation objectives: Unspecified
14		* Validation result: Not run
15		*/
16		#include "sskzrje.h"
17		#include "sskzrje_private.h"
18
19		/* Named constants for Chart: '<Root>/Chart' */
20		#define sskzrje_IN_NO_ACTIVE_CHILD ((uint8_T)0U)
21		#define sskzrje_IN_lanjie ((uint8_T)1U)
22		#define sskzrje_IN_qiluoganshengqi ((uint8_T)2U)
23		#define sskzrje_IN_qiluoganxiajiang ((uint8_T)3U)
24		#define sskzrje_IN_tongxing ((uint8_T)4U)
25
26		/* Block states (auto storage) */
27		DW_sskzrje_T sskzrje_DW;
28
29		/* Real-time model */
30		RT_MODEL_sskzrje_T sskzrje_M_;
31		RT_MODEL_sskzrje_T *const sskzrje_M = &sskzrje_M_;
32
33		/* Model step function */
34		void sskzrje_step(void)
35		{
36		real_T rtb_ManualSwitch;
37		real_T rtb_ManualSwitch1;
38		real_T rtb_ManualSwitch2;
39		real_T rtb_ManualSwitch3;
40
41		/* ManualSwitch: '<Root>/Manual Switch' incorporates:
42		* Constant: '<Root>/constant'
43		* Constant: '<Root>/constant1'
44		*/
45		if (sskzrje_P.ManualSwitch_CurrentSetting == 1) {
46		rtb_ManualSwitch = sskzrje_P.constant_Value;
47		} else {
48		rtb_ManualSwitch = sskzrje_P.constant1_Value;
49		}
50
51		/* End of ManualSwitch: '<Root>/Manual Switch' */
52
53		/* ManualSwitch: '<Root>/Manual Switch1' incorporates:
54		* Constant: '<Root>/constant'
55		* Constant: '<Root>/constant1'
56		*/
57		if (sskzrje_P.ManualSwitch1_CurrentSetting == 1) {
58		rtb_ManualSwitch1 = sskzrje_P.constant_Value;
59		} else {
60		rtb_ManualSwitch1 = sskzrje_P.constant1_Value;
61		}
62
63		/* End of ManualSwitch: '<Root>/Manual Switch1' */
64
65		/* ManualSwitch: '<Root>/Manual Switch2' incorporates:
66		* Constant: '<Root>/constant'
67		* Constant: '<Root>/constant1'
68		*/
69		if (sskzrje_P.ManualSwitch2_CurrentSetting == 1) {
70		rtb_ManualSwitch2 = sskzrje_P.constant_Value;
71		} else {
72		rtb_ManualSwitch2 = sskzrje_P.constant1_Value;
73		}
74
75		/* End of ManualSwitch: '<Root>/Manual Switch2' */
76
77		/* ManualSwitch: '<Root>/Manual Switch3' incorporates:
78		* Constant: '<Root>/constant'
79		* Constant: '<Root>/constant1'
80		*/
81		if (sskzrje_P.ManualSwitch3_CurrentSetting == 1) {
82		rtb_ManualSwitch3 = sskzrje_P.constant_Value;
83		} else {
84		rtb_ManualSwitch3 = sskzrje_P.constant1_Value;
85		}
86
87		/* End of ManualSwitch: '<Root>/Manual Switch3' */
88
89		/* Chart: '<Root>/Chart' */
90		/* Gateway: Chart */
91		/* During: Chart */
92		if (sskzrje_DW.is_active_c3_sskzrje == 0U) {
93		/* Entry: Chart */
94		sskzrje_DW.is_active_c3_sskzrje = 1U;
95
96		/* Entry Internal: Chart */
97		/* Transition: '<S1>:6' */
98		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_lanjie;
99
100		/* Entry 'lanjie': '<S1>:1' */
101		} else {
102		switch (sskzrje_DW.is_c3_sskzrje) {
103		case sskzrje_IN_lanjie:
104		/* During 'lanjie': '<S1>:1' */
105		if (rtb_ManualSwitch == 1.0) {
106		/* Transition: '<S1>:3' */
107		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_qiluoganshengqi;
108
109		/* Entry 'qiluoganshengqi': '<S1>:2' */
110		} else {
111		if (rtb_ManualSwitch2 == 0.0) {
112		/* Transition: '<S1>:25' */
113		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_qiluoganxiajiang;
114
115		/* Entry 'qiluoganxiajiang': '<S1>:16' */
116		}
117		}
118		break;
119
120		case sskzrje_IN_qiluoganshengqi:
121		/* During 'qiluoganshengqi': '<S1>:2' */
122		if (rtb_ManualSwitch3 == 1.0) {
123		/* Transition: '<S1>:15' */
124		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_tongxing;
125
126		/* Entry 'tongxing': '<S1>:14' */
127		} else {
128		if (rtb_ManualSwitch == 0.0) {
129		/* Transition: '<S1>:22' */
130		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_lanjie;
131
132		/* Entry 'lanjie': '<S1>:1' */
133		}
134		}
135		break;
136
137		case sskzrje_IN_qiluoganxiajiang:
138		/* During 'qiluoganxiajiang': '<S1>:16' */
139		if (rtb_ManualSwitch2 == 1.0) {
140		/* Transition: '<S1>:18' */
141		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_lanjie;
142
143		/* Entry 'lanjie': '<S1>:1' */
144		} else {
145		if (rtb_ManualSwitch1 == 0.0) {
146		/* Transition: '<S1>:24' */
147		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_tongxing;
148
149		/* Entry 'tongxing': '<S1>:14' */
150		}
151		}
152		break;
153
154		default:
155		/* During 'tongxing': '<S1>:14' */
156		if (rtb_ManualSwitch1 == 1.0) {
157		/* Transition: '<S1>:17' */
158		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_qiluoganxiajiang;
159
160		/* Entry 'qiluoganxiajiang': '<S1>:16' */
161		} else {
162		if (rtb_ManualSwitch3 == 0.0) {
163		/* Transition: '<S1>:23' */
164		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_qiluoganshengqi;
165
166		/* Entry 'qiluoganshengqi': '<S1>:2' */
167		}
168		}
169		break;
170		}
171		}
172
173		/* End of Chart: '<Root>/Chart' */
174
175		/* Matfile logging */
176		rt_UpdateTXYLogVars(sskzrje_M->rtwLogInfo, (&sskzrje_M->Timing.taskTime0));
177
178		/* signal main to stop simulation */
179		{ /* Sample time: [0.2s, 0.0s] */
180		if ((rtmGetTFinal(sskzrje_M)!=-1) &&
181		!((rtmGetTFinal(sskzrje_M)-sskzrje_M->Timing.taskTime0) >
182		sskzrje_M->Timing.taskTime0 * (DBL_EPSILON))) {
183		rtmSetErrorStatus(sskzrje_M, "Simulation finished");
184		}
185		}
186
187		/* Update absolute time for base rate */
188		/* The "clockTick0" counts the number of times the code of this task has
189		* been executed. The absolute time is the multiplication of "clockTick0"
190		* and "Timing.stepSize0". Size of "clockTick0" ensures timer will not
191		* overflow during the application lifespan selected.
192		* Timer of this task consists of two 32 bit unsigned integers.
193		* The two integers represent the low bits Timing.clockTick0 and the high bits
194		* Timing.clockTickH0. When the low bit overflows to 0, the high bits increment.
195		*/
196		if (!(++sskzrje_M->Timing.clockTick0)) {
197		++sskzrje_M->Timing.clockTickH0;
198		}
199
200		sskzrje_M->Timing.taskTime0 = sskzrje_M->Timing.clockTick0 *
201		sskzrje_M->Timing.stepSize0 + sskzrje_M->Timing.clockTickH0 *
202		sskzrje_M->Timing.stepSize0 * 4294967296.0;
203		}
204
205		/* Model initialize function */
206		void sskzrje_initialize(void)
207		{
208		/* Registration code */
209
210		/* initialize non-finites */
211		rt_InitInfAndNaN(sizeof(real_T));
212
213		/* initialize real-time model */
214		(void) memset((void *)sskzrje_M, 0,
215		sizeof(RT_MODEL_sskzrje_T));
216		rtmSetTFinal(sskzrje_M, 10.0);
217		sskzrje_M->Timing.stepSize0 = 0.2;
218
219		/* Setup for data logging */
220		{
221		static RTWLogInfo rt_DataLoggingInfo;
222		sskzrje_M->rtwLogInfo = &rt_DataLoggingInfo;
223		}
224
225		/* Setup for data logging */
226		{
227		rtliSetLogXSignalInfo(sskzrje_M->rtwLogInfo, (NULL));
228		rtliSetLogXSignalPtrs(sskzrje_M->rtwLogInfo, (NULL));
229		rtliSetLogT(sskzrje_M->rtwLogInfo, "tout");
230		rtliSetLogX(sskzrje_M->rtwLogInfo, "");
231		rtliSetLogXFinal(sskzrje_M->rtwLogInfo, "");
232		rtliSetLogVarNameModifier(sskzrje_M->rtwLogInfo, "rt_");
233		rtliSetLogFormat(sskzrje_M->rtwLogInfo, 0);
234		rtliSetLogMaxRows(sskzrje_M->rtwLogInfo, 1000);
235		rtliSetLogDecimation(sskzrje_M->rtwLogInfo, 1);
236		rtliSetLogY(sskzrje_M->rtwLogInfo, "");
237		rtliSetLogYSignalInfo(sskzrje_M->rtwLogInfo, (NULL));
238		rtliSetLogYSignalPtrs(sskzrje_M->rtwLogInfo, (NULL));
239		}
240
241		/* states (dwork) */
242		(void) memset((void *)&sskzrje_DW, 0,
243		sizeof(DW_sskzrje_T));
244
245		/* Matfile logging */
246		rt_StartDataLoggingWithStartTime(sskzrje_M->rtwLogInfo, 0.0, rtmGetTFinal
247		(sskzrje_M), sskzrje_M->Timing.stepSize0, (&rtmGetErrorStatus(sskzrje_M)));
248
249		/* InitializeConditions for Chart: '<Root>/Chart' */
250		sskzrje_DW.is_active_c3_sskzrje = 0U;
251		sskzrje_DW.is_c3_sskzrje = sskzrje_IN_NO_ACTIVE_CHILD;
252		}
253
254		/* Model terminate function */
255		void sskzrje_terminate(void)
256		{
257		/* (no terminate code required) */
258		}
259
/*
2		* sskzrje.h
3		*
4		* Code generation for model "sskzrje".
5		*
6		* Model version : 1.10
7		* Simulink Coder version : 8.7 (R2014b) 08-Sep-2014
8		* C source code generated on : Tue Dec 06 15:56:35 2016
9		*
10		* Target selection: grt.tlc
11		* Note: GRT includes extra infrastructure and instrumentation for prototyping
12		* Embedded hardware selection: 32-bit Generic
13		* Code generation objectives: Unspecified
14		* Validation result: Not run
15		*/
16		#ifndef RTW_HEADER_sskzrje_h_
17		#define RTW_HEADER_sskzrje_h_
18		#include <float.h>
19		#include <string.h>
20		#include <stddef.h>
21		#ifndef sskzrje_COMMON_INCLUDES_
22		# define sskzrje_COMMON_INCLUDES_
23		#include "rtwtypes.h"
24		#include "rtw_continuous.h"
25		#include "rtw_solver.h"
26		#include "rt_logging.h"
27		#endif /* sskzrje_COMMON_INCLUDES_ */
28
29		#include "sskzrje_types.h"
30
31		/* Shared type includes */
32		#include "multiword_types.h"
33		#include "rt_nonfinite.h"
34
35		/* Macros for accessing real-time model data structure */
36		#ifndef rtmGetFinalTime
37		# define rtmGetFinalTime(rtm) ((rtm)->Timing.tFinal)
38		#endif
39
40		#ifndef rtmGetRTWLogInfo
41		# define rtmGetRTWLogInfo(rtm) ((rtm)->rtwLogInfo)
42		#endif
43
44		#ifndef rtmGetErrorStatus
45		# define rtmGetErrorStatus(rtm) ((rtm)->errorStatus)
46		#endif
47
48		#ifndef rtmSetErrorStatus
49		# define rtmSetErrorStatus(rtm, val) ((rtm)->errorStatus = (val))
50		#endif
51
52		#ifndef rtmGetStopRequested
53		# define rtmGetStopRequested(rtm) ((rtm)->Timing.stopRequestedFlag)
54		#endif
55
56		#ifndef rtmSetStopRequested
57		# define rtmSetStopRequested(rtm, val) ((rtm)->Timing.stopRequestedFlag = (val))
58		#endif
59
60		#ifndef rtmGetStopRequestedPtr
61		# define rtmGetStopRequestedPtr(rtm) (&((rtm)->Timing.stopRequestedFlag))
62		#endif
63
64		#ifndef rtmGetT
65		# define rtmGetT(rtm) ((rtm)->Timing.taskTime0)
66		#endif
67
68		#ifndef rtmGetTFinal
69		# define rtmGetTFinal(rtm) ((rtm)->Timing.tFinal)
70		#endif
71
72		/* Block states (auto storage) for system '<Root>' */
73		typedef struct {
74		uint8_T is_active_c3_sskzrje; /* '<Root>/Chart' */
75		uint8_T is_c3_sskzrje; /* '<Root>/Chart' */
76		} DW_sskzrje_T;
77
78		/* Parameters (auto storage) */
79		struct P_sskzrje_T_ {
80		real_T constant_Value; /* Expression: 1
81		* Referenced by: '<Root>/constant'
82		*/
83		real_T constant1_Value; /* Expression: 0
84		* Referenced by: '<Root>/constant1'
85		*/
86		uint8_T ManualSwitch_CurrentSetting; /* Computed Parameter: ManualSwitch_CurrentSetting
87		* Referenced by: '<Root>/Manual Switch'
88		*/
89		uint8_T ManualSwitch1_CurrentSetting;/* Computed Parameter: ManualSwitch1_CurrentSetting
90		* Referenced by: '<Root>/Manual Switch1'
91		*/
92		uint8_T ManualSwitch2_CurrentSetting;/* Computed Parameter: ManualSwitch2_CurrentSetting
93		* Referenced by: '<Root>/Manual Switch2'
94		*/
95		uint8_T ManualSwitch3_CurrentSetting;/* Computed Parameter: ManualSwitch3_CurrentSetting
96		* Referenced by: '<Root>/Manual Switch3'
97		*/
98		};
99
100		/* Real-time Model Data Structure */
101		struct tag_RTM_sskzrje_T {
102		const char_T *errorStatus;
103		RTWLogInfo *rtwLogInfo;
104
105		/*
106		* Timing:
107		* The following substructure contains information regarding
108		* the timing information for the model.
109		*/
110		struct {
111		time_T taskTime0;
112		uint32_T clockTick0;
113		uint32_T clockTickH0;
114		time_T stepSize0;
115		time_T tFinal;
116		boolean_T stopRequestedFlag;
117		} Timing;
118		};
119
120		/* Block parameters (auto storage) */
121		extern P_sskzrje_T sskzrje_P;
122
123		/* Block states (auto storage) */
124		extern DW_sskzrje_T sskzrje_DW;
125
126		/* Model entry point functions */
127		extern void sskzrje_initialize(void);
128		extern void sskzrje_step(void);
129		extern void sskzrje_terminate(void);
130
131		/* Real-time Model object */
132		extern RT_MODEL_sskzrje_T *const sskzrje_M;
133
134		/*-
135		* The generated code includes comments that allow you to trace directly
136		* back to the appropriate location in the model. The basic format
137		* is <system>/block_name, where system is the system number (uniquely
138		* assigned by Simulink) and block_name is the name of the block.
139		*
140		* Use the MATLAB hilite_system command to trace the generated code back
141		* to the model. For example,
142		*
143		* hilite_system('<S3>') - opens system 3
144		* hilite_system('<S3>/Kp') - opens and selects block Kp which resides in S3
145		*
146		* Here is the system hierarchy for this model
147		*
148		* '<Root>' : 'sskzrje'
149		* '<S1>' : 'sskzrje/Chart'
150		*/
151		#endif /* RTW_HEADER_sskzrje_h_ */
152
/*
2		* sskzrje_private.h
3		*
4		* Code generation for model "sskzrje".
5		*
6		* Model version : 1.10
7		* Simulink Coder version : 8.7 (R2014b) 08-Sep-2014
8		* C source code generated on : Tue Dec 06 15:56:35 2016
9		*
10		* Target selection: grt.tlc
11		* Note: GRT includes extra infrastructure and instrumentation for prototyping
12		* Embedded hardware selection: 32-bit Generic
13		* Code generation objectives: Unspecified
14		* Validation result: Not run
15		*/
16		#ifndef RTW_HEADER_sskzrje_private_h_
17		#define RTW_HEADER_sskzrje_private_h_
18		#include "rtwtypes.h"
19		#include "builtin_typeid_types.h"
20		#include "multiword_types.h"
21
22		/* Private macros used by the generated code to access rtModel */
23		#ifndef rtmSetTFinal
24		# define rtmSetTFinal(rtm, val) ((rtm)->Timing.tFinal = (val))
25		#endif
26
27		#ifndef rtmGetTPtr
28		# define rtmGetTPtr(rtm) (&(rtm)->Timing.taskTime0)
29		#endif
30		#endif /* RTW_HEADER_sskzrje_private_h_ */
31
