问题：

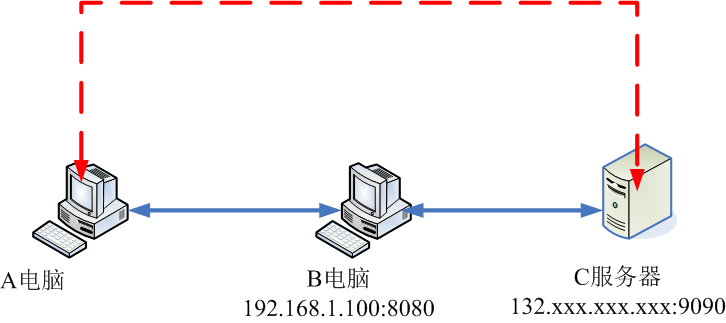

A、B、C三台计算机，A和B可以通讯，B和C可以通讯，但是A和C不能通讯（红色的虚线）。那如何让A和C通讯？

解决方案：

需要在B计算机，安装一个端口映射程序，其功能：A发送数据给B，B再把数据透传到C，C处理完后，把数据回应给B，B电脑透传给A。

代码实现：

复制代码

package main

import (
	"fmt"
	"net"
	"os"
	"io"
)

func tcp_mapping_worker(r net.Conn, w net.Conn) {

fmt.Printf("tcp_mapping_worker inrn")

// #关闭socket
	defer r.Close()
	defer w.Close()

fmt.Printf("Info: Mapping > (%s) -> (%s) > N bytes.rn", r.RemoteAddr(), w.RemoteAddr())

_, err := io.Copy(w, r)

if nil != err{
		fmt.Println("Info: Copy: ", err)
	}

return
}

func tcp_mapping_request(local_conn net.Conn, remote_ip string, remotePort string) {

// 目标IP和端口
	remoteAddress := fmt.Sprintf("%s:%s", remote_ip, remotePort)

//
	remote_conn, err := net.Dial("tcp", remoteAddress)

if nil != err {
		local_conn.Close()
		fmt.Printf("Error: Unable to connect to the remote server[%s:%s].rn", remote_ip, remotePort)
		return
	}

//
	go tcp_mapping_worker(local_conn, remote_conn)
	go tcp_mapping_worker(remote_conn, local_conn)

}

func ServerSocket(remote_ip string, remote_port string, local_ip string, local_port string) {

// 监听端口
	localAddress := fmt.Sprintf("%s:%s", local_ip, local_port)

local_server, err := net.Listen("tcp", localAddress)

if nil != err {
		fmt.Printf("开启socket [%s]失败rn", localAddress)
		return
	}

defer local_server.Close()

local_message := fmt.Sprintf("Event: Starting mapping service on %s:%s ...", local_ip, local_port)

fmt.Println(local_message)

for {

		localConn, err := local_server.Accept()

if nil != err {
			//local_server.Close()
			fmt.Printf("Unable to accept a request, error: %sn", err.Error())
            continue
		}

go tcp_mapping_request(localConn, remote_ip, remote_port)

fmt.Printf("Event: Receive mapping request from [%s]rn", localConn.RemoteAddr())

}

func main() {

remoteIP := “132.xxx.xxx.xxx”
	remotePort := “9090”

localIP := “192.168.1.100”
	localPort := “8080”

fmt.Println("remote_IP:", remoteIP)
	fmt.Println("remote_port:", remotePort)
	fmt.Println("local_IP:", localIP)
	fmt.Println("local_port:", localPort)

ServerSocket(remoteIP, remotePort, localIP, localPort)

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
package main

import (
	"fmt"
	"net"
	"os"
	"io"
)

func tcp_mapping_worker(r net.Conn, w net.Conn) {

	fmt.Printf("tcp_mapping_worker inrn")

	// #关闭socket
	defer r.Close()
	defer w.Close()

	fmt.Printf("Info: Mapping > (%s) -> (%s) > N bytes.rn", r.RemoteAddr(), w.RemoteAddr())

	_, err := io.Copy(w, r)

	if nil != err{
		fmt.Println("Info: Copy: ", err)
	}

	return
}

func tcp_mapping_request(local_conn net.Conn, remote_ip string, remotePort string) {

	// 目标IP和端口
	remoteAddress := fmt.Sprintf("%s:%s", remote_ip, remotePort)

	//
	remote_conn, err := net.Dial("tcp", remoteAddress)

	if nil != err {
		local_conn.Close()
		fmt.Printf("Error: Unable to connect to the remote server[%s:%s].rn", remote_ip, remotePort)
		return
	}

	//
	go tcp_mapping_worker(local_conn, remote_conn)
	go tcp_mapping_worker(remote_conn, local_conn)

}


func ServerSocket(remote_ip string, remote_port string, local_ip string, local_port string) {

	// 监听端口
	localAddress := fmt.Sprintf("%s:%s", local_ip, local_port)

	local_server, err := net.Listen("tcp", localAddress)

	if nil != err {
		fmt.Printf("开启socket [%s]失败rn", localAddress)
		return
	}

	defer local_server.Close()

	local_message := fmt.Sprintf("Event: Starting mapping service on %s:%s ...", local_ip, local_port)

	fmt.Println(local_message)

	for {

		localConn, err := local_server.Accept()

		if nil != err {
			//local_server.Close()
			fmt.Printf("Unable to accept a request, error: %sn", err.Error())
            continue
		}


		go tcp_mapping_request(localConn, remote_ip, remote_port)

		fmt.Printf("Event: Receive mapping request from [%s]rn", localConn.RemoteAddr())

	}

}


func main() {


	remoteIP := “132.xxx.xxx.xxx”
	remotePort := “9090”


	localIP := “192.168.1.100”
	localPort := “8080”


	fmt.Println("remote_IP:", remoteIP)
	fmt.Println("remote_port:", remotePort)
	fmt.Println("local_IP:", localIP)
	fmt.Println("local_port:", localPort)

	ServerSocket(remoteIP, remotePort, localIP, localPort)

}

代码说明：

复制代码

1
2
3
4
5
6
	local_server, err := net.Listen("tcp", localAddress)

	if nil != err {
		fmt.Printf("开启socket [%s]失败rn", localAddress)
		return
	}

B电脑的TCP服务监听。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
	for {

		localConn, err := local_server.Accept()

		if nil != err {
			fmt.Printf("Unable to accept a request, error: %sn", err.Error())
            continue
		}

		go tcp_mapping_request(localConn, remote_ip, remote_port)

		fmt.Printf("Event: Receive mapping request from [%s]rn", localConn.RemoteAddr())

	}

Accept等待A的客户端连接，一直阻塞，所以一直死循环等待连接。连接成功，启动一个协程tcp_mapping_request。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
func tcp_mapping_request(local_conn net.Conn, remote_ip string, remotePort string) {

	// 目标IP和端口
	remoteAddress := fmt.Sprintf("%s:%s", remote_ip, remotePort)

	//
	remote_conn, err := net.Dial("tcp", remoteAddress)

	if nil != err {
		local_conn.Close()
		fmt.Printf("Error: Unable to connect to the remote server[%s:%s].rn", remote_ip, remotePort)
		return
	}

	//
	go tcp_mapping_worker(local_conn, remote_conn)
	go tcp_mapping_worker(remote_conn, local_conn)

}

协程tcp_mapping_request，Dial连接C服务前置，若连接成功，分别建立协程B->C和C->B的tcp_mapping_worker。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
func tcp_mapping_worker(r net.Conn, w net.Conn) {

	fmt.Printf("tcp_mapping_worker inrn")

	// #关闭socket
	defer r.Close()
	defer w.Close()

	fmt.Printf("Info: Mapping > (%s) -> (%s) > N bytes.rn", r.RemoteAddr(), w.RemoteAddr())

	_, err := io.Copy(w, r)

	if nil != err{
		fmt.Println("Info: Copy: ", err)
	}

	return
}
