zigbee+树莓派网关,控制终端亮灭,终端上传温度数据到onenet云平台
要求:
设计中要求有系统功能、网关硬件结构设计、网关软件功能构成。
画出网关功能整体处理流程框架。
数据北向通信规约解析模块设计说明(与云平台通信功能模块设计说明)
数据南向通信规约解析模声设计说明(与ZigBee网络通信功能模块设计说明)
数据持久化存储设计说明。
配置文件格式规格说明。
各功能模块以类的方式进行设计,并写明每一功能的基本描述、设计思路、接口。

串口包

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
import serial # 导入串口包 import time # 导入时间包 import threading import random ser = serial.Serial("COM12", 115200, timeout=5) # 开启com3口,波特率115200,超时5 ser.flushInput() # 清空缓冲区 def uart_read(): while True: count = ser.inWaiting() # 获取串口缓冲区数据 if count != 0: res = ser.read(ser.in_waiting).decode("utf-8") # 读出串口数据,数据采用gbk编码 print('串口向上位机位机发送数据为:' + res) # 打印一下子 time.sleep(0.1) # 延时1秒,免得CPU出问题 return res # 返回读取的数 def uart_write(cmd): print('串口向下位机发送命令为:'+cmd) if cmd == '23': ser.write(b'23') # 开 elif cmd == '24': ser.write(b'24') # 关 elif cmd == '13': ser.write(b'13') elif cmd == '14': ser.write(b'14')

数据库包

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
import sqlite3 def sql_create_db(): con = sqlite3.connect('value.db') c = con.cursor() # cursor()光标 sql_str = '''CREATE TABLE VALUE2( time2 varchar(255), value2 decimal(3,2) ); ''' c.execute(sql_str) # 插入语句 con.commit() # 提交 con.close() def sql_insert1(time1,value1): con = sqlite3.connect('value.db') c = con.cursor() sql_str = '''INSERT INTO VALUE1 VALUES(''' + str(time1) + ''',''' + str(value1) + ''');''' print(sql_str) c.execute(sql_str) con.commit() con.close() def sql_insert2(time2,value2): con = sqlite3.connect('value.db') c = con.cursor() sql_str = '''INSERT INTO VALUE2 VALUES(''' + str(time2) + ''',''' + str(value2) + ''');''' print(sql_str) c.execute(sql_str) con.commit() con.close() def sql_select1(): con = sqlite3.connect('value.db') c = con.cursor() sql_select = "SELECT * FROM VALUE1;" print('查询数据:') c.execute(sql_select) for row in c: print(row) con.close() def sql_select2(): con = sqlite3.connect('value.db') c = con.cursor() sql_select = "SELECT * FROM VALUE2;" print('查询数据:') c.execute(sql_select) for row in c: print(row) con.close()

主函数(要同时运行mqtt_main)

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
from __future__ import print_function import time import paho.mqtt.client as mqtt #修改成自己的即可 DEV_ID = "773948849" #设备ID PRO_ID = "455579" #产品ID AUTH_INFO = "TVqBms9=ltL2ZbiOPpq3YEVwYGw=" #APIKEY TYPE_JSON = 0x01 TYPE_FLOAT = 0x17 while True: client = mqtt.Client(client_id=DEV_ID, protocol=mqtt.MQTTv311) client.username_pw_set(username=PRO_ID, password=AUTH_INFO) client.connect('183.230.40.39', port=6002, keepalive=120) # 端口、ip地址、生存期 client.loop_forever() time.sleep(1)

连接mqtt函数包:mqtt_main()

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
from __future__ import print_function import _thread import threading import time import serial # 导入串口包 import paho.mqtt.client as mqtt import struct import json import uart import link_db # 修改成自己的即可 DEV_ID = "773948849" # 设备ID PRO_ID = "455579" # 产品ID AUTH_INFO = "TVqBms9=ltL2ZbiOPpq3YEVwYGw=" # APIKEY TYPE_JSON = 0x01 TYPE_FLOAT = 0x17 # 定义上传数据的json格式 该格式是oneNET规定好的 按格式修改其中变量即可 # 判断不同设备通过串口发送的数据 value1 = uart.uart_read() body = {} semaphore = threading.Semaphore(0) def value_1(): while True: time.sleep(2) localtime = time.time() global value1 global body value1 = uart.uart_read() value = value1 if value[0:2] == 'A0': # 判断数据发送的设备 value_sendA0 = float(value[2:11]) body = { "datastreams": [ { "id": "temperatureA0", # 对应OneNet的数据流名称 "datapoints": [ { "value": value_sendA0 # 数据值 } ] } ] } #print("value_sendA0%.2f" % value_sendA0) elif value[0:7] == 'tmpe1: ': value_sendB0 = float(value[7:11]) body = { "datastreams": [ { "id": "temperature01", # 对应OneNet的数据流名称 "datapoints": [ { "value": value_sendB0 # 数据值 } ] } ] } link_db.sql_insert1(localtime, value_sendB0) print("接受的数据%.1f" % value_sendB0) elif value[0:7] == 'tmpe2: ': value_sendC0 = float(value[7:11]) body = { "datastreams": [ { "id": "temperature", # 对应OneNet的数据流名称 "datapoints": [ { "value": value_sendC0 # 数据值 } ] } ] } link_db.sql_insert2(localtime, value_sendC0) print("接受的数据%.1f"%value_sendC0) else: value_send = float(value) body = { "datastreams": [ { "id": "temperature", # 对应OneNet的数据流名称 "datapoints": [ { "value": value_send # 数据值 } ] } ] } print("接受的数据(%.1f)" % value_send) semaphore.release() def build_payload(type, payload): datatype = type packet = bytearray() packet.extend(struct.pack("!B", datatype)) if isinstance(payload, str): udata = payload.encode('utf-8') length = len(udata) packet.extend(struct.pack("!H" + str(length) + "s", length, udata)) return packet # 当客户端收到来自服务器的CONNACK响应时的回调。也就是申请连接,服务器返回结果是否成功等 def on_connect(client, userdata, flags, rc): print("连接结果:" + mqtt.connack_string(rc)) # 上传数据 global body json_body = json.dumps(body) print(json_body) packet = build_payload(TYPE_JSON, json_body) client.publish("$dp", packet, qos=1) # qos代表服务质量 # 从服务器接收发布消息时的回调。 def on_message(client, userdata, msg): print("*******接受消息************") print("下发命令:" + str(msg.payload, 'utf-8') + "°C") cmd = str(msg.payload, 'utf-8') uart.uart_write(cmd) # 当消息已经被发送给中间人,on_publish()回调将会被触发 def on_publish(client, userdata, mid): print("回调次数" + str(mid)) def mqtt_up_main(): semaphore.acquire() client = mqtt.Client(client_id=DEV_ID, protocol=mqtt.MQTTv311) client.on_connect = on_connect client.on_publish = on_publish client.on_message = on_message client.username_pw_set(username=PRO_ID, password=AUTH_INFO) client.connect('183.230.40.39', port=6002, keepalive=120) # 端口、ip地址、生存期 client.loop_forever() time.sleep(1) if __name__ == '__main__': while True: t1 = threading.Thread(target=value_1, args=()) t2 = threading.Thread(target=mqtt_up_main, args=()) t1.start() t2.start() t1.join() t2.join() time.sleep(3)

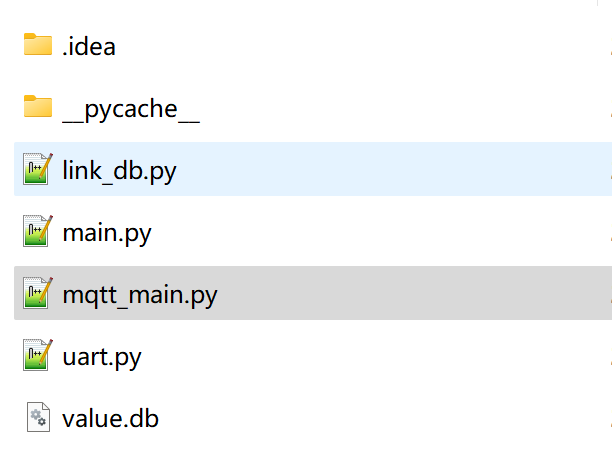

文件命名格式
在这里插入图片描述
zigbee文件+python源代码https://download.csdn.net/download/ChinatheR/59323165
