我是靠谱客的博主淡淡小鸭子，这篇文章主要介绍基于单片机声光控智能路灯系统仿真设计-毕设课设，现在分享给大家，希望可以做个参考。

资料下载地址-1070（百度网盘）：点击下载

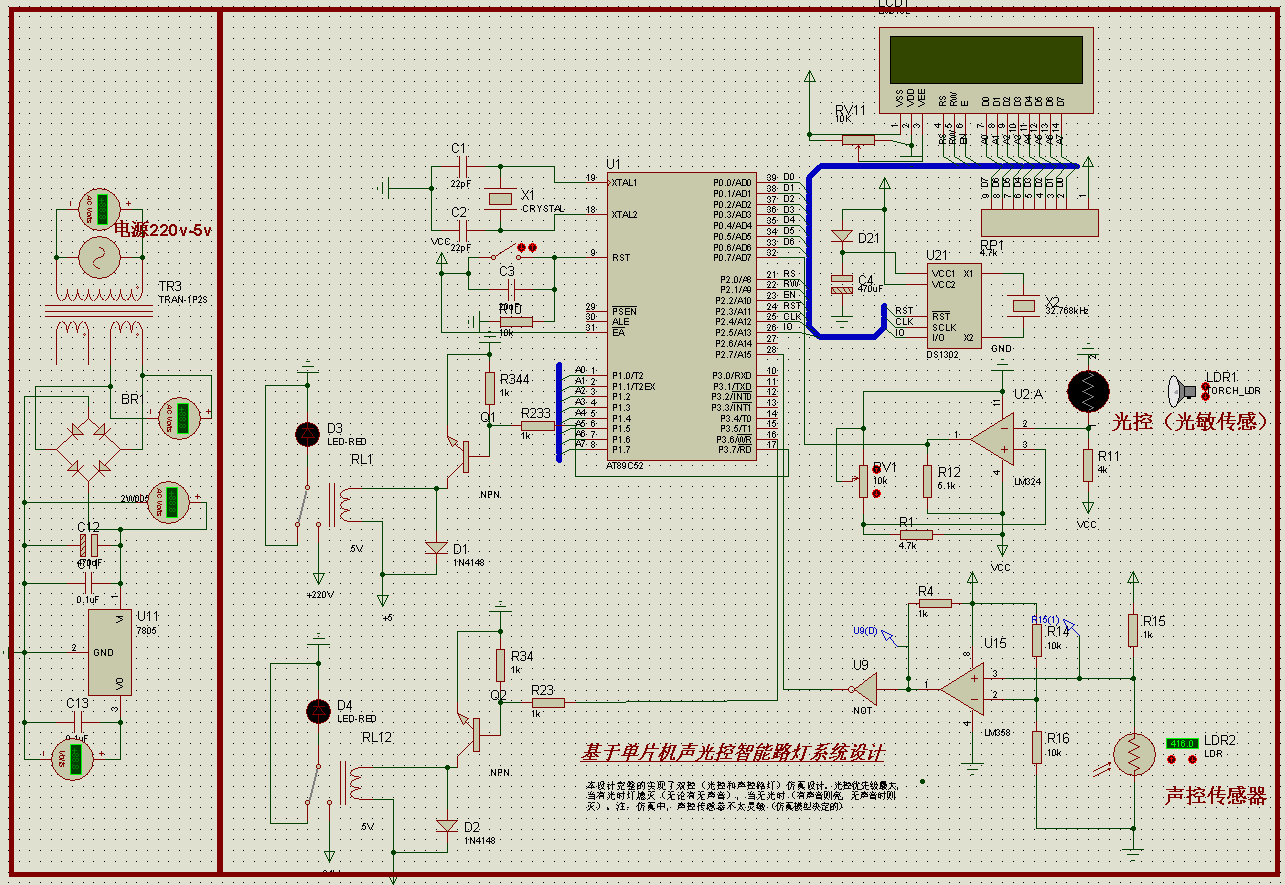

本设计完整的实现了双控（光控和声控路灯）仿真设计。光控优先级最大，
当有光时灯熄灭（无论有无声音），当无光时（有声音则亮，无声音时则
灭）。注：仿真中，声控传感器不太灵敏（仿真模型决定的）

复制代码

#include <reg52.h>
#include <intrins.h>
#define NOP		_nop_()
#define TEMP_ALERT_L	0x00
#define TEMP_ALERT_H	0x25
#define SET_TIME	6500
#define END_ALERT	100
typedef unsigned char	uchar;
typedef unsigned int	uint;

sbit guang = P0 ^ 7;
sbit shen = P2 ^ 7;
sbit	RS		= P2 ^ 0;       /* P2^0; */
sbit	RW		= P2 ^ 1;       /* P2^1; */
sbit	EN		= P2 ^ 2;       /* P2^2; */
sbit	RST		= P2 ^ 3;       /* DS1302使能信号，高电平有效 */
sbit	CLK		= P2 ^ 4;       /* 时钟信号 */
sbit	IO		= P2 ^ 5;

uchar	disp1[16]	= "    Welcome!    ";
uchar	disp2[16]	= "Intelligent Lamp";

uchar	rtc[7] = { 3, 0, 4, 9, 20, 5, 24 };                               /* 即时时间 real time clock */
uchar	writeaddr[7] = { 0x8c, 0x8a, 0x88, 0x86, 0x84, 0x82, 0x80 };    /* 写命令数组  年周月日时分秒 */
uchar	readaddr[7] = { 0x8d, 0x8b, 0x89, 0x87, 0x85, 0x83, 0x81 };

uint	j, bg_count = 0, sf1 = SET_TIME, sf2 = 0;
uchar	i, tmp, TEMP, dat, re_dat, wr_dat, alert = 0, temp_flag = 0, select = 0;
bit	timerflag = 0;
bit flag = 0;
uchar	alesta[2] = { 'F', 'F' };

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
#include <reg52.h>
#include <intrins.h>
#define NOP		_nop_()
#define TEMP_ALERT_L	0x00
#define TEMP_ALERT_H	0x25
#define SET_TIME	6500
#define END_ALERT	100
typedef unsigned char	uchar;
typedef unsigned int	uint;

sbit guang = P0 ^ 7;
sbit shen = P2 ^ 7;
sbit	RS		= P2 ^ 0;       /* P2^0; */
sbit	RW		= P2 ^ 1;       /* P2^1; */
sbit	EN		= P2 ^ 2;       /* P2^2; */
sbit	RST		= P2 ^ 3;       /* DS1302使能信号，高电平有效 */
sbit	CLK		= P2 ^ 4;       /* 时钟信号 */
sbit	IO		= P2 ^ 5;



uchar	disp1[16]	= "    Welcome!    ";
uchar	disp2[16]	= "Intelligent Lamp";


uchar	rtc[7] = { 3, 0, 4, 9, 20, 5, 24 };                               /* 即时时间 real time clock */
uchar	writeaddr[7] = { 0x8c, 0x8a, 0x88, 0x86, 0x84, 0x82, 0x80 };    /* 写命令数组  年周月日时分秒 */
uchar	readaddr[7] = { 0x8d, 0x8b, 0x89, 0x87, 0x85, 0x83, 0x81 };


uint	j, bg_count = 0, sf1 = SET_TIME, sf2 = 0;
uchar	i, tmp, TEMP, dat, re_dat, wr_dat, alert = 0, temp_flag = 0, select = 0;
bit	timerflag = 0;
bit flag = 0;
uchar	alesta[2] = { 'F', 'F' };
