DSP48E1 (primitive)原语例化实例2

再补充两个比较常用的用法。

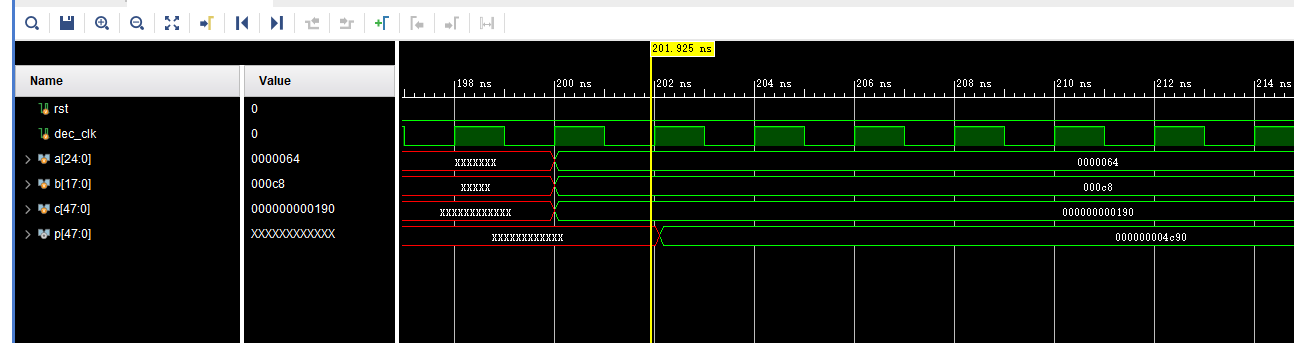

1  o <= in1*in2-c

OPMODE=7'b0110101

ALUMODE=0001

CARRYIN=1

ALUMODE = 0001 可以实现- Z + (X + Y) - 1 = not (Z) + X + Y

OPMODE[6:4]=011, Z选择C

CARRYIN=1, 即实现-Z+(X+Y)-1+1=(X+Y)-Z, 把这个-1抵消了

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
`timescale 1ns / 10ps // timescale time_unit/time_presicion module test( input wire clk, input wire rst, input wire signed [24:0] in1, input wire signed [17:0] in2, input wire signed [47:0] c, output wire signed [47:0] o, output wire signed [29:0] acout, output wire signed [17:0] bcout, output wire [3:0] carryout, output wire [3:0] carrycasout, output wire signed [47:0] pcout ); DSP48E1 #( .A_INPUT("DIRECT"), .B_INPUT("DIRECT"), .USE_DPORT("FALSE"), .USE_MULT("MULTIPLY"), .USE_SIMD("ONE48"), .AUTORESET_PATDET("NO_RESET"), // "NO_RESET", "RESET_MATCH", "RESET_NOT_MATCH" .MASK(48'h3fffffffffff), // 48-bit mask value for pattern detect (1=ignore) .PATTERN(48'h000000000000), // 48-bit pattern match for pattern detect .SEL_MASK("MASK"), // "C", "MASK", "ROUNDING_MODE1", "ROUNDING_MODE2" .SEL_PATTERN("PATTERN"), // Select pattern value ("PATTERN" or "C") .USE_PATTERN_DETECT("NO_PATDET"), // Enable pattern detect ("PATDET" or "NO_PATDET") // Register Control Attributes: Pipeline Register Configuration .ACASCREG(0), // .ADREG(1), // Number of pipeline stages for pre-adder (0 or 1) .ALUMODEREG(0), // Number of pipeline stages for ALUMODE (0 or 1) .AREG(0), // Number of pipeline stages for A (0, 1 or 2) .BCASCREG(0), // Number of pipeline stages between B/BCIN and BCOUT (0, 1 or 2) .BREG(0), // Number of pipeline stages for B (0, 1 or 2) .CARRYINREG(0), // Number of pipeline stages for CARRYIN (0 or 1) .CARRYINSELREG(0), // Number of pipeline stages for CARRYINSEL (0 or 1) .CREG(0), // Number of pipeline stages for C (0 or 1) .DREG(0), // Number of pipeline stages for D (0 or 1) .INMODEREG(1), // Number of pipeline stages for INMODE (0 or 1) .MREG(0), // Number of multiplier pipeline stages (0 or 1) .OPMODEREG(0), // Number of pipeline stages for OPMODE (0 or 1) .PREG(1) // Number of pipeline stages for P (0 or 1) ) DSP48E1_inst ( // Cascade: 30-bit (each) output: Cascade Ports .ACOUT(acout), // 30-bit output: A port cascade output .BCOUT(bcout), // 18-bit output: B port cascade output .CARRYCASCOUT(carrycasout), // 1-bit output: Cascade carry output .MULTSIGNOUT(), // 1-bit output: Multiplier sign cascade output .PCOUT(pcout), // 48-bit output: Cascade output //这些引脚空着就好 // Control: 1-bit (each) output: Control Inputs/Status Bits .OVERFLOW(), // 1-bit output: Overflow in add/acc output .PATTERNBDETECT(), // 1-bit output: Pattern bar detect output .PATTERNDETECT(), // 1-bit output: Pattern detect output .UNDERFLOW(), // 1-bit output: Underflow in add/acc output //这些引脚也空着,没用 // Data: 4-bit (each) output: Data Ports .CARRYOUT(carryout), // 4-bit output: Carry output .P(o), // 48-bit output: Primary data output //P输出48bit的 // Cascade: 30-bit (each) input: Cascade Ports .ACIN(30'b0), // 30-bit input: A cascade data input .BCIN(18'b0), // 18-bit input: B cascade input .CARRYCASCIN(1'b0), // 1-bit input: Cascade carry input .MULTSIGNIN(1'b0), // 1-bit input: Multiplier sign input .PCIN(48'b0), // 48-bit input: P cascade input //这些引脚很重要,做流水线时,数据又这几个引脚输入。 // Control: 4-bit (each) input: Control Inputs/Status Bits .ALUMODE(4'b0001), // 4-bit input: ALU control input .CARRYINSEL(3'b0), // 3-bit input: Carry select input .CLK(clk), // 1-bit input: Clock input .INMODE(5'b0), // 5-bit input: INMODE control input .OPMODE(7'b0110101), // 7-bit input: Operation mode input // Data: 30-bit (each) input: Data Ports .A(in1), // 30-bit input: A data input .B(in2), // 18-bit input: B data input //.C(48'hffffffffffff), // 48-bit input: C data input .C(c), // 48-bit input: C data input .CARRYIN(1'b1), // 1-bit input: Carry input signal .D(25'b0), // 25-bit input: D data input // Reset/Clock Enable: 1-bit (each) input: Reset/Clock Enable Inputs .CEA1(1'b0), // 1-bit input: Clock enable input for 1st stage AREG .CEA2(1'b0), // 1-bit input: Clock enable input for 2nd stage AREG .CEAD(1'b0), // 1-bit input: Clock enable input for ADREG .CEALUMODE(1'b0), // 1-bit input: Clock enable input for ALUMODE .CEB1(1'b0), // 1-bit input: Clock enable input for 1st stage BREG .CEB2(1'b0), // 1-bit input: Clock enable input for 2nd stage BREG .CEC(1'b0), // 1-bit input: Clock enable input for CREG .CECARRYIN(1'b0), // 1-bit input: Clock enable input for CARRYINREG .CECTRL(1'b0), // 1-bit input: Clock enable input for OPMODEREG and CARRYINSELREG .CED(1'b0), // 1-bit input: Clock enable input for DREG .CEINMODE(1'b0), // 1-bit input: Clock enable input for INMODEREG .CEM(1'b0), // 1-bit input: Clock enable input for MREG .CEP(1'b1), // 1-bit input: Clock enable input for PREG .RSTA(rst), .RSTALLCARRYIN(rst), .RSTALUMODE(rst), .RSTB(rst), .RSTC(rst), .RSTCTRL(rst), .RSTD(rst), .RSTINMODE(rst), .RSTM(rst), .RSTP(rst) ); endmodule module bitstream_tb; reg rst; reg dec_clk; reg signed [24:0] a; reg signed [17:0] b; reg signed [47:0] d; reg signed [47:0] c; wire signed [47:0] p; wire signed [29:0] ac; wire signed [17:0] bc; wire [3:0] co; wire [3:0] ccas; wire signed [47:0] pc; initial begin rst = 0; #200 a = 100; #0 b = 200; #0 d = 45; #0 c = 400; #50 rst = 1; #1 rst = 0; #100 $display("p %d",p); end always begin #1 dec_clk = 0; #1 dec_clk = 1; end test test_inst( .clk(dec_clk), .rst(rst), .in1(a), .in2(b), .c(c), .o(p), .acout(ac), .bcout(bc), .carryout(co), .carrycasout(ccas), .pcout(pc) );

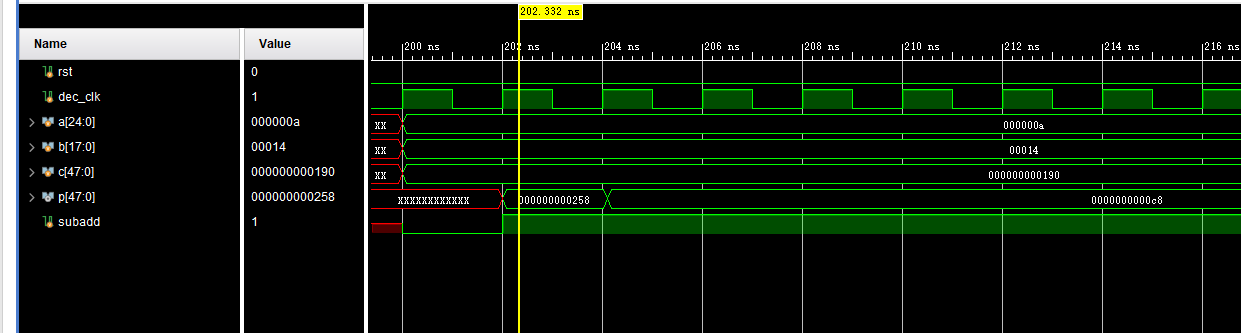

2  o <= c±in1*in2

即o <= sub?c-in1*in2 : c+in1*in2

ALUMOD=sub?4'b0011:4’b0000



复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
`timescale 1ns / 10ps // timescale time_unit/time_presicion module test(     input wire clk, input wire rst, input wire sub,             //0=add,1=sub     input wire signed [24:0] in1,     input wire signed [17:0] in2,     input wire signed [47:0] c,     output wire signed [47:0]  o,     output wire signed [29:0] acout,     output wire signed [17:0] bcout,     output wire [3:0] carryout,     output wire [3:0] carrycasout,     output wire signed [47:0] pcout ); DSP48E1 #( .A_INPUT("DIRECT"), .B_INPUT("DIRECT"), .USE_DPORT("FALSE"), .USE_MULT("MULTIPLY"),        .USE_SIMD("ONE48"),                .AUTORESET_PATDET("NO_RESET"),    // "NO_RESET", "RESET_MATCH", "RESET_NOT_MATCH" .MASK(48'h3fffffffffff),          // 48-bit mask value for pattern detect (1=ignore) .PATTERN(48'h000000000000),       // 48-bit pattern match for pattern detect .SEL_MASK("MASK"),           // "C", "MASK", "ROUNDING_MODE1", "ROUNDING_MODE2" .SEL_PATTERN("PATTERN"),          // Select pattern value ("PATTERN" or "C") .USE_PATTERN_DETECT("NO_PATDET"),  // Enable pattern detect ("PATDET" or "NO_PATDET") // Register Control Attributes: Pipeline Register Configuration .ACASCREG(0),            // .ADREG(1),               // Number of pipeline stages for pre-adder (0 or 1) .ALUMODEREG(0),          // Number of pipeline stages for ALUMODE (0 or 1) .AREG(0),                 // Number of pipeline stages for A (0, 1 or 2)   .BCASCREG(0),            // Number of pipeline stages between B/BCIN and BCOUT (0, 1 or 2) .BREG(0),                         // Number of pipeline stages for B (0, 1 or 2) .CARRYINREG(0),                   // Number of pipeline stages for CARRYIN (0 or 1) .CARRYINSELREG(0),                // Number of pipeline stages for CARRYINSEL (0 or 1) .CREG(0),                         // Number of pipeline stages for C (0 or 1) .DREG(0),                         // Number of pipeline stages for D (0 or 1) .INMODEREG(1),                    // Number of pipeline stages for INMODE (0 or 1) .MREG(0),                         // Number of multiplier pipeline stages (0 or 1) .OPMODEREG(0),                    // Number of pipeline stages for OPMODE (0 or 1) .PREG(1)                          // Number of pipeline stages for P (0 or 1)    ) DSP48E1_inst ( // Cascade: 30-bit (each) output: Cascade Ports .ACOUT(acout),                   // 30-bit output: A port cascade output .BCOUT(bcout),                   // 18-bit output: B port cascade output .CARRYCASCOUT(carrycasout),     // 1-bit output: Cascade carry output .MULTSIGNOUT(),       // 1-bit output: Multiplier sign cascade output .PCOUT(pcout),                   // 48-bit output: Cascade output //这些引脚空着就好 // Control: 1-bit (each) output: Control Inputs/Status Bits .OVERFLOW(),             // 1-bit output: Overflow in add/acc output .PATTERNBDETECT(),        // 1-bit output: Pattern bar detect output .PATTERNDETECT(),   // 1-bit output: Pattern detect output .UNDERFLOW(),           // 1-bit output: Underflow in add/acc output //这些引脚也空着,没用 // Data: 4-bit (each) output: Data Ports .CARRYOUT(carryout),                               // 4-bit output: Carry output .P(o),                           // 48-bit output: Primary data output //P输出48bit的 // Cascade: 30-bit (each) input: Cascade Ports .ACIN(30'b0),                     // 30-bit input: A cascade data input .BCIN(18'b0),                     // 18-bit input: B cascade input .CARRYCASCIN(1'b0),              // 1-bit input: Cascade carry input .MULTSIGNIN(1'b0),         // 1-bit input: Multiplier sign input .PCIN(48'b0),                     // 48-bit input: P cascade input //这些引脚很重要,做流水线时,数据又这几个引脚输入。 // Control: 4-bit (each) input: Control Inputs/Status Bits .ALUMODE(sub?4'b0011:4’b0000),  // 4-bit input: ALU control input .CARRYINSEL(3'b0),         // 3-bit input: Carry select input .CLK(clk),                       // 1-bit input: Clock input .INMODE(5'b0),                 // 5-bit input: INMODE control input .OPMODE(7'b0110101),                 // 7-bit input: Operation mode input // Data: 30-bit (each) input: Data Ports .A(in1),                           // 30-bit input: A data input .B(in2),                           // 18-bit input: B data input //.C(48'hffffffffffff),              // 48-bit input: C data input .C(c),              // 48-bit input: C data input .CARRYIN(1'b0),                      // 1-bit input: Carry input signal .D(25'b0),                           // 25-bit input: D data input // Reset/Clock Enable: 1-bit (each) input: Reset/Clock Enable Inputs .CEA1(1'b0),                      // 1-bit input: Clock enable input for 1st stage AREG .CEA2(1'b0),                      // 1-bit input: Clock enable input for 2nd stage AREG .CEAD(1'b0),                      // 1-bit input: Clock enable input for ADREG .CEALUMODE(1'b0),                 // 1-bit input: Clock enable input for ALUMODE .CEB1(1'b0),                      // 1-bit input: Clock enable input for 1st stage BREG .CEB2(1'b0),                      // 1-bit input: Clock enable input for 2nd stage BREG .CEC(1'b0),                       // 1-bit input: Clock enable input for CREG .CECARRYIN(1'b0),                 // 1-bit input: Clock enable input for CARRYINREG .CECTRL(1'b0),                    // 1-bit input: Clock enable input for OPMODEREG and CARRYINSELREG .CED(1'b0),                       // 1-bit input: Clock enable input for DREG .CEINMODE(1'b0),                  // 1-bit input: Clock enable input for INMODEREG .CEM(1'b0),                       // 1-bit input: Clock enable input for MREG .CEP(1'b1),                       // 1-bit input: Clock enable input for PREG .RSTA(rst), .RSTALLCARRYIN(rst), .RSTALUMODE(rst), .RSTB(rst), .RSTC(rst), .RSTCTRL(rst), .RSTD(rst), .RSTINMODE(rst), .RSTM(rst), .RSTP(rst) ); endmodule module bitstream_tb; reg rst; reg dec_clk; reg           subadd; reg signed [24:0] a; reg signed [17:0] b; reg signed [47:0] d; reg signed [47:0] c; wire signed [47:0] p; wire signed [29:0] ac; wire signed [17:0] bc; wire [3:0] co; wire [3:0] ccas; wire signed [47:0] pc; initial begin     rst = 0;     #200 a = 10;     #0 b = 20;     #0 d = 45; #0 c = 400; #0 subadd = 0; #2 subadd = 1;     #50 rst = 1;     #1 rst = 0;     #100 $display("p %d",p); end always begin     #1 dec_clk = 0;     #1 dec_clk = 1; end test test_inst( .clk(dec_clk), .rst(rst), .sub(subadd), .in1(a), .in2(b), .c(c), .o(p), .acout(ac), .bcout(bc), .carryout(co), .carrycasout(ccas), .pcout(pc) ); endmodule

最后

以上就是落后背包最近收集整理的关于DSP48E1 (primitive)原语例化实例2的全部内容,更多相关DSP48E1内容请搜索靠谱客的其他文章。
