Qt绘制图表的实现

212 阅读 0 评论
我是靠谱客的博主 灵巧黄蜂，这篇文章主要介绍Qt绘制图表的实现，现在分享给大家，希望可以做个参考。

1 简介

使用Qt的charts模块来绘制图表，案例来自Qt自带的demo。

charts模块简介：Qt Chars模块提供了一系列容易使用的图表组件。需要使用charts组件时，需要导入Qt Charts模块，通过如下方式：QT += charts

在安装Qt Creator的时候，需要勾选上这个模块，不然是不能使用的。

2 Qt Charts总览

Qt Chars支持绘制：坐标图、柱状图、折线图、饼图、曲线图、散点图等。

3 测试及说明

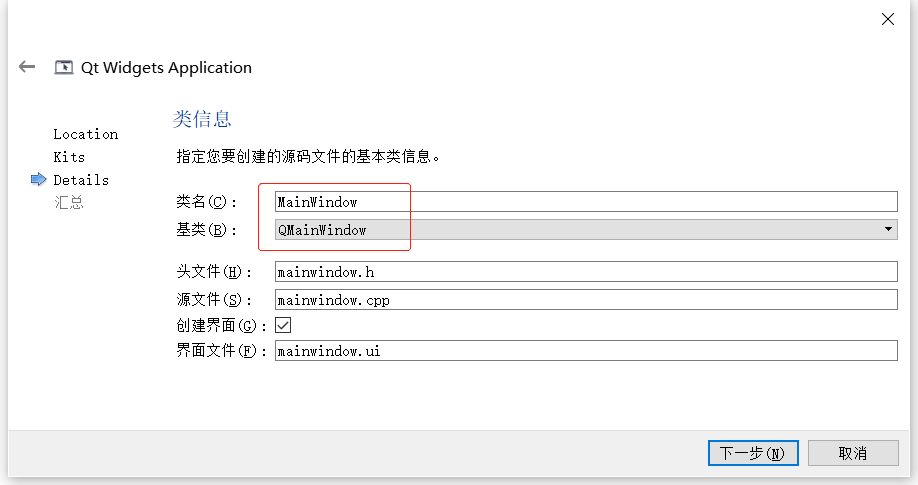

首先创建一个工程，继承至MainWindow组件。

（1）绘制折线图

折线图通过线段展示一系列相关联的点。

使用的类：QLineSeries

测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);

    /*
     * LineChart Example
     */
    //添加一个QLineSeries实例
    QLineSeries *lineseries = new QLineSeries();
    //添加数据（点），有两种方式
    lineseries->append(0, 6);  //参数分别为横纵坐标
    lineseries->append(2, 4);
    lineseries->append(3, 8);
    lineseries->append(7, 4);
    *lineseries << QPointF(11, 1) << QPointF(13, 3) << QPointF(17, 6) << QPointF(18, 3) << QPointF(20, 2);
    //添加一个QChart实例，为了展示数据
    QChart *chart = new QChart();
    chart->legend()->hide();  //隐藏图例
    chart->addSeries(lineseries);
    chart->createDefaultAxes();
    chart->setTitle("Simple line chart example");
    //添加一个QChartView图例
    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);  //呈现方式
    //显示
    this->setCentralWidget(chartView);
    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();
}

运行测试：

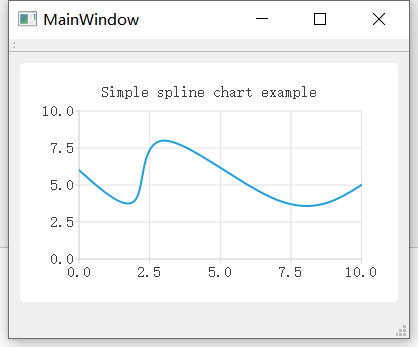

（2）绘制曲线图

使用的类：QSplineSeries

测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
QSplineSeries *series = new QSplineSeries();
    series->setName("spline");
    series->append(0, 6);
    series->append(2, 4);
    series->append(3, 8);
    series->append(7, 4);
    series->append(10, 5);

    QChart *chart = new QChart();
    chart->legend()->hide();
    chart->addSeries(series);
    chart->setTitle("Simple spline chart example");
    chart->createDefaultAxes();
    chart->axisY()->setRange(0, 10);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();

运行测试：

（3）绘制面积图

使用的类：QAreaSeries

测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
QLineSeries *series0 = new QLineSeries();
    QLineSeries *series1 = new QLineSeries();
    *series0 << QPointF(1, 5) << QPointF(3, 7) << QPointF(7, 6) << QPointF(9, 7) << QPointF(12, 6)
             << QPointF(16, 7) << QPointF(18, 5);
    *series1 << QPointF(1, 3) << QPointF(3, 4) << QPointF(7, 3) << QPointF(8, 2) << QPointF(12, 3)
             << QPointF(16, 4) << QPointF(18, 3);

    QAreaSeries *series = new QAreaSeries(series0, series1);
    series->setName("Batman");
    QPen pen(0x059605);
    pen.setWidth(3);
    series->setPen(pen);

    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple areachart example");
    chart->createDefaultAxes();
    chart->axisX()->setRange(0, 20);
    chart->axisY()->setRange(0, 10);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();

运行测试：

（4）绘制散点图

使用的类：QScatterSeries

测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
QScatterSeries *series0 = new QScatterSeries();
    series0->setName("scatter1");
    series0->setMarkerShape(QScatterSeries::MarkerShapeCircle);
    series0->setMarkerSize(5.0);

    QScatterSeries *series1 = new QScatterSeries();
    series1->setName("scatter2");
    series1->setMarkerShape(QScatterSeries::MarkerShapeRectangle);
    series1->setMarkerSize(10.0);

    QScatterSeries *series2 = new QScatterSeries();
    series2->setName("scatter3");
    series2->setMarkerShape(QScatterSeries::MarkerShapeRectangle);
    series2->setMarkerSize(15.0);

    series0->append(0, 6);
    series0->append(2, 4);
    series0->append(3, 8);
    series0->append(7, 4);
    series0->append(10, 5);
    *series1 << QPointF(1, 1) << QPointF(3, 3) << QPointF(7, 6) << QPointF(8, 3) << QPointF(10, 2);
    *series2 << QPointF(1, 5) << QPointF(4, 6) << QPointF(6, 3) << QPointF(9, 5);

    QChart *chart = new QChart();
    chart->addSeries(series0);
    chart->addSeries(series1);
    chart->addSeries(series2);
    chart->setTitle("Simple scatterchart example");
    chart->createDefaultAxes();
    chart->setDropShadowEnabled(false);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();

运行测试：

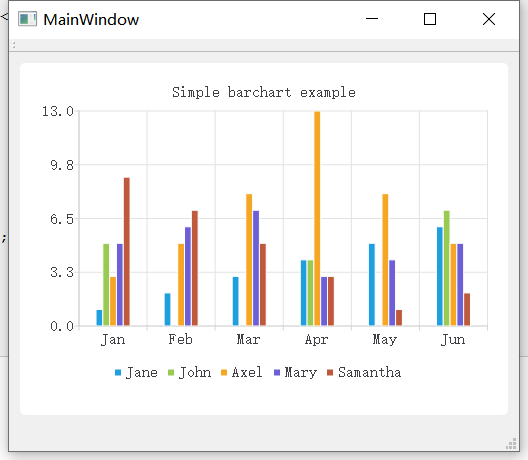

（5）绘制柱状图

使用的类：QBarSeries

测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
QBarSet *set0 = new QBarSet("Jane");
    QBarSet *set1 = new QBarSet("John");
    QBarSet *set2 = new QBarSet("Axel");
    QBarSet *set3 = new QBarSet("Mary");
    QBarSet *set4 = new QBarSet("Samantha");

    *set0 << 1 << 2 << 3 << 4 << 5 << 6;
    *set1 << 5 << 0 << 0 << 4 << 0 << 7;
    *set2 << 3 << 5 << 8 << 13 << 8 << 5;
    *set3 << 5 << 6 << 7 << 3 << 4 << 5;
    *set4 << 9 << 7 << 5 << 3 << 1 << 2;

    QBarSeries *series = new QBarSeries();
    series->append(set0);
    series->append(set1);
    series->append(set2);
    series->append(set3);
    series->append(set4);

    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple barchart example");
    chart->setAnimationOptions(QChart::SeriesAnimations);

    QStringList categories;
    categories << "Jan" << "Feb" << "Mar" << "Apr" << "May" << "Jun";
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);
    chart->createDefaultAxes();
    chart->setAxisX(axis, series);

    chart->legend()->setVisible(true);
    chart->legend()->setAlignment(Qt::AlignBottom);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();

运行测试：

（6）绘制饼图

使用的类：QPieSeries

测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
QPieSeries *series = new QPieSeries();
    series->append("Jane", 1);
    series->append("Joe", 2);
    series->append("Andy", 3);
    series->append("Barbara", 4);
    series->append("Axel", 5);

    QPieSlice *slice = series->slices().at(1);
    slice->setExploded();
    slice->setLabelVisible();
    slice->setPen(QPen(Qt::darkGreen, 2));
    slice->setBrush(Qt::green);

    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple piechart example");
    chart->legend()->hide();

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();

运行测试：

完整的测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include <QtCharts>
#include <QPainter>
#include <QPainterPath>
#include <QtMath>
#include <QImage>

MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);

#if 0
    /*
     * LineChart Example
     */
    //添加一个QLineSeries实例
    QLineSeries *lineseries = new QLineSeries();
    //添加数据（点），有两种方式
    lineseries->append(0, 6);  //参数分别为横纵坐标
    lineseries->append(2, 4);
    lineseries->append(3, 8);
    lineseries->append(7, 4);
    *lineseries << QPointF(11, 1) << QPointF(13, 3) << QPointF(17, 6) << QPointF(18, 3) << QPointF(20, 2);
    //添加一个QChart实例，为了展示数据
    QChart *chart = new QChart();
    chart->legend()->hide();  //隐藏图例
    chart->addSeries(lineseries);
    chart->createDefaultAxes();
    chart->setTitle("Simple line chart example");
    //添加一个QChartView图例
    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);  //呈现方式
    //显示
    this->setCentralWidget(chartView);
    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();
#endif

#if 0
    /*
     * SplineChart Example
    */
    QSplineSeries *series = new QSplineSeries();
    series->setName("spline");
    series->append(0, 6);
    series->append(2, 4);
    series->append(3, 8);
    series->append(7, 4);
    series->append(10, 5);

    QChart *chart = new QChart();
    chart->legend()->hide();
    chart->addSeries(series);
    chart->setTitle("Simple spline chart example");
    chart->createDefaultAxes();
    chart->axisY()->setRange(0, 10);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();
#endif

#if 0
    /*
    * AreaChart Example
    */
    QLineSeries *series0 = new QLineSeries();
    QLineSeries *series1 = new QLineSeries();
    *series0 << QPointF(1, 5) << QPointF(3, 7) << QPointF(7, 6) << QPointF(9, 7) << QPointF(12, 6)
             << QPointF(16, 7) << QPointF(18, 5);
    *series1 << QPointF(1, 3) << QPointF(3, 4) << QPointF(7, 3) << QPointF(8, 2) << QPointF(12, 3)
             << QPointF(16, 4) << QPointF(18, 3);

    QAreaSeries *series = new QAreaSeries(series0, series1);
    series->setName("Batman");
    QPen pen(0x059605);
    pen.setWidth(3);
    series->setPen(pen);

    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple areachart example");
    chart->createDefaultAxes();
    chart->axisX()->setRange(0, 20);
    chart->axisY()->setRange(0, 10);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();
#endif

#if 0
    /*
    * QScatterChart Example
    */
    QScatterSeries *series0 = new QScatterSeries();
    series0->setName("scatter1");
    series0->setMarkerShape(QScatterSeries::MarkerShapeCircle);
    series0->setMarkerSize(5.0);

    QScatterSeries *series1 = new QScatterSeries();
    series1->setName("scatter2");
    series1->setMarkerShape(QScatterSeries::MarkerShapeRectangle);
    series1->setMarkerSize(10.0);

    QScatterSeries *series2 = new QScatterSeries();
    series2->setName("scatter3");
    series2->setMarkerShape(QScatterSeries::MarkerShapeRectangle);
    series2->setMarkerSize(15.0);

    series0->append(0, 6);
    series0->append(2, 4);
    series0->append(3, 8);
    series0->append(7, 4);
    series0->append(10, 5);
    *series1 << QPointF(1, 1) << QPointF(3, 3) << QPointF(7, 6) << QPointF(8, 3) << QPointF(10, 2);
    *series2 << QPointF(1, 5) << QPointF(4, 6) << QPointF(6, 3) << QPointF(9, 5);

    QChart *chart = new QChart();
    chart->addSeries(series0);
    chart->addSeries(series1);
    chart->addSeries(series2);
    chart->setTitle("Simple scatterchart example");
    chart->createDefaultAxes();
    chart->setDropShadowEnabled(false);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();
#endif

#if 0
    /*
    * BarChart Example
    */
    QBarSet *set0 = new QBarSet("Jane");
    QBarSet *set1 = new QBarSet("John");
    QBarSet *set2 = new QBarSet("Axel");
    QBarSet *set3 = new QBarSet("Mary");
    QBarSet *set4 = new QBarSet("Samantha");

    *set0 << 1 << 2 << 3 << 4 << 5 << 6;
    *set1 << 5 << 0 << 0 << 4 << 0 << 7;
    *set2 << 3 << 5 << 8 << 13 << 8 << 5;
    *set3 << 5 << 6 << 7 << 3 << 4 << 5;
    *set4 << 9 << 7 << 5 << 3 << 1 << 2;

    QBarSeries *series = new QBarSeries();
    series->append(set0);
    series->append(set1);
    series->append(set2);
    series->append(set3);
    series->append(set4);

    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple barchart example");
    chart->setAnimationOptions(QChart::SeriesAnimations);

    QStringList categories;
    categories << "Jan" << "Feb" << "Mar" << "Apr" << "May" << "Jun";
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);
    chart->createDefaultAxes();
    chart->setAxisX(axis, series);

    chart->legend()->setVisible(true);
    chart->legend()->setAlignment(Qt::AlignBottom);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();
#endif

#if 0
    /*
    * Piechart Example
    */
    QPieSeries *series = new QPieSeries();
    series->append("Jane", 1);
    series->append("Joe", 2);
    series->append("Andy", 3);
    series->append("Barbara", 4);
    series->append("Axel", 5);

    QPieSlice *slice = series->slices().at(1);
    slice->setExploded();
    slice->setLabelVisible();
    slice->setPen(QPen(Qt::darkGreen, 2));
    slice->setBrush(Qt::green);

    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple piechart example");
    chart->legend()->hide();

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    this->setCentralWidget(chartView);
    this->resize(400, 300);
    this->show();
#endif
}

MainWindow::~MainWindow()
{
    delete ui;
}

还有一些图形及主题等设置，后续待补充。

4 其它

（1）如何在QWidget中绘制QCharts

上面的代码中都是在QMainWindow中绘制的QCharts，但如果我们要在QWidget中绘制QCharts，那么如何实现呢？

方式一：

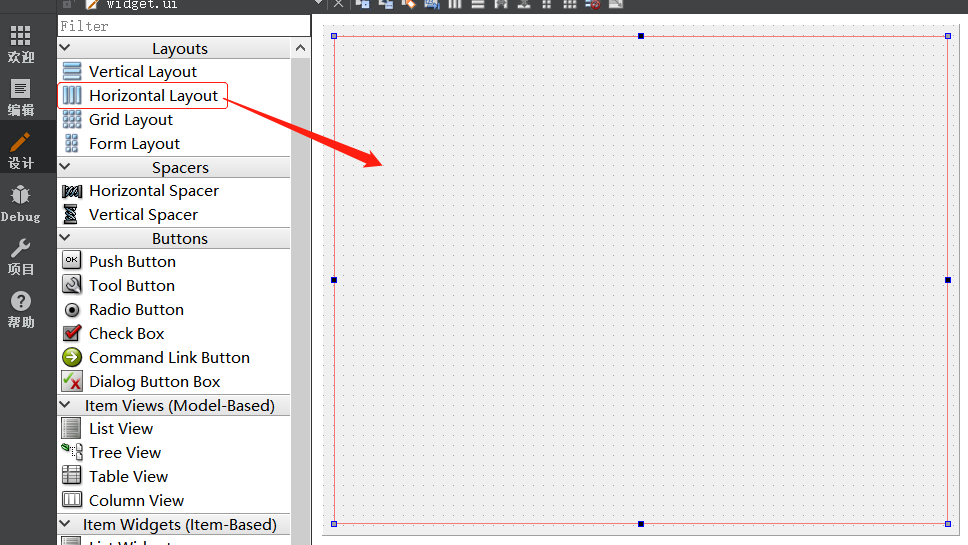

可选择的解决方法：在ui中拖一个水平布局，把chartView放到水平布局。

测试代码：

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Widget::Widget(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::Widget)
{
    ui->setupUi(this);

    /*
    * BarChart Example
    */
    QBarSet *set0 = new QBarSet("Jane");
    QBarSet *set1 = new QBarSet("John");
    QBarSet *set2 = new QBarSet("Axel");
    QBarSet *set3 = new QBarSet("Mary");
    QBarSet *set4 = new QBarSet("Samantha");

    *set0 << 1 << 2 << 3 << 4 << 5 << 6;
    *set1 << 5 << 0 << 0 << 4 << 0 << 7;
    *set2 << 3 << 5 << 8 << 13 << 8 << 5;
    *set3 << 5 << 6 << 7 << 3 << 4 << 5;
    *set4 << 9 << 7 << 5 << 3 << 1 << 2;

    QBarSeries *series = new QBarSeries();
    series->append(set0);
    series->append(set1);
    series->append(set2);
    series->append(set3);
    series->append(set4);

    QChart *chart = new QChart();
    chart->addSeries(series);
    chart->setTitle("Simple barchart example");
    chart->setAnimationOptions(QChart::SeriesAnimations);

    QStringList categories;
    categories << "Jan" << "Feb" << "Mar" << "Apr" << "May" << "Jun";
    QBarCategoryAxis *axis = new QBarCategoryAxis();
    axis->append(categories);
    chart->createDefaultAxes();
    chart->setAxisX(axis, series);

    chart->legend()->setVisible(true);
    chart->legend()->setAlignment(Qt::AlignBottom);

    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    ui->horizontalLayout->addWidget(chartView);
}

运行测试：

这种方式每次是在水平布局中添加一个QWidget，有时候不太好用。

方式二：

将QWidget提升为QChartView。

在代码中直接使用下面的代码就可以显示了：

复制代码
1
2
ui->widget_factory->setChart(chart);
ui->widget_factory->show();

（2）如何在柱状图中顶端带数字显示

只需要添加下面两句代码：

复制代码
1
2
series->setLabelsPosition(QAbstractBarSeries::LabelsInsideEnd);
series->setLabelsVisible(true);

到此这篇关于Qt绘制图表的实现的文章就介绍到这了,更多相关Qt绘制图表内容请搜索靠谱客以前的文章或继续浏览下面的相关文章希望大家以后多多支持靠谱客！

最后

以上就是灵巧黄蜂最近收集整理的关于Qt绘制图表的实现的全部内容，更多相关Qt绘制图表内容请搜索靠谱客的其他文章。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(140)

相关文章

解析之C++的列表初始化语法
解析之C++的列表初始化语法
C++线程间的互斥和通信场景分析
C++线程间的互斥和通信场景分析
QT串口通信的实现方法
QT串口通信的实现方法
c++实现简单随机数的代码
c++实现简单随机数的代码
Qt绘制图表的实现
Qt绘制图表的实现
C++ virtual destructor虚拟析构函数
C++ virtual destructor虚拟析构函数
C语言实现链栈的步骤
C语言实现链栈的步骤
C++入门(命名空间,缺省参数,函数重载,引用,内联函数,auto,范围for)
C++入门(命名空间,缺省参数,函数重载,引用,内联函数,auto,范围for)

评论列表共有 0 条评论

立即
投稿
返回
顶部
