本文实例为大家分享了Android实现微信支付密码输入框的具体代码,供大家参考,具体内容如下

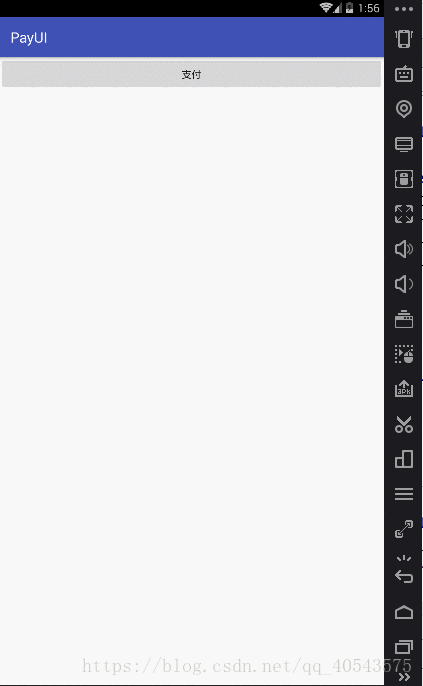

效果图
项目中使用到了支付密码功能,其实这类界面是比较常用的,涉及支付密码的输入的一般都会用到对的,所以单独地把这部分抽取出来,有需要的朋友可以拿去用哈!
效果就是支付,弹出密码框,输入密码,这个过程密码不可见,并且提供一个输入完毕的监听!
这个弹出层呢,其实就是一个DialogFragment,逻辑封装在其内部
一.弹出层进出动画 (anim文件)
push_bottom_in.xml
复制代码
1
2
3
4
5
6
7
8<?xml version="1.0" encoding="utf-8"?> <!-- 上下滑入式 --> <set xmlns:android="http://schemas.android.com/apk/res/android"> <translate android:duration="200" android:fromYDelta="100%p" android:toYDelta="0" /> </set>
push_bottom_out.xml
复制代码
1
2
3
4
5
6
7
8<?xml version="1.0" encoding="utf-8"?> <!-- 上下滑出式 --> <set xmlns:android="http://schemas.android.com/apk/res/android"> <translate android:duration="200" android:fromYDelta="0" android:toYDelta="100%p" /> </set>
二.drawable资源
selector_item_pressed.xml
复制代码
1
2
3
4
5
6<?xml version="1.0" encoding="utf-8"?> <selector xmlns:android="http://schemas.android.com/apk/res/android"> <item android:drawable="@color/gray_bg" android:state_pressed="true" /> <item android:drawable="@color/white" android:state_activated="false" /> <item android:drawable="@color/white" /> </selector>
键盘的点击效果
shape_dialog.xml
复制代码
1
2
3
4
5
6<?xml version="1.0" encoding="utf-8"?> <shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle"> <solid android:color="@android:color/white" /> <corners android:radius="10dp" /> </shape>
弹出框样式
三.mipmap资源
ic_arrow_down
ic_input_del
四.layout布局
fragment_pay.xml
支付弹出层布局
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent"> <LinearLayout android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginLeft="40dp" android:layout_marginRight="40dp" android:layout_marginTop="100dp" android:background="@drawable/shape_dialog" android:orientation="vertical" android:paddingBottom="@dimen/spacing_large"> <RelativeLayout android:layout_width="match_parent" android:layout_height="wrap_content"> <TextView style="@style/style_black_normal_text" android:layout_width="wrap_content" android:layout_height="@dimen/text_item_height" android:layout_centerInParent="true" android:gravity="center" android:text="请输入支付密码" android:textSize="20sp" android:textStyle="bold" /> <!--cancel键--> <ImageView android:id="@+id/iv_close" android:clickable="true" android:layout_width="28dp" android:layout_height="28dp" android:layout_alignParentLeft="true" android:layout_centerVertical="true" android:layout_marginLeft="@dimen/spacing_tiny" android:src="@mipmap/icon_del" /> </RelativeLayout> <View style="@style/style_separate_line" /> <!--操作文字--> <TextView android:id="@+id/tv_content" style="@style/style_black_normal_text" android:layout_width="wrap_content" android:layout_height="@dimen/text_item_height" android:layout_gravity="center_horizontal" android:gravity="center" android:textStyle="bold" /> <!--支付金额--> <TextView android:id="@+id/tv_content2" style="@style/style_black_money_text" android:layout_width="wrap_content" android:layout_height="@dimen/text_item_height" android:layout_gravity="center_horizontal" android:gravity="center" android:textStyle="bold" /> <!--额外扣除手续费--> <TextView android:id="@+id/tv_content3" style="@style/style_black_normal_text" android:layout_width="wrap_content" android:layout_height="@dimen/text_item_height2" android:layout_gravity="center_horizontal" android:gravity="center" /> <!--密码输入框--> <cn.xdeveloper.payui.PayPassWordView android:id="@+id/payPwdView" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginLeft="@dimen/spacing_large" android:layout_marginRight="@dimen/spacing_large" android:background="@color/white" /> </LinearLayout> <!--键盘--> <cn.xdeveloper.payui.PassWordInputView android:id="@+id/inputMethodView" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentBottom="true" /> </RelativeLayout>
自定义键盘布局
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/table_num" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_weight="6" android:background="@color/gray_line" android:orientation="vertical"> <View style="@style/style_separate_line" /> <RelativeLayout android:id="@+id/layout_hide" android:layout_width="match_parent" android:layout_height="25dp" android:background="@drawable/selector_item_pressed"> <ImageView android:layout_width="30dp" android:layout_height="wrap_content" android:layout_centerInParent="true" android:src="@mipmap/ic_arrow_down" /> </RelativeLayout> <LinearLayout style="@style/layout_input_amount_style"> <TextView android:id="@+id/btn_1" style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:layout_marginTop="@dimen/input_method_spacing" android:onClick="onClick" android:tag="1" android:text="1" /> <TextView android:id="@+id/btn_2" style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:layout_marginTop="@dimen/input_method_spacing" android:tag="2" android:text="2" /> <TextView android:id="@+id/btn_3" style="@style/btn_input_num_style" android:layout_marginTop="@dimen/input_method_spacing" android:tag="3" android:text="3" /> </LinearLayout> <LinearLayout style="@style/layout_input_amount_style"> <TextView android:id="@+id/btn_4" style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:tag="4" android:text="4" /> <TextView android:id="@+id/btn_5" style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:tag="5" android:text="5" /> <TextView android:id="@+id/btn_6" style="@style/btn_input_num_style" android:tag="6" android:text="6" /> </LinearLayout> <LinearLayout style="@style/layout_input_amount_style"> <TextView android:id="@+id/btn_7" style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:tag="7" android:text="7" /> <TextView android:id="@+id/btn_8" style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:tag="8" android:text="8" /> <TextView android:id="@+id/btn_9" style="@style/btn_input_num_style" android:tag="9" android:text="9" /> </LinearLayout> <LinearLayout style="@style/layout_input_amount_style"> <TextView style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:background="@color/gray_btn" /> <TextView android:id="@+id/btn_0" style="@style/btn_input_num_style" android:layout_marginRight="@dimen/input_method_spacing" android:tag="0" android:text="0" /> <ImageView android:id="@+id/btn_del" android:layout_width="0dp" android:layout_height="match_parent" android:layout_weight="1" android:scaleType="center" android:src="@mipmap/ic_input_del" android:tag="-1" /> </LinearLayout> </LinearLayout>
五.color资源
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15<?xml version="1.0" encoding="utf-8"?> <resources> <color name="colorPrimary">#3F51B5</color> <color name="colorPrimaryDark">#303F9F</color> <color name="colorAccent">#FF4081</color> <color name="gray_text">#919191</color> <color name="gray_btn">#EBEBEB</color> <color name="gray_bg">#f0eff5</color> <color name="gray_line">#d5d1d1</color> <color name="white">#FFFFFF</color> <color name="black">#000000</color> <color name="black_text">#212121</color> </resources>
六.dimen资源
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25<?xml version="1.0" encoding="utf-8"?> <resources> <!-- 字体大小 --> <dimen name="font_larger">40sp</dimen> <dimen name="font_large">18sp</dimen> <dimen name="font_normal">15sp</dimen> <dimen name="font_small">12sp</dimen> <dimen name="font_tiny">10sp</dimen> <!-- 控件之间的距离 --> <dimen name="spacing_large">20dp</dimen> <dimen name="spacing_normal">15dp</dimen> <dimen name="spacing_small">10dp</dimen> <dimen name="spacing_tiny">10dp</dimen> <dimen name="divider_height">0.5dp</dimen> <dimen name="spacing_layout_padding">10dp</dimen> <dimen name="spacing_layout_margin">10dp</dimen> <!-- 描述性文字item项的高 --> <dimen name="text_item_height">50dp</dimen> <dimen name="text_item_height2">25dp</dimen> <dimen name="input_method_spacing">2px</dimen> </resources>
七.styles样式
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72<resources> <!-- Base application theme. --> <style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar"> <!-- Customize your theme here. --> <item name="colorPrimary">@color/colorPrimary</item> <item name="colorPrimaryDark">@color/colorPrimaryDark</item> <item name="colorAccent">@color/colorAccent</item> </style> <!--底部弹框--> <style name="BottomDialog" parent="@style/Theme.AppCompat"> <item name="android:layout_width">match_parent</item> <item name="android:layout_height">wrap_content</item> <item name="android:windowIsFloating">true</item> <item name="android:backgroundDimEnabled">true</item> </style> <style name="AnimBottom" parent="@android:style/Animation"> <item name="android:windowEnterAnimation">@anim/push_bottom_in</item> <item name="android:windowExitAnimation">@anim/push_bottom_out</item> </style> <!-- 提示文字样式 --> <style name="style_black_normal_text"> <item name="android:textColor">@color/black_text</item> <item name="android:textSize">@dimen/font_normal</item> <item name="android:includeFontPadding">false</item> </style> <!-- 输入金额样式 --> <style name="style_black_money_text"> <item name="android:textColor">@color/black_text</item> <item name="android:textSize">@dimen/font_larger</item> <item name="android:includeFontPadding">false</item> </style> <!-- 分割线样式 --> <style name="style_separate_line"> <item name="android:layout_width">match_parent</item> <item name="android:layout_height">@dimen/divider_height</item> <item name="android:background">@color/gray_line</item> </style> <!--密码弹出框--> <declare-styleable name="PayPassWordView"> <attr name="count" format="integer" /> <attr name="border_color" format="color" /> <attr name="dot_color" format="color" /> </declare-styleable> <!--输入样式--> <style name="layout_input_amount_style"> <item name="android:layout_width">match_parent</item> <item name="android:layout_height">55dp</item> <item name="android:layout_marginBottom">2px</item> <item name="android:gravity">center</item> <item name="android:orientation">horizontal</item> </style> <!--键盘数字--> <style name="btn_input_num_style"> <item name="android:layout_width">0dp</item> <item name="android:layout_height">match_parent</item> <item name="android:layout_weight">1</item> <item name="android:gravity">center</item> <item name="android:textSize">25sp</item> <item name="android:textColor">@color/black_text</item> <item name="android:background">@drawable/selector_item_pressed</item> </style> </resources>
八.输入键盘view
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56public class PassWordInputView extends LinearLayout implements View.OnClickListener { private InputReceiver inputReceiver; public PassWordInputView(Context context, @Nullable AttributeSet attrs) { super(context, attrs); LayoutInflater.from(context).inflate(R.layout.view_password_input, this); initView(); } private void initView() { findViewById(R.id.btn_1).setOnClickListener(this); findViewById(R.id.btn_2).setOnClickListener(this); findViewById(R.id.btn_3).setOnClickListener(this); findViewById(R.id.btn_4).setOnClickListener(this); findViewById(R.id.btn_5).setOnClickListener(this); findViewById(R.id.btn_6).setOnClickListener(this); findViewById(R.id.btn_7).setOnClickListener(this); findViewById(R.id.btn_8).setOnClickListener(this); findViewById(R.id.btn_9).setOnClickListener(this); findViewById(R.id.btn_0).setOnClickListener(this); findViewById(R.id.btn_del).setOnClickListener(this); findViewById(R.id.layout_hide).setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { setVisibility(GONE); } }); } @Override public void onClick(View v) { String num = (String) v.getTag(); this.inputReceiver.receive(num); } /** * 设置接收器 * * @param receiver */ public void setInputReceiver(InputReceiver receiver) { this.inputReceiver = receiver; } /** * 输入接收器 */ public interface InputReceiver { void receive(String num); } }
九.密码框view
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257public class PayPassWordView extends View { private ArrayList<String> result;//输入结果保存 private int count;//密码位数 private int size;//默认每一格的大小 private Paint mBorderPaint;//边界画笔 private Paint mDotPaint;//掩盖点的画笔 private int mBorderColor;//边界颜色 private int mDotColor;//掩盖点的颜色 private RectF mRoundRect;//外面的圆角矩形 private int mRoundRadius;//圆角矩形的圆角程度 public PayPassWordView(Context context) { super(context); init(null);//初始化 } private InputCallBack inputCallBack;//输入完成的回调 private PassWordInputView inputMethodView; //输入键盘 public interface InputCallBack { void onInputFinish(String result); } public PayPassWordView(Context context, AttributeSet attrs) { super(context, attrs); init(attrs); } public PayPassWordView(Context context, AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); init(attrs); } /** * 初始化相关参数 */ void init(AttributeSet attrs) { final float dp = getResources().getDisplayMetrics().density; this.setFocusable(true); this.setFocusableInTouchMode(true); result = new ArrayList<>(); if (attrs != null) { TypedArray ta = getContext().obtainStyledAttributes(attrs, R.styleable.PayPassWordView); mBorderColor = ta.getColor(R.styleable.PayPassWordView_border_color, Color.LTGRAY); mDotColor = ta.getColor(R.styleable.PayPassWordView_dot_color, Color.BLACK); count = ta.getInt(R.styleable.PayPassWordView_count, 6); ta.recycle(); } else { mBorderColor = Color.LTGRAY; mDotColor = Color.GRAY; count = 6;//默认6位密码 } size = (int) (dp * 30);//默认30dp一格 //color mBorderPaint = new Paint(Paint.ANTI_ALIAS_FLAG); mBorderPaint.setStrokeWidth(3); mBorderPaint.setStyle(Paint.Style.STROKE); mBorderPaint.setColor(mBorderColor); mDotPaint = new Paint(Paint.ANTI_ALIAS_FLAG); mDotPaint.setStrokeWidth(3); mDotPaint.setStyle(Paint.Style.FILL); mDotPaint.setColor(mDotColor); mRoundRect = new RectF(); mRoundRadius = (int) (5 * dp); } @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { int w = measureWidth(widthMeasureSpec); int h = measureHeight(heightMeasureSpec); int wsize = MeasureSpec.getSize(widthMeasureSpec); int hsize = MeasureSpec.getSize(heightMeasureSpec); //宽度没指定,但高度指定 if (w == -1) { if (h != -1) { w = h * count;//宽度=高*数量 size = h; } else {//两个都不知道,默认宽高 w = size * count; h = size; } } else {//宽度已知 if (h == -1) {//高度不知道 h = w / count; size = h; } } setMeasuredDimension(Math.min(w, wsize), Math.min(h, hsize)); } private int measureWidth(int widthMeasureSpec) { //宽度 int wmode = MeasureSpec.getMode(widthMeasureSpec); int wsize = MeasureSpec.getSize(widthMeasureSpec); if (wmode == MeasureSpec.AT_MOST) {//wrap_content return -1; } return wsize; } private int measureHeight(int heightMeasureSpec) { //高度 int hmode = MeasureSpec.getMode(heightMeasureSpec); int hsize = MeasureSpec.getSize(heightMeasureSpec); if (hmode == MeasureSpec.AT_MOST) {//wrap_content return -1; } return hsize; } @Override public boolean onTouchEvent(MotionEvent event) { if (event.getAction() == MotionEvent.ACTION_DOWN) {//点击控件弹出输入键盘 requestFocus(); inputMethodView.setVisibility(VISIBLE); return true; } return true; } @Override protected void onFocusChanged(boolean gainFocus, int direction, Rect previouslyFocusedRect) { super.onFocusChanged(gainFocus, direction, previouslyFocusedRect); if (gainFocus) { inputMethodView.setVisibility(VISIBLE); } else { inputMethodView.setVisibility(GONE); } } @Override protected void onDraw(Canvas canvas) { super.onDraw(canvas); final int width = getWidth() - 2; final int height = getHeight() - 2; //先画个圆角矩形 mRoundRect.set(0, 0, width, height); canvas.drawRoundRect(mRoundRect, 0, 0, mBorderPaint); //画分割线 for (int i = 1; i < count; i++) { final int x = i * size; canvas.drawLine(x, 0, x, height, mBorderPaint); } //画掩盖点, // 这是前面定义的变量 private ArrayList<Integer> result;//输入结果保存 int dotRadius = size / 8;//圆圈占格子的三分之一 for (int i = 0; i < result.size(); i++) { final float x = (float) (size * (i + 0.5)); final float y = size / 2; canvas.drawCircle(x, y, dotRadius, mDotPaint); } } @Override public boolean onCheckIsTextEditor() { return true; } @Override public InputConnection onCreateInputConnection(EditorInfo outAttrs) { outAttrs.inputType = InputType.TYPE_CLASS_NUMBER;//输入类型为数字 outAttrs.imeOptions = EditorInfo.IME_ACTION_DONE; return new MyInputConnection(this, false); } public void setInputCallBack(InputCallBack inputCallBack) { this.inputCallBack = inputCallBack; } public void clearResult() { result.clear(); invalidate(); } private class MyInputConnection extends BaseInputConnection { public MyInputConnection(View targetView, boolean fullEditor) { super(targetView, fullEditor); } @Override public boolean commitText(CharSequence text, int newCursorPosition) { //这里是接受输入法的文本的,我们只处理数字,所以什么操作都不做 return super.commitText(text, newCursorPosition); } @Override public boolean deleteSurroundingText(int beforeLength, int afterLength) { //软键盘的删除键 DEL 无法直接监听,自己发送del事件 if (beforeLength == 1 && afterLength == 0) { return super.sendKeyEvent(new KeyEvent(KeyEvent.ACTION_DOWN, KeyEvent.KEYCODE_DEL)) && super.sendKeyEvent(new KeyEvent(KeyEvent.ACTION_UP, KeyEvent.KEYCODE_DEL)); } return super.deleteSurroundingText(beforeLength, afterLength); } } /** * 设置输入键盘view * * @param inputMethodView */ public void setInputMethodView(PassWordInputView inputMethodView) { this.inputMethodView = inputMethodView; this.inputMethodView.setInputReceiver(new PassWordInputView.InputReceiver() { @Override public void receive(String num) { if (num.equals("-1")) { if (!result.isEmpty()) { result.remove(result.size() - 1); invalidate(); } } else { if (result.size() < count) { result.add(num); invalidate(); ensureFinishInput(); } } } }); } /** * 判断是否输入完成,输入完成后调用callback */ void ensureFinishInput() { if (result.size() == count && inputCallBack != null) {//输入完成 StringBuffer sb = new StringBuffer(); for (String i : result) { sb.append(i); } inputCallBack.onInputFinish(sb.toString()); } } /** * 获取输入文字 * * @return */ public String getInputText() { if (result.size() == count) { StringBuffer sb = new StringBuffer(); for (String i : result) { sb.append(i); } return sb.toString(); } return null; } }
十.支付弹出层
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65public class PayFragment extends DialogFragment implements View.OnClickListener { public static final String EXTRA_CONTENT = "extra_content"; //提示框内容 public static final String EXTRA_CONTENT2 = "extra_content2"; //提示框内容 public static final String EXTRA_CONTENT3 = "extra_content3"; //提示框内容 private PayPassWordView psw_input; private PayPassWordView.InputCallBack inputCallBack; @NonNull @Override public Dialog onCreateDialog(Bundle savedInstanceState) { // 使用不带Theme的构造器, 获得的dialog边框距离屏幕仍有几毫米的缝隙。 Dialog dialog = new Dialog(getActivity(), R.style.BottomDialog); dialog.requestWindowFeature(Window.FEATURE_NO_TITLE); // 设置Content前设定 dialog.setContentView(R.layout.fragment_pay); dialog.setCanceledOnTouchOutside(true); //外部点击取消 // 设置宽度为屏宽, 靠近屏幕底部。 final Window window = dialog.getWindow(); window.setWindowAnimations(R.style.AnimBottom); window.setBackgroundDrawable(new ColorDrawable(Color.TRANSPARENT)); final WindowManager.LayoutParams lp = window.getAttributes(); lp.width = WindowManager.LayoutParams.MATCH_PARENT; // 宽度持平 lp.gravity = Gravity.TOP; window.setAttributes(lp); initView(dialog); return dialog; } private void initView(Dialog dialog) { Bundle bundle = getArguments(); if (bundle != null) { TextView tv_content = (TextView) dialog.findViewById(R.id.tv_content); TextView tv_content2 = (TextView) dialog.findViewById(R.id.tv_content2); TextView tv_content3 = (TextView) dialog.findViewById(R.id.tv_content3); tv_content.setText(bundle.getString(EXTRA_CONTENT)); tv_content2.setText(bundle.getString(EXTRA_CONTENT2)); tv_content3.setText(bundle.getString(EXTRA_CONTENT3)); } psw_input = (PayPassWordView) dialog.findViewById(R.id.payPwdView); PassWordInputView inputMethodView = (PassWordInputView) dialog.findViewById(R.id.inputMethodView); psw_input.setInputMethodView(inputMethodView); psw_input.setInputCallBack(inputCallBack); dialog.findViewById(R.id.iv_close).setOnClickListener(this); } @Override public void onClick(View v) { switch (v.getId()) { case R.id.iv_close: dismiss(); break; } } /** * 设置输入回调 * * @param inputCallBack */ public void setPaySuccessCallBack(PayPassWordView.InputCallBack inputCallBack) { this.inputCallBack = inputCallBack; } }
十一.逻辑代码中直接引用
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34public class MainActivity extends AppCompatActivity implements PayPassWordView.InputCallBack, View.OnClickListener { private PayFragment fragment; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); findViewById(R.id.btn_pay).setOnClickListener(this); } @Override public void onClick(View v) { switch (v.getId()) { case R.id.btn_pay: Bundle bundle = new Bundle(); bundle.putString(PayFragment.EXTRA_CONTENT, "提现"); bundle.putString(PayFragment.EXTRA_CONTENT2, "¥" + 1.00); bundle.putString(PayFragment.EXTRA_CONTENT3, "额外扣除0.1手续费"); fragment = new PayFragment();//创建支付弹出框实例 fragment.setArguments(bundle);//传递信息 fragment.setPaySuccessCallBack(MainActivity.this);//设置回调 fragment.show(getSupportFragmentManager(), "Pay"); break; } } @Override public void onInputFinish(String result) { Toast.makeText(this, result, Toast.LENGTH_SHORT).show(); fragment.dismiss();//窗口消失 } }
什么都没有,只有一个点击事件而已.
分享结束,这里面的代码可是有我造假的成分哦,不过,我就是喜欢将优秀的东西集成在一起,谢谢观看!
以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持靠谱客。
