Android 自定义图片地图坐标功能的实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content">

    <ImageView
        android:id="@+id/iv_sign"
        android:layout_width="20dp"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:src="@mipmap/dot2"
        app:layout_constraintEnd_toStartOf="@+id/tv_sign_name"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <TextView
        android:id="@+id/tv_sign_name"
        android:layout_width="80dp"
        android:layout_height="wrap_content"
        android:background="@color/white"
        android:text="美食城"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <TextView
        android:id="@+id/tv_sign_state"
        android:layout_width="80dp"
        android:layout_height="wrap_content"
        android:background="@color/teal_200"
        android:text="正常"
        android:textColor="@color/white"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="@+id/tv_sign_name"
        app:layout_constraintTop_toBottomOf="@+id/tv_sign_name" />

</androidx.constraintlayout.widget.ConstraintLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
class SignView : ConstraintLayout {
    private val TAG = SignView::class.java.simpleName

    private var view: View
    private var signIv: ImageView
    private var signNameTv: TextView
    private var signStateTv: TextView

    constructor(context: Context) : super(context)

    constructor(context: Context, attrs: AttributeSet?) : super(context, attrs)

    constructor(context: Context, attrs: AttributeSet?, @AttrRes defStyleAttr: Int) : super(
        context,
        attrs,
        defStyleAttr
    )

    init {
        view = LayoutInflater.from(context).inflate(R.layout.sign_view, this, true)
        signIv = view.findViewById(R.id.iv_sign)
        signNameTv = view.findViewById(R.id.tv_sign_name)
        signStateTv = view.findViewById(R.id.tv_sign_state)
    }

    /**
     * 设置坐标信息
     * @param signBean SignBean
     */
    fun setData(signBean: SignBean) {
        signNameTv.text = signBean.name
        signStateTv.text = signBean.state
    }


    /**
     * 计算坐标图标在整个视图的偏移量
     * @return IntArray
     */
    fun getSignOffset(): IntArray {
        val w = MeasureSpec.makeMeasureSpec(0, MeasureSpec.UNSPECIFIED)
        val h = MeasureSpec.makeMeasureSpec(0, MeasureSpec.UNSPECIFIED)
        signIv.measure(w, h)

        val offset = IntArray(2)
        val signImageWidth = signIv.measuredWidth
        val signImageHeight = signIv.measuredHeight
        offset[0] = signImageWidth / 2
        offset[1] = 20 + signImageHeight - offset[0]
        Log.d(TAG, "getSignOffset: x:${offset[0]}, y:${offset[1]}")
        return offset
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
class MapView : FrameLayout {
    private val TAG = MapView::class.java.simpleName

    //地图图片
    private var mapImage = ImageView(context)

    private var mapWidth = 0

    private var mapHeight = 0

    private var mapLeft = 0

    private var mapTop = 0

    private var signBeanList = listOf<SignBean>()

    private var signOffsetList = mutableListOf<IntArray>()

    private var signViewList = mutableListOf<SignView>()

    private var capturedViewIndex = 0

    private val mDragger: ViewDragHelper =
        ViewDragHelper.create(this, 1.0f, object : ViewDragHelper.Callback() {
            override fun tryCaptureView(child: View, pointerId: Int): Boolean {
                return child != mapImage
            }

            override fun onViewCaptured(capturedChild: View, activePointerId: Int) {
                signViewList.forEachIndexed { index, signView ->
                    if (signView == capturedChild) {
                        capturedViewIndex = index
                        return@forEachIndexed
                    }
                }
            }

            override fun onViewPositionChanged(
                changedView: View,
                left: Int,
                top: Int,
                dx: Int,
                dy: Int
            ) {
                signOffsetList[capturedViewIndex][0] += dx
                signOffsetList[capturedViewIndex][1] += dy
            }

            override fun clampViewPositionHorizontal(child: View, left: Int, dx: Int): Int {
                val move = if (left <= mapLeft)
                    mapLeft
                else if (left >= mapWidth + mapLeft)
                    mapWidth + mapLeft
                else
                    left
                return move
            }

            override fun clampViewPositionVertical(child: View, top: Int, dy: Int): Int {
                val move = if (top <= mapTop)
                    mapTop
                else if (top >= mapHeight + mapTop)
                    mapHeight + mapLeft
                else
                    top
                return move
            }
        })

    constructor(context: Context) : super(context)

    constructor(context: Context, attrs: AttributeSet?) : this(context, attrs, 0)

    constructor(context: Context, attrs: AttributeSet?, @AttrRes defStyleAttr: Int) : this(
        context,
        attrs,
        defStyleAttr,
        0
    )

    constructor(
        context: Context, attrs: AttributeSet?,
        @AttrRes defStyleAttr: Int, @StyleRes defStyleRes: Int
    ) : super(context, attrs, defStyleAttr, defStyleRes)


    /**
     * 添加地图图片
     * @param resId Int
     */
    fun setMapImage(@DrawableRes resId: Int) {
        removeAllViews()
        mapImage.setImageResource(resId)
        addView(mapImage)
    }


    /**
     * 设置坐标列表
     * @param list List<SignBean>
     */
    fun setSignData(list: List<SignBean>) {
        val mapOffset = getBitmapOffset(mapImage, true)
        mapLeft = mapOffset[0]
        mapTop = mapOffset[1]

        mapWidth = mapImage.width - mapLeft * 2
        mapHeight = mapImage.height - mapTop * 2

        var signOffset = IntArray(2)
        var boolean = true

        Log.d(TAG, "mapWidth:$mapWidth, mapHeight:$mapHeight, mapLeft:$mapLeft, mapTop:$mapTop")

        signBeanList = list
        removeViews(1, childCount - 1)
        signViewList.clear()
        signOffsetList.clear()
        list.forEach {
            val signView = SignView(context).apply {
                setData(it)
            }
            // 只需要计算一次
            if (boolean) {
                boolean = false
                signOffset = signView.getSignOffset()
            }
            signView.layoutParams = getParams(it, signOffset)
            addView(signView)
            signViewList.add(signView)
            signOffsetList.add(intArrayOf((it.x * mapWidth).toInt(), (it.y * mapHeight).toInt()))
        }
    }


    /**
     * 获取移动后的坐标信息
     * @return List<SignBean>
     */
    fun getMoveSignData(): List<SignBean> {
        val data = mutableListOf<SignBean>()
        signOffsetList.forEachIndexed { index, ints ->
            val signBean = signBeanList[index]
            data.add(
                SignBean(
                    signBean.name,
                    signBean.state,
                    ints[0] / mapWidth.toFloat(),
                    ints[1] / mapHeight.toFloat()
                )
            )
        }
        return data
    }


    /**
     * 计算坐标位置
     * @param signBean SignBean
     * @return LayoutParams
     */
    private fun getParams(signBean: SignBean, signOffset: IntArray): LayoutParams {
        val params = LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT)
        params.setMargins(
            (signBean.x * mapWidth + mapLeft - signOffset[0]).toInt(),
            (signBean.y * mapHeight + mapTop - signOffset[1]).toInt(),
            0,
            0
        )
        return params
    }


    /**
     * 计算图像在ImageView的位移量
     * @param img ImageView
     * @param includeLayout Boolean
     * @return IntArray?
     */
    private fun getBitmapOffset(img: ImageView, includeLayout: Boolean): IntArray {
        val offset = IntArray(2)
        val values = FloatArray(9)
        val m: Matrix = img.imageMatrix
        m.getValues(values)
        offset[0] = values[2].toInt()
        offset[1] = values[5].toInt()

        if (includeLayout) {
            val lp = img.layoutParams as MarginLayoutParams
            offset[0] += img.paddingLeft + lp.leftMargin
            offset[1] += img.paddingTop + lp.topMargin
        }
        return offset
    }

    override fun onInterceptTouchEvent(event: MotionEvent): Boolean {
        return mDragger.shouldInterceptTouchEvent(event)
    }

    override fun onTouchEvent(event: MotionEvent): Boolean {
        mDragger.processTouchEvent(event)
        return true
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <com.itc.floatparade.MapView
        android:id="@+id/map"
        android:layout_width="0dp"
        android:layout_height="0dp"
        android:layout_marginBottom="12dp"
        android:background="@color/black"
        app:layout_constraintBottom_toTopOf="@+id/tv_add_sign"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <Button
        android:id="@+id/tv_add_sign"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="25dp"
        android:layout_marginBottom="12dp"
        android:text="添加坐标"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintStart_toStartOf="parent" />

    <Button
        android:id="@+id/btn_get_sign"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginEnd="25dp"
        android:text="获取坐标"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/map" />

    <TextView
        android:id="@+id/tv_sign_list"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"
        android:text=""
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toStartOf="@+id/btn_get_sign"
        app:layout_constraintStart_toEndOf="@+id/tv_add_sign"
        app:layout_constraintTop_toBottomOf="@+id/map" />
</androidx.constraintlayout.widget.ConstraintLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
class MainActivity : AppCompatActivity() {
    private lateinit var binding: ActivityMainBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        binding = ActivityMainBinding.inflate(layoutInflater)
        setContentView(binding.root)

        binding.map.setMapImage(R.mipmap.map)

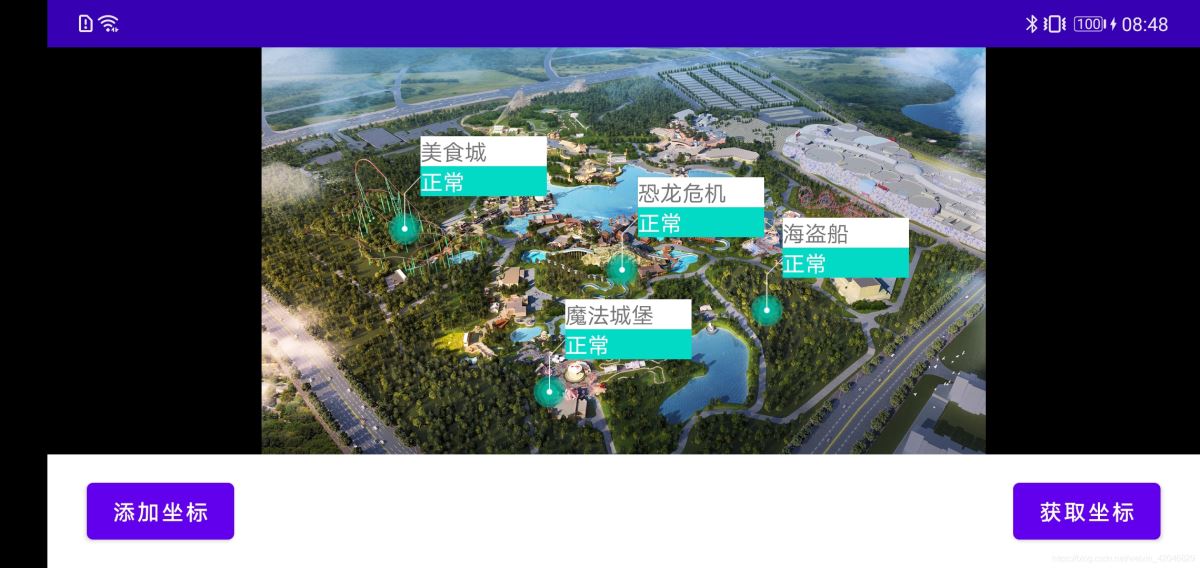

        binding.tvAddSign.setOnClickListener {
            val list = mutableListOf<SignBean>()
            list.add(SignBean("美食城", "正常", 0.2f, 0.4f))
            list.add(SignBean("恐龙危机", "正常", 0.5f, 0.5f))
            list.add(SignBean("海盗船", "正常", 0.7f, 0.6f))
            list.add(SignBean("魔法城堡", "正常", 0.4f, 0.8f))
            binding.map.setSignData(list)
        }

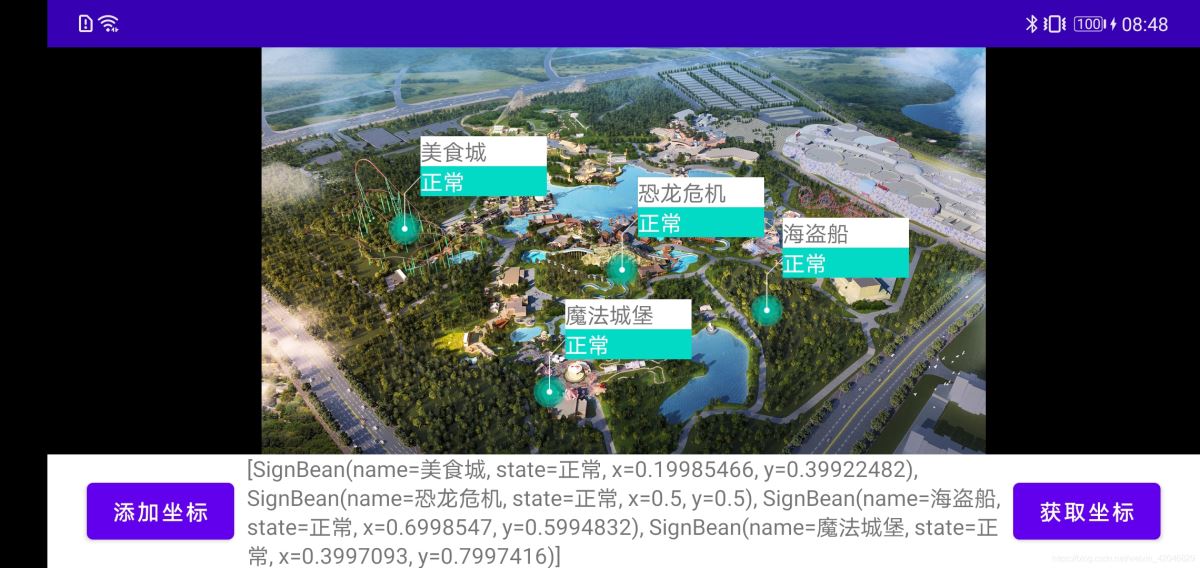

        binding.btnGetSign.setOnClickListener {
            val list = binding.map.getMoveSignData()
            binding.tvSignList.text = list.toString()
        }
    }

}
