我是靠谱客的博主 顺心山水,这篇文章主要介绍Android数字选择器NumberPicker使用详解,现在分享给大家,希望可以做个参考。

数字选择器NumberPicker是Android3.0之后引入的一个控件,比较常用,比如说手机常用的闹钟,可以选择小时和分钟,如果你需要兼容3.0之前版本,GitHub上有开源的项目,具体的下载地址。本人就没有使用开源的项目,就简单的使用了NumberPicker显示一下效果,开始正题吧:

基础维护

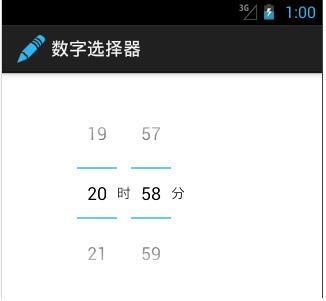

开发东西先看下效果吧:

NumberPicker和TextView显示一下时间,线性布局,看下布局文件吧:

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" tools:context="com.example.googlenumberpicker.MainActivity" > <LinearLayout android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_marginTop="30dp" android:layout_marginLeft="50dp" android:layout_gravity="center_horizontal" > <NumberPicker android:id="@+id/hourpicker" android:layout_width="40dp" android:layout_height="wrap_content" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center_vertical" android:text="时" /> <NumberPicker android:id="@+id/minuteicker" android:layout_width="40dp" android:layout_height="wrap_content" /> <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_gravity="center_vertical" android:text="分" /> </LinearLayout> </LinearLayout>

Demo实现

字选择是可以滑动,所以需要定义一个OnValueChangeListener事件,OnScrollListener滑动事件,Formatter事件:

Formatter事件:

复制代码
1
2
3
4
5
6
7
public String format(int value) { String tmpStr = String.valueOf(value); if (value < 10) { tmpStr = "0" + tmpStr; } return tmpStr; }

OnValueChangeListener事件:

复制代码
1
2
3
4
5
6
public void onValueChange(NumberPicker picker, int oldVal, int newVal) { Toast.makeText( this, "原来的值 " + oldVal + "--新值: " + newVal, Toast.LENGTH_SHORT).show(); }

OnScrollListener滑动事件,滑动事件有三个状态:

SCROLL_STATE_FLING:手离开之后还在滑动

SCROLL_STATE_IDLE:不滑动

SCROLL_STATE_TOUCH_SCROLL:滑动中

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public void onScrollStateChange(NumberPicker view, int scrollState) { switch (scrollState) { case OnScrollListener.SCROLL_STATE_FLING: Toast.makeText(this, "后续滑动(飞呀飞,根本停下来)", Toast.LENGTH_LONG) .show(); break; case OnScrollListener.SCROLL_STATE_IDLE: Toast.makeText(this, "不滑动", Toast.LENGTH_LONG).show(); break; case OnScrollListener.SCROLL_STATE_TOUCH_SCROLL: Toast.makeText(this, "滑动中", Toast.LENGTH_LONG) .show(); break; } }

初始化:

复制代码
1
2
3
hourPicker=(NumberPicker) findViewById(R.id.hourpicker); minutePicker=(NumberPicker) findViewById(R.id.minuteicker); init();

init方法中,设置数字的最大值,最小值,以及滑动事件:

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
private void init() { hourPicker.setFormatter(this); hourPicker.setOnValueChangedListener(this); hourPicker.setOnScrollListener(this); hourPicker.setMaxValue(24); hourPicker.setMinValue(0); hourPicker.setValue(9); minutePicker.setFormatter(this); minutePicker.setOnValueChangedListener(this); minutePicker.setOnScrollListener(this); minutePicker.setMaxValue(60); minutePicker.setMinValue(0); minutePicker.setValue(49); }

还差一步,Activity需要继承一下OnValueChangeListener,OnScrollListener,Formatter:

复制代码
1
public class MainActivity extends Activity implements OnValueChangeListener,OnScrollListener,Formatter{...}

最后说一点就是NumberPicker也是可以显示文字的,重新定义一个NumberPicker,加载一下:

复制代码
1
2
3
4
5
6
valuepicker = (NumberPicker) findViewById(R.id.valuepicker); String[] city = {"立水桥","霍营","回龙观","龙泽","西二旗","上地"}; valuepicker.setDisplayedValues(city); valuepicker.setMinValue(0); valuepicker.setMaxValue(city.length - 1); valuepicker.setValue(4);

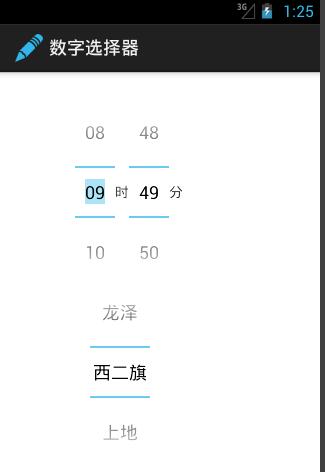

最后显示的效果:

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持靠谱客。
