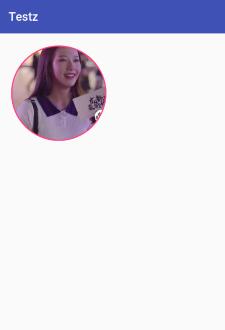

android自定义imageview实现圆角图片

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 android:orientation="vertical"
 android:layout_width="match_parent"
 android:layout_height="match_parent">
 <com.example.administrator.testz.CircleImageView
  android:layout_width="160dp"
  android:layout_marginLeft="20dp"
  android:layout_marginTop="20dp"
  android:layout_height="160dp"
  android:layout_centerInParent="true"
  android:src="@mipmap/icon"
  app:civ_border_width="2dp"
  app:civ_border_color="@color/colorAccent" />
</LinearLayout>

1
2
3
4
5
6
7
8
9
10
<?xml version="1.0" encoding="utf-8"?>
<resources>
 <declare-styleable name="CircleImageView">
  <attr name="civ_border_width" format="dimension" />
  <attr name="civ_border_color" format="color" />
  <attr name="civ_border_overlay" format="boolean" />
  <attr name="civ_fill_color" format="color" />
  <attr name="civ_circle_background_color" format="color" />
 </declare-styleable>
</resources>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
package com.example.administrator.testz;



  import android.content.Context;
  import android.content.res.TypedArray;
  import android.graphics.Bitmap;
  import android.graphics.BitmapShader;
  import android.graphics.Canvas;
  import android.graphics.Color;
  import android.graphics.ColorFilter;
  import android.graphics.Matrix;
  import android.graphics.Outline;
  import android.graphics.Paint;
  import android.graphics.Rect;
  import android.graphics.RectF;
  import android.graphics.Shader;
  import android.graphics.drawable.BitmapDrawable;
  import android.graphics.drawable.ColorDrawable;
  import android.graphics.drawable.Drawable;
  import android.net.Uri;
  import android.os.Build;
  import android.support.annotation.ColorInt;
  import android.support.annotation.ColorRes;
  import android.support.annotation.DrawableRes;
  import android.support.annotation.RequiresApi;
  import android.util.AttributeSet;
  import android.view.MotionEvent;
  import android.view.View;
  import android.view.ViewOutlineProvider;
  import android.widget.ImageView;

public class CircleImageView extends ImageView {
 //参考网址:https://github.com/hdodenhof/CircleImageView
 private static final ScaleType SCALE_TYPE = ScaleType.CENTER_CROP;

 private static final Bitmap.Config BITMAP_CONFIG = Bitmap.Config.ARGB_8888;
 private static final int COLORDRAWABLE_DIMENSION = 2;

 private static final int DEFAULT_BORDER_WIDTH = 0;
 private static final int DEFAULT_BORDER_COLOR = Color.BLACK;
 private static final int DEFAULT_CIRCLE_BACKGROUND_COLOR = Color.TRANSPARENT;
 private static final boolean DEFAULT_BORDER_OVERLAY = false;

 private final RectF mDrawableRect = new RectF();
 private final RectF mBorderRect = new RectF();

 private final Matrix mShaderMatrix = new Matrix();
 private final Paint mBitmapPaint = new Paint();
 private final Paint mBorderPaint = new Paint();
 private final Paint mCircleBackgroundPaint = new Paint();

 private int mBorderColor = DEFAULT_BORDER_COLOR;
 private int mBorderWidth = DEFAULT_BORDER_WIDTH;
 private int mCircleBackgroundColor = DEFAULT_CIRCLE_BACKGROUND_COLOR;

 private Bitmap mBitmap;
 private BitmapShader mBitmapShader;
 private int mBitmapWidth;
 private int mBitmapHeight;

 private float mDrawableRadius;
 private float mBorderRadius;

 private ColorFilter mColorFilter;

 private boolean mReady;
 private boolean mSetupPending;
 private boolean mBorderOverlay;
 private boolean mDisableCircularTransformation;

 public CircleImageView(Context context) {
  super(context);

  init();
 }

 public CircleImageView(Context context, AttributeSet attrs) {
  this(context, attrs, 0);
 }

 public CircleImageView(Context context, AttributeSet attrs, int defStyle) {
  super(context, attrs, defStyle);

  TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.CircleImageView, defStyle, 0);

  mBorderWidth = a.getDimensionPixelSize(R.styleable.CircleImageView_civ_border_width, DEFAULT_BORDER_WIDTH);
  mBorderColor = a.getColor(R.styleable.CircleImageView_civ_border_color, DEFAULT_BORDER_COLOR);
  mBorderOverlay = a.getBoolean(R.styleable.CircleImageView_civ_border_overlay, DEFAULT_BORDER_OVERLAY);

  // Look for deprecated civ_fill_color if civ_circle_background_color is not set
  if (a.hasValue(R.styleable.CircleImageView_civ_circle_background_color)) {
   mCircleBackgroundColor = a.getColor(R.styleable.CircleImageView_civ_circle_background_color,
     DEFAULT_CIRCLE_BACKGROUND_COLOR);
  } else if (a.hasValue(R.styleable.CircleImageView_civ_fill_color)) {
   mCircleBackgroundColor = a.getColor(R.styleable.CircleImageView_civ_fill_color,
     DEFAULT_CIRCLE_BACKGROUND_COLOR);
  }

  a.recycle();

  init();
 }

 private void init() {
  super.setScaleType(SCALE_TYPE);
  mReady = true;

  if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
   setOutlineProvider(new OutlineProvider());
  }

  if (mSetupPending) {
   setup();
   mSetupPending = false;
  }
 }

 @Override
 public ScaleType getScaleType() {
  return SCALE_TYPE;
 }

 @Override
 public void setScaleType(ScaleType scaleType) {
  if (scaleType != SCALE_TYPE) {
   throw new IllegalArgumentException(String.format("ScaleType %s not supported.", scaleType));
  }
 }

 @Override
 public void setAdjustViewBounds(boolean adjustViewBounds) {
  if (adjustViewBounds) {
   throw new IllegalArgumentException("adjustViewBounds not supported.");
  }
 }

 @Override
 protected void onDraw(Canvas canvas) {
  if (mDisableCircularTransformation) {
   super.onDraw(canvas);
   return;
  }

  if (mBitmap == null) {
   return;
  }

  if (mCircleBackgroundColor != Color.TRANSPARENT) {
   canvas.drawCircle(mDrawableRect.centerX(), mDrawableRect.centerY(), mDrawableRadius, mCircleBackgroundPaint);
  }
  canvas.drawCircle(mDrawableRect.centerX(), mDrawableRect.centerY(), mDrawableRadius, mBitmapPaint);
  if (mBorderWidth > 0) {
   canvas.drawCircle(mBorderRect.centerX(), mBorderRect.centerY(), mBorderRadius, mBorderPaint);
  }
 }

 @Override
 protected void onSizeChanged(int w, int h, int oldw, int oldh) {
  super.onSizeChanged(w, h, oldw, oldh);
  setup();
 }

 @Override
 public void setPadding(int left, int top, int right, int bottom) {
  super.setPadding(left, top, right, bottom);
  setup();
 }

 @Override
 public void setPaddingRelative(int start, int top, int end, int bottom) {
  super.setPaddingRelative(start, top, end, bottom);
  setup();
 }

 public int getBorderColor() {
  return mBorderColor;
 }

 public void setBorderColor(@ColorInt int borderColor) {
  if (borderColor == mBorderColor) {
   return;
  }

  mBorderColor = borderColor;
  mBorderPaint.setColor(mBorderColor);
  invalidate();
 }

 /**
  * @deprecated Use {@link #setBorderColor(int)} instead
  */
 @Deprecated
 public void setBorderColorResource(@ColorRes int borderColorRes) {
  setBorderColor(getContext().getResources().getColor(borderColorRes));
 }

 public int getCircleBackgroundColor() {
  return mCircleBackgroundColor;
 }

 public void setCircleBackgroundColor(@ColorInt int circleBackgroundColor) {
  if (circleBackgroundColor == mCircleBackgroundColor) {
   return;
  }

  mCircleBackgroundColor = circleBackgroundColor;
  mCircleBackgroundPaint.setColor(circleBackgroundColor);
  invalidate();
 }

 public void setCircleBackgroundColorResource(@ColorRes int circleBackgroundRes) {
  setCircleBackgroundColor(getContext().getResources().getColor(circleBackgroundRes));
 }

 /**
  * Return the color drawn behind the circle-shaped drawable.
  *
  * @return The color drawn behind the drawable
  *
  * @deprecated Use {@link #getCircleBackgroundColor()} instead.
  */
 @Deprecated
 public int getFillColor() {
  return getCircleBackgroundColor();
 }

 /**
  * Set a color to be drawn behind the circle-shaped drawable. Note that
  * this has no effect if the drawable is opaque or no drawable is set.
  *
  * @param fillColor The color to be drawn behind the drawable
  *
  * @deprecated Use {@link #setCircleBackgroundColor(int)} instead.
  */
 @Deprecated
 public void setFillColor(@ColorInt int fillColor) {
  setCircleBackgroundColor(fillColor);
 }

 /**
  * Set a color to be drawn behind the circle-shaped drawable. Note that
  * this has no effect if the drawable is opaque or no drawable is set.
  *
  * @param fillColorRes The color resource to be resolved to a color and
  *      drawn behind the drawable
  *
  * @deprecated Use {@link #setCircleBackgroundColorResource(int)} instead.
  */
 @Deprecated
 public void setFillColorResource(@ColorRes int fillColorRes) {
  setCircleBackgroundColorResource(fillColorRes);
 }

 public int getBorderWidth() {
  return mBorderWidth;
 }

 public void setBorderWidth(int borderWidth) {
  if (borderWidth == mBorderWidth) {
   return;
  }

  mBorderWidth = borderWidth;
  setup();
 }

 public boolean isBorderOverlay() {
  return mBorderOverlay;
 }

 public void setBorderOverlay(boolean borderOverlay) {
  if (borderOverlay == mBorderOverlay) {
   return;
  }

  mBorderOverlay = borderOverlay;
  setup();
 }

 public boolean isDisableCircularTransformation() {
  return mDisableCircularTransformation;
 }

 public void setDisableCircularTransformation(boolean disableCircularTransformation) {
  if (mDisableCircularTransformation == disableCircularTransformation) {
   return;
  }

  mDisableCircularTransformation = disableCircularTransformation;
  initializeBitmap();
 }

 @Override
 public void setImageBitmap(Bitmap bm) {
  super.setImageBitmap(bm);
  initializeBitmap();
 }

 @Override
 public void setImageDrawable(Drawable drawable) {
  super.setImageDrawable(drawable);
  initializeBitmap();
 }

 @Override
 public void setImageResource(@DrawableRes int resId) {
  super.setImageResource(resId);
  initializeBitmap();
 }

 @Override
 public void setImageURI(Uri uri) {
  super.setImageURI(uri);
  initializeBitmap();
 }

 @Override
 public void setColorFilter(ColorFilter cf) {
  if (cf == mColorFilter) {
   return;
  }

  mColorFilter = cf;
  applyColorFilter();
  invalidate();
 }

 @Override
 public ColorFilter getColorFilter() {
  return mColorFilter;
 }

 private void applyColorFilter() {
  if (mBitmapPaint != null) {
   mBitmapPaint.setColorFilter(mColorFilter);
  }
 }

 private Bitmap getBitmapFromDrawable(Drawable drawable) {
  if (drawable == null) {
   return null;
  }

  if (drawable instanceof BitmapDrawable) {
   return ((BitmapDrawable) drawable).getBitmap();
  }

  try {
   Bitmap bitmap;

   if (drawable instanceof ColorDrawable) {
    bitmap = Bitmap.createBitmap(COLORDRAWABLE_DIMENSION, COLORDRAWABLE_DIMENSION, BITMAP_CONFIG);
   } else {
    bitmap = Bitmap.createBitmap(drawable.getIntrinsicWidth(), drawable.getIntrinsicHeight(), BITMAP_CONFIG);
   }

   Canvas canvas = new Canvas(bitmap);
   drawable.setBounds(0, 0, canvas.getWidth(), canvas.getHeight());
   drawable.draw(canvas);
   return bitmap;
  } catch (Exception e) {
   e.printStackTrace();
   return null;
  }
 }

 private void initializeBitmap() {
  if (mDisableCircularTransformation) {
   mBitmap = null;
  } else {
   mBitmap = getBitmapFromDrawable(getDrawable());
  }
  setup();
 }

 private void setup() {
  if (!mReady) {
   mSetupPending = true;
   return;
  }

  if (getWidth() == 0 && getHeight() == 0) {
   return;
  }

  if (mBitmap == null) {
   invalidate();
   return;
  }

  mBitmapShader = new BitmapShader(mBitmap, Shader.TileMode.CLAMP, Shader.TileMode.CLAMP);

  mBitmapPaint.setAntiAlias(true);
  mBitmapPaint.setShader(mBitmapShader);

  mBorderPaint.setStyle(Paint.Style.STROKE);
  mBorderPaint.setAntiAlias(true);
  mBorderPaint.setColor(mBorderColor);
  mBorderPaint.setStrokeWidth(mBorderWidth);

  mCircleBackgroundPaint.setStyle(Paint.Style.FILL);
  mCircleBackgroundPaint.setAntiAlias(true);
  mCircleBackgroundPaint.setColor(mCircleBackgroundColor);

  mBitmapHeight = mBitmap.getHeight();
  mBitmapWidth = mBitmap.getWidth();

  mBorderRect.set(calculateBounds());
  mBorderRadius = Math.min((mBorderRect.height() - mBorderWidth) / 2.0f, (mBorderRect.width() - mBorderWidth) / 2.0f);

  mDrawableRect.set(mBorderRect);
  if (!mBorderOverlay && mBorderWidth > 0) {
   mDrawableRect.inset(mBorderWidth - 1.0f, mBorderWidth - 1.0f);
  }
  mDrawableRadius = Math.min(mDrawableRect.height() / 2.0f, mDrawableRect.width() / 2.0f);

  applyColorFilter();
  updateShaderMatrix();
  invalidate();
 }

 private RectF calculateBounds() {
  int availableWidth = getWidth() - getPaddingLeft() - getPaddingRight();
  int availableHeight = getHeight() - getPaddingTop() - getPaddingBottom();

  int sideLength = Math.min(availableWidth, availableHeight);

  float left = getPaddingLeft() + (availableWidth - sideLength) / 2f;
  float top = getPaddingTop() + (availableHeight - sideLength) / 2f;

  return new RectF(left, top, left + sideLength, top + sideLength);
 }

 private void updateShaderMatrix() {
  float scale;
  float dx = 0;
  float dy = 0;

  mShaderMatrix.set(null);

  if (mBitmapWidth * mDrawableRect.height() > mDrawableRect.width() * mBitmapHeight) {
   scale = mDrawableRect.height() / (float) mBitmapHeight;
   dx = (mDrawableRect.width() - mBitmapWidth * scale) * 0.5f;
  } else {
   scale = mDrawableRect.width() / (float) mBitmapWidth;
   dy = (mDrawableRect.height() - mBitmapHeight * scale) * 0.5f;
  }

  mShaderMatrix.setScale(scale, scale);
  mShaderMatrix.postTranslate((int) (dx + 0.5f) + mDrawableRect.left, (int) (dy + 0.5f) + mDrawableRect.top);

  mBitmapShader.setLocalMatrix(mShaderMatrix);
 }

 @Override
 public boolean onTouchEvent(MotionEvent event) {
  return inTouchableArea(event.getX(), event.getY()) && super.onTouchEvent(event);
 }

 private boolean inTouchableArea(float x, float y) {
  return Math.pow(x - mBorderRect.centerX(), 2) + Math.pow(y - mBorderRect.centerY(), 2) <= Math.pow(mBorderRadius, 2);
 }

 @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
 private class OutlineProvider extends ViewOutlineProvider {

  @Override
  public void getOutline(View view, Outline outline) {
   Rect bounds = new Rect();
   mBorderRect.roundOut(bounds);
   outline.setRoundRect(bounds, bounds.width() / 2.0f);
  }

 }

}
