Unity支持自定义图片字体(CustomFont),网上有很多教程,细节不尽相同,当概括起来基本就是两种方式。一是使用BMFont,导出图集和.fnt文件,再使用图集在Unity中设置得到字体。二是不用BMFont,使用Unity自带的Sprite类似图集的功能。两种方式原理相同,只是手段有区别。基本原理都是先有一张贴图,比如:

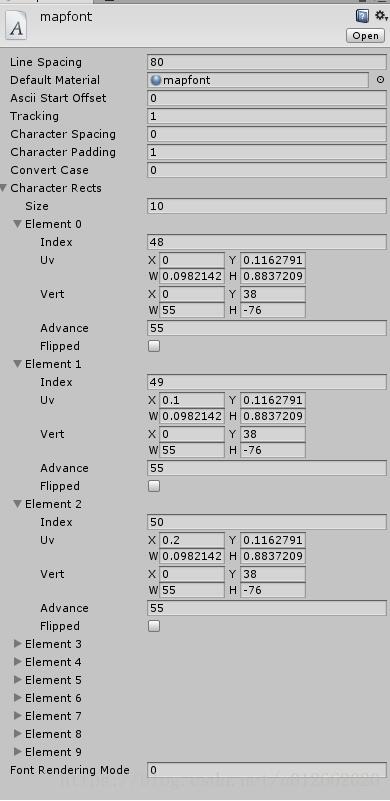

需要知道的信息是贴图中每一个字符对应的ASCII码(例如0的ASCII码为48)与该字符在图集中对应的位置(0为x:0;y:0;w:55;h:76)。然后在Unity中创建材质和CustomFont并根据信息进行设置。
最后得到字体。
两种方式的区别仅在于第一步中如何得到图集的信息。具体的:

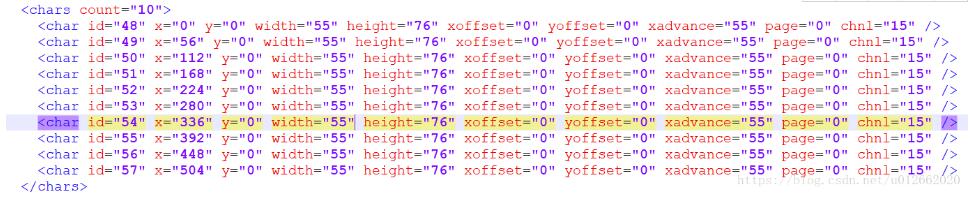

对于第一种使用BMFont的方式,目的是得到.fnt文件,实际上是xml格式文件。具体的信息为:
BMFont的使用方法不再详述。得到图集个fnt文件后,网上一般的方法是手动计算在Unity中的参数,有些繁琐,在这里写一个Editor脚本来自动完成这个过程。直接上代码:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137using System; using System.Collections.Generic; using System.IO; using System.Xml; using UnityEditor; using UnityEngine; public class CreateFontFromFnt : EditorWindow { [MenuItem("Tools/创建字体(Fnt)")] static void DoIt() { GetWindow<CreateFontFromFnt>("创建字体"); } private string fontName; private string fontPath; private Texture2D tex; private string fntFilePath; private void OnGUI() { GUILayout.BeginVertical(); GUILayout.BeginHorizontal(); GUILayout.Label("字体名称:"); fontName = EditorGUILayout.TextField(fontName); GUILayout.EndHorizontal(); GUILayout.BeginHorizontal(); GUILayout.Label("字体图片:"); tex = (Texture2D)EditorGUILayout.ObjectField(tex, typeof(Texture2D), true); GUILayout.EndHorizontal(); GUILayout.BeginHorizontal(); if (GUILayout.Button(string.IsNullOrEmpty(fontPath) ? "选择路径" : fontPath)) { fontPath = EditorUtility.OpenFolderPanel("字体路径", Application.dataPath, ""); if (string.IsNullOrEmpty(fontPath)) { Debug.Log("取消选择路径"); } else { fontPath = fontPath.Replace(Application.dataPath, "") + "/"; } } GUILayout.EndHorizontal(); GUILayout.BeginHorizontal(); if (GUILayout.Button(string.IsNullOrEmpty(fntFilePath) ? "选择fnt文件" : fntFilePath)) { fntFilePath = EditorUtility.OpenFilePanelWithFilters("选择fnt文件", Environment.GetFolderPath(Environment.SpecialFolder.Desktop), new string[] { "", "fnt" }); if (string.IsNullOrEmpty(fntFilePath)) { Debug.Log("取消选择路径"); } } GUILayout.EndHorizontal(); GUILayout.BeginHorizontal(); if (GUILayout.Button("创建")) { Create(); } GUILayout.EndHorizontal(); GUILayout.EndVertical(); } private void Create() { if (string.IsNullOrEmpty(fntFilePath)) { Debug.LogError("fnt为空"); return; } if (tex == null) { Debug.LogError("字体图片为空"); return; } string fontSettingPath = fontPath + fontName + ".fontsettings"; string matPath = fontPath + fontName + ".mat"; if (File.Exists(Application.dataPath + fontSettingPath)) { Debug.LogErrorFormat("已存在同名字体文件:{0}", fontSettingPath); return; } if (File.Exists(Application.dataPath + matPath)) { Debug.LogErrorFormat("已存在同名字体材质:{0}", matPath); return; } var list = new List<CharacterInfo>(); XmlDocument xmlDoc = new XmlDocument(); var content = File.ReadAllText(fntFilePath, System.Text.Encoding.UTF8); xmlDoc.LoadXml(content); var nodelist = xmlDoc.SelectNodes("font/chars/char"); foreach (XmlElement item in nodelist) { CharacterInfo info = new CharacterInfo(); var id = int.Parse(item.GetAttribute("id")); var x = float.Parse(item.GetAttribute("x")); var y = float.Parse(item.GetAttribute("y")); var width = float.Parse(item.GetAttribute("width")); var height = float.Parse(item.GetAttribute("height")); info.index = id; //纹理映射,上下翻转 info.uvBottomLeft = new Vector2(x / tex.width, 1 - (y + height) / tex.height); info.uvBottomRight = new Vector2((x + width) / tex.width, 1 - (y + height) / tex.height); info.uvTopLeft = new Vector2(x / tex.width, 1 - y / tex.height); info.uvTopRight = new Vector2((x + width) / tex.width, 1 - y / tex.height); info.minX = 0; info.maxX = (int)width; info.minY = -(int)height / 2; info.maxY = (int)height / 2; info.advance = (int)width; list.Add(info); } Material mat = new Material(Shader.Find("GUI/Text Shader")); mat.SetTexture("_MainTex", tex); Font m_myFont = new Font(); m_myFont.material = mat; AssetDatabase.CreateAsset(mat, "Assets" + matPath); AssetDatabase.CreateAsset(m_myFont, "Assets" + fontSettingPath); m_myFont.characterInfo = list.ToArray(); EditorUtility.SetDirty(m_myFont); AssetDatabase.SaveAssets(); AssetDatabase.Refresh(); Debug.Log("创建成功!"); } }

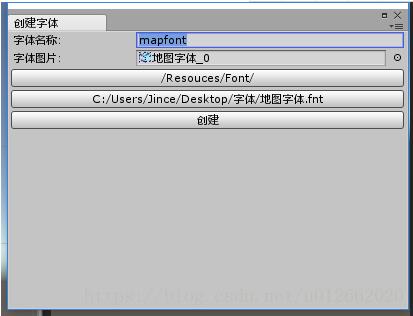

使用起来很简单:
代码也没什么可深究的,目的是代替手动计算,只是在纹理映射的时候有一个小坑。

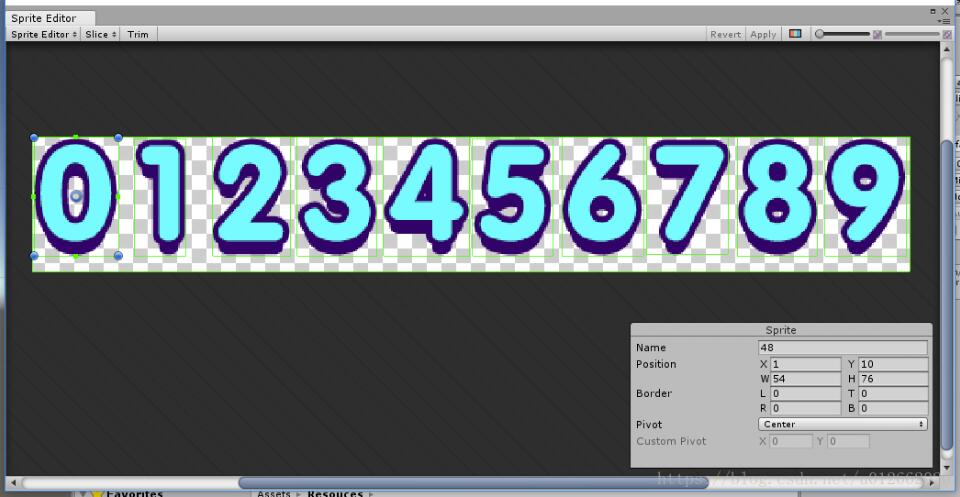

第二种方式使用Unity中的Sprite。Unity支持把一个Sprite切割成多个。可以用这种方式代替BMFont导出的fnt文件。需要手动做的工作是将图集的TextureType设置为Sprite,然后把SpriteMode设为Multiple,打开SpriteEditor,对图片进行切割。Slice就基本可以完成这个工作,如果需要再手动微调一下。
一张图按照字符的位置分割成了10个Sprite。然后选中每一个Sprite把Name设置成字符对应的ASCII码。这样第一种方法里fnt文件包含的信息基本都包含在这个“图集”里了。同样写一个Editor脚本把这些信息写入到CustomFont里面,并不用手动去创建。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176using UnityEngine; using UnityEditor; using System.IO; public class CreateFont : EditorWindow { [MenuItem("Tools/创建字体(sprite)")] public static void Open() { GetWindow<CreateFont>("创建字体"); } private Texture2D tex; private string fontName; private string fontPath; private void OnGUI() { GUILayout.BeginVertical(); GUILayout.BeginHorizontal(); GUILayout.Label("字体图片:"); tex = (Texture2D)EditorGUILayout.ObjectField(tex, typeof(Texture2D), true); GUILayout.EndHorizontal(); GUILayout.BeginHorizontal(); GUILayout.Label("字体名称:"); fontName = EditorGUILayout.TextField(fontName); GUILayout.EndHorizontal(); GUILayout.BeginHorizontal(); if (GUILayout.Button(string.IsNullOrEmpty(fontPath) ? "选择路径" : fontPath)) { fontPath = EditorUtility.OpenFolderPanel("字体路径", Application.dataPath, ""); if (string.IsNullOrEmpty(fontPath)) { Debug.Log("取消选择路径"); } else { fontPath = fontPath.Replace(Application.dataPath, "") + "/"; } } GUILayout.EndHorizontal(); GUILayout.BeginHorizontal(); if (GUILayout.Button("创建")) { Create(); } GUILayout.EndHorizontal(); GUILayout.EndVertical(); } private void Create() { if (tex == null) { Debug.LogWarning("创建失败,图片为空!"); return; } if (string.IsNullOrEmpty(fontPath)) { Debug.LogWarning("字体路径为空!"); return; } if (fontName == null) { Debug.LogWarning("创建失败,字体名称为空!"); return; } else { if (File.Exists(Application.dataPath + fontPath + fontName + ".fontsettings")) { Debug.LogError("创建失败,已存在同名字体文件"); return; } if (File.Exists(Application.dataPath + fontPath + fontName + ".mat")) { Debug.LogError("创建失败,已存在同名字体材质文件"); return; } } string selectionPath = AssetDatabase.GetAssetPath(tex); if (selectionPath.Contains("/Resources/")) { string selectionExt = Path.GetExtension(selectionPath); if (selectionExt.Length == 0) { Debug.LogError("创建失败!"); return; } string fontPathName = fontPath + fontName + ".fontsettings"; string matPathName = fontPath + fontName + ".mat"; float lineSpace = 0.1f; //string loadPath = selectionPath.Remove(selectionPath.Length - selectionExt.Length).Replace("Assets/Resources/", ""); string loadPath = selectionPath.Replace(selectionExt, "").Substring(selectionPath.IndexOf("/Resources/") + "/Resources/".Length); Sprite[] sprites = Resources.LoadAll<Sprite>(loadPath); if (sprites.Length > 0) { Material mat = new Material(Shader.Find("GUI/Text Shader")); mat.SetTexture("_MainTex", tex); Font m_myFont = new Font(); m_myFont.material = mat; CharacterInfo[] characterInfo = new CharacterInfo[sprites.Length]; for (int i = 0; i < sprites.Length; i++) { if (sprites[i].rect.height > lineSpace) { lineSpace = sprites[i].rect.height; } } for (int i = 0; i < sprites.Length; i++) { Sprite spr = sprites[i]; CharacterInfo info = new CharacterInfo(); try { info.index = System.Convert.ToInt32(spr.name); } catch { Debug.LogError("创建失败,Sprite名称错误!"); return; } Rect rect = spr.rect; float pivot = spr.pivot.y / rect.height - 0.5f; if (pivot > 0) { pivot = -lineSpace / 2 - spr.pivot.y; } else if (pivot < 0) { pivot = -lineSpace / 2 + rect.height - spr.pivot.y; } else { pivot = -lineSpace / 2; } int offsetY = (int)(pivot + (lineSpace - rect.height) / 2); info.uvBottomLeft = new Vector2((float)rect.x / tex.width, (float)(rect.y) / tex.height); info.uvBottomRight = new Vector2((float)(rect.x + rect.width) / tex.width, (float)(rect.y) / tex.height); info.uvTopLeft = new Vector2((float)rect.x / tex.width, (float)(rect.y + rect.height) / tex.height); info.uvTopRight = new Vector2((float)(rect.x + rect.width) / tex.width, (float)(rect.y + rect.height) / tex.height); info.minX = 0; info.minY = -(int)rect.height - offsetY; info.maxX = (int)rect.width; info.maxY = -offsetY; info.advance = (int)rect.width; characterInfo[i] = info; } AssetDatabase.CreateAsset(mat, "Assets" + matPathName); AssetDatabase.CreateAsset(m_myFont, "Assets" + fontPathName); m_myFont.characterInfo = characterInfo; EditorUtility.SetDirty(m_myFont); AssetDatabase.SaveAssets(); AssetDatabase.Refresh();//刷新资源 Debug.Log("创建字体成功"); } else { Debug.LogError("图集错误!"); } } else { Debug.LogError("创建失败,选择的图片不在Resources文件夹内!"); } } }
这个脚本参考了某一篇博文,时间长了实在是找不到了。
原理跟第一种方法一样,只是计算细节略有差异。使用起来还是很简单:
大同小异的两种方法,个人更喜欢用第二种。不需要使用额外的软件,一键搞定,基本上可以丢给美术童鞋来做了。
