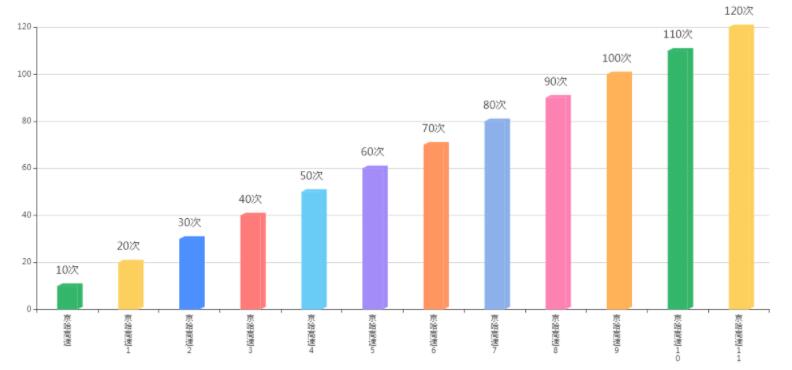

Vue使用Echarts实现立体柱状图

1
2
3
4
5
<template>
  <div class="roadnum-all" ref="roadnumall">
    <div id="roadnum" ref="dom"></div>
  </div>
</template>

1
2
3
4
.roadnum-all {
  width: 100%;
  height: 100%;      /*填满父级容器*/
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
import echarts from 'echarts'   // 引入Echarts

export default {
  name: "ltzzt",
  data() {
    return {
      data: [],
      dom: null
    }
  },
  mounted() {
    this.$nextTick(() => {      // 给图标宽高 使图标填满容器
      document.getElementById('roadnum').style.width = this.$refs.roadnumall.offsetWidth + 'px';
      document.getElementById('roadnum').style.height = this.$refs.roadnumall.offsetHeight + 'px';
      this.draw();
    })
  },
  methods: {
    // 画图
    draw() {
      // 网络请求 假装从后端拿回来的数据
      this.data = [
        { name: '京哈高速', value: 10 },
        { name: '京哈高速1', value: 20 },
        { name: '京哈高速2', value: 30 },
        { name: '京哈高速3', value: 40 },
        { name: '京哈高速4', value: 50 },
        { name: '京哈高速5', value: 60 },
        { name: '京哈高速6', value: 70 },
        { name: '京哈高速7', value: 80 },
        { name: '京哈高速8', value: 90 },
        { name: '京哈高速9', value: 100 },
        { name: '京哈高速10', value: 110 },
        { name: '京哈高速11', value: 120 }
      ];
      // 拼轴显示和数据的数组
      let xAxisText = [];
      let dataList = [];
      this.data.forEach(item => {
        xAxisText.push(item.name);
        dataList.push(item.value)
      })
      // 从这里开始 创建自定义图形 —— 长方体的正面
      var MyCubeRect = echarts.graphic.extendShape({
        shape: {
          x: 0,
          y: 0,
          width: 180,      // 长方体宽度
          zWidth: 8,      // 阴影折角宽
          zHeight: 4      // 阴影折角高
        },
        buildPath: function (ctx, shape) {
          console.log(ctx, shape);
          const api = shape.api;
          const xAxisPoint = api.coord([shape.xValue, 0]);
          const p0 = [shape.x, shape.y];
          const p1 = [shape.x - shape.width / xAxisText.length, shape.y];
          const p4 = [shape.x + shape.width / xAxisText.length, shape.y];
          const p2 = [xAxisPoint[0] - shape.width / xAxisText.length, xAxisPoint[1]];
          const p3 = [xAxisPoint[0] + shape.width / xAxisText.length, xAxisPoint[1]];

          ctx.moveTo(p0[0], p0[1]); //0
          ctx.lineTo(p1[0], p1[1]); //1
          ctx.lineTo(p2[0], p2[1]); //2
          ctx.lineTo(p3[0], p3[1]); //3
          ctx.lineTo(p4[0], p4[1]); //4
          ctx.lineTo(p0[0], p0[1]); //0
          ctx.closePath();
        }
      })

      // 创建第二个自定义图形 —— 长方体的上面和侧面
      var MyCubeShadow = echarts.graphic.extendShape({
        shape: {
          x: 0,
          y: 0,
          width: 180,
          zWidth: 8,
          zHeight: 4
        },
        buildPath: function (ctx, shape) {
          const api = shape.api;
          const xAxisPoint = api.coord([shape.xValue, 0]);
          const p0 = [shape.x, shape.y];
          const p1 = [shape.x - shape.width / xAxisText.length, shape.y];
          const p4 = [shape.x + shape.width / xAxisText.length, shape.y];
          const p6 = [shape.x + shape.width / xAxisText.length + shape.zWidth, shape.y - shape.zHeight];
          const p7 = [shape.x - shape.width / xAxisText.length + shape.zWidth, shape.y - shape.zHeight];
          const p3 = [xAxisPoint[0] + shape.width / xAxisText.length, xAxisPoint[1]];
          const p5 = [xAxisPoint[0] + shape.width / xAxisText.length + shape.zWidth, xAxisPoint[1] - shape.zHeight];

          ctx.moveTo(p4[0], p4[1]); //4
          ctx.lineTo(p3[0], p3[1]); //3
          ctx.lineTo(p5[0], p5[1]); //5
          ctx.lineTo(p6[0], p6[1]); //6
          ctx.lineTo(p4[0], p4[1]); //4

          ctx.moveTo(p4[0], p4[1]); //4
          ctx.lineTo(p6[0], p6[1]); //6
          ctx.lineTo(p7[0], p7[1]); //7
          ctx.lineTo(p1[0], p1[1]); //1
          ctx.lineTo(p4[0], p4[1]); //4
          ctx.closePath();
        }
      });
      echarts.graphic.registerShape('MyCubeRect', MyCubeRect);
      echarts.graphic.registerShape('MyCubeShadow', MyCubeShadow);
      const option = {
        color: ['#33b56a', '#fdcf5c', '#4c90ff', '#fe7b7a', '#69ccf6', '#a38bf8', '#ff9561', '#8cb0ea', '#fe81b4', '#ffb258'],
        title: {
          text: '验算路线排行榜',
          left: 20,
          top: 20
        },
        legend: {
          show: true,
          top: 25
        },
        grid: {
          left: '3%',
          right: '4%',
          top: '15%',
          bottom: '3%',
          containLabel: true
        },
        xAxis: {
          type: 'category',
          data: xAxisText,
          boundaryGap: true,
          interval: 0,
          axisLabel: {
            color: '#333',
            //  让x轴文字方向为竖向
            interval: 0,
            formatter: function (value) {
              return value.split('').join('n')
            }
          }
        },
        yAxis: {
          type: 'value'
        },
        tooltip: {
          trigger: 'axis',
          axisPointer: {
            type: 'shadow'
          },
        },
        series: [{
          name: '次数',
          type: 'custom',
          renderItem: (params, api) => {
            let location = api.coord([api.value(0), api.value(1)]);
            return {
              type: 'group',
              children: [{
                type: 'MyCubeRect',
                shape: {
                  api,
                  xValue: api.value(0),
                  yValue: api.value(1),
                  x: location[0],
                  y: location[1]
                },
                style: api.style(),      // api.style()——继承原本的样式
              }, {
                type: 'MyCubeShadow',
                shape: {
                  api,
                  xValue: api.value(0),
                  yValue: api.value(1),
                  x: location[0],
                  y: location[1]
                },
                style: {
                  fill: api.style(),
                  text: ''            // 继承原本样式的基础上将label清空 如果不清空生成的图上会显示两个重叠的label
                }
              }]
            }
          },
          stack: '总量',
          label: {
            show: true,
            position: 'top',
            color: '#333',
            formatter: `{c}次`,
            fontSize: 16,
            distance: 15
          },
          itemStyle: {
            normal: {
              color: (params) => {
                // 使每根柱子颜色都不一样
                let colorList = ['#33b56a', '#fdcf5c', '#4c90ff', '#fe7b7a', '#69ccf6', '#a38bf8', '#ff9561', '#8cb0ea', '#fe81b4', '#ffb258'];
                if (params.dataIndex + 1 <= colorList.length) {
                  return colorList[params.dataIndex]
                } else {
                  // 如果柱子的数量超过颜色数组 就从头再来一遍
                  return colorList[params.dataIndex - colorList.length]
                }
              }
            }
          },
          data: dataList
        }]
      };
      this.dom = echarts.init(this.$refs.dom);
      this.dom.setOption(option, true)
      window.addEventListener("resize", () => {
        if (document.getElementById('roadnum') && this.$refs.roadnumall) {
          document.getElementById('roadnum').removeAttribute('_echarts_instance_');
          document.getElementById('roadnum').style.width = this.$refs.roadnumall.offsetWidth + 'px';
          document.getElementById('roadnum').style.height = this.$refs.roadnumall.offsetHeight + 'px';
          this.dom.resize();
        }
      });
    }
  }
}
