我是靠谱客的博主 暴躁钢铁侠,这篇文章主要介绍antd vue table跨行合并单元格,并且自定义内容实例,现在分享给大家,希望可以做个参考。

ant-design-vue版本:~1.3.8

需求:表格实现跨行合并,并且在合并完的单元格中显示图片

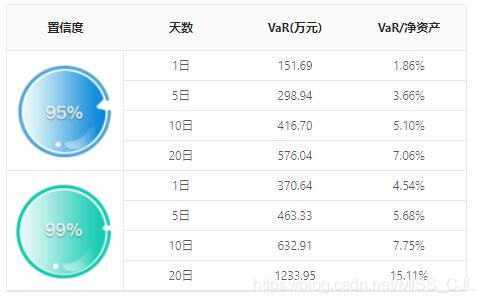

效果图:

源码:

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
export default { data() { return { pic95: require('@/assets/produit/95.png'), pic99: require('@/assets/produit/99.png'), varTable: { cloumns: [ { title: '置信度', dataIndex: 'confidence ', class: 'confidence', customRender: (value, row, index) => { let obj = { children: '', attrs: {} } if (index === 0) { obj = { children: <div class="risk-pic"><img src={this.pic95} /></div>, attrs: { rowSpan: 4 } } } if (index === 4) { obj = { children: <div class="risk-pic"><img src={this.pic99} /></div>, attrs: { rowSpan: 4 } } } if ([1, 2, 3, 5, 6, 7].indexOf(index) !== -1) { obj.attrs.colSpan = 0 } return obj } }, { title: '天数', dataIndex: 'window_length', width: '25%', customRender: (text) => text + '日' }, { title: 'VaR(万元)', dataIndex: 'var', width: '25%' }, { title: 'VaR/净资产', dataIndex: 'var_rate', width: '25%', customRender: (text) => fmtRatio(text, 2) } ], data: [ {window_length: 1, var: 151.69, var_rate: 0.01858}, {window_length: 5, var: 298.94, var_rate: 0.03661}, {window_length: 10, var: 416.70, var_rate: 0.05104}, {window_length: 20, var: 576.04, var_rate: 0.07055}, {window_length: 1, var: 370.64, var_rate: 0.045398}, {window_length: 5, var: 463.33, var_rate: 0.056751}, {window_length: 10, var: 632.91, var_rate: 0.077523}, {window_length: 20, var: 1233.95, var_rate: 0.15114} ] } } }, methods:{ // 百分数设置 fmtRatio(val, index, def) { // index默认值为2 var index = arguments[1] ? arguments[1] : 2 if (val == null || isNaN(val) || typeof (val) === 'string' && val === '') { return def || '--' } var ratio = (val * 100).toFixed(index) return ratio + '%' } } }

导入图片的方式还有

import pic95 from '@/assets/produit/95.png'

import pic99 from '@/assets/produit/99.png'

如果有问题,欢迎提出,一起交流~~!

补充知识:ant-design vue table 可选列、自定义列实现

实现ant-design for vue 自定义列实现。点击按钮,弹窗显示所有列的checkbox,选择checkbox,确定即可实现自定义列。先上代码

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
<script> /** * 该组件为实现table可选列。 * 具体操作见下方注释。 * 全部集成原a-table功能,使用方式与原a-table完全相同,扩展增加了可选列功能 * 该组件已注册至全局,使用方式只需将a-table变为zyx-table即可,等等一系列原写法不变,即可增加该功能. * 采用rander函数模式写,为了实现a-table中slot可动态。 */ export default { name: 'Table', data () { return { modalVisible: false, // 弹窗 columns: [], // 表格的列,根据条件来操作该字段 selectList: [], // 已选择的列 temporarySelectData: [], // 暂时选择的列,点击checkbox暂存到该字段,点确定同步到selectList checkboxList: []// checkbox的list,也做总数据来使用 } }, mounted () { /** * 挂载后,将原columns复制到本页columns,checkboxList * 将selectList赋值全选状态 */ this.columns = this.deepClone(this.$attrs.columns) this.checkboxList = this.deepClone(this.$attrs.columns) this.selectList = this.columns.map(ele => ele.dataIndex) }, methods: { /** * 打开modal,将checkbox默认值或者是选择值(暂存)重新赋值 */ handelOpenSelect () { this.temporarySelectData = this.deepClone(this.selectList) this.modalVisible = true }, /** * 点击确定,将暂存值赋值(temporarySelectData)给已选择的列(selectList) * 将列(columns)根据已选择的列(selectList)筛选出来 */ handleOk () { this.selectList = this.deepClone(this.temporarySelectData) this.modalVisible = false this.columns = this.checkboxList.filter(ele => this.selectList.includes(ele.dataIndex)) }, handleCancel () { this.modalVisible = false }, handelChange (e) { this.temporarySelectData = this.deepClone(e) }, deepClone (target) { let result if (typeof target === 'object') { if (Array.isArray(target)) { result = [] for (const i in target) { result.push(this.deepClone(target[i])) } } else if (target === null) { result = null } else if (target.constructor === RegExp) { result = target } else { result = {} for (const i in target) { result[i] = this.deepClone(target[i]) } } } else { result = target } return result } }, render () { const props = { ...this.$attrs, ...this.$props, ...{ columns: this.columns } } const on = { ...this.$listeners } const slots = Object.keys(this.$slots).map(slot => { return ( <template slot={slot}>{ this.$slots[slot] }</template> ) }) const table = ( <a-table props={props} scopedSlots={ this.$scopedSlots } on={on} ref="zyxTable"> {slots} </a-table> ) const changeDiv = ( <a-button class="select-columns" size="small" onClick={this.handelOpenSelect}>列</a-button> ) const checkboxArr = [] for (let i = 0; i < this.checkboxList.length; i++) { checkboxArr.push(<a-col span={8}><a-checkbox value={this.checkboxList[i].dataIndex}>{this.checkboxList[i].title}</a-checkbox></a-col>) } const modal = ( <a-modal title="设置列" visible={this.modalVisible} onOk={this.handleOk} onCancel={this.handleCancel}> <a-checkbox-group value={this.temporarySelectData} onChange={this.handelChange}> <a-row> {checkboxArr} </a-row> </a-checkbox-group> </a-modal> ) return ( <div class="zyx-table"> { table } { changeDiv } { modal } </div> ) } } </script> <style lang="less" scoped> .zyx-table{ position: relative; margin-top: 20px; .select-columns{ position: absolute; right: 0; top: -30px; } } .ant-row{ width: 100%; .ant-col-8{ margin-bottom: 10px; } } .ant-checkbox-group{ width: 100%; } </style>

该组件二次封装了a-table,集成原a-table所有方法

使用方法,在全局注册该组件,将原a-table替换为zyx-table即可实现。

将原标签替换为rander函数,是为了实现slot动态传入的效果。

有疑问或者更好的建议,欢迎光临思密达。github传送门

以上这篇antd vue table跨行合并单元格,并且自定义内容实例就是小编分享给大家的全部内容了,希望能给大家一个参考,也希望大家多多支持靠谱客。
