手机端js和html5刮刮卡效果

183 阅读 0 评论 121 点赞

我是靠谱客的博主大气毛衣，这篇文章主要介绍手机端js和html5刮刮卡效果，现在分享给大家，希望可以做个参考。

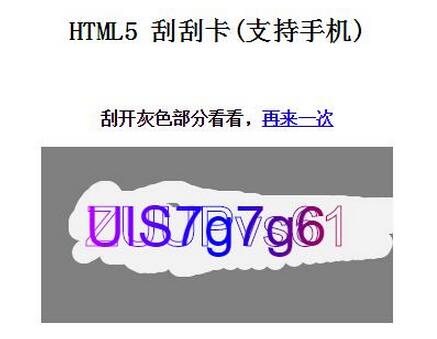

H5的Canvas实现刮刮卡效果。刮开之后是随机生成的8位码。

IE8不行...

复制代码

<!DOCTYPE html>
<html>
<head>
 <meta charset="utf-8">
 <meta http-equiv="X-UA-Compatible" content="IE=edge">
 <meta name="viewport" content="width=device-width, initial-scale=1">
 <title>HTML5 刮刮卡</title>
 <link rel="stylesheet" type="text/css" href="" />
 <style type="text/css">
 .demo{width:320px; margin:10px auto 20px auto; min-height:300px;}
 .msg{text-align:center; height:32px; line-height:32px; font-weight:bold; margin-top:50px}
 </style>
</head>

<body>
 <div id="main">
  <h2 align="center">HTML5 刮刮卡(支持手机)</a></h2>
  <div class="msg">刮开灰色部分看看，<a href="javascript：void(0)" onClick="window.location.reload()">再来一次</a></div>
  <div class="demo">
   <canvas id="canvasBotm"></canvas>
   <canvas id="canvasTop"></canvas>

  </div>
 </div>

<script type="text/javascript">

 //生成随机数据。n表示位数
 var jschars = ['0','1','2','3','4','5','6','7','8','9','A','B','C','D','E','F','G','H','I','J','K','L','M','N','O','P','Q','R','S','T','U','V','W','X','Y','Z','a','b','c','d','e','f','g','h','i','j','k','l','m','n','o','p','q','r','s','t','u','v','w','x','y','z'];
 function generateMixed(n) {
  var res = "";
  for(var i = 0; i < n ; i ++) {
   var id = Math.ceil(Math.random()*61);
   res += jschars[id];
  }
  //alert(res);
  return res;
 }

 //禁用页面的鼠标选中拖动的事件
 var bodyStyle = document.body.style;
 bodyStyle.mozUserSelect = 'none';
 bodyStyle.webkitUserSelect = 'none';

 //定义图片类，获取canvas元素，并设置背景和位置属性
 var img = new Image();
 var canvas = document.getElementById('canvasTop');
 var canvasBotm = document.getElementById('canvasBotm');
 canvas.style.backgroundColor='transparent';
 canvas.style.position = 'absolute';
 canvasBotm.style.backgroundColor='#f3f3f3'; //验证码背景色
 canvasBotm.style.position = 'absolute';

 var imgs = ['p_0.jpg','p_1.jpg'];
 var num = Math.floor(Math.random()*2);
 img.src = imgs[num];

 img.addEventListener('load', function(e) {
  var ctx;
  var w = img.width,
   h = img.height;
  var offsetX = canvas.offsetLeft,
   offsetY = canvas.offsetTop;
  var mousedown = false;
  //函数layer()用来绘制一个灰色的正方形
  function layer(ctx) {
   ctx.fillStyle = 'grey';
   ctx.fillRect(0, 0, w, h);
  }
  function layerBotm(ctxBotm) {
   ctxBotm.fillStyle = 'grey';
   ctxBotm.fillRect(0, 0, w, h);
  }
  //定义了按下事件
  function eventDown(e){
   e.preventDefault();
   mousedown=true;
  }
  //定义了松开事件
  function eventUp(e){
   e.preventDefault();
   mousedown=false;
  }
  //定义了移动事件
  function eventMove(e){
   e.preventDefault();
   if(mousedown) {     //当按下时，获取坐标位移，并通过arc(x, y, 10, 0, Math.PI * 2)来绘制小圆点
     if(e.changedTouches){
      e=e.changedTouches[e.changedTouches.length-1];
     }
     var x = (e.clientX + document.body.scrollLeft || e.pageX) - offsetX || 0,
      y = (e.clientY + document.body.scrollTop || e.pageY) - offsetY || 0;
     with(ctx) {
      beginPath()
      arc(x, y, 10, 0, Math.PI * 2);
      fill();
     }
   }
  }

  //通过canvas调用以上函数，绘制图形，并且侦听触控及鼠标事件，调用相应的函数
  canvas.width=w;
  canvas.height=h;
  canvasBotm.width=w;
  canvasBotm.height=h;
  //canvas.style.backgroundImage='url('+img.src+')';
  //canvas.style.backgroundColor='#f3f3f3';

  ctxBotm=canvas.getContext("2d");
  ctx=canvasBotm.getContext("2d");
  ctx.font="50px Arial";

  // 创建渐变
  var gradient=ctx.createLinearGradient(0,0,canvas.width,0);
  gradient.addColorStop("0","magenta");
  gradient.addColorStop("0.5","blue");
  gradient.addColorStop("1.0","red");

  //实习字体
  ctx.fillStyle=gradient;
  ctx.fillText(generateMixed(8),40,90);
  //空心字体
  ctx.strokeStyle=gradient;
  ctx.strokeText(generateMixed(8),40,90);

  ctx=canvas.getContext('2d');
  ctx.fillStyle='transparent';
  ctx.fillRect(0, 0, w, h);

  layerBotm(ctxBotm);
  layer(ctx);

  ctx.globalCompositeOperation = 'destination-out';

  canvas.addEventListener('touchstart', eventDown);
  canvas.addEventListener('touchend', eventUp);
  canvas.addEventListener('touchmove', eventMove);
  canvas.addEventListener('mousedown', eventDown);
  canvas.addEventListener('mouseup', eventUp);
  canvas.addEventListener('mousemove', eventMove);
 });
</script>
</body>
</html>
