2018.9.4
更新完整Github代码：https://github.com/maples1993/Cats_vs_Dogs

2. 卷积神经网络模型的构造——model.py
　　关于神经网络模型不想说太多，视频中使用的模型是仿照TensorFlow的官方例程cifar-10的网络结构来写的。就是两个卷积层（每个卷积层后加一个池化层），两个全连接层，最后一个softmax输出分类结果。

复制代码

import tensorflow as tf

def inference(images, batch_size, n_classes):
    # conv1, shape = [kernel_size, kernel_size, channels, kernel_numbers]
    with tf.variable_scope("conv1") as scope:
        weights = tf.get_variable("weights",
                                  shape=[3, 3, 3, 16],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.1, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[16],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        conv = tf.nn.conv2d(images, weights, strides=[1, 1, 1, 1], padding="SAME")
        pre_activation = tf.nn.bias_add(conv, biases)
        conv1 = tf.nn.relu(pre_activation, name="conv1")

# pool1 && norm1
    with tf.variable_scope("pooling1_lrn") as scope:
        pool1 = tf.nn.max_pool(conv1, ksize=[1, 3, 3, 1], strides=[1, 2, 2, 1],
                               padding="SAME", name="pooling1")
        norm1 = tf.nn.lrn(pool1, depth_radius=4, bias=1.0, alpha=0.001/9.0,
                          beta=0.75, name='norm1')

# conv2
    with tf.variable_scope("conv2") as scope:
        weights = tf.get_variable("weights",
                                  shape=[3, 3, 16, 16],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.1, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[16],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        conv = tf.nn.conv2d(norm1, weights, strides=[1, 1, 1, 1], padding="SAME")
        pre_activation = tf.nn.bias_add(conv, biases)
        conv2 = tf.nn.relu(pre_activation, name="conv2")

# pool2 && norm2
    with tf.variable_scope("pooling2_lrn") as scope:
        pool2 = tf.nn.max_pool(conv2, ksize=[1, 3, 3, 1], strides=[1, 2, 2, 1],
                               padding="SAME", name="pooling2")
        norm2 = tf.nn.lrn(pool2, depth_radius=4, bias=1.0, alpha=0.001/9.0,
                          beta=0.75, name='norm2')

# full-connect1
    with tf.variable_scope("fc1") as scope:
        reshape = tf.reshape(norm2, shape=[batch_size, -1])
        dim = reshape.get_shape()[1].value
        weights = tf.get_variable("weights",
                                  shape=[dim, 128],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.005, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[128],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        fc1 = tf.nn.relu(tf.matmul(reshape, weights) + biases, name="fc1")

# full_connect2
    with tf.variable_scope("fc2") as scope:
        weights = tf.get_variable("weights",
                                  shape=[128, 128],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.005, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[128],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        fc2 = tf.nn.relu(tf.matmul(fc1, weights) + biases, name="fc2")

# softmax
    with tf.variable_scope("softmax_linear") as scope:
        weights = tf.get_variable("weights",
                                  shape=[128, n_classes],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.005, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[n_classes],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        softmax_linear = tf.add(tf.matmul(fc2, weights), biases, name="softmax_linear")
        softmax_linear = tf.nn.softmax(softmax_linear)
    return softmax_linear

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
import tensorflow as tf

def inference(images, batch_size, n_classes):
    # conv1, shape = [kernel_size, kernel_size, channels, kernel_numbers]
    with tf.variable_scope("conv1") as scope:
        weights = tf.get_variable("weights",
                                  shape=[3, 3, 3, 16],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.1, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[16],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        conv = tf.nn.conv2d(images, weights, strides=[1, 1, 1, 1], padding="SAME")
        pre_activation = tf.nn.bias_add(conv, biases)
        conv1 = tf.nn.relu(pre_activation, name="conv1")

    # pool1 && norm1
    with tf.variable_scope("pooling1_lrn") as scope:
        pool1 = tf.nn.max_pool(conv1, ksize=[1, 3, 3, 1], strides=[1, 2, 2, 1],
                               padding="SAME", name="pooling1")
        norm1 = tf.nn.lrn(pool1, depth_radius=4, bias=1.0, alpha=0.001/9.0,
                          beta=0.75, name='norm1')

    # conv2
    with tf.variable_scope("conv2") as scope:
        weights = tf.get_variable("weights",
                                  shape=[3, 3, 16, 16],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.1, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[16],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        conv = tf.nn.conv2d(norm1, weights, strides=[1, 1, 1, 1], padding="SAME")
        pre_activation = tf.nn.bias_add(conv, biases)
        conv2 = tf.nn.relu(pre_activation, name="conv2")

    # pool2 && norm2
    with tf.variable_scope("pooling2_lrn") as scope:
        pool2 = tf.nn.max_pool(conv2, ksize=[1, 3, 3, 1], strides=[1, 2, 2, 1],
                               padding="SAME", name="pooling2")
        norm2 = tf.nn.lrn(pool2, depth_radius=4, bias=1.0, alpha=0.001/9.0,
                          beta=0.75, name='norm2')

    # full-connect1
    with tf.variable_scope("fc1") as scope:
        reshape = tf.reshape(norm2, shape=[batch_size, -1])
        dim = reshape.get_shape()[1].value
        weights = tf.get_variable("weights",
                                  shape=[dim, 128],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.005, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[128],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        fc1 = tf.nn.relu(tf.matmul(reshape, weights) + biases, name="fc1")

    # full_connect2
    with tf.variable_scope("fc2") as scope:
        weights = tf.get_variable("weights",
                                  shape=[128, 128],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.005, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[128],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        fc2 = tf.nn.relu(tf.matmul(fc1, weights) + biases, name="fc2")

    # softmax
    with tf.variable_scope("softmax_linear") as scope:
        weights = tf.get_variable("weights",
                                  shape=[128, n_classes],
                                  dtype=tf.float32,
                                  initializer=tf.truncated_normal_initializer(stddev=0.005, dtype=tf.float32))
        biases = tf.get_variable("biases",
                                 shape=[n_classes],
                                 dtype=tf.float32,
                                 initializer=tf.constant_initializer(0.1))
        softmax_linear = tf.add(tf.matmul(fc2, weights), biases, name="softmax_linear")
        softmax_linear = tf.nn.softmax(softmax_linear)
    return softmax_linear

　　发现程序里面有很多with tf.variable_scope("name")的语句，这其实是TensorFlow中的变量作用域机制，目的是有效便捷地管理需要的变量。
　　变量作用域机制在TensorFlow中主要由两部分组成：

tf.get_variable(<name>, <shape>, <initializer>): 创建一个变量
tf.variable_scope(<scope_name>): 指定命名空间

如果需要共享变量，需要通过reuse_variables()方法来指定，详细的例子去官方文档中看就好了。（链接在博客参考部分）

复制代码

def losses(logits, labels):
    with tf.variable_scope("loss") as scope:
        cross_entropy = tf.nn.sparse_softmax_cross_entropy_with_logits(logits=logits,
                                                                       labels=labels, name="xentropy_per_example")
        loss = tf.reduce_mean(cross_entropy, name="loss")
        tf.summary.scalar(scope.name + "loss", loss)
    return loss

def trainning(loss, learning_rate):
    with tf.name_scope("optimizer"):
        optimizer = tf.train.AdamOptimizer(learning_rate=learning_rate)
        global_step = tf.Variable(0, name="global_step", trainable=False)
        train_op = optimizer.minimize(loss, global_step=global_step)
    return train_op

def evaluation(logits, labels):
    with tf.variable_scope("accuracy") as scope:
        correct = tf.nn.in_top_k(logits, labels, 1)
        correct = tf.cast(correct, tf.float16)
        accuracy = tf.reduce_mean(correct)
        tf.summary.scalar(scope.name + "accuracy", accuracy)
    return accuracy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
def losses(logits, labels):
    with tf.variable_scope("loss") as scope:
        cross_entropy = tf.nn.sparse_softmax_cross_entropy_with_logits(logits=logits,
                                                                       labels=labels, name="xentropy_per_example")
        loss = tf.reduce_mean(cross_entropy, name="loss")
        tf.summary.scalar(scope.name + "loss", loss)
    return loss


def trainning(loss, learning_rate):
    with tf.name_scope("optimizer"):
        optimizer = tf.train.AdamOptimizer(learning_rate=learning_rate)
        global_step = tf.Variable(0, name="global_step", trainable=False)
        train_op = optimizer.minimize(loss, global_step=global_step)
    return train_op


def evaluation(logits, labels):
    with tf.variable_scope("accuracy") as scope:
        correct = tf.nn.in_top_k(logits, labels, 1)
        correct = tf.cast(correct, tf.float16)
        accuracy = tf.reduce_mean(correct)
        tf.summary.scalar(scope.name + "accuracy", accuracy)
    return accuracy

　　函数losses(logits, labels)用于计算训练过程中的loss，这里输入参数logtis是函数inference()的输出，代表图片对猫和狗的预测概率，labels则是图片对应的标签。

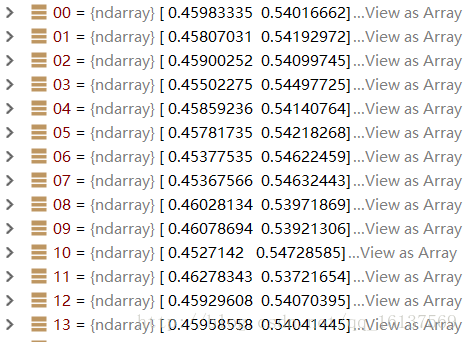

　　通过在程序中设置断点，查看logtis的值，结果如下图所示，根据这个就很好理解了，一个数值代表属于猫的概率，一个数值代表属于狗的概率，两者的和为1。

logtis变量

　　而函数tf.nn.sparse_sotfmax_cross_entropy_with_logtis从名字就很好理解，是将稀疏表示的label与输出层计算出来结果做对比。然后因为训练的时候是16张图片一个batch，所以再用tf.reduce_mean求一下平均值，就得到了这个batch的平均loss。
　　training(loss, learning_rate)就没什么好说的了，loss是训练的loss，learning_rate是学习率，使用AdamOptimizer优化器来使loss朝着变小的方向优化。
　　evaluation(logits, labels)功能是在训练过程中实时监测验证数据的准确率，达到反映训练效果的作用。

参考

TensorFlow官方文档 | 共享变量

补充

　　本来是自己之前犯懒，最后一篇关于训练的博客没写=0=，鉴于不少人想要训练代码，这里我就从简贴一下代码好了，大伙将就着看看，最近自己的事比较多，不想再把最开始的代码拿来翻了（刚开始写的太丑了）。

复制代码

import os
import numpy as np
import tensorflow as tf
import input_data
import model

N_CLASSES = 2
IMG_H = 208
IMG_W = 208
BATCH_SIZE = 32
CAPACITY = 2000
MAX_STEP = 15000
learning_rate = 0.0001

def run_training():
    train_dir = "data\train\"
    logs_train_dir = "logs\"

train, train_label = input_data.get_files(train_dir)
    train_batch, train_label_batch = input_data.get_batch(train,
                                                          train_label,
                                                          IMG_W,
                                                          IMG_H,
                                                          BATCH_SIZE,
                                                          CAPACITY)
    train_logits = model.inference(train_batch, BATCH_SIZE, N_CLASSES)
    train_loss = model.losses(train_logits, train_label_batch)
    train_op = model.trainning(train_loss, learning_rate)
    train_acc = model.evaluation(train_logits, train_label_batch)

summary_op = tf.summary.merge_all()
    sess = tf.Session()
    train_writer = tf.summary.FileWriter(logs_train_dir, sess.graph)
    saver = tf.train.Saver()

sess.run(tf.global_variables_initializer())
    coord = tf.train.Coordinator()
    threads = tf.train.start_queue_runners(sess=sess, coord=coord)

try:
        for step in np.arange(MAX_STEP):
            if coord.should_stop():
                break
            _, tra_loss, tra_acc = sess.run([train_op, train_loss, train_acc])

if step % 100 == 0:
                print("Step %d, train loss = %.2f, train accuracy = %.2f%%" % (step, tra_loss, tra_acc))
                summary_str = sess.run(summary_op)
                train_writer.add_summary(summary_str, step)
            if step % 2000 == 0 or (step + 1) == MAX_STEP:
                checkpoint_path = os.path.join(logs_train_dir, "model.ckpt")
                saver.save(sess, checkpoint_path, global_step=step)
    except tf.errors.OutOfRangeError:
        print("Done training -- epoch limit reached.")
    finally:
        coord.request_stop()

coord.join(threads)
    sess.close()

# 评估模型
from PIL import Image
import matplotlib.pyplot as plt

def get_one_image(train):
    n = len(train)
    ind = np.random.randint(0, n)
    img_dir = train[ind]

image = Image.open(img_dir)
    plt.imshow(image)
    plt.show()
    image = image.resize([208, 208])
    image = np.array(image)
    return image

def evaluate_one_image():
    train_dir = "C:\Users\panch\Documents\PycharmProjects\Cats_vs_Dogs\data\train\"
    train, train_label = input_data.get_files(train_dir)
    image_array = get_one_image(train)

with tf.Graph().as_default():
        BATCH_SIZE = 1
        N_CLASSES = 2

image = tf.cast(image_array, tf.float32)
        image = tf.reshape(image, [1, 208, 208, 3])
        logit = model.inference(image, BATCH_SIZE, N_CLASSES)
        logit = tf.nn.softmax(logit)

x = tf.placeholder(tf.float32, shape=[208, 208, 3])

logs_train_dir = "C:\Users\panch\Documents\PycharmProjects\Cats_vs_Dogs\logs\"
        saver = tf.train.Saver()

with tf.Session() as sess:
            print("Reading checkpoints...")
            ckpt = tf.train.get_checkpoint_state(logs_train_dir)
            if ckpt and ckpt.model_checkpoint_path:
                global_step = ckpt.model_checkpoint_path.split("/")[-1].split("-")[-1]
                saver.restore(sess, ckpt.model_checkpoint_path)
                print("Loading success, global_step is %s" % global_step)
            else:
                print("No checkpoint file found")

prediction = sess.run(logit, feed_dict={x: image_array})
            max_index = np.argmax(prediction)
            if max_index == 0:
                print("This is a cat with possibility %.6f" % prediction[:, 0])
            else:
                print("This is a dog with possibility %.6f" % prediction[:, 1])

run_training()
# evaluate_one_image()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
import os
import numpy as np
import tensorflow as tf
import input_data
import model

N_CLASSES = 2
IMG_H = 208
IMG_W = 208
BATCH_SIZE = 32
CAPACITY = 2000
MAX_STEP = 15000
learning_rate = 0.0001


def run_training():
    train_dir = "data\train\"
    logs_train_dir = "logs\"

    train, train_label = input_data.get_files(train_dir)
    train_batch, train_label_batch = input_data.get_batch(train,
                                                          train_label,
                                                          IMG_W,
                                                          IMG_H,
                                                          BATCH_SIZE,
                                                          CAPACITY)
    train_logits = model.inference(train_batch, BATCH_SIZE, N_CLASSES)
    train_loss = model.losses(train_logits, train_label_batch)
    train_op = model.trainning(train_loss, learning_rate)
    train_acc = model.evaluation(train_logits, train_label_batch)

    summary_op = tf.summary.merge_all()
    sess = tf.Session()
    train_writer = tf.summary.FileWriter(logs_train_dir, sess.graph)
    saver = tf.train.Saver()

    sess.run(tf.global_variables_initializer())
    coord = tf.train.Coordinator()
    threads = tf.train.start_queue_runners(sess=sess, coord=coord)

    try:
        for step in np.arange(MAX_STEP):
            if coord.should_stop():
                break
            _, tra_loss, tra_acc = sess.run([train_op, train_loss, train_acc])

            if step % 100 == 0:
                print("Step %d, train loss = %.2f, train accuracy = %.2f%%" % (step, tra_loss, tra_acc))
                summary_str = sess.run(summary_op)
                train_writer.add_summary(summary_str, step)
            if step % 2000 == 0 or (step + 1) == MAX_STEP:
                checkpoint_path = os.path.join(logs_train_dir, "model.ckpt")
                saver.save(sess, checkpoint_path, global_step=step)
    except tf.errors.OutOfRangeError:
        print("Done training -- epoch limit reached.")
    finally:
        coord.request_stop()

    coord.join(threads)
    sess.close()

# 评估模型
from PIL import Image
import matplotlib.pyplot as plt


def get_one_image(train):
    n = len(train)
    ind = np.random.randint(0, n)
    img_dir = train[ind]

    image = Image.open(img_dir)
    plt.imshow(image)
    plt.show()
    image = image.resize([208, 208])
    image = np.array(image)
    return image


def evaluate_one_image():
    train_dir = "C:\Users\panch\Documents\PycharmProjects\Cats_vs_Dogs\data\train\"
    train, train_label = input_data.get_files(train_dir)
    image_array = get_one_image(train)

    with tf.Graph().as_default():
        BATCH_SIZE = 1
        N_CLASSES = 2

        image = tf.cast(image_array, tf.float32)
        image = tf.reshape(image, [1, 208, 208, 3])
        logit = model.inference(image, BATCH_SIZE, N_CLASSES)
        logit = tf.nn.softmax(logit)

        x = tf.placeholder(tf.float32, shape=[208, 208, 3])

        logs_train_dir = "C:\Users\panch\Documents\PycharmProjects\Cats_vs_Dogs\logs\"
        saver = tf.train.Saver()

        with tf.Session() as sess:
            print("Reading checkpoints...")
            ckpt = tf.train.get_checkpoint_state(logs_train_dir)
            if ckpt and ckpt.model_checkpoint_path:
                global_step = ckpt.model_checkpoint_path.split("/")[-1].split("-")[-1]
                saver.restore(sess, ckpt.model_checkpoint_path)
                print("Loading success, global_step is %s" % global_step)
            else:
                print("No checkpoint file found")

            prediction = sess.run(logit, feed_dict={x: image_array})
            max_index = np.argmax(prediction)
            if max_index == 0:
                print("This is a cat with possibility %.6f" % prediction[:, 0])
            else:
                print("This is a dog with possibility %.6f" % prediction[:, 1])


run_training()
# evaluate_one_image()
