两点间距离、点到直线距离、点到线段距离、线段到线段距离

1
2
3
4
5
6
7
8
//两点间距离
double getDistancePP(Point a,Point b)
{
//这个代码是部分代码,有些逻辑没有展现完全,大家往下看!
    Point c(b.x-a.x,b.y-a.y);//返回一个新的点
    return  c.abs();//取模
}

1
2
3
4
5
6
7
8
9
//点到直线距离(利用外积平行四边形)
double getDistancePL(Point a,Point b,Point c)
{
    Vector ab(b.x-a.x,b.y-a.y);
    Vector ac(c.x-a.x,c.y-a.y);

    return cross(ab,ac)/ab.abs();//cross函数求两个向量的外积模,abs函数求向量模
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

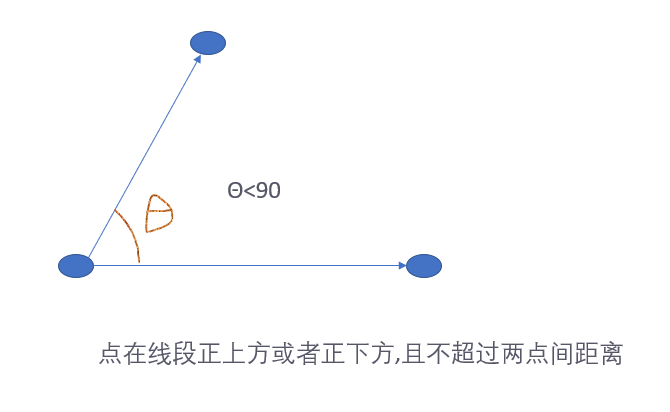

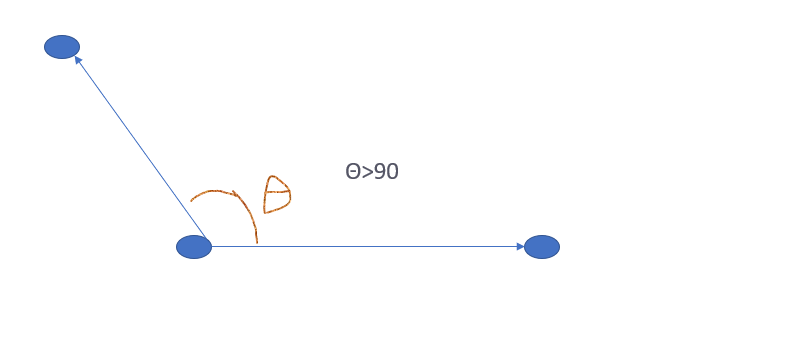

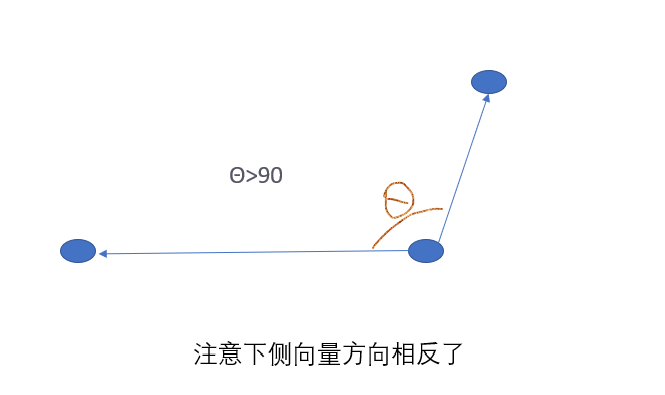

//点到线段距离
double getDistancePS(Point a,Point b,Point c)
{
    //定义4个向量
    Vector ab(b.x-a.x,b.y-a.y);
    Vector ba(a.x-b.x,a.y-b.y);
    Vector ac(c.x-a.x,c.y-a.y);
    Vector bc(c.x-b.x,c.y-b.y);
    //dot函数用于求内积
    if(dot(ab,ac)<0.0) return getDistancePP(a,c);//到左端点距离
    if(dot(ba,bc)<0.0) return getDistancePP(b,c);//到右端点距离

    return getDistancePL(a,b,c);//点到直线距离
}

1
2
3
4
5
6
7
//线段到线段的距离
double getDistanceSS(Point a,Point b,Point c,Point d)
{
    //从4个点到2线段距离中取最小
    return min(min(getDistancePS(c,d,a),getDistancePS(c,d,b)),min(getDistancePS(a,b,c),getDistancePS(a,b,d)));
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
#include <bits/stdc++.h>

using namespace std;

class Point
{

public:
    double x,y;

    Point(double x=0,double y=0):x(x),y(y) {}

    //向量加法
    Point operator+(Point p)
    {
        return Point(x+p.x,y+p.y);
    }
    //向量减法
    Point operator-(Point p)
    {
        return Point(x-p.x,y+p.y);
    }
    //向量伸缩
    Point operator*(double a)
    {
        return Point(x*a,y*a);
    }
    Point operator/(double a)
    {
        return Point(x/a,y/a);
    }
    //向量大小
    double abs()
    {
        return sqrt(norm());
    }
    //向量范数
    double norm()
    {
        return x*x+y*y;
    }

    bool operator<(const Point &p) const
    {
        return x!=p.x?x<p.x:y<p.y;
    }

    bool operator==(const Point &p)const
    {
        return x-p.x<1e-10&&y-p.y<1e-10;
    }

};

typedef Point Vector;

//向量内积
double dot(Vector a,Vector b)
{
    return a.x*b.x+a.y*b.y;
}

//向量外积
double cross(Vector a,Vector b)
{
    return abs(a.x*b.y-a.y*b.x);
}

//正交
bool isOrthogonal(Vector a,Vector b)
{
    return a.x*b.x+a.y*b.y==0;
}
//平行
bool isParallel(Vector a,Vector b)
{
    return a.x*b.y-a.y*b.x==0;
}

//投影
Point project(Point a,Point b,Point c)
{
    Vector ab(b.x-a.x,b.y-a.y);
    Vector ac(c.x-a.x,c.y-a.y);
    double  r=dot(ab,ac)/ab.norm();//比例
    Vector h(ab*r);
    return Point(a.x+h.x,a.y+h.y);
}

//映象

Point reflect(Point a,Point b,Point c)
{
    //c到ab的投影点
    Point r=project(a,b,c);
    Vector cr(r.x-c.x,r.y-c.y);
    //cr扩大二倍
    Vector cr_2=cr*2;//上面重载过*
    //向量加法
    return Point(c.x+cr_2.x,c.y+cr_2.y);
}

//两点间距离
double getDistancePP(Point a,Point b)
{
    Point c(b.x-a.x,b.y-a.y);
    return  c.abs();
}

//点到直线距离(利用外积平行四边形)
double getDistancePL(Point a,Point b,Point c)
{
    Vector ab(b.x-a.x,b.y-a.y);
    Vector ac(c.x-a.x,c.y-a.y);

    return cross(ab,ac)/ab.abs();
}

//点到线段距离
double getDistancePS(Point a,Point b,Point c)
{
    //定义4个向量
    Vector ab(b.x-a.x,b.y-a.y);
    Vector ba(a.x-b.x,a.y-b.y);
    Vector ac(c.x-a.x,c.y-a.y);
    Vector bc(c.x-b.x,c.y-b.y);

    if(dot(ab,ac)<0.0) return getDistancePP(a,c);
    if(dot(ba,bc)<0.0) return getDistancePP(b,c);

    return getDistancePL(a,b,c);
}


//线段到线段的距离
double getDistanceSS(Point a,Point b,Point c,Point d)
{
    //从4个点到2线段距离中取最小
    return min(min(getDistancePS(c,d,a),getDistancePS(c,d,b)),min(getDistancePS(a,b,c),getDistancePS(a,b,d)));
}
int main()
{
    int x0,y0,x1,y1,x2,y2,x3,y3;
    cin>>x0>>y0>>x1>>y1>>x2>>y2;
    Point a(x0,y0);
    Point b(x1,y1);
    cout<<"a,b两点间距离"<<getDistancePP(a,b)<<endl;
    Point c(x2,y2);
    cout<<"c点到直线ab距离"<<getDistancePL(a,b,c)<<endl;

    cout<<"c点到线段ab的距离"<<getDistancePS(a,b,c)<<endl;
    cin>>x3>>y3;

    Point d(x3,y3);
    cout<<"线段ab到线段cd的距离"<<getDistanceSS(a,b,c,d)<<endl;

    return 0;
}
