我是靠谱客的博主任性河马，这篇文章主要介绍NETDMIS5.0如何运行程序2023，现在分享给大家，希望可以做个参考。

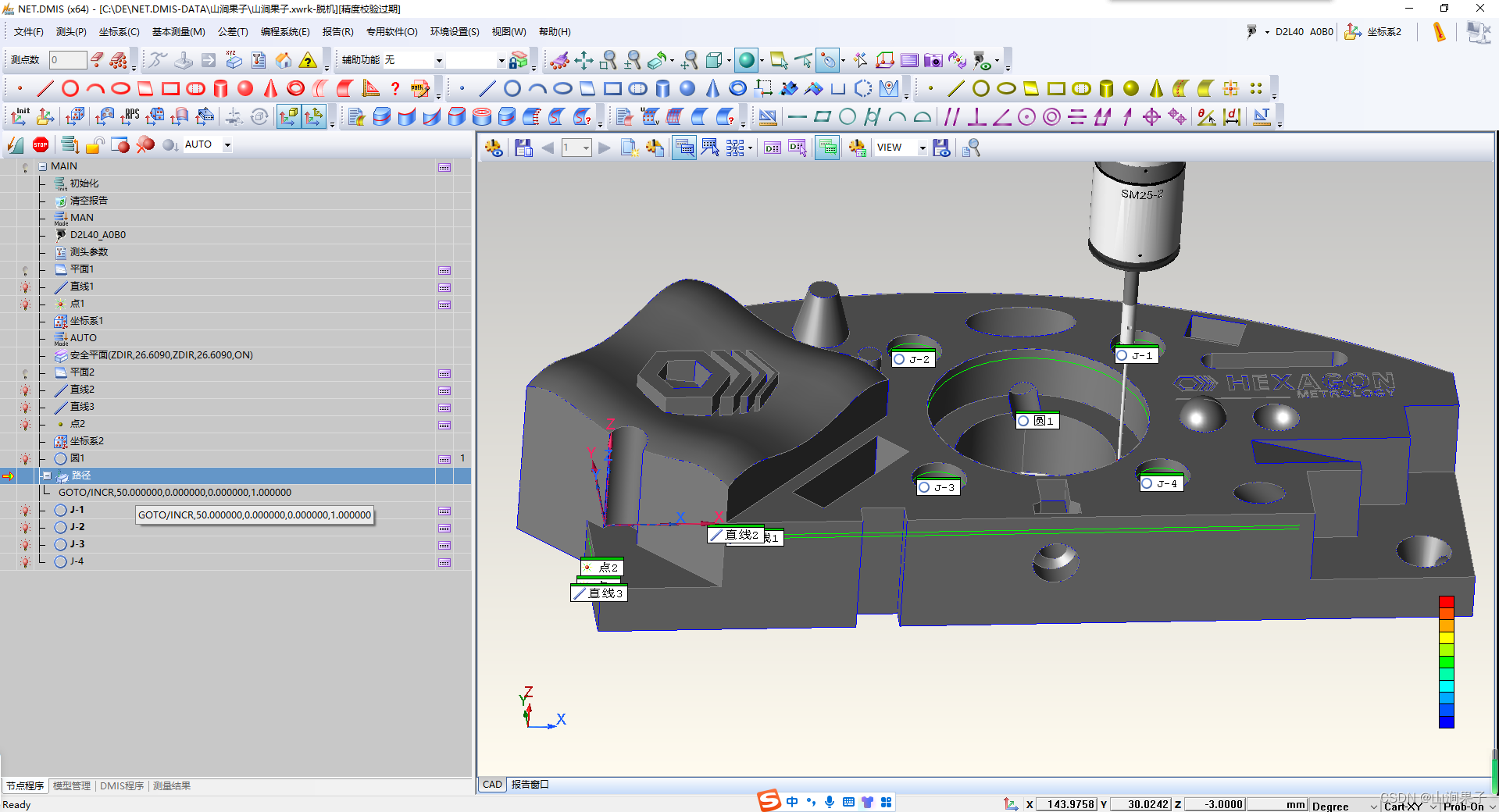

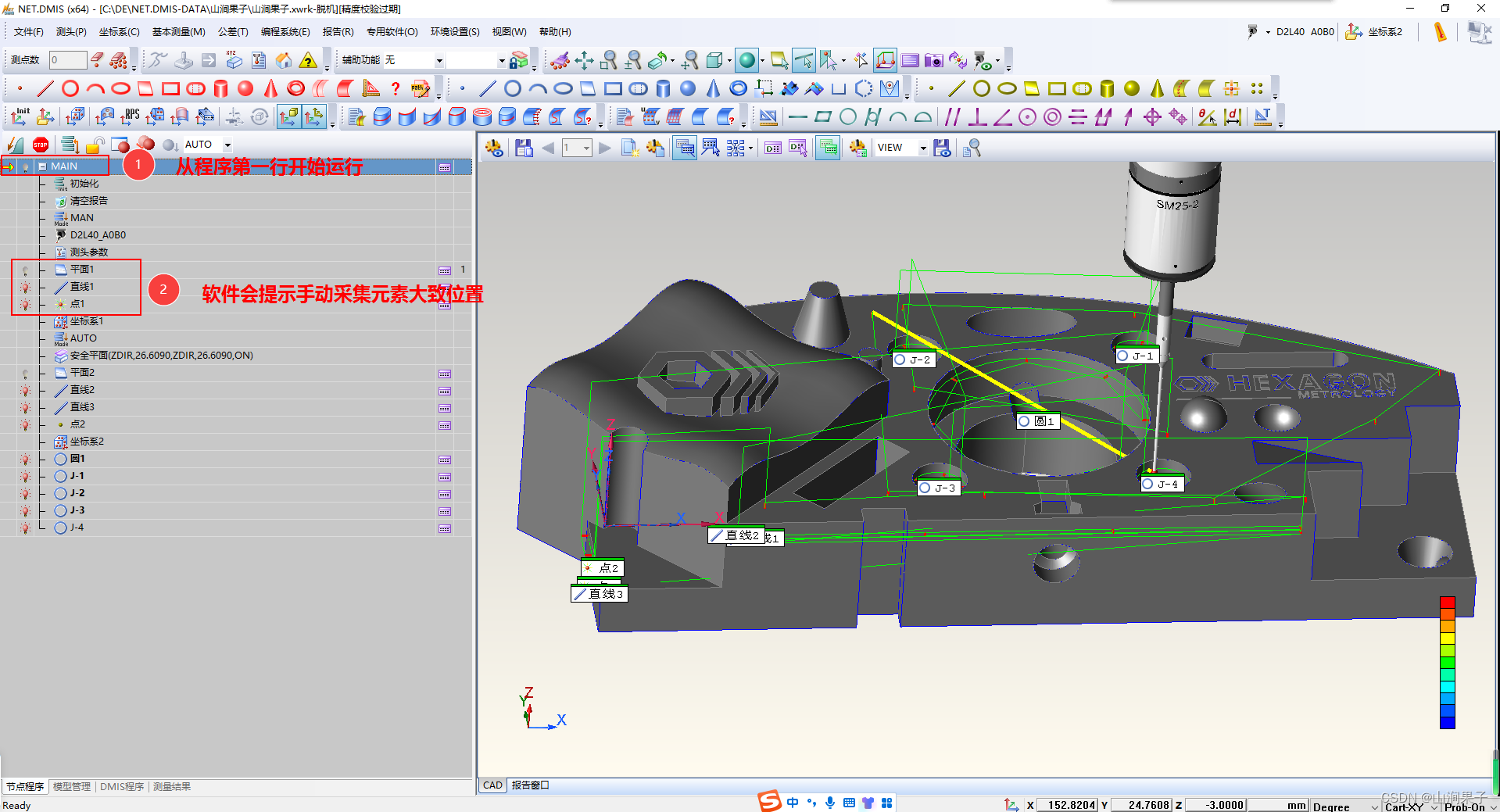

对于执行一个已经编辑好的程序，只需按顺序手动测量用于建立坐标系的元素， NETDMIS5.0将自动完成其余的测量与评价。

在这里插入图片描述

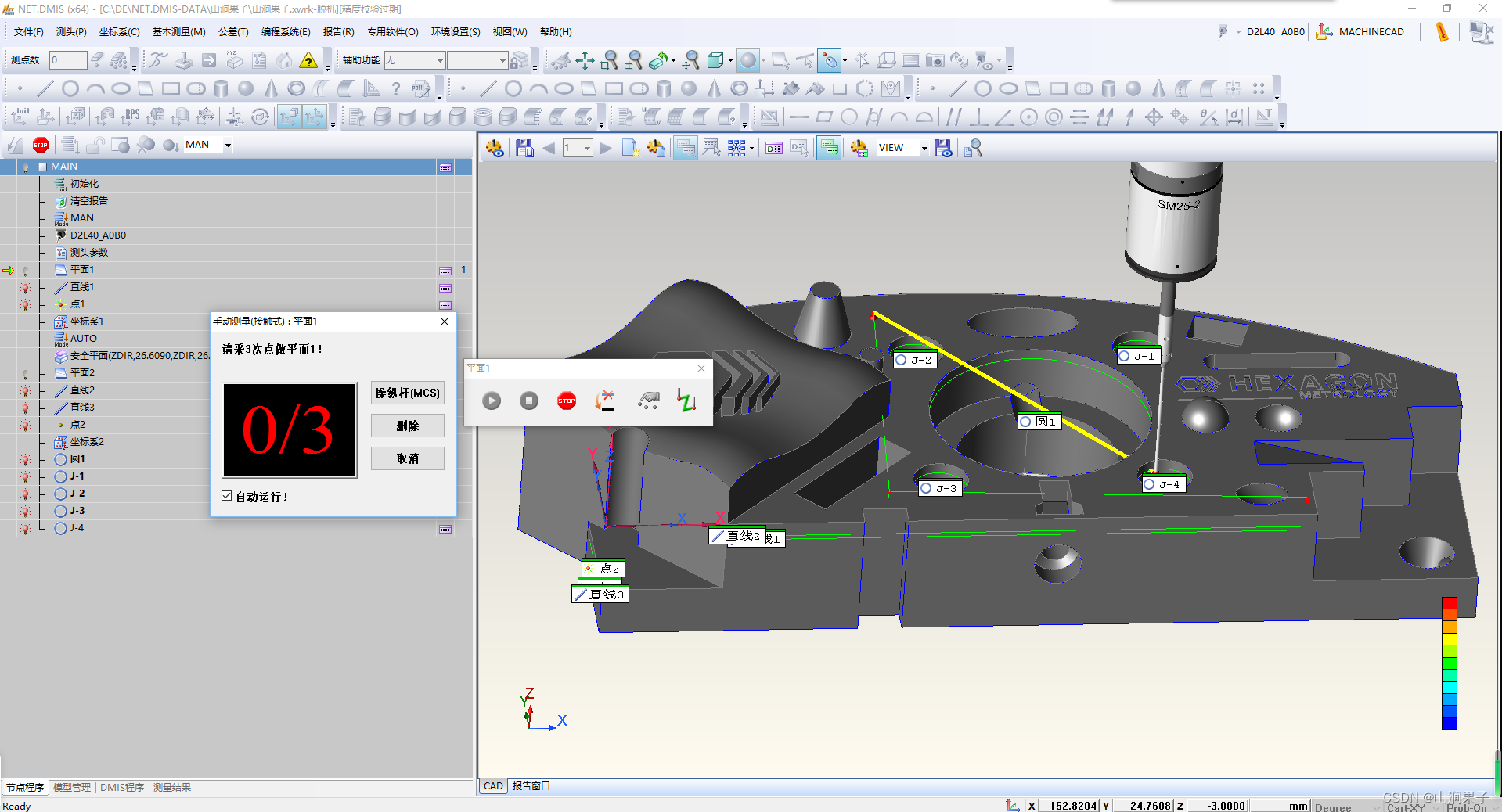

在编辑一个NETDMIS5.0 程序时，关键要注意测头所经过路径的规划，注意在合适的位置加入轨迹点（定位点GOTO）；

在这里插入图片描述

复制代码

$$ NET_DMIS_20160720
$$ MADE IN DE 2023-2-9 12:59:58
INCLUD/DMIS,'NET_DMIS_DEFINES.DMI'
INCLUD/DMIS,'VARDEFINE'
DMESW/COMAND,'PROBE_VAL/INIT'
UNITS/MM,ANGDEC
D(MACHINE)=DATSET/MCS
DMESW/COMAND,'COORDSYS/ALIGN'
WKPLAN/XYPLAN
PRCOMP/ON
PRCOMP/ON
FEDRAT/POSVEL,MMPS,300.0000
ACLRAT/POSACL,MMPSS,100.0000
FEDRAT/MESVEL,MMPS,20.0000
ACLRAT/MESACL,MMPSS,100.0000
SNSET/RETRCT,1.0000
SNSET/SEARCH,5.0000
SNSET/APPRCH,1.0000
DMESW/COMAND,'SNSET/MANRETRCT,1.0000'
DMESW/COMAND,'REPORT/CLEAR'
MODE/MAN
DID(D2L40)=DEVICE/STOR,'D2L40'
OPEN/DID(D2L40),SNS
S(A0B0)=SNSDEF/PROBE,INDEX,POL,0.0,0.0,0.0000,0.0000,1.0000,189.6500,2.0000
SNSLCT/SA(A0B0)
DMESW/COMAND,'SNSET/MANRETRCT,2.0000'
GEOALG/PLANE,LSTSQR
F(平面1)=FEAT/PLANE,CART,117.8450,37.6159,0,0,0,1.00000000
MEAS/PLANE,F(平面1),3
PTMEAS/CART,83.5243,96.3074,0,0,0,1.00000000
PTMEAS/CART,78.3239,11.2989,0,0,0,1.00000000
PTMEAS/CART,191.6869,5.2413,0,0,0,1.00000000
ENDMES
SNSET/DEPTH,0
DMESW/COMAND,'CONST/SET_PROJ_VEC,FA(平面1),1'
F(直线1)=FEAT/LINE,UNBND,CART,41.2855,0,-4.3549,0.99993434,0,-0.01145929,0,-1.00000000,0
MEAS/LINE,F(直线1),2
PTMEAS/CART,41.2855,0,-5.2069,0,-1.00000000,0
PTMEAS/CART,189.9784,0,-5.2069,0,-1.00000000,0
ENDMES
F(点1)=FEAT/POINT,CART,0,4.0545,-23.0017,-1.00000000,0,0
MEAS/POINT,COMP,DME,F(点1),1
PTMEAS/CART,0,4.0545,-23.0017,-1.00000000,0,0
ENDMES
DATDEF/F(平面1),DAT(A_平面1)
D(坐标系1_S)=DATSET/DAT(A_平面1),ZDIR
D(坐标系1_R)=ROTATE/ZAXIS,FA(直线1),XDIR
D(坐标系1_T)=TRANS/ZORIG,FA(平面1)
D(坐标系1_T)=TRANS/YORIG,FA(直线1)
D(坐标系1_T)=TRANS/XORIG,FA(点1)
DMESW/COMAND,'COORDSYS/CAD=PART'
SAVE/DA(坐标系1)
MODE/AUTO,PROG,MAN
DMESW/COMAND,'CLEARP/ZDIR,26.6090,ZDIR,26.6090,ON'
F(平面2)=FEAT/PLANE,CART,140.1306,46.5851,0,0,0,1.00000000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面2),PLANE,CART,LSTSQR,140.1306,46.5851,$
0,0,0,1.00000000,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,POINTS,'9,44.2447,6.8379,0,0,0,1.00000000,$
104.5506,10.0028,0,0,0,1.00000000,166.8275,5.3791,0,0,0,1.00000000,214.8642,41.7133,0,0,0,1.00000000,$
234.9242,64.1629,0,0,0,1.00000000,154.9857,94.1727,0,0,0,1.00000000,92.3012,99.5693,0,0,0,1.00000000,$
91.0383,60.6970,0,0,0,1.00000000,157.4386,36.7310,0,0,0,1.00000000',TOUCH,0.3000,XYPLAN
F(直线2)=FEAT/LINE,BND,CART,36.0000,0,-4.0000,190.0000,0,-4.0000,0,-1.00000000,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_LINE_1007),AUTOFIGURE,F(直线2),LINE_BND,CART,36.0000,0,-4.0000,1.00000000,$
0,0,154.0000,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,0,-1.00000000,0,4,0,0,0,TOUCH,0.3000,XYPLAN,0,$
0,LINE,"","","EXT1","EXT2","EXT3",ENDCAL
F(直线3)=FEAT/LINE,BND,CART,0,2.0000,-24.0000,0,30.0000,-24.0000,-1.00000000,0,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_LINE_1007),AUTOFIGURE,F(直线3),LINE_BND,CART,0,2.0000,-24.0000,0,1.00000000,$
0,28.0000,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,-1.00000000,0,0,4,0,0,0,TOUCH,0.3000,XYPLAN,0,0,$
LINE,"","","EXT1","EXT2","EXT3",ENDCAL
F(点2)=FEAT/POINT,CART,0,0,-14.0000,0,0,-1.00000000
CONST/POINT,F(点2),INTOF,FA(直线2),FA(直线3)
DATDEF/F(平面2),DAT(A_平面2)
D(坐标系2_S)=DATSET/DAT(A_平面2),ZDIR
D(坐标系2_R)=ROTATE/ZAXIS,FA(直线2),XDIR
D(坐标系2_T)=TRANS/XORIG,FA(点2),YORIG,FA(点2)
D(坐标系2_T)=TRANS/ZORIG,FA(平面2)
SAVE/DA(坐标系2)
F(圆1)=FEAT/CIRCLE,INNER,CART,124.0000,50.0000,0,0,0,1.00000000,60.5000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_CIRCLE_1007),AUTOFIGURE,F(圆1),CIRCLE,INNER,CART,LSTSQR,124.0000,50.0000,$
0,0,0,1.00000000,60.5000,1.00000000,0,0,8,-3.0000,0,0,0,0,360.0000,TOUCH,CIRCLE,0.3000,0,FALSE,FALSE,$
FALSE,10.0000,"CUR",TRUE,FALSE,0,FA(VECBLD),10.0000,2.5000,3,XYPLAN,"",'7,0,0,0,0,3.0000,0,10','0,1,0,$
5.0000',"EXT3",ENDCAL
GOTO/INCR,50.000000,0.000000,0.000000,1.000000
F(J-1)=FEAT/CIRCLE,INNER,CART,154.5000,80.5000,0,0,0,1.00000000,15.0000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_CIRCLE_1007),AUTOFIGURE,F(J-1),CIRCLE,INNER,CART,LSTSQR,154.5000,80.5000,$
0,0,0,1.00000000,15.0000,1.00000000,0,0,5,-3.0000,0,0,0,0,360.0000,TOUCH,CIRCLE,0.3000,0,FALSE,FALSE,$
FALSE,10.0000,"CUR",TRUE,FALSE,0,FA(VECBLD),10.0000,2.5000,3,XYPLAN,"",'7,0,0,0,0,3.0000,0,10','0,1,0,$
5.0000',"EXT3",ENDCAL
F(J-2)=FEAT/CIRCLE,INNER,CART,93.5000,80.5000,0,0,0,1.00000000,15.0000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_CIRCLE_1007),AUTOFIGURE,F(J-2),CIRCLE,INNER,CART,LSTSQR,93.5000,80.5000,$
0,0,0,1.00000000,15.0000,-1.00000000,0,0,5,-3.0000,0,0,0,0,360.0000,TOUCH,CIRCLE,0.3000,0,FALSE,FALSE,$
FALSE,10.0000,"CUR",TRUE,FALSE,0,FA(VECBLD),10.0000,2.5000,3,XYPLAN,"",'7,0,0,0,0,3.0000,0,10','0,1,0,$
5.0000',"EXT3",ENDCAL
F(J-3)=FEAT/CIRCLE,INNER,CART,93.5000,19.5000,0,0,0,1.00000000,15.0000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_CIRCLE_1007),AUTOFIGURE,F(J-3),CIRCLE,INNER,CART,LSTSQR,93.5000,19.5000,$
0,0,0,1.00000000,15.0000,1.00000000,0,0,5,-3.0000,0,0,0,0,360.0000,TOUCH,CIRCLE,0.3000,0,FALSE,FALSE,$
FALSE,10.0000,"CUR",TRUE,FALSE,0,FA(VECBLD),10.0000,2.5000,3,XYPLAN,"",'7,0,0,0,0,3.0000,0,10','0,1,0,$
5.0000',"EXT3",ENDCAL
F(J-4)=FEAT/CIRCLE,INNER,CART,154.5000,19.5000,0,0,0,1.00000000,15.0000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_CIRCLE_1007),AUTOFIGURE,F(J-4),CIRCLE,INNER,CART,LSTSQR,154.5000,19.5000,$
0,0,0,1.00000000,15.0000,-1.00000000,0,0,5,-3.0000,0,0,0,0,360.0000,TOUCH,CIRCLE,0.3000,0,FALSE,FALSE,$
FALSE,10.0000,"CUR",TRUE,FALSE,0,FA(VECBLD),10.0000,2.5000,3,XYPLAN,"",'7,0,0,0,0,3.0000,0,10','0,1,0,$
5.0000',"EXT3",ENDCAL
