本文基于git项目做二次开发:
改造后git地址:https://github.com/xvshu/keras-frcnn-web
原git地址:https://github.com/yhenon/keras-frcnn
简单介绍
Faster RCNN可以看做“区域生成网络(RPN)+Fast RCNN“的系统,用RPN代替Fast RCNN中的Selective Search来进行候选框的选择和修正。
Faster RCNN是由Ross Girshick于2015年提出的,其团队的何凯明大神(Resnet的发明者)将这个新的方法用于实时的目标检测(Real-Time Object Detection),简单网络目标检测速度达到17fps,在PASCAL VOC上准确率为59.9%;复杂网络达到5fps,准确率78.8%。
② RPN+Fast RCNN的思路

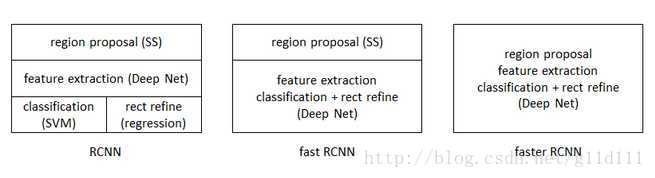

从RCNN到Fast RCNN,再到这里的Faster RCNN,目标检测的四个基本步骤(候选区域生成,特征提取,目标分类,位置回归修正)终于被统一到一个深度网络框架之内。所有计算没有重复,完全在GPU中完成,从而显著的提高了运行速度。
此图来自shenxiaolu1984的博客,在此感谢一下。
Faster-RCNN的做法是:
• 将RPN放在最后一个卷积层的后面
• RPN直接训练得到候选区域
将结合代码(Python-keras)详细的介绍Faster-RCNN及其相关内容,并补充一些有用的技巧。
③ Faster-RCN的结构

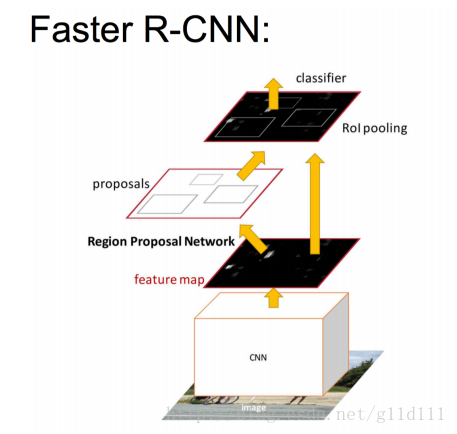

在这里,基本的思路是:在经过比较常用的用于ImageNet分类(如VGG,Resnet等)上提取好的特征图上,对所有可能的候选框(Bounding box)进行判别。后续对Bbox还有回归来修正坐标的步骤,所以候选框实际上是比较稀疏的。

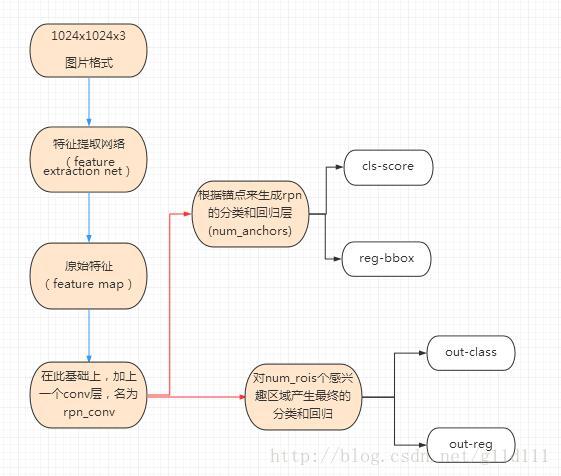

其步骤如下:
④ 特征提取(提出feature map)
原始特征提取(上图第二步)包含若干层conv+maxpooling,直接套用ImageNet上常见的分类网络即可。这里以VGG为例,其结构形式为:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47# coding: UTF-8 from keras.layers import Flatten, Dense, Input, Conv2D, MaxPooling2D, Dropout from keras.layers import GlobalAveragePooling2D, GlobalMaxPooling2D, TimeDistributed # 注意: theano和tensorflow作为后端的时候,接收图片格式不一致。 if K.image_dim_ordering() == 'th': # theano 接收形式为channel, width, height input_shape_img = (3, None, None) else: # tensorflow 接收形式为width, height, channel input_shape_img = (None, None, 3) img_input = Input(shape=input_shape_img) def nn_base(img_input): # Block 1 x = Conv2D(64, (3, 3), activation='relu', padding='same', name='block1_conv1')(img_input) x = Conv2D(64, (3, 3), activation='relu', padding='same', name='block1_conv2')(x) # 缩水1/2 1024x1024 -> 512x512 x = MaxPooling2D((2, 2), strides=(2, 2), name='block1_pool')(x) # Block 2 x = Conv2D(128, (3, 3), activation='relu', padding='same', name='block2_conv1')(x) x = Conv2D(128, (3, 3), activation='relu', padding='same', name='block2_conv2')(x) # 缩水1/2 512x512 -> 256x256 x = MaxPooling2D((2, 2), strides=(2, 2), name='block2_pool')(x) # Block 3 x = Conv2D(256, (3, 3), activation='relu', padding='same', name='block3_conv1')(x) x = Conv2D(256, (3, 3), activation='relu', padding='same', name='block3_conv2')(x) x = Conv2D(256, (3, 3), activation='relu', padding='same', name='block3_conv3')(x) # 缩水1/2 256x256 -> 128x128 x = MaxPooling2D((2, 2), strides=(2, 2), name='block3_pool')(x) # Block 4 x = Conv2D(512, (3, 3), activation='relu', padding='same', name='block4_conv1')(x) x = Conv2D(512, (3, 3), activation='relu', padding='same', name='block4_conv2')(x) x = Conv2D(512, (3, 3), activation='relu', padding='same', name='block4_conv3')(x) # 缩水1/2 128x128 -> 64x64 x = MaxPooling2D((2, 2), strides=(2, 2), name='block4_pool')(x) # Block 5 x = Conv2D(512, (3, 3), activation='relu', padding='same', name='block5_conv1')(x) x = Conv2D(512, (3, 3), activation='relu', padding='same', name='block5_conv2')(x) x = Conv2D(512, (3, 3), activation='relu', padding='same', name='block5_conv3')(x) # 显然,最后返回的x是64x64x512的feature map。 return x
以这个nn_base函数的返回值x作为后续的base_layers,紧接着,在base_layers后面添加一个conv层,并作为rpn的回归和分类的输入:
1
2
3
4
5
6
7
8
9
10# 这里num_anchors = 3x3 = 9,后面会提到 def rpn(base_layers, num_anchors): x = Conv2D(512, (3, 3), padding='same', activation='relu', kernel_initializer='normal', name='rpn_conv1')(base_layers) # rpn分类和回归 x_class = Conv2D(num_anchors, (1, 1), activation='sigmoid', kernel_initializer='uniform', name='rpn_out_class')(x) x_reg = Conv2D(num_anchors * 4, (1, 1), activation='linear', kernel_initializer='zero', name='rpn_out_regress')(x) return [x_class, x_reg, base_layers]
这里,x_class是使用1*1的卷积核在rpn_conv1上进行卷积,生成了num_anchors数量的channel ,每个channel包含特征图(w*h)个sigmoid激活值,表明该anchor是否可用,与我们刚刚计算的y_rpn_cls对应。同样地,x_regr与刚刚计算的y_rpn_regr对应。
⑤ RPN(Region Proposal Networks)的设计和训练思路

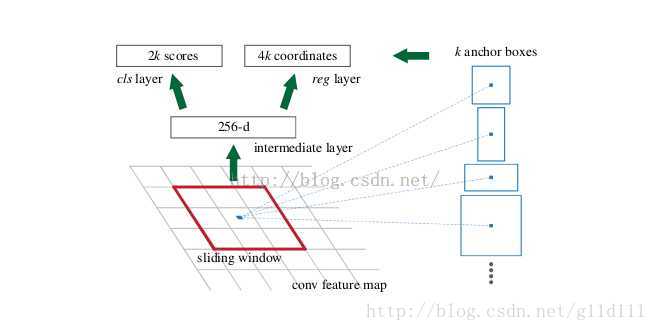

如下图所示,RPN是在CNN训练得到的用于分类任务的feature map基础上,进行
• 在feature map上滑动窗口。
• 建一个神经网络用于物体分类(x_class)+框位置的回归(x_reg)。
• 滑动窗口的位置提供了物体的大体位置信息。
• 框的回归修正框的位置,使其与对应的bbox位置更相近。
SPP的映射机制
上图是RPN的网络流程图,即利用了SPP的映射机制,从上面的rpn_conv1上进行滑窗来替代从原图滑窗。
不过,要如何训练出一个网络来替代selective search相类似的功能呢?
实际上思路很简单,就是先通过SPP根据一一对应的点从rpn_conv1映射回原图,根据设计不同的固定初始尺度训练一个网络,就是给它大小不同(但设计固定)的region图,然后根据与ground truth的覆盖率给它正负标签,让它学习里面是否有object即可。
这就又变成介绍RCNN之前提出的traditional method,训练出一个能检测物体的网络,然后对整张图片进行滑窗判断,不过这样子的话由于无法判断region的尺度和scale ratio,故需要多次放缩,这样子测试,估计判断一张图片是否有物体就需要很久。(传统hog+svm->dpm)
如何降低这一部分的复杂度?
要知道我们只需要找出大致的地方,无论是精确定位位置还是尺寸,后面的工作都可以完成。鉴于此,用层数低的网络还不如用深层的网络,通过① 固定anchor_box_scales变化,②固定anchor_box_ratios变化,③固定的采样方式(反正后面的工作能进行调整,更何况它本身就可以对box的位置进行调整)这样子来降低任务复杂度呢。
这里有个很不错的地方就是在前面可以共享卷积计算结果(第四部分的base_layers),这也算是用深度网络的另一个原因吧。
文章叫这些proposal region为anchor(锚点)的原因也正是这三个固定的变化。这个网络的结果就是卷积层的每个点都有有关于k个achor boxes的输出,包括是不是物体,调整box相应的位置。这相当于给了比较死的初始位置(三个固定),然后来大致判断是否是物体以及所对应的位置.
这样子的话RPN所要做的也就完成了,这个网络也就完成了它应该完成的使命,剩下的交给其他部分完成。
⑥ 锚点位置(anchor)
特征可以看做一个尺度64x64x512的特征图(feature map),对于该图像的每一个位置,考虑9个可能的候选窗口(即前面的num_anchors):三种面积[128,256,512] × 三种比例[1:1,1:2,2:1] 。
这九种可能的窗口形式分别为:
Window | Scale | Ratio |
---|---|---|
128 x 128 | 128 | 1:1 |
128 x 256 | 128 | 1:2 |
128 x 64 | 128 | 2:1 |
256 x 256 | 256 | 1:1 |
256 x 512 | 256 | 1:2 |
256 x 128 | 256 | 2:1 |
512 x 512 | 512 | 1:1 |
512 x 1024 | 512 | 1:2 |
512 x 256 | 512 | 2:1 |
这些候选窗口称为anchors。
注意:这里采用一个Config类来表示Faster-RCNN对应的各种参数(包括上面说的面积和比例关系等)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61from keras import backend as K import math class Config: def __init__(self): self.verbose = True self.network = 'vgg' # setting for data augmentation self.use_horizontal_flips = False self.use_vertical_flips = False self.rot_90 = False # 比赛的时候,调整anchor_box_scales和anchor_box_ratios # anchor box scales self.anchor_box_scales = [128, 256, 512] # anchor box ratios self.anchor_box_ratios = [[1, 1], [1./math.sqrt(2), 2./math.sqrt(2)], [2./math.sqrt(2), 1./math.sqrt(2)]] # size to resize the smallest side of the image self.im_size = 600 # image channel-wise mean to subtract self.img_channel_mean = [103.939, 116.779, 123.68] self.img_scaling_factor = 1.0 # number of ROIs at once self.num_rois = 4 # stride at the RPN (this depends on the network configuration) self.rpn_stride = 16 self.balanced_classes = False # scaling the stdev # 基于样本估算标准偏差。标准偏差反映数值相对于平均值(mean) 的离散程度。 self.std_scaling = 4.0 self.classifier_regr_std = [8.0, 8.0, 4.0, 4.0] # overlaps for RPN self.rpn_min_overlap = 0.3 self.rpn_max_overlap = 0.7 # overlaps for classifier ROIs self.classifier_min_overlap = 0.3 self.classifier_max_overlap = 0.8 # placeholder for the class mapping, automatically generated by the parser self.class_mapping = None #location of pretrained weights for the base network # weight files can be found at: # https://github.com/fchollet/deep-learning-models/releases/download/v0.2/resnet50_weights_th_dim_ordering_th_kernels_notop.h5 # https://github.com/fchollet/deep-learning-models/releases/download/v0.2/resnet50_weights_tf_dim_ordering_tf_kernels_notop.h5 self.model_path = 'model_frcnn.vgg.hdf5'
从下面的calc_rpn函数可以看出,有四层循环:1、2层为取出框的尺寸大小。3、4层为选定锚点的坐标,并与实际经过缩放对应的bbox的坐标(x1,y1表示矩形框左上角,x2, y2表示右下角)计算IoU以及进行判断每个锚点对应的9种框是否能匹配到bbox,以及匹配的程度。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230# coding: UTF-8 from __future__ import absolute_import import numpy as np import cv2 import random import copy # 这里C代表一个参数类(上面的Config),C = Config() def calc_rpn(C, img_data, width, height, resized_width, resized_height, img_length_calc_function): # 接下来读取了几个参数,downscale就是从图片到特征图的缩放倍数(默认为16.0) 这里, # img_length_calc_function(也就是实际的vgg中的get_img_output_length中整除的值一样。) # anchor_size和anchor_ratios是我们初步选区大小的参数,比如3个size和3个ratios,可以组合成9种不同形状大小的选区。 downscale = float(C.rpn_stride) anchor_sizes = C.anchor_box_scales anchor_ratios = C.anchor_box_ratios num_anchors = len(anchor_sizes) * len(anchor_ratios) # calculate the output map size based on the network architecture # 接下来, # 通过img_length_calc_function 对VGG16 返回的是一个height和width都整除16的结果这个方法计算出了特征图的尺寸。 # output_width = output_height = 600 // 16 = 37 (output_width, output_height) = img_length_calc_function(resized_width, resized_height) # 下一步是几个变量初始化可以先不看,后面用到的时候再看。 # n_anchratios = 3 n_anchratios = len(anchor_ratios) # initialise empty output objectives y_rpn_overlap = np.zeros((output_height, output_width, num_anchors)) y_is_box_valid = np.zeros((output_height, output_width, num_anchors)) y_rpn_regr = np.zeros((output_height, output_width, num_anchors * 4)) num_bboxes = len(img_data['bboxes']) num_anchors_for_bbox = np.zeros(num_bboxes).astype(int) best_anchor_for_bbox = -1*np.ones((num_bboxes, 4)).astype(int) best_iou_for_bbox = np.zeros(num_bboxes).astype(np.float32) best_x_for_bbox = np.zeros((num_bboxes, 4)).astype(int) best_dx_for_bbox = np.zeros((num_bboxes, 4)).astype(np.float32) # 因为我们的计算都是基于resize以后的图像的,所以接下来把bbox中的x1,x2,y1,y2分别通过缩放匹配到resize以后的图像。 # 这里记做gta,尺寸为(num_of_bbox,4)。 # get the GT box coordinates, and resize to account for image resizing gta = np.zeros((num_bboxes, 4)) for bbox_num, bbox in enumerate(img_data['bboxes']): # get the GT box coordinates, and resize to account for image resizing gta[bbox_num, 0] = bbox['x1'] * (resized_width / float(width)) gta[bbox_num, 1] = bbox['x2'] * (resized_width / float(width)) gta[bbox_num, 2] = bbox['y1'] * (resized_height / float(height)) gta[bbox_num, 3] = bbox['y2'] * (resized_height / float(height)) # rpn ground truth # 这一段计算了anchor的长宽,然后比较重要的就是把特征图的每一个点作为一个锚点, # 通过乘以downscale,映射到图片的实际尺寸,再结合anchor的尺寸,忽略掉超出图片范围的。 # 一个个大小、比例不一的矩形选框就跃然纸上了。 # 第一层for 3层 # 第二层for 3层 for anchor_size_idx in range(len(anchor_sizes)): for anchor_ratio_idx in range(n_anchratios): # 框的尺寸选定 anchor_x = anchor_sizes[anchor_size_idx] * anchor_ratios[anchor_ratio_idx][0] anchor_y = anchor_sizes[anchor_size_idx] * anchor_ratios[anchor_ratio_idx][1] # 对1024 --> 600 --> 37的形式,output_width = 37 # 选定锚点坐标: x_anc y_anc for ix in range(output_width): # x-coordinates of the current anchor box x1_anc = downscale * (ix + 0.5) - anchor_x / 2 x2_anc = downscale * (ix + 0.5) + anchor_x / 2 # ignore boxes that go across image boundaries if x1_anc < 0 or x2_anc > resized_width: continue for jy in range(output_height): # y-coordinates of the current anchor box y1_anc = downscale * (jy + 0.5) - anchor_y / 2 y2_anc = downscale * (jy + 0.5) + anchor_y / 2 # ignore boxes that go across image boundaries if y1_anc < 0 or y2_anc > resized_height: continue # 定义了两个变量,bbox_type和best_iou_for_loc,后面会用到。计算了anchor与gta的交集 iou(), # 然后就是如果交集大于best_iou_for_bbox[bbox_num]或者大于我们设定的阈值,就会去计算gta和anchor的中心点坐标, # bbox_type indicates whether an anchor should be a target bbox_type = 'neg' # this is the best IOU for the (x,y) coord and the current anchor # note that this is different from the best IOU for a GT bbox best_iou_for_loc = 0.0 # 对选出的选择框,判断其和实际上图片的所有Bbox中,有无满足大于规定threshold的情况。 for bbox_num in range(num_bboxes): # get IOU of the current GT box and the current anchor box curr_iou = iou([gta[bbox_num, 0], gta[bbox_num, 2], gta[bbox_num, 1], gta[bbox_num, 3]], [x1_anc, y1_anc, x2_anc, y2_anc]) # calculate the regression targets if they will be needed # 默认的最大rpn重叠部分(rpn_max_overlap)为0.7,最小(rpn_min_overlap)为0.3 if curr_iou > best_iou_for_bbox[bbox_num] or curr_iou > C.rpn_max_overlap: cx = (gta[bbox_num, 0] + gta[bbox_num, 1]) / 2.0 cy = (gta[bbox_num, 2] + gta[bbox_num, 3]) / 2.0 cxa = (x1_anc + x2_anc)/2.0 cya = (y1_anc + y2_anc)/2.0 # 计算出x,y,w,h四个值的梯度值。 # 为什么要计算这个梯度呢?因为RPN计算出来的区域不一定是很准确的,从只有9个尺寸的anchor也可以推测出来, # 因此我们在预测时还会进行一次回归计算,而不是直接使用这个区域的坐标。 tx = (cx - cxa) / (x2_anc - x1_anc) ty = (cy - cya) / (y2_anc - y1_anc) tw = np.log((gta[bbox_num, 1] - gta[bbox_num, 0]) / (x2_anc - x1_anc)) th = np.log((gta[bbox_num, 3] - gta[bbox_num, 2]) / (y2_anc - y1_anc)) # 前提是:当前的bbox不是背景 != 'bg' if img_data['bboxes'][bbox_num]['class'] != 'bg': # all GT boxes should be mapped to an anchor box, so we keep track of which anchor box was best if curr_iou > best_iou_for_bbox[bbox_num]: # jy 高度 ix 宽度 best_anchor_for_bbox[bbox_num] = [jy, ix, anchor_ratio_idx, anchor_size_idx] best_iou_for_bbox[bbox_num] = curr_iou best_x_for_bbox[bbox_num,:] = [x1_anc, x2_anc, y1_anc, y2_anc] best_dx_for_bbox[bbox_num,:] = [tx, ty, tw, th] # we set the anchor to positive if the IOU is >0.7 (it does not matter if there was another better box, it just indicates overlap) if curr_iou > C.rpn_max_overlap: bbox_type = 'pos' # 因为num_anchors_for_bbox 形式为 [0, 0, 0, 0] # 这步操作的结果为 [1, 1, 1, 1] num_anchors_for_bbox[bbox_num] += 1 # we update the regression layer target if this IOU is the best for the current (x,y) and anchor position if curr_iou > best_iou_for_loc: # 不断修正最佳iou对应的区域和梯度 best_iou_for_loc = curr_iou best_grad = (tx, ty, tw, th) # if the IOU is >0.3 and <0.7, it is ambiguous and no included in the objective if C.rpn_min_overlap < curr_iou < C.rpn_max_overlap: # gray zone between neg and pos if bbox_type != 'pos': bbox_type = 'neutral' # turn on or off outputs depending on IOUs # 接下来根据bbox_type对本anchor进行打标,y_is_box_valid和y_rpn_overlap分别定义了这个anchor是否可用和是否包含对象。 if bbox_type == 'neg': y_is_box_valid[jy, ix, anchor_ratio_idx + n_anchratios * anchor_size_idx] = 1 y_rpn_overlap[jy, ix, anchor_ratio_idx + n_anchratios * anchor_size_idx] = 0 elif bbox_type == 'neutral': y_is_box_valid[jy, ix, anchor_ratio_idx + n_anchratios * anchor_size_idx] = 0 y_rpn_overlap[jy, ix, anchor_ratio_idx + n_anchratios * anchor_size_idx] = 0 elif bbox_type == 'pos': y_is_box_valid[jy, ix, anchor_ratio_idx + n_anchratios * anchor_size_idx] = 1 y_rpn_overlap[jy, ix, anchor_ratio_idx + n_anchratios * anchor_size_idx] = 1 # 默认是36个选择 start = 4 * (anchor_ratio_idx + n_anchratios * anchor_size_idx) y_rpn_regr[jy, ix, start:start+4] = best_grad # we ensure that every bbox has at least one positive RPN region # 这里又出现了一个潜在问题: 可能会有bbox可能找不到心仪的anchor,那这些训练数据就没法利用了, # 因此我们用一个折中的办法来保证每个bbox至少有一个anchor与之对应。 # 下面是具体的方法,比较简单,对于没有对应anchor的bbox,在中性anchor里挑最好的,当然前提是你不能跟我完全不相交,那就太过分了。。 for idx in range(num_anchors_for_bbox.shape[0]): if num_anchors_for_bbox[idx] == 0: # no box with an IOU greater than zero ... 遇到这种情况只能pass了 if best_anchor_for_bbox[idx, 0] == -1: continue y_is_box_valid[ best_anchor_for_bbox[idx,0], best_anchor_for_bbox[idx,1], best_anchor_for_bbox[idx,2] + n_anchratios * best_anchor_for_bbox[idx,3]] = 1 y_rpn_overlap[ best_anchor_for_bbox[idx,0], best_anchor_for_bbox[idx,1], best_anchor_for_bbox[idx,2] + n_anchratios * best_anchor_for_bbox[idx,3]] = 1 start = 4 * (best_anchor_for_bbox[idx,2] + n_anchratios * best_anchor_for_bbox[idx,3]) y_rpn_regr[ best_anchor_for_bbox[idx,0], best_anchor_for_bbox[idx,1], start:start+4] = best_dx_for_bbox[idx, :] # y_rpn_overlap 原来的形式np.zeros((output_height, output_width, num_anchors)) # 现在变为 (num_anchors, output_height, output_width) y_rpn_overlap = np.transpose(y_rpn_overlap, (2, 0, 1)) # (新的一列,num_anchors, output_height, output_width) y_rpn_overlap = np.expand_dims(y_rpn_overlap, axis=0) y_is_box_valid = np.transpose(y_is_box_valid, (2, 0, 1)) y_is_box_valid = np.expand_dims(y_is_box_valid, axis=0) y_rpn_regr = np.transpose(y_rpn_regr, (2, 0, 1)) y_rpn_regr = np.expand_dims(y_rpn_regr, axis=0) # pos表示box neg表示背景 pos_locs = np.where(np.logical_and(y_rpn_overlap[0, :, :, :] == 1, y_is_box_valid[0, :, :, :] == 1)) neg_locs = np.where(np.logical_and(y_rpn_overlap[0, :, :, :] == 0, y_is_box_valid[0, :, :, :] == 1)) num_pos = len(pos_locs[0]) # one issue is that the RPN has many more negative than positive regions, so we turn off some of the negative # regions. We also limit it to 256 regions. # 因为negtive的anchor肯定远多于postive的, # 因此在这里设定了regions数量的最大值为256,并对pos和neg的样本进行了均匀的取样。 num_regions = 256 # 对感兴趣的框超过128的时候... if len(pos_locs[0]) > num_regions/2: # val_locs为一个list val_locs = random.sample(range(len(pos_locs[0])), len(pos_locs[0]) - num_regions/2) y_is_box_valid[0, pos_locs[0][val_locs], pos_locs[1][val_locs], pos_locs[2][val_locs]] = 0 num_pos = num_regions/2 # 使得neg(背景)和pos(锚框)数量一致 if len(neg_locs[0]) + num_pos > num_regions: val_locs = random.sample(range(len(neg_locs[0])), len(neg_locs[0]) - num_pos) y_is_box_valid[0, neg_locs[0][val_locs], neg_locs[1][val_locs], neg_locs[2][val_locs]] = 0 # axis = 1按行拼接 # a = [[1 2 3] # [4 5 6]] # b = [[11 21 31] # [ 7 8 9]] # np.concatenate((a,b), axis=1) = # [[ 1 2 3 11 21 31] # [ 4 5 6 7 8 9]] y_rpn_cls = np.concatenate([y_is_box_valid, y_rpn_overlap], axis=1) y_rpn_regr = np.concatenate([np.repeat(y_rpn_overlap, 4, axis=1), y_rpn_regr], axis=1) # 最后,得到了两个返回值y_rpn_cls,y_rpn_regr。分别用于确定anchor是否包含物体,和回归梯度。 # 值得注意的是, y_rpn_cls和y_rpn_regr数量是比实际的输入图片对应的Bbox数量多挺多的。 return np.copy(y_rpn_cls), np.copy(y_rpn_regr)

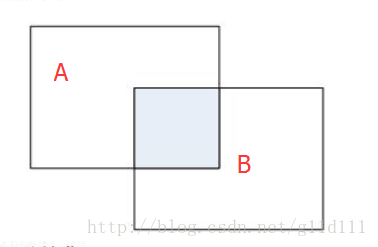

这里简单介绍一下IoU,可以理解将IoU简单理解为是一个定位精度评价公式。IoU定义了两个bounding box的重叠度,如下图所示:
其中蓝色部分为A和B的交集:A∩B
那么矩形框A、B的一个重合度IOU计算公式为:
IOU=(A∩B)/(A∪B)
对应的函数为:
1
2
3
4
5
6
7
8
9
10
11# 重合度 def iou(a, b): # a and b should be (x1,y1,x2,y2) if a[0] >= a[2] or a[1] >= a[3] or b[0] >= b[2] or b[1] >= b[3]: return 0.0 # 注意,intersection 和 union 需要自定义,这个比较简单,此处略过 area_i = intersection(a, b) # 交集 area_u = union(a, b, area_i) # 并集 return float(area_i) / float(area_u + 1e-6)
小结
在整个Faster RCNN算法中,有三种尺度。
-
原图尺度:原始输入的大小。不受任何限制,不影响性能。
-
归一化尺度:输入特征提取网络的大小,在测试时设置,上面的Config类中size to resize the smallest side of the image,self.im_size = 600。anchor在这个尺度上设定。这个参数和anchor的相对大小决定了想要检测的目标范围。
-
网络输入尺度:输入特征检测网络的大小,在训练时设置。
