Android底层库打印调试信息到logcat中查看

160 阅读 0 评论 106 点赞

我是靠谱客的博主香蕉石头，这篇文章主要介绍Android底层库打印调试信息到logcat中查看，现在分享给大家，希望可以做个参考。

一、最简单的NDK编译

最简单的方式，网上很多介绍，按以下几个步骤即可。

1、在要打印的源文件（c或c++源文件）加入#include <android/log.h>，及宏定义
#define LOGV(...) __android_log_print(ANDROID_LOG_VERBOSE,"yourTAGStr", __VA_ARGS__)
#define LOGD(...) __android_log_print(ANDROID_LOG_DEBUG,"yourTAGStr", __VA_ARGS__)
#define LOGI(...) __android_log_print(ANDROID_LOG_INFO, "yourTAGStr", __VA_ARGS__)
#define LOGW(...) __android_log_print(ANDROID_LOG_WARN， "yourTAGStr", __VA_ARGS__)
#define LOGE(...) __android_log_print(ANDROID_LOG_ERROR,"yourTAGStr", __VA_ARGS__)

2、Android.mk中加入LOCAL_LDLIBS+= -llog

3、在你需要打印的地方加入：如LOGE（"jni log test"）; 或LOGE("jni log test %d",12); LOGE打印出来的显示在logcat中为红色
补充：
android_LogPriority枚举类型，如下所示： typedef enum android_LogPriority { ANDROID_LOG_UNKNOWN = 0, ANDROID_LOG_DEFAULT, ANDROID_LOG_VERBOSE, ANDROID_LOG_DEBUG, ANDROID_LOG_INFO, ANDROID_LOG_WARN, ANDROID_LOG_ERROR, ANDROID_LOG_FATAL, ANDROID_LOG_SILENT, } android_LogPriority;
也可以不使用宏定义，直接打印如：__android_log_print(ANDROID_LOG_ERROR, "yourTAGStr", "jni log test");

二、底层库中链接第三方库，在第三方库中加调试信息

如果你的底层库需要链接第三方库，你也需要在第三方库源码中加打印，先看你的第三方库使用NDK编译的还是用./configure、make编译（可以这样理解：NDK/ndk-build是GNU Make的一个子集），如果使用NDK编译，那么直接使用上面第一种方式加入打印，如果不是，可参考以下我的做法。
我的底层库是libpj_video_android.so，使用NDK编译，需要加入ffmpeg库，ffmpeg使用./configure、make方式编译。

复制代码

include $(CLEAR_VARS)
LOCAL_MODULE := pj_video_android
LOCAL_C_INCLUDES := $(LOCAL_PATH)/../../../webrtc/sources/modules/video_render/main/interface
	$(LOCAL_PATH)/../../../webrtc/sources/modules/video_capture/main/interface
	$(LOCAL_PATH)/../../../webrtc/sources/modules/interface
	$(LOCAL_PATH)/../../../webrtc/sources/system_wrappers/interface
	$(LOCAL_PATH)/../../../webrtc/sources/modules
	$(LOCAL_PATH)/../../../webrtc/sources
	$(LOCAL_PATH)/../pjlib/include $(LOCAL_PATH)/../pjlib-util/include
	$(LOCAL_PATH)/../pjsip/include
	$(LOCAL_PATH)/../pjnath/include $(LOCAL_PATH)/include $(LOCAL_PATH)/..

# We depends on csipsimple at this point because we need service to be stored somewhere
LOCAL_C_INCLUDES += $(LOCAL_PATH)/../../android_sources/pjmedia/include/pjmedia-videodev
	$(LOCAL_PATH)/../../../swig-glue
	$(LOCAL_PATH)/../../../csipsimple-wrapper/include

# Ffmpeg codec depend on ffmpeg
LOCAL_C_INCLUDES += $(LOCAL_PATH)/../../../ffmpeg/ffmpeg_src

# Pj implementation for renderer
LOCAL_SRC_FILES += $(PJ_ANDROID_SRC_DIR)/pjmedia-videodev/webrtc_android_render_dev.cpp

# Pj implementation for capture
LOCAL_SRC_FILES += $(PJ_ANDROID_SRC_DIR)/pjmedia-videodev/webrtc_android_capture_dev.cpp

# Ffmpeg codec
LOCAL_SRC_FILES += $(PJMEDIACODEC_SRC_DIR)/ffmpeg_vid_codecs.c
	$(PJLIB_SRC_DIR)/converter_libswscale.c
	$(PJLIB_SRC_DIR)/ffmpeg_util.c
	$(PJMEDIACODEC_SRC_DIR)/h263_packetizer.c
	$(PJMEDIACODEC_SRC_DIR)/h264_packetizer.c
	$(PJLIB_SRC_DIR)/vid_codec_util.c

# For render and capture
LOCAL_STATIC_LIBRARIES += libwebrtc_video_render libwebrtc_video_capture

# Common webrtc utility
LOCAL_STATIC_LIBRARIES += libwebrtc_yuv libyuv libwebrtc_apm_utility
	libwebrtc_system_wrappers libwebrtc_spl

# Ffmpeg codec
BASE_FFMPEG_BUILD_DIR :=  $(LOCAL_PATH)/../../../ffmpeg/build/ffmpeg/$(TARGET_ARCH_ABI)/lib
LOCAL_LDLIBS += $(BASE_FFMPEG_BUILD_DIR)/libavcodec.a
		$(BASE_FFMPEG_BUILD_DIR)/libavformat.a
		$(BASE_FFMPEG_BUILD_DIR)/libswscale.a
		$(BASE_FFMPEG_BUILD_DIR)/libavutil.a

# Add X264
BASE_X264_BUILD_DIR :=  $(LOCAL_PATH)/../../../ffmpeg/build/x264/$(TARGET_ARCH_ABI)/lib
LOCAL_LDLIBS += $(BASE_X264_BUILD_DIR)/libx264.a

# Add ffmpeg to flags for pj part build
LOCAL_CFLAGS := $(MY_PJSIP_FLAGS) -DWEBRTC_ANDROID
	-DPJMEDIA_HAS_FFMPEG=1
	-DPJMEDIA_HAS_FFMPEG_CODEC=1
	-DPJMEDIA_HAS_FFMPEG_CODEC_H264=1

LOCAL_SHARED_LIBRARIES += libpjsipjni
LOCAL_LDLIBS += -lGLESv2 -llog
LOCAL_STATIC_LIBRARIES += libgcc cpufeatures

USE_STAGEFRIGHT_H264:=0
ANDROID_LIBS := ./jni/ffmpeg/ffmpeg_src/android-libs
ifeq ($(TARGET_ARCH_ABI),armeabi-v7a)
ifeq ($(USE_STAGEFRIGHT_H264),1)
	LOCAL_LDLIBS += -L$(ANDROID_LIBS) -Wl,-rpath-link,$(ANDROID_LIBS) -lstagefright -lutils -lbinder
endif
endif
include $(BUILD_SHARED_LIBRARY)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
include $(CLEAR_VARS)
LOCAL_MODULE := pj_video_android
LOCAL_C_INCLUDES := $(LOCAL_PATH)/../../../webrtc/sources/modules/video_render/main/interface
	$(LOCAL_PATH)/../../../webrtc/sources/modules/video_capture/main/interface
	$(LOCAL_PATH)/../../../webrtc/sources/modules/interface
	$(LOCAL_PATH)/../../../webrtc/sources/system_wrappers/interface
	$(LOCAL_PATH)/../../../webrtc/sources/modules
	$(LOCAL_PATH)/../../../webrtc/sources
	$(LOCAL_PATH)/../pjlib/include $(LOCAL_PATH)/../pjlib-util/include
	$(LOCAL_PATH)/../pjsip/include
	$(LOCAL_PATH)/../pjnath/include $(LOCAL_PATH)/include $(LOCAL_PATH)/..

# We depends on csipsimple at this point because we need service to be stored somewhere
LOCAL_C_INCLUDES += $(LOCAL_PATH)/../../android_sources/pjmedia/include/pjmedia-videodev
	$(LOCAL_PATH)/../../../swig-glue
	$(LOCAL_PATH)/../../../csipsimple-wrapper/include

# Ffmpeg codec depend on ffmpeg
LOCAL_C_INCLUDES += $(LOCAL_PATH)/../../../ffmpeg/ffmpeg_src

# Pj implementation for renderer
LOCAL_SRC_FILES += $(PJ_ANDROID_SRC_DIR)/pjmedia-videodev/webrtc_android_render_dev.cpp

# Pj implementation for capture
LOCAL_SRC_FILES += $(PJ_ANDROID_SRC_DIR)/pjmedia-videodev/webrtc_android_capture_dev.cpp

# Ffmpeg codec
LOCAL_SRC_FILES += $(PJMEDIACODEC_SRC_DIR)/ffmpeg_vid_codecs.c
	$(PJLIB_SRC_DIR)/converter_libswscale.c
	$(PJLIB_SRC_DIR)/ffmpeg_util.c
	$(PJMEDIACODEC_SRC_DIR)/h263_packetizer.c
	$(PJMEDIACODEC_SRC_DIR)/h264_packetizer.c
	$(PJLIB_SRC_DIR)/vid_codec_util.c

# For render and capture
LOCAL_STATIC_LIBRARIES += libwebrtc_video_render libwebrtc_video_capture

# Common webrtc utility
LOCAL_STATIC_LIBRARIES += libwebrtc_yuv libyuv libwebrtc_apm_utility
	libwebrtc_system_wrappers libwebrtc_spl

# Ffmpeg codec
BASE_FFMPEG_BUILD_DIR :=  $(LOCAL_PATH)/../../../ffmpeg/build/ffmpeg/$(TARGET_ARCH_ABI)/lib
LOCAL_LDLIBS += $(BASE_FFMPEG_BUILD_DIR)/libavcodec.a
		$(BASE_FFMPEG_BUILD_DIR)/libavformat.a
		$(BASE_FFMPEG_BUILD_DIR)/libswscale.a
		$(BASE_FFMPEG_BUILD_DIR)/libavutil.a

# Add X264
BASE_X264_BUILD_DIR :=  $(LOCAL_PATH)/../../../ffmpeg/build/x264/$(TARGET_ARCH_ABI)/lib
LOCAL_LDLIBS += $(BASE_X264_BUILD_DIR)/libx264.a

# Add ffmpeg to flags for pj part build
LOCAL_CFLAGS := $(MY_PJSIP_FLAGS) -DWEBRTC_ANDROID
	-DPJMEDIA_HAS_FFMPEG=1
	-DPJMEDIA_HAS_FFMPEG_CODEC=1
	-DPJMEDIA_HAS_FFMPEG_CODEC_H264=1

LOCAL_SHARED_LIBRARIES += libpjsipjni
LOCAL_LDLIBS += -lGLESv2 -llog
LOCAL_STATIC_LIBRARIES += libgcc cpufeatures

USE_STAGEFRIGHT_H264:=0
ANDROID_LIBS := ./jni/ffmpeg/ffmpeg_src/android-libs
ifeq ($(TARGET_ARCH_ABI),armeabi-v7a)
ifeq ($(USE_STAGEFRIGHT_H264),1)
	LOCAL_LDLIBS += -L$(ANDROID_LIBS) -Wl,-rpath-link,$(ANDROID_LIBS) -lstagefright -lutils -lbinder
endif
endif
include $(BUILD_SHARED_LIBRARY)

在ffmpeg库中加入打印信息并且在logcat查看，不能使用第一种方式，但是原理其实是一样的，都是要利用Android提供的log机制，即都要链接使用

android-ndk-r8e/platforms/android-14/arch-arm/usr/lib/liblog.so（android-ndk-r8e是我使用的NDK版本），那在ffmpeg库中怎么链接liblog.so呢？

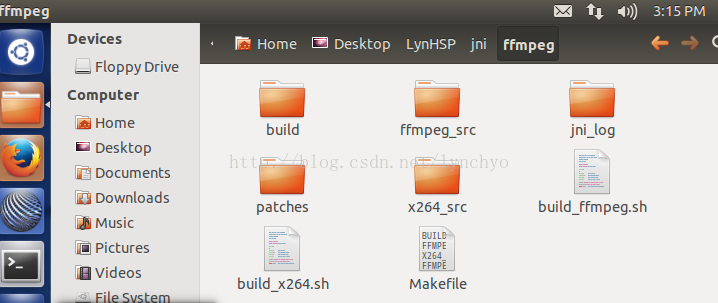

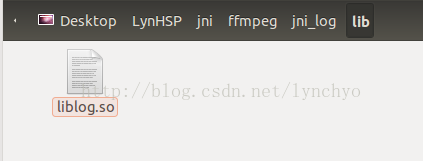

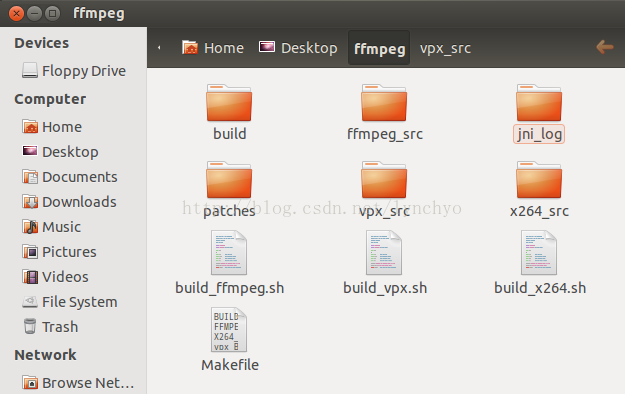

1、在我的ffmpeg根目录下，放入jni_log文件夹，放进liblog.so及相应头文件。

2、在./configure后加入liblog.so的路径并指定链接该库

脚本build_ffmpeg.sh是控制ffmpeg编译的，我在其中加入

build_ffmpeg.sh:

复制代码

#!/bin/bash
pushd `dirname $0`
TARGET_ARCH_ABI=$1
DEST=`pwd`/build/ffmpeg
ANDROID_API_LEVEL=9
minimal_featureset=1
USE_STAGEFRIGHT=0

NDK_ROOT=$(dirname $(which ndk-build))
ndk_gcc_res=$(ndk-build -n -C $NDK_ROOT/samples/hello-jni NDK_LOG=1 APP_ABI=$TARGET_ARCH_ABI APP_PLATFORM=android-$ANDROID_API_LEVEL | grep gcc)
NDK_CROSS_PREFIX=$(echo $ndk_gcc_res | awk '{ print $1 }' | sed 's/gcc//')
NDK_SYSROOT=$(echo $ndk_gcc_res | sed 's/^.*-I([^ ]*)/usr/include .*$/1/')

FLAGS="--cross-prefix=$NDK_CROSS_PREFIX"

case "$TARGET_ARCH_ABI" in
	x86)
		FLAGS="$FLAGS --enable-pic --target-os=linux --arch=x86 --disable-asm "
		;;
	mips)
		FLAGS="$FLAGS --target-os=linux --arch=mips --disable-asm "
		;;
    armeabi-v7a)
        FLAGS="$FLAGS --enable-pic --target-os=linux --arch=arm --cpu=armv7-a"
        ;;
	armeabi)
		FLAGS="$FLAGS --enable-pic --target-os=linux --arch=arm "
		;;
esac

pushd ffmpeg_src

ANDROID_SOURCE=./android-source
ANDROID_LIBS=./android-libs

# stagefright only for armeabi-v7a
if [[ "$TARGET_ARCH_ABI" != "armeabi-v7a" ]]; then
USE_STAGEFRIGHT=0
fi

if [ $USE_STAGEFRIGHT -eq 1 ]; then

if [ ! -d "$ANDROID_SOURCE/frameworks/base" ]; then
    echo "Fetching Android system base headers"
    git clone --depth=1 --branch gingerbread-release git://github.com/CyanogenMod/android_frameworks_base.git $ANDROID_SOURCE/frameworks/base
fi
if [ ! -d "$ANDROID_SOURCE/system/core" ]; then
    echo "Fetching Android system core headers"
    git clone --depth=1 --branch gingerbread-release git://github.com/CyanogenMod/android_system_core.git $ANDROID_SOURCE/system/core
fi
if [ ! -d "$ANDROID_LIBS" ]; then
    # Libraries from any froyo/gingerbread device/emulator should work
    # fine, since the symbols used should be available on most of them.
    echo "Fetching Android libraries for linking"
    if [ ! -f "./update-cm-7.0.3-N1-signed.zip" ]; then
        wget http://download.cyanogenmod.com/get/update-cm-7.0.3-N1-signed.zip -P./
    fi
    unzip ./update-cm-7.0.3-N1-signed.zip system/lib/* -d./
    mv ./system/lib $ANDROID_LIBS
    rmdir ./system
fi

# actual build
FLAGS="$FLAGS --sysroot=$NDK_SYSROOT"
FLAGS="$FLAGS --disable-shared --disable-symver"
FLAGS="$FLAGS --disable-everything"
#FLAGS="$FLAGS --enable-small"
FLAGS="$FLAGS --enable-gpl"
FLAGS="$FLAGS --enable-runtime-cpudetect"

# For h263
FLAGS="$FLAGS --enable-decoder=h263 --enable-encoder=h263"

#For x264
FLAGS="$FLAGS --enable-encoder=libx264 --enable-parser=h264"
FLAGS="$FLAGS --enable-libx264"
if [ $USE_STAGEFRIGHT -eq 1 ]; then
FLAGS="$FLAGS --enable-libstagefright-h264 --enable-decoder=libstagefright_h264"
else
FLAGS="$FLAGS --enable-decoder=h264"
fi

X264_LIBS=../build/x264/$TARGET_ARCH_ABI/lib
X264_INCLUDES=../build/x264/$TARGET_ARCH_ABI/include

ABI=$TARGET_ARCH_ABI
case "$TARGET_ARCH_ABI" in
	neon)
        # --- THIS IS NEVER USED FOR NOW ---
		EXTRA_CFLAGS="$EXTRA_CFLAGS -march=armv7-a -mfloat-abi=softfp -mfpu=neon"
		EXTRA_LDFLAGS="$EXTRA_LDFLAGS -Wl,--fix-cortex-a8"
		# Runtime choosing neon vs non-neon requires
		# renamed files
		ABI="armeabi-v7a-neon"
		;;
	armeabi-v7a)
		EXTRA_CFLAGS="$EXTRA_CFLAGS -march=armv7-a -mfloat-abi=softfp"
		;;
esac

DEST="$DEST/$ABI"
FLAGS="$FLAGS --prefix=$DEST"

# CXX
EXTRA_CXXFLAGS="-Wno-multichar -fno-exceptions -fno-rtti"

X264 libs and includes
EXTRA_CFLAGS="$EXTRA_CFLAGS -I$X264_INCLUDES"
EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$X264_LIBS -Wl,-rpath-link,$X264_LIBS"

# Stagefright
if [ $USE_STAGEFRIGHT -eq 1 ]; then
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$ANDROID_SOURCE/frameworks/base/include -I$ANDROID_SOURCE/system/core/include"
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$ANDROID_SOURCE/frameworks/base/media/libstagefright"
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$ANDROID_SOURCE/frameworks/base/include/media/stagefright/openmax"
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$NDK_ROOT/sources/cxx-stl/system/include"
    EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$ANDROID_LIBS -Wl,-rpath-link,$ANDROID_LIBS"
fi

#20141125 lyn add log to ffmpeg
LOG_LIBS=../jni_log/lib
LOG_INCLUDES=../jni_log/include
EXTRA_CFLAGS="$EXTRA_CFLAGS -I$LOG_INCLUDES"
EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$LOG_LIBS -llog"

mkdir -p $DEST
./configure $FLAGS --extra-cflags="$EXTRA_CFLAGS" --extra-ldflags="$EXTRA_LDFLAGS" --extra-cxxflags="$EXTRA_CXXFLAGS" | tee $DEST/configuration.txt
make clean
make -j4 || exit 1
make install || exit 1

popd; popd

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
#!/bin/bash
pushd `dirname $0`
TARGET_ARCH_ABI=$1
DEST=`pwd`/build/ffmpeg
ANDROID_API_LEVEL=9
minimal_featureset=1
USE_STAGEFRIGHT=0


NDK_ROOT=$(dirname $(which ndk-build))
ndk_gcc_res=$(ndk-build -n -C $NDK_ROOT/samples/hello-jni NDK_LOG=1 APP_ABI=$TARGET_ARCH_ABI APP_PLATFORM=android-$ANDROID_API_LEVEL | grep gcc)
NDK_CROSS_PREFIX=$(echo $ndk_gcc_res | awk '{ print $1 }' | sed 's/gcc//')
NDK_SYSROOT=$(echo $ndk_gcc_res | sed 's/^.*-I([^ ]*)/usr/include .*$/1/')

FLAGS="--cross-prefix=$NDK_CROSS_PREFIX"

case "$TARGET_ARCH_ABI" in
	x86)
		FLAGS="$FLAGS --enable-pic --target-os=linux --arch=x86 --disable-asm "
		;;
	mips)
		FLAGS="$FLAGS --target-os=linux --arch=mips --disable-asm "
		;;
    armeabi-v7a)
        FLAGS="$FLAGS --enable-pic --target-os=linux --arch=arm --cpu=armv7-a"
        ;;
	armeabi)
		FLAGS="$FLAGS --enable-pic --target-os=linux --arch=arm "
		;;
esac

pushd ffmpeg_src

ANDROID_SOURCE=./android-source
ANDROID_LIBS=./android-libs

# stagefright only for armeabi-v7a
if [[ "$TARGET_ARCH_ABI" != "armeabi-v7a" ]]; then
USE_STAGEFRIGHT=0
fi

if [ $USE_STAGEFRIGHT -eq 1 ]; then

if [ ! -d "$ANDROID_SOURCE/frameworks/base" ]; then
    echo "Fetching Android system base headers"
    git clone --depth=1 --branch gingerbread-release git://github.com/CyanogenMod/android_frameworks_base.git $ANDROID_SOURCE/frameworks/base
fi
if [ ! -d "$ANDROID_SOURCE/system/core" ]; then
    echo "Fetching Android system core headers"
    git clone --depth=1 --branch gingerbread-release git://github.com/CyanogenMod/android_system_core.git $ANDROID_SOURCE/system/core
fi
if [ ! -d "$ANDROID_LIBS" ]; then
    # Libraries from any froyo/gingerbread device/emulator should work
    # fine, since the symbols used should be available on most of them.
    echo "Fetching Android libraries for linking"
    if [ ! -f "./update-cm-7.0.3-N1-signed.zip" ]; then
        wget http://download.cyanogenmod.com/get/update-cm-7.0.3-N1-signed.zip -P./
    fi
    unzip ./update-cm-7.0.3-N1-signed.zip system/lib/* -d./
    mv ./system/lib $ANDROID_LIBS
    rmdir ./system
fi

fi


# actual build
FLAGS="$FLAGS --sysroot=$NDK_SYSROOT"
FLAGS="$FLAGS --disable-shared --disable-symver"
FLAGS="$FLAGS --disable-everything"
#FLAGS="$FLAGS --enable-small"
FLAGS="$FLAGS --enable-gpl"
FLAGS="$FLAGS --enable-runtime-cpudetect"

# For h263
FLAGS="$FLAGS --enable-decoder=h263 --enable-encoder=h263"

#For x264
FLAGS="$FLAGS --enable-encoder=libx264 --enable-parser=h264"
FLAGS="$FLAGS --enable-libx264"
if [ $USE_STAGEFRIGHT -eq 1 ]; then
FLAGS="$FLAGS --enable-libstagefright-h264 --enable-decoder=libstagefright_h264"
else
FLAGS="$FLAGS --enable-decoder=h264"
fi

X264_LIBS=../build/x264/$TARGET_ARCH_ABI/lib
X264_INCLUDES=../build/x264/$TARGET_ARCH_ABI/include


ABI=$TARGET_ARCH_ABI
case "$TARGET_ARCH_ABI" in
	neon)
        # --- THIS IS NEVER USED FOR NOW ---
		EXTRA_CFLAGS="$EXTRA_CFLAGS -march=armv7-a -mfloat-abi=softfp -mfpu=neon"
		EXTRA_LDFLAGS="$EXTRA_LDFLAGS -Wl,--fix-cortex-a8"
		# Runtime choosing neon vs non-neon requires
		# renamed files
		ABI="armeabi-v7a-neon"
		;;
	armeabi-v7a)
		EXTRA_CFLAGS="$EXTRA_CFLAGS -march=armv7-a -mfloat-abi=softfp"
		;;
esac

DEST="$DEST/$ABI"
FLAGS="$FLAGS --prefix=$DEST"

# CXX
EXTRA_CXXFLAGS="-Wno-multichar -fno-exceptions -fno-rtti"

X264 libs and includes
EXTRA_CFLAGS="$EXTRA_CFLAGS -I$X264_INCLUDES"
EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$X264_LIBS -Wl,-rpath-link,$X264_LIBS"

# Stagefright
if [ $USE_STAGEFRIGHT -eq 1 ]; then
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$ANDROID_SOURCE/frameworks/base/include -I$ANDROID_SOURCE/system/core/include"
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$ANDROID_SOURCE/frameworks/base/media/libstagefright"
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$ANDROID_SOURCE/frameworks/base/include/media/stagefright/openmax"
    EXTRA_CFLAGS="$EXTRA_CFLAGS -I$NDK_ROOT/sources/cxx-stl/system/include"
    EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$ANDROID_LIBS -Wl,-rpath-link,$ANDROID_LIBS"
fi

#20141125 lyn add log to ffmpeg
LOG_LIBS=../jni_log/lib
LOG_INCLUDES=../jni_log/include
EXTRA_CFLAGS="$EXTRA_CFLAGS -I$LOG_INCLUDES"
EXTRA_LDFLAGS="$EXTRA_LDFLAGS -L$LOG_LIBS -llog"

mkdir -p $DEST
./configure $FLAGS --extra-cflags="$EXTRA_CFLAGS" --extra-ldflags="$EXTRA_LDFLAGS" --extra-cxxflags="$EXTRA_CXXFLAGS" | tee $DEST/configuration.txt
make clean
make -j4 || exit 1
make install || exit 1

popd; popd

在./configure后加入链接liblog及头文件的参数（configure是根据配置信息生成makefile，通过查看ffmpeg_src目录下的configure文件，--extra-ldflags参数改动的其实是LDFLAGS参数），
./configure $FLAGS --extra-cflags="$EXTRA_CFLAGS" --extra-ldflags="$EXTRA_LDFLAGS" --extra-cxxflags="$EXTRA_CXXFLAGS" | tee $DEST/configuration.txt。

3、在ffmpeg源文件中加头文件，宏定义及打印信息
我在ffmpeg_src/libavcodec/libx264.c中加入

复制代码

1
2
3
4
5
6
#include "../jni_log/include/log.h"//lyn
//#define LOGV(...) __android_log_print(ANDROID_LOG_VERBOSE, "libpj_video_android", __VA_ARGS__)
//#define LOGD(...) __android_log_print(ANDROID_LOG_DEBUG  , "libpj_video_android", __VA_ARGS__)
//#define LOGI(...) __android_log_print(ANDROID_LOG_INFO   , "libpj_video_android", __VA_ARGS__)
//#define LOGW(...) __android_log_print(ANDROID_LOG_WARN   , "libpj_video_android", __VA_ARGS__)
#define LOGE(...) __android_log_print(ANDROID_LOG_ERROR  , "libpj_video_android", __VA_ARGS__)

在想打印的地方加入：

LOGE("ffmpeg-android-log-test=%d",123);或LOGE("ffmpeg-android-log-test");

编译结束后，需要链接，若出__android_log_print未定义的错误，则说明没有把liblog.so链接进去。

三、有的开源库编译，configure并没有提供--extra-ldflags参数让你链接其他库，这时该怎么办呢？

如我在ffmpeg库中加入vpx库，想在vpx源码中加打印，vpx_src/build/make/configue.sh并没有提供--extra-ldflags。

configure.sh：

复制代码

show_help_pre(){
    for opt in ${CMDLINE_SELECT}; do
        opt2=`echo $opt | sed -e 's;_;-;g'`
        if enabled $opt; then
            eval "toggle_${opt}="--disable-${opt2}""
        else
            eval "toggle_${opt}="--enable-${opt2} ""
        fi
    done

cat <<EOF
Usage: configure [options]
Options:

Build options:
  --help                      print this message
  --log=yes|no|FILE           file configure log is written to [config.log]
  --target=TARGET             target platform tuple [generic-gnu]
  --cpu=CPU                   optimize for a specific cpu rather than a family
  --extra-cflags=ECFLAGS      add ECFLAGS to CFLAGS [$CFLAGS]
  ${toggle_extra_warnings}    emit harmless warnings (always non-fatal)
  ${toggle_werror}            treat warnings as errors, if possible
                              (not available with all compilers)
  ${toggle_optimizations}     turn on/off compiler optimization flags
  ${toggle_pic}               turn on/off Position Independent Code
  ${toggle_ccache}            turn on/off compiler cache
  ${toggle_debug}             enable/disable debug mode
  ${toggle_gprof}             enable/disable gprof profiling instrumentation
  ${toggle_gcov}              enable/disable gcov coverage instrumentation
  ${toggle_thumb}             enable/disable building arm assembly in thumb mode

Install options:
  ${toggle_install_docs}      control whether docs are installed
  ${toggle_install_bins}      control whether binaries are installed
  ${toggle_install_libs}      control whether libraries are installed
  ${toggle_install_srcs}      control whether sources are installed

EOF
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
show_help_pre(){
    for opt in ${CMDLINE_SELECT}; do
        opt2=`echo $opt | sed -e 's;_;-;g'`
        if enabled $opt; then
            eval "toggle_${opt}="--disable-${opt2}""
        else
            eval "toggle_${opt}="--enable-${opt2} ""
        fi
    done

    cat <<EOF
Usage: configure [options]
Options:

Build options:
  --help                      print this message
  --log=yes|no|FILE           file configure log is written to [config.log]
  --target=TARGET             target platform tuple [generic-gnu]
  --cpu=CPU                   optimize for a specific cpu rather than a family
  --extra-cflags=ECFLAGS      add ECFLAGS to CFLAGS [$CFLAGS]
  ${toggle_extra_warnings}    emit harmless warnings (always non-fatal)
  ${toggle_werror}            treat warnings as errors, if possible
                              (not available with all compilers)
  ${toggle_optimizations}     turn on/off compiler optimization flags
  ${toggle_pic}               turn on/off Position Independent Code
  ${toggle_ccache}            turn on/off compiler cache
  ${toggle_debug}             enable/disable debug mode
  ${toggle_gprof}             enable/disable gprof profiling instrumentation
  ${toggle_gcov}              enable/disable gcov coverage instrumentation
  ${toggle_thumb}             enable/disable building arm assembly in thumb mode

Install options:
  ${toggle_install_docs}      control whether docs are installed
  ${toggle_install_bins}      control whether binaries are installed
  ${toggle_install_libs}      control whether libraries are installed
  ${toggle_install_srcs}      control whether sources are installed


EOF
}

解决方法：

修改configure.sh，加入--extra-ldflags接口说明及相应功能：

1、show_help_pre()中加入：“--extra-ldflags=ELDFLAGS add ELDFLAGS to LDFLAGS”

2、process_common_cmdline()中加入：

--extra-ldflags=*)

LDFLAGS="$LDFLAGS ${optval}"
;;

复制代码

cat <<EOF
Usage: configure [options]
Options:

Build options:
  --help                      print this message
  --log=yes|no|FILE           file configure log is written to [config.log]
  --target=TARGET             target platform tuple [generic-gnu]
  --cpu=CPU                   optimize for a specific cpu rather than a family
  --extra-cflags=ECFLAGS      add ECFLAGS to CFLAGS [$CFLAGS]
  --extra-ldflags=ELDFLAGS    add ELDFLAGS to LDFLAGS
  ${toggle_extra_warnings}    emit harmless warnings (always non-fatal)
  ${toggle_werror}            treat warnings as errors, if possible
                              (not available with all compilers)
  ${toggle_optimizations}     turn on/off compiler optimization flags
  ${toggle_pic}               turn on/off Position Independent Code
  ${toggle_ccache}            turn on/off compiler cache
  ${toggle_debug}             enable/disable debug mode
  ${toggle_gprof}             enable/disable gprof profiling instrumentation
  ${toggle_gcov}              enable/disable gcov coverage instrumentation
  ${toggle_thumb}             enable/disable building arm assembly in thumb mode

EOF
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
show_help_pre(){
    for opt in ${CMDLINE_SELECT}; do
        opt2=`echo $opt | sed -e 's;_;-;g'`
        if enabled $opt; then
            eval "toggle_${opt}="--disable-${opt2}""
        else
            eval "toggle_${opt}="--enable-${opt2} ""
        fi
    done

    cat <<EOF
Usage: configure [options]
Options:

Build options:
  --help                      print this message
  --log=yes|no|FILE           file configure log is written to [config.log]
  --target=TARGET             target platform tuple [generic-gnu]
  --cpu=CPU                   optimize for a specific cpu rather than a family
  --extra-cflags=ECFLAGS      add ECFLAGS to CFLAGS [$CFLAGS]
  --extra-ldflags=ELDFLAGS    add ELDFLAGS to LDFLAGS
  ${toggle_extra_warnings}    emit harmless warnings (always non-fatal)
  ${toggle_werror}            treat warnings as errors, if possible
                              (not available with all compilers)
  ${toggle_optimizations}     turn on/off compiler optimization flags
  ${toggle_pic}               turn on/off Position Independent Code
  ${toggle_ccache}            turn on/off compiler cache
  ${toggle_debug}             enable/disable debug mode
  ${toggle_gprof}             enable/disable gprof profiling instrumentation
  ${toggle_gcov}              enable/disable gcov coverage instrumentation
  ${toggle_thumb}             enable/disable building arm assembly in thumb mode

Install options:
  ${toggle_install_docs}      control whether docs are installed
  ${toggle_install_bins}      control whether binaries are installed
  ${toggle_install_libs}      control whether libraries are installed
  ${toggle_install_srcs}      control whether sources are installed


EOF
}

复制代码

process_common_cmdline() {
    for opt in "$@"; do
        optval="${opt#*=}"
        case "$opt" in
        --child) enable_feature child
        ;;
        --log*)
        logging="$optval"
        if ! disabled logging ; then
            enabled logging || logfile="$logging"
        else
            logfile=/dev/null
        fi
        ;;
        --target=*) toolchain="${toolchain:-${optval}}"
        ;;
        --force-target=*) toolchain="${toolchain:-${optval}}"; enable_feature force_toolchain
        ;;
        --cpu)
        ;;
        --cpu=*) tune_cpu="$optval"
        ;;
        --extra-cflags=*)
        extra_cflags="${optval}"
        ;;
        --extra-ldflags=*)
        LDFLAGS="$LDFLAGS ${optval}"
        ;;
        --enable-?*|--disable-?*)
        eval `echo "$opt" | sed 's/--/action=/;s/-/ option=/;s/-/_/g'`
        if echo "${ARCH_EXT_LIST}" | grep "^ *$option$" >/dev/null; then
            [ $action = "disable" ] && RTCD_OPTIONS="${RTCD_OPTIONS}${opt} "
        elif [ $action = "disable" ] && ! disabled $option ; then
          echo "${CMDLINE_SELECT}" | grep "^ *$option$" >/dev/null ||
            die_unknown $opt
        elif [ $action = "enable" ] && ! enabled $option ; then
          echo "${CMDLINE_SELECT}" | grep "^ *$option$" >/dev/null ||
            die_unknown $opt
        fi
        ${action}_feature $option
        ;;
        --require-?*)
        eval `echo "$opt" | sed 's/--/action=/;s/-/ option=/;s/-/_/g'`
        if echo "${ARCH_EXT_LIST}" none | grep "^ *$option$" >/dev/null; then
            RTCD_OPTIONS="${RTCD_OPTIONS}${opt} "
        else
            die_unknown $opt
        fi
        ;;
        --force-enable-?*|--force-disable-?*)
        eval `echo "$opt" | sed 's/--force-/action=/;s/-/ option=/;s/-/_/g'`
        ${action}_feature $option
        ;;
        --libc=*)
        [ -d "${optval}" ] || die "Not a directory: ${optval}"
        disable_feature builtin_libc
        alt_libc="${optval}"
        ;;
        --as=*)
        [ "${optval}" = yasm -o "${optval}" = nasm -o "${optval}" = auto ]
            || die "Must be yasm, nasm or auto: ${optval}"
        alt_as="${optval}"
        ;;
        --prefix=*)
        prefix="${optval}"
        ;;
        --libdir=*)
        libdir="${optval}"
        ;;
        --sdk-path=*)
        [ -d "${optval}" ] || die "Not a directory: ${optval}"
        sdk_path="${optval}"
        ;;
        --libc|--as|--prefix|--libdir|--sdk-path)
        die "Option ${opt} requires argument"
        ;;
        --help|-h) show_help
        ;;
        *) die_unknown $opt
        ;;
        esac
    done
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
process_common_cmdline() {
    for opt in "$@"; do
        optval="${opt#*=}"
        case "$opt" in
        --child) enable_feature child
        ;;
        --log*)
        logging="$optval"
        if ! disabled logging ; then
            enabled logging || logfile="$logging"
        else
            logfile=/dev/null
        fi
        ;;
        --target=*) toolchain="${toolchain:-${optval}}"
        ;;
        --force-target=*) toolchain="${toolchain:-${optval}}"; enable_feature force_toolchain
        ;;
        --cpu)
        ;;
        --cpu=*) tune_cpu="$optval"
        ;;
        --extra-cflags=*)
        extra_cflags="${optval}"
        ;;
        --extra-ldflags=*)
        LDFLAGS="$LDFLAGS ${optval}"
        ;;
        --enable-?*|--disable-?*)
        eval `echo "$opt" | sed 's/--/action=/;s/-/ option=/;s/-/_/g'`
        if echo "${ARCH_EXT_LIST}" | grep "^ *$option$" >/dev/null; then
            [ $action = "disable" ] && RTCD_OPTIONS="${RTCD_OPTIONS}${opt} "
        elif [ $action = "disable" ] && ! disabled $option ; then
          echo "${CMDLINE_SELECT}" | grep "^ *$option$" >/dev/null ||
            die_unknown $opt
        elif [ $action = "enable" ] && ! enabled $option ; then
          echo "${CMDLINE_SELECT}" | grep "^ *$option$" >/dev/null ||
            die_unknown $opt
        fi
        ${action}_feature $option
        ;;
        --require-?*)
        eval `echo "$opt" | sed 's/--/action=/;s/-/ option=/;s/-/_/g'`
        if echo "${ARCH_EXT_LIST}" none | grep "^ *$option$" >/dev/null; then
            RTCD_OPTIONS="${RTCD_OPTIONS}${opt} "
        else
            die_unknown $opt
        fi
        ;;
        --force-enable-?*|--force-disable-?*)
        eval `echo "$opt" | sed 's/--force-/action=/;s/-/ option=/;s/-/_/g'`
        ${action}_feature $option
        ;;
        --libc=*)
        [ -d "${optval}" ] || die "Not a directory: ${optval}"
        disable_feature builtin_libc
        alt_libc="${optval}"
        ;;
        --as=*)
        [ "${optval}" = yasm -o "${optval}" = nasm -o "${optval}" = auto ]
            || die "Must be yasm, nasm or auto: ${optval}"
        alt_as="${optval}"
        ;;
        --prefix=*)
        prefix="${optval}"
        ;;
        --libdir=*)
        libdir="${optval}"
        ;;
        --sdk-path=*)
        [ -d "${optval}" ] || die "Not a directory: ${optval}"
        sdk_path="${optval}"
        ;;
        --libc|--as|--prefix|--libdir|--sdk-path)
        die "Option ${opt} requires argument"
        ;;
        --help|-h) show_help
        ;;
        *) die_unknown $opt
        ;;
        esac
    done
}

接着根据第二种方式操作即可。

总结：通过上述方法，可以在Android底层中的任何地方加入你要的调试信息。

注意：有时发现加了调试信息，重新编译后并没有把所加信息打印出来，可能是因为总库（libpj_video_android.so）链接的还是原来的静态库（如libavcodec.a），记得在ffmpeg中make clean并删除总库重新生成。

四、补充（以下内容是转的）

1、NDK链接第三方静态库的方法：

将NDK编译的第三方静态拷贝到JNI目录下,在Android.mk中添加如下代码

以openssl静态库（libcrypto-static.a）为例

第一种链接方法：LOCAL_LDFLAGS := libcrypto-static.a

第二种链接方法：LOCAL_LDLIBS := libcrypto-static.a

第三种链接方法：

include $(CLEAR_VARS)

LOCAL_MODULE := third_static_lib (可以随便起一个名字)

LOCAL_SRC_FILES := libcrypto-static.a

include $(PREBUILT_STATIC_LIBRARY)

//在你要编译的模块中引用third_static_lib

LOCAL_STATIC_LIBRARIES := third_static_lib

2、android开发 NDK 编译和使用静态库、动态库

a、在eclipse工程目录下建立一个jni的文件夹。
b、在jni文件夹中建立Android.mk和Application.mk文件。
Android.mk文件：
Android提供的一种makefile文件，用来指定诸如编译生成so库名、引用的头文件目录、需要编译的.c/.cpp文件和.a静态库文件等。
Application.mk文件：
定义了项目的一些细节，比如APP_ABI := x86(编译X86平台库)、APP_PLATFORM := android-9(使用android-9以上的平台库)。

用cd命令移至jni目录，运行/mnt/500G/public/NDK/android-ndk-r7b/ndk-build命令，这时命令行中可能会出现编译错误，比如头文件找不到，函数找不到等等，细心找找就能改掉。
编译成功后，在工程目录下libs/x86中就会生成你想要的.so库。
NDK 编译和使用静态库、动态库
情况一：编译静态库
情况二：编译动态库
情况三：编译动态库+静态库
情况四：已有第三方静态库（动态库），编译静态库（动态库）

默认所有代码和文件在$project/jni下，否则特殊说明。
情况一：编译静态库
文件Android.mk:
LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)
LOCAL_MODULE := hello-jni
LOCAL_SRC_FILES := hello-jni.c
include $(BUILD_STATIC_LIBRARY)

文件Application.mk:
APP_MODULES :=hello-jni

情况二：编译动态库
文件Android.mk:
LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)
LOCAL_MODULE := hello-jni
LOCAL_SRC_FILES := hello-jni.c
include $(BUILD_SHARED_LIBRARY)

情况三：编译动态库+静态库
文件Android.mk:
LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)
LOCAL_MODULE := mylib_static
LOCAL_SRC_FILES := src.c
include $(BUILD_STATIC_LIBRARY)
include $(CLEAR_VARS)
LOCAL_MODULE := mylib_shared
LOCAL_SRC_FILES := src2.c
LOCAL_STATIC_LIBRARIES := mylib_static
include $(BUILD_SHARED_LIBRARY)

情况四：已有第三方静态库(动态库)，编译静态库(动态库)
文件Android.mk:
LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)
LOCAL_MODULE := thirdlib1 # name it whatever
LOCAL_SRC_FILES := $(TARGET_ARCH_ABI)/libthird1.a # or $(so_path)/libthird1.so
#LOCAL_EXPORT_C_INCLUDES := $(LOCAL_PATH)/include
include $(PREBUILT_STATIC_LIBRARY) #or PREBUILT_SHARED_LIBRARY
include $(CLEAR_VARS)
LOCAL_MODULE := mylib_use_thirdlib
LOCAL_SRC_FILES := src.c
LOCAL_STATIC_LIBRARIES := thirdlib1 #or LOCAL_SHARED_LIBRARY
include $(BUILD_SHARED_LIBRARY) #如果编译静态库，需要Application.mk
