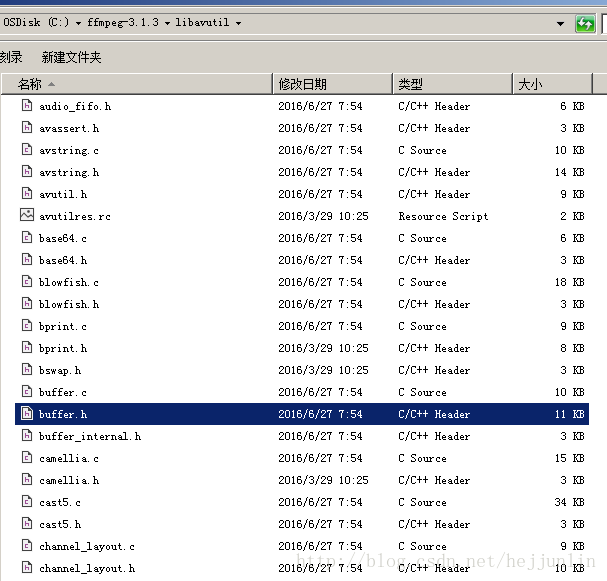

位置:libavutil/buffer.h

AVBuffer采用引用计数的数据Buffer的API。
有两个核心对象这个API——AVBuffer和AVBufferRef。
AVBuffer代表数据缓冲区本身,它是私有的,不能直接被调用者调用。我们可以通过AVBufferRef,调用者须要检查两个AVBuffer指针是否指向两个不同的引用在同一数据buffer中。AVBufferRef 代表一个单个引用指向AVBuffer,调用者可以直接调它。
有两个功能函数提供创建一个AVBuffer对象在一个单引用中,av_buffer_alloc()分配置一个新buffer空间。av_buffer_create()负责包装已存在数组的AVBuffer对象。从一个已存在引用,其他的引用将创建通过av_buffer_ref()方法。
使用av_buffer_unref(),交释放这个引用(包含数据引用及计数引用)。
在已经存在的AVBuffer引用中,FFmpeg认为AVBuffer是可写入相关数据的。(不会被标识只读),av_buffer_is_writable() 函数提供是否可write的功能,如果不能将自动创建一个新的可写的buffer。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
typedef struct AVBuffer AVBuffer;
/**
* A reference to a data buffer.
*
* The size of this struct is not a part of the public ABI and it is not meant
* to be allocated directly.
*/
typedef struct AVBufferRef {
AVBuffer *buffer;
/**
* The data buffer. It is considered writable if and only if
* this is the only reference to the buffer, in which case
* av_buffer_is_writable() returns 1.
*/
uint8_t *data;
/**
* Size of data in bytes.
*/
int size;
} AVBufferRef;
/**
* Allocate an AVBuffer of the given size using av_malloc().
*
* @return an AVBufferRef of given size or NULL when out of memory
*/
AVBufferRef *av_buffer_alloc(int size);
/**
* Same as av_buffer_alloc(), except the returned buffer will be initialized
* to zero.
*/
AVBufferRef *av_buffer_allocz(int size);
/**
* Always treat the buffer as read-only, even when it has only one
* reference.
*/
#define AV_BUFFER_FLAG_READONLY (1 << 0)
/**
* Create an AVBuffer from an existing array.
*
* If this function is successful, data is owned by the AVBuffer. The caller may
* only access data through the returned AVBufferRef and references derived from
* it.
* If this function fails, data is left untouched.
* @param data data array
* @param size size of data in bytes
* @param free a callback for freeing this buffer's data
* @param opaque parameter to be got for processing or passed to free
* @param flags a combination of AV_BUFFER_FLAG_*
*
* @return an AVBufferRef referring to data on success, NULL on failure.
*/
AVBufferRef *av_buffer_create(uint8_t *data, int size,
void (*free)(void *opaque, uint8_t *data),
void *opaque, int flags);
/**
* Default free callback, which calls av_free() on the buffer data.
* This function is meant to be passed to av_buffer_create(), not called
* directly.
*/
void av_buffer_default_free(void *opaque, uint8_t *data);
/**
* Create a new reference to an AVBuffer.
*
* @return a new AVBufferRef referring to the same AVBuffer as buf or NULL on
* failure.
*/
AVBufferRef *av_buffer_ref(AVBufferRef *buf);
/**
* Free a given reference and automatically free the buffer if there are no more
* references to it.
*
* @param buf the reference to be freed. The pointer is set to NULL on return.
*/
void av_buffer_unref(AVBufferRef **buf);
/**
* @return 1 if the caller may write to the data referred to by buf (which is
* true if and only if buf is the only reference to the underlying AVBuffer).
* Return 0 otherwise.
* A positive answer is valid until av_buffer_ref() is called on buf.
*/
int av_buffer_is_writable(const AVBufferRef *buf);
/**
* @return the opaque parameter set by av_buffer_create.
*/
void *av_buffer_get_opaque(const AVBufferRef *buf);
int av_buffer_get_ref_count(const AVBufferRef *buf);
/**
* Create a writable reference from a given buffer reference, avoiding data copy
* if possible.
*
* @param buf buffer reference to make writable. On success, buf is either left
* untouched, or it is unreferenced and a new writable AVBufferRef is
* written in its place. On failure, buf is left untouched.
* @return 0 on success, a negative AVERROR on failure.
*/
int av_buffer_make_writable(AVBufferRef **buf);
/**
* Reallocate a given buffer.
*
* @param buf a buffer reference to reallocate. On success, buf will be
* unreferenced and a new reference with the required size will be
* written in its place. On failure buf will be left untouched. *buf
* may be NULL, then a new buffer is allocated.
* @param size required new buffer size.
* @return 0 on success, a negative AVERROR on failure.
*
* @note the buffer is actually reallocated with av_realloc() only if it was
* initially allocated through av_buffer_realloc(NULL) and there is only one
* reference to it (i.e. the one passed to this function). In all other cases
* a new buffer is allocated and the data is copied.
*/
int av_buffer_realloc(AVBufferRef **buf, int size);
/**
* @}
*/
typedef struct AVBufferPool AVBufferPool;
/**
* Allocate and initialize a buffer pool.
*
* @param size size of each buffer in this pool
* @param alloc a function that will be used to allocate new buffers when the
* pool is empty. May be NULL, then the default allocator will be used
* (av_buffer_alloc()).
* @return newly created buffer pool on success, NULL on error.
*/
AVBufferPool *av_buffer_pool_init(int size, AVBufferRef* (*alloc)(int size));
/**
* Allocate and initialize a buffer pool with a more complex allocator.
*
* @param size size of each buffer in this pool
* @param opaque arbitrary user data used by the allocator
* @param alloc a function that will be used to allocate new buffers when the
* pool is empty.
* @param pool_free a function that will be called immediately before the pool
* is freed. I.e. after av_buffer_pool_can_uninit() is called
* by the pool and all the frames are returned to the pool and
* freed. It is intended to uninitialize the user opaque data.
* @return newly created buffer pool on success, NULL on error.
*/
AVBufferPool *av_buffer_pool_init2(int size, void *opaque,
AVBufferRef* (*alloc)(void *opaque, int size),
void (*pool_free)(void *opaque));
/**
* Mark the pool as being available for freeing. It will actually be freed only
* once all the allocated buffers associated with the pool are released. Thus it
* is safe to call this function while some of the allocated buffers are still
* in use.
*
* @param pool pointer to the pool to be freed. It will be set to NULL.
*/
void av_buffer_pool_uninit(AVBufferPool **pool);
/**
* Allocate a new AVBuffer, reusing an old buffer from the pool when available.
* This function may be called simultaneously from multiple threads.
*
* @return a reference to the new buffer on success, NULL on error.
*/
AVBufferRef *av_buffer_pool_get(AVBufferPool *pool);
/**
* @}
*/
#endif /* AVUTIL_BUFFER_H */
AVBufferPool 是用来管理大buffer时的API
调用者必须使用av_buffer_pool_init()创建一个buffer池,无论什么时候需要,通过av_buffer_pool_get(),得到新buffer的引用,和av_buffer_alloc()非常像,当不被引用时,会重新归还给pool,而不用去像AVBuffer那样释放。当调用者不再分配新的buffer时,av_buffer_pool_uninit() 必须调用,表明这个pool将自动释放了(因为这个pool也是一个对象)。分配和释放buffer,是线程安全操作,只要保证没有其他默认alloc的callback在使用。这个结构体是私有的,不能直接被外部使用,外部可以用av_buffer_pool_init(),及av_buffer_pool_uninit()函数。
