手写一个简化版的Dubbo框架

186 阅读 0 评论 123 点赞

我是靠谱客的博主快乐秋天，这篇文章主要介绍手写一个简化版的Dubbo框架，现在分享给大家，希望可以做个参考。

在学习了Dubbo之后, 我发现自己好像了解了Dubbo的实现原理, 又好像不是很了解, 毕竟我只是背诵了下概念, 没有深入的去看源码. 这里我就来手写一个简化版的Dubbo框架, 通过动手实践来深入理解Dubbo的实现原理.

Dubbo的实现原理

RPC调用的过程

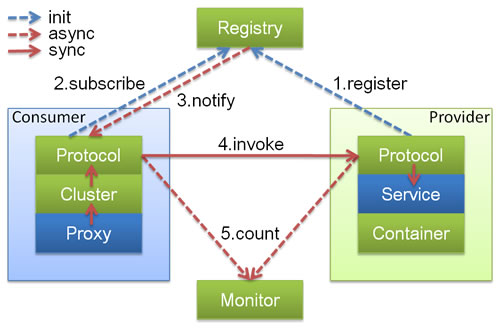

我们先来看下RPC调用的过程.

在这里插入图片描述

服务容器负责启动，加载，运行服务提供者。
服务提供者在启动时，向注册中心注册自己提供的服务。
服务消费者在启动时，向注册中心订阅自己所需的服务。
注册中心返回服务提供者地址列表给消费者，如果有变更，注册中心将基于长连接推送变更数据给消费者。
服务消费者，从提供者地址列表中，基于软负载均衡算法，选一台提供者进行RPC调用，如果调用失败，再选另一台调用。
服务消费者和提供者，在内存中累计调用次数和调用时间，定时每分钟发送一次统计数据到监控中心。

RPC调用的原理

RPC调用的原理是: 动态代理, 反射, 网络传输.

消费者从注册中心获取到服务提供者的地址后, 与服务提供者建立TCP连接.
消费者将服务的全限定类名(String), 方法名(String), 方法参数类型(Class[]), 方法参数(Object[]), 通过TCP传输给服务提供者.
服务提供者获取到这些数据后, 通过反射调用对应服务的方法, 然后将执行结果通过TCP返回给服务消费者.
整个RPC调用过程被封装到动态代理中, 对用户来说是透明的.

Dubbo架构

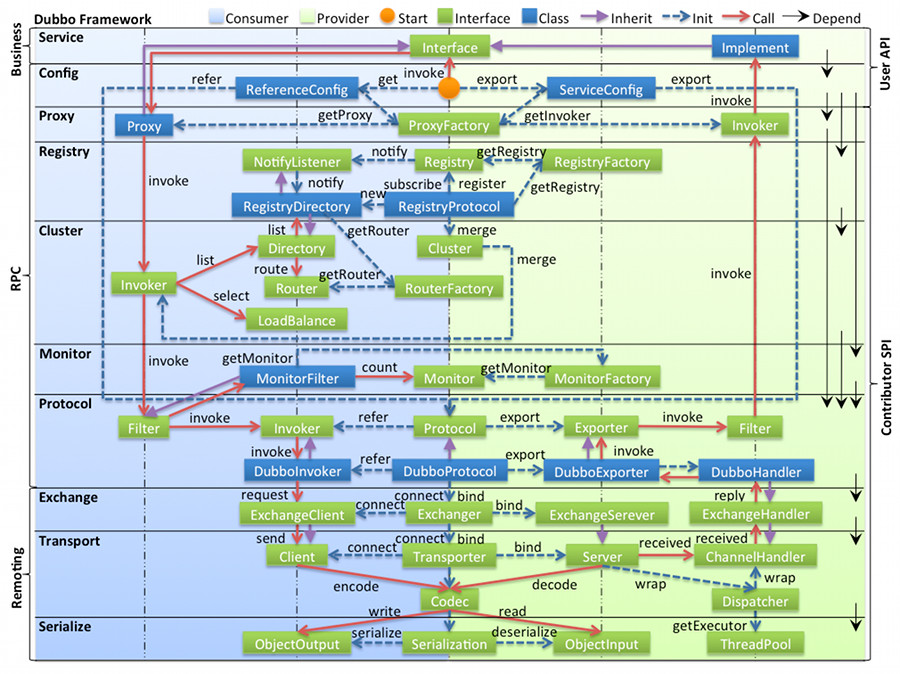

Dubbo框架设计分为十层:

在这里插入图片描述

service 服务层, 为服务提供者和服务消费者提供接口.
config 配置层, 提供dubbo的各种配置.
proxy 服务接口透明代理, 生成动态代理.
registry 注册中心层, 负责服务的注册与发现.
cluster 路由层, 封装多个提供者的路由及负载均衡.
monitor 监控层, RPC调用次数和调用时间监控.
protocol 远程调用层, 封装 RPC 调用.
exchange 信息交换层, 封装请求响应模式, 同步转异步.
transport 网络传输层, 抽象 mina 和 netty 为统一接口.
serialize 数据序列化层, 提供数据序列化的接口.

手写简化版的Bubbo框架

我们根据Dubbo的框架设计来手写一个简化版的Dubbo, 其中序列化协议使用Java原生的Serializable, 网络传输协议使用原生的TCP, 负载均衡使用随机算法, 注册中心使用ZooKeeper, 动态代理使用JDK Proxy.

github地址: 手写一个简化版的Dubbo框架

服务提供者

(1) ZooKeeper常量

定义了ZooKeeper的地址和Dubbo注册中心的根节点路径.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/**
 * @author litianxiang
 * @date 2020/3/17 11:45
 */
public class ZooKeeperConst {
	/**
	 * ZooKeeper的地址
	 */
	public static String host = "xxx.xx.xx.xxx:2181";
	/**
	 * Dubbo在ZooKeeper上的根节点
	 */
	public static String rootNode = "/dubbo";
}

(2) 注册中心

这里使用ZooKeeper来实现注册中心, 将服务及服务提供者地址注册到注册中心.

复制代码

/**
 * @author litianxiang
 * @date 2020/3/17 11:28
 */
public class RegisterCenter {
	private static Logger logger = LoggerFactory.getLogger(RegisterCenter.class);
	private ZooKeeper zk;

/**
	 * 连接ZooKeeper, 创建dubbo根节点
	 */
	public RegisterCenter() {
		try {
			CountDownLatch connectedSignal = new CountDownLatch(1);
			zk = new ZooKeeper(ZooKeeperConst.host, 5000, new Watcher() {
				@Override
				public void process(WatchedEvent event) {
					if (event.getState() == Event.KeeperState.SyncConnected) {
						connectedSignal.countDown();
					}
				}
			});
			//因为监听器是异步操作, 要保证监听器操作先完成, 即要确保先连接上ZooKeeper再返回实例.
			connectedSignal.await();

//创建dubbo注册中心的根节点(持久节点)
			if (zk.exists(ZooKeeperConst.rootNode, false) == null) {
				zk.create(ZooKeeperConst.rootNode, "".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
			}
		} catch (Exception e) {
			logger.error("connect zookeeper server error.", e);
		}
	}

/**
	 * 将服务和服务提供者URL注册到注册中心
	 * @param serviceName 服务名称
	 * @param serviceProviderAddr 服务所在TCP地址
	 */
	public void register(String serviceName, String serviceProviderAddr) {
		try {
			//创建服务节点
			String servicePath = ZooKeeperConst.rootNode + "/" + serviceName;
			if (zk.exists(servicePath, false) == null) {
				zk.create(servicePath, "".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
			}

//创建服务提供者节点
			String serviceProviderPath = servicePath + "/" + serviceProviderAddr;
			if (zk.exists(serviceProviderPath, false) == null) {
				zk.create(serviceProviderPath, "".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.EPHEMERAL);
			}
			logger.info("服务注册成功, 服务路径: " + serviceProviderPath);
		} catch (Exception e) {
			logger.error("注册中心-注册服务报错", e);
		}
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
/**
 * @author litianxiang
 * @date 2020/3/17 11:28
 */
public class RegisterCenter {
	private static Logger logger = LoggerFactory.getLogger(RegisterCenter.class);
	private ZooKeeper zk;


	/**
	 * 连接ZooKeeper, 创建dubbo根节点
	 */
	public RegisterCenter() {
		try {
			CountDownLatch connectedSignal = new CountDownLatch(1);
			zk = new ZooKeeper(ZooKeeperConst.host, 5000, new Watcher() {
				@Override
				public void process(WatchedEvent event) {
					if (event.getState() == Event.KeeperState.SyncConnected) {
						connectedSignal.countDown();
					}
				}
			});
			//因为监听器是异步操作, 要保证监听器操作先完成, 即要确保先连接上ZooKeeper再返回实例.
			connectedSignal.await();

			//创建dubbo注册中心的根节点(持久节点)
			if (zk.exists(ZooKeeperConst.rootNode, false) == null) {
				zk.create(ZooKeeperConst.rootNode, "".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
			}
		} catch (Exception e) {
			logger.error("connect zookeeper server error.", e);
		}
	}

	/**
	 * 将服务和服务提供者URL注册到注册中心
	 * @param serviceName 服务名称
	 * @param serviceProviderAddr 服务所在TCP地址
	 */
	public void register(String serviceName, String serviceProviderAddr) {
		try {
			//创建服务节点
			String servicePath = ZooKeeperConst.rootNode + "/" + serviceName;
			if (zk.exists(servicePath, false) == null) {
				zk.create(servicePath, "".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
			}

			//创建服务提供者节点
			String serviceProviderPath = servicePath + "/" + serviceProviderAddr;
			if (zk.exists(serviceProviderPath, false) == null) {
				zk.create(serviceProviderPath, "".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.EPHEMERAL);
			}
			logger.info("服务注册成功, 服务路径: " + serviceProviderPath);
		} catch (Exception e) {
			logger.error("注册中心-注册服务报错", e);
		}
	}
}

(3) 接口全限定类名, 方法名, 方法参数类型, 方法参数的包装类

这里为了简单, 使用Java自带的序列化协议.

复制代码

/**
 * 封装接口名, 方法名, 参数字节码数组, 参数对象
 */
public class Invocation implements Serializable {
    private static final long serialVersionUID = -2798340582119604989L;

/**
     * 接口名
     */
    private String interfaceName;
    /**
     * 方法名
     */
    private String methodName;
    /**
     * 参数字节码数组
     */
    private Class[] paramTypes;
    /**
     * 参数对象
     */
    private Object[] params;

public Invocation(String interfaceName, String methodName, Class[] paramTypes, Object[] params) {
        this.interfaceName = interfaceName;
        this.methodName = methodName;
        this.paramTypes = paramTypes;
        this.params = params;
    }

public String getInterfaceName() {
        return interfaceName;
    }

public void setInterfaceName(String interfaceName) {
        this.interfaceName = interfaceName;
    }

public String getMethodName() {
        return methodName;
    }

public void setMethodName(String methodName) {
        this.methodName = methodName;
    }

public Class[] getParamTypes() {
        return paramTypes;
    }

public void setParamTypes(Class[] paramTypes) {
        this.paramTypes = paramTypes;
    }

public Object[] getParams() {
        return params;
    }

public void setParams(Object[] params) {
        this.params = params;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
/**
 * 封装接口名, 方法名, 参数字节码数组, 参数对象
 */
public class Invocation implements Serializable {
    private static final long serialVersionUID = -2798340582119604989L;

    /**
     * 接口名
     */
    private String interfaceName;
    /**
     * 方法名
     */
    private String methodName;
    /**
     * 参数字节码数组
     */
    private Class[] paramTypes;
    /**
     * 参数对象
     */
    private Object[] params;


    public Invocation(String interfaceName, String methodName, Class[] paramTypes, Object[] params) {
        this.interfaceName = interfaceName;
        this.methodName = methodName;
        this.paramTypes = paramTypes;
        this.params = params;
    }

    public String getInterfaceName() {
        return interfaceName;
    }

    public void setInterfaceName(String interfaceName) {
        this.interfaceName = interfaceName;
    }

    public String getMethodName() {
        return methodName;
    }

    public void setMethodName(String methodName) {
        this.methodName = methodName;
    }

    public Class[] getParamTypes() {
        return paramTypes;
    }

    public void setParamTypes(Class[] paramTypes) {
        this.paramTypes = paramTypes;
    }

    public Object[] getParams() {
        return params;
    }

    public void setParams(Object[] params) {
        this.params = params;
    }
}

(4) RPC监听服务

用来监听Consumer远程调用的TCP连接, 接收到Consumer传输过来的数据后, 通过反射调用对应的方法, 然后将结果返回给Consumer. Dubbo使用的是Netty框架, 这里为了简单, 我们使用原生的TCP连接.

复制代码

/**
 * RPC监听服务, 监听consumer远程调用的tcp连接
 * @author litianxiang
 * @date 2020/3/17 18:01
 */
public class RpcServer {
	private static Logger logger = LoggerFactory.getLogger(RpcServer.class);
	private Map<String, Class> serviceMap;

public RpcServer(Map<String, Class> serviceMap) {
		this.serviceMap = serviceMap;
	}

/**
	 * 启动RPC监听服务
	 */
	public void start() {
		//监听端口, 处理rpc请求
		ServerSocket serverSocket = null;
		try {
			serverSocket = new ServerSocket(12000);
			logger.info("RPC监听服务启动...");
			while (true) {
				Socket socket = serverSocket.accept();
				new Thread(new ServerHandler(socket, serviceMap)).start();
			}
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			if (serverSocket != null) {
				try {
					serverSocket.close();
				} catch (IOException e) {
					e.printStackTrace();
				}
			}
		}
	}
}

/**
 * 处理RPC, 通过反射执行方法
 * @author litianxiang
 * @date 2020/3/6 17:52
 */
public class ServerHandler implements Runnable {
	private Socket socket;
	private Map<String, Class> serviceMap;

public ServerHandler(Socket socket, Map<String, Class> serviceMap) {
		this.socket = socket;
		this.serviceMap = serviceMap;
	}

@Override
	public void run() {
		ObjectInputStream in = null;
		ObjectOutputStream out = null;
		try {
			in = new ObjectInputStream(socket.getInputStream());
			out = new ObjectOutputStream(socket.getOutputStream());

//获取Invocation对象
			Invocation invocation = (Invocation) in.readObject();

//执行对应方法
			Class clazz = serviceMap.get(invocation.getInterfaceName());
			Method method = clazz.getMethod(invocation.getMethodName(), invocation.getParamTypes());
			Object invoke = method.invoke(clazz.newInstance(), invocation.getParams());

//返回方法执行结果
			out.writeObject(invoke);
			out.flush();
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			if (in != null) {
				try {
					in.close();
				} catch (IOException e) {
					e.printStackTrace();
				}
			}
			if (out != null) {
				try {
					out.close();
				} catch (Exception e) {
					e.printStackTrace();
				}
			}
			if (socket != null) {
				try {
					socket.close();
				} catch (IOException e) {
					e.printStackTrace();
				}
			}
			socket = null;
		}
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
/**
 * RPC监听服务, 监听consumer远程调用的tcp连接
 * @author litianxiang
 * @date 2020/3/17 18:01
 */
public class RpcServer {
	private static Logger logger = LoggerFactory.getLogger(RpcServer.class);
	private Map<String, Class> serviceMap;

	public RpcServer(Map<String, Class> serviceMap) {
		this.serviceMap = serviceMap;
	}

	/**
	 * 启动RPC监听服务
	 */
	public void start() {
		//监听端口, 处理rpc请求
		ServerSocket serverSocket = null;
		try {
			serverSocket = new ServerSocket(12000);
			logger.info("RPC监听服务启动...");
			while (true) {
				Socket socket = serverSocket.accept();
				new Thread(new ServerHandler(socket, serviceMap)).start();
			}
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			if (serverSocket != null) {
				try {
					serverSocket.close();
				} catch (IOException e) {
					e.printStackTrace();
				}
			}
		}
	}
}


/**
 * 处理RPC, 通过反射执行方法
 * @author litianxiang
 * @date 2020/3/6 17:52
 */
public class ServerHandler implements Runnable {
	private Socket socket;
	private Map<String, Class> serviceMap;

	public ServerHandler(Socket socket, Map<String, Class> serviceMap) {
		this.socket = socket;
		this.serviceMap = serviceMap;
	}

	@Override
	public void run() {
		ObjectInputStream in = null;
		ObjectOutputStream out = null;
		try {
			in = new ObjectInputStream(socket.getInputStream());
			out = new ObjectOutputStream(socket.getOutputStream());

			//获取Invocation对象
			Invocation invocation = (Invocation) in.readObject();

			//执行对应方法
			Class clazz = serviceMap.get(invocation.getInterfaceName());
			Method method = clazz.getMethod(invocation.getMethodName(), invocation.getParamTypes());
			Object invoke = method.invoke(clazz.newInstance(), invocation.getParams());

			//返回方法执行结果
			out.writeObject(invoke);
			out.flush();
		} catch (Exception e) {
			e.printStackTrace();
		} finally {
			if (in != null) {
				try {
					in.close();
				} catch (IOException e) {
					e.printStackTrace();
				}
			}
			if (out != null) {
				try {
					out.close();
				} catch (Exception e) {
					e.printStackTrace();
				}
			}
			if (socket != null) {
				try {
					socket.close();
				} catch (IOException e) {
					e.printStackTrace();
				}
			}
			socket = null;
		}
	}
}

(5) Provider启动类

这里会模拟dubbo的service配置, 将接口名及其对应的实现类储存到serviceMap中, 然后将服务和服务提供者地址注册到注册中心, 最后再启动对Consumer远程调用的监听.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/**
 * @author litianxiang
 * @date 2020/3/6 15:32
 */
public class Provider {
	private static Logger logger = LoggerFactory.getLogger(Provider.class);
	private static Map<String, Class> serviceMap = new HashMap<>();
	private static String tcpHost = "127.0.0.1:12000";

	static {
		/**
		 * 模拟service配置处理逻辑
		 * <dubbo:service interface="com.client.service.IBookService" ref="bookService" />
		 * <bean id="bookService" class="com.provider.service.BookServiceImpl" />
		 */
		serviceMap.put(IBookService.class.getName(), BookServiceImpl.class);
	}

	public static void main(String[] args) {
		//将服务和服务提供者URL注册到注册中心
		RegisterCenter registerCenter = new RegisterCenter();
		for (Map.Entry<String, Class> entry : serviceMap.entrySet()) {
			registerCenter.register(entry.getKey(), tcpHost);
		}

		//监听Consumer的远程调用(为了简化代码, 这里使用TCP代替Netty)
		RpcServer rpcServer = new RpcServer(serviceMap);
		rpcServer.start();
	}
}

服务消费者

(1) 负载均衡

为了简单, 这里直接使用的是随机算法.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public class RandomLoadBalance {

	/**
	 * 随机一个provider
	 * @param providerList provider列表
	 * @return provider
	 */
	public String doSelect(List<String> providerList) {
		int size = providerList.size();
		Random random = new Random();
		return providerList.get(random.nextInt(size));
	}
}

(2) 服务订阅类

服务订阅类提供向注册中心订阅服务的功能, 涉及服务发现与负载均衡.

复制代码

public class ServiceSubscribe {
	private static Logger logger = LoggerFactory.getLogger(ServiceSubscribe.class);
	private ZooKeeper zk;
	private List<String> providerList;

/**
	 * 连接ZooKeeper, 创建dubbo根节点
	 */
	public ServiceSubscribe() {
		try {
			CountDownLatch connectedSignal = new CountDownLatch(1);
			zk = new ZooKeeper(ZooKeeperConst.host, 5000, new Watcher() {
				@Override
				public void process(WatchedEvent event) {
					if (event.getState() == Event.KeeperState.SyncConnected) {
						connectedSignal.countDown();
					}
				}
			});
			//因为监听器是异步操作, 要保证监听器操作先完成, 即要确保先连接上ZooKeeper再返回实例.
			connectedSignal.await();

/**
	 * 在注册中心订阅服务, 返回对应的服务url
	 * 只要第一次获取到了服务的RPC地址, 后面注册中心挂掉之后, 仍然可以继续通信.
	 * @param serviceName 服务名称
	 * @return 服务host
	 */
	public String subscribe(String serviceName) {
		//服务节点路径
		String servicePath = ZooKeeperConst.rootNode + "/" + serviceName;
		try {
			//获取服务节点下的所有子节点, 即服务的RPC地址
			providerList = zk.getChildren(servicePath, new Watcher() {
				@Override
				public void process(WatchedEvent event) {
					if (event.getType() == Event.EventType.NodeChildrenChanged) {
						try {
							//循环监听
							providerList = zk.getChildren(servicePath, true);
						} catch (KeeperException | InterruptedException e) {
							logger.error("Consumer在ZooKeeper订阅服务-注册监听器报错", e);
						}
					}
				}
			});
		} catch (Exception e) {
			logger.error("从注册中心获取服务报错.", e);
		}
		logger.info(serviceName + "的服务提供者列表: " + providerList);

//负载均衡
		RandomLoadBalance randomLoadBalance = new RandomLoadBalance();
		return randomLoadBalance.doSelect(providerList);
	}

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
public class ServiceSubscribe {
	private static Logger logger = LoggerFactory.getLogger(ServiceSubscribe.class);
	private ZooKeeper zk;
	private List<String> providerList;

	/**
	 * 连接ZooKeeper, 创建dubbo根节点
	 */
	public ServiceSubscribe() {
		try {
			CountDownLatch connectedSignal = new CountDownLatch(1);
			zk = new ZooKeeper(ZooKeeperConst.host, 5000, new Watcher() {
				@Override
				public void process(WatchedEvent event) {
					if (event.getState() == Event.KeeperState.SyncConnected) {
						connectedSignal.countDown();
					}
				}
			});
			//因为监听器是异步操作, 要保证监听器操作先完成, 即要确保先连接上ZooKeeper再返回实例.
			connectedSignal.await();

			//创建dubbo注册中心的根节点(持久节点)
			if (zk.exists(ZooKeeperConst.rootNode, false) == null) {
				zk.create(ZooKeeperConst.rootNode, "".getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.PERSISTENT);
			}
		} catch (Exception e) {
			logger.error("connect zookeeper server error.", e);
		}
	}

	/**
	 * 在注册中心订阅服务, 返回对应的服务url
	 * 只要第一次获取到了服务的RPC地址, 后面注册中心挂掉之后, 仍然可以继续通信.
	 * @param serviceName 服务名称
	 * @return 服务host
	 */
	public String subscribe(String serviceName) {
		//服务节点路径
		String servicePath = ZooKeeperConst.rootNode + "/" + serviceName;
		try {
			//获取服务节点下的所有子节点, 即服务的RPC地址
			providerList = zk.getChildren(servicePath, new Watcher() {
				@Override
				public void process(WatchedEvent event) {
					if (event.getType() == Event.EventType.NodeChildrenChanged) {
						try {
							//循环监听
							providerList = zk.getChildren(servicePath, true);
						} catch (KeeperException | InterruptedException e) {
							logger.error("Consumer在ZooKeeper订阅服务-注册监听器报错", e);
						}
					}
				}
			});
		} catch (Exception e) {
			logger.error("从注册中心获取服务报错.", e);
		}
		logger.info(serviceName + "的服务提供者列表: " + providerList);

		//负载均衡
		RandomLoadBalance randomLoadBalance = new RandomLoadBalance();
		return randomLoadBalance.doSelect(providerList);
	}

}

(3) RPC代理类

根据JDK Proxy生成一个代理对象, 封装RPC调用的过程.

复制代码

public class RpcServiceProxy {
	private ServiceSubscribe serviceSubscribe;

public RpcServiceProxy(ServiceSubscribe serviceSubscribe) {
		this.serviceSubscribe = serviceSubscribe;
	}

/**
	 * 获取RPC代理
	 * @param clazz
	 * @return
	 */
	public Object getProxy(final Class clazz) {
		return Proxy.newProxyInstance(clazz.getClassLoader(), new Class[]{clazz}, new InvocationHandler() {
			@Override
			public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
				//在注册中心订阅服务, 返回对应的服务url
				String rpcHost = serviceSubscribe.subscribe(clazz.getName());
				String[] split = rpcHost.split(":");
				//与远程服务建立连接
				Socket socket = new Socket(split[0], Integer.parseInt(split[1]));
				ObjectOutputStream out = new ObjectOutputStream(socket.getOutputStream());
				ObjectInputStream in = new ObjectInputStream(socket.getInputStream());

//向RPC服务传输Invocation对象
				String className = clazz.getName();
				String methodName = method.getName();
				Class[] paramTypes = method.getParameterTypes();
				Invocation invocation = new Invocation(className, methodName, paramTypes, args);
				out.writeObject(invocation);
				out.flush();

//接收方法执行结果
				Object object = in.readObject();
				in.close();
				out.close();
				socket.close();

return object;
			}
		});
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
public class RpcServiceProxy {
	private ServiceSubscribe serviceSubscribe;

	public RpcServiceProxy(ServiceSubscribe serviceSubscribe) {
		this.serviceSubscribe = serviceSubscribe;
	}

	/**
	 * 获取RPC代理
	 * @param clazz
	 * @return
	 */
	public Object getProxy(final Class clazz) {
		return Proxy.newProxyInstance(clazz.getClassLoader(), new Class[]{clazz}, new InvocationHandler() {
			@Override
			public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
				//在注册中心订阅服务, 返回对应的服务url
				String rpcHost = serviceSubscribe.subscribe(clazz.getName());
				String[] split = rpcHost.split(":");
				//与远程服务建立连接
				Socket socket = new Socket(split[0], Integer.parseInt(split[1]));
				ObjectOutputStream out = new ObjectOutputStream(socket.getOutputStream());
				ObjectInputStream in = new ObjectInputStream(socket.getInputStream());

				//向RPC服务传输Invocation对象
				String className = clazz.getName();
				String methodName = method.getName();
				Class[] paramTypes = method.getParameterTypes();
				Invocation invocation = new Invocation(className, methodName, paramTypes, args);
				out.writeObject(invocation);
				out.flush();

				//接收方法执行结果
				Object object = in.readObject();
				in.close();
				out.close();
				socket.close();

				return object;
			}
		});
	}
}

(4) Consumer启动类

消费者启动后, 会向注册中心订阅服务, 经过负载均衡获取到对应的服务后, 再进行RPC调用.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public class Consumer {
	private static Logger logger = LoggerFactory.getLogger(Consumer.class);

	public static void main(String[] args) {
		//在注册中心订阅服务, 获取服务所在的url, 然后通过代理远程调用服务
		ServiceSubscribe serviceSubscribe = new ServiceSubscribe();
		RpcServiceProxy rpcServiceProxy = new RpcServiceProxy(serviceSubscribe);
		//获取RPC代理
		IBookService bookService = (IBookService) rpcServiceProxy.getProxy(IBookService.class);
		BookDTO bookInfo = bookService.getBookInfo(1);
		System.out.println(bookInfo);
	}
}

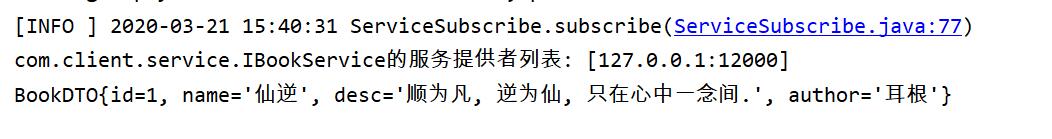

测试

(1) 先修改注册中心的地址

复制代码

1
2
public static String host = "xxx.xx.xx.xxx:2181";

(2) Service

复制代码

public class BookDTO implements Serializable{

private static final long serialVersionUID = 1934175717377394706L;

private int id;
	private String name;
	private String desc;
	private String author;

public int getId() {
		return id;
	}

public void setId(int id) {
		this.id = id;
	}

public String getName() {
		return name;
	}

public void setName(String name) {
		this.name = name;
	}

public String getDesc() {
		return desc;
	}

public void setDesc(String desc) {
		this.desc = desc;
	}

public String getAuthor() {
		return author;
	}

public void setAuthor(String author) {
		this.author = author;
	}

@Override
	public String toString() {
		return "BookDTO{" +
				"id=" + id +
				", name='" + name + ''' +
				", desc='" + desc + ''' +
				", author='" + author + ''' +
				'}';
	}
}

public interface IBookService {
	BookDTO getBookInfo(int id);
}

public class BookServiceImpl implements IBookService {
	@Override
	public BookDTO getBookInfo(int id) {
		if (id == 1) {
			BookDTO bookDTO = new BookDTO();
			bookDTO.setId(1);
			bookDTO.setName("仙逆");
			bookDTO.setDesc("顺为凡, 逆为仙, 只在心中一念间.");
			bookDTO.setAuthor("耳根");
			return bookDTO;
		} else {
			return new BookDTO();
		}
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
public class BookDTO implements Serializable{

	private static final long serialVersionUID = 1934175717377394706L;

	private int id;
	private String name;
	private String desc;
	private String author;

	public int getId() {
		return id;
	}

	public void setId(int id) {
		this.id = id;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getDesc() {
		return desc;
	}

	public void setDesc(String desc) {
		this.desc = desc;
	}

	public String getAuthor() {
		return author;
	}

	public void setAuthor(String author) {
		this.author = author;
	}

	@Override
	public String toString() {
		return "BookDTO{" +
				"id=" + id +
				", name='" + name + ''' +
				", desc='" + desc + ''' +
				", author='" + author + ''' +
				'}';
	}
}

public interface IBookService {
	BookDTO getBookInfo(int id);
}

public class BookServiceImpl implements IBookService {
	@Override
	public BookDTO getBookInfo(int id) {
		if (id == 1) {
			BookDTO bookDTO = new BookDTO();
			bookDTO.setId(1);
			bookDTO.setName("仙逆");
			bookDTO.setDesc("顺为凡, 逆为仙, 只在心中一念间.");
			bookDTO.setAuthor("耳根");
			return bookDTO;
		} else {
			return new BookDTO();
		}
	}
}
